EN(H6DO)(diag)-9

Electrical Component Location

ENGINE (DIAGNOSTICS)

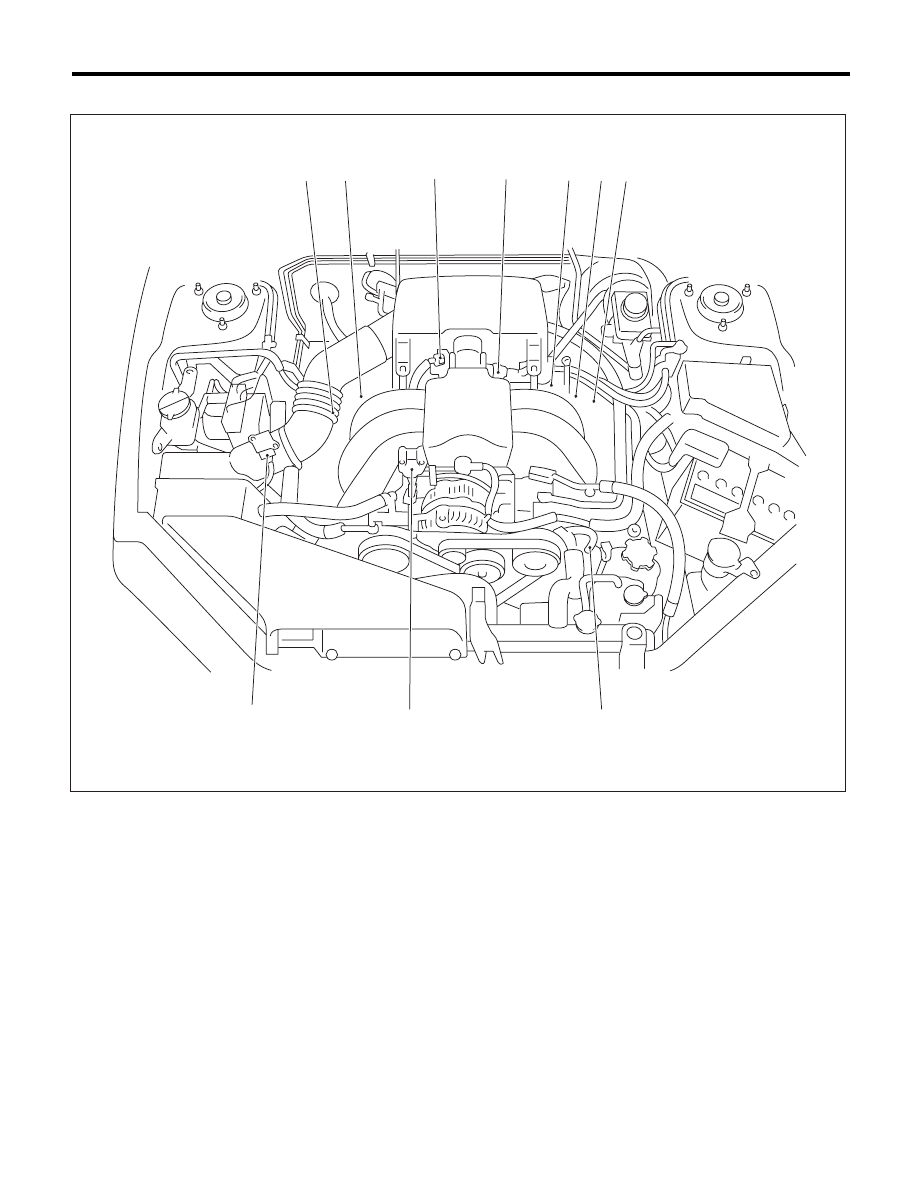

2. SENSOR

(1)

Mass air flow and intake air tem-
perature sensor

(3)

Engine coolant temperature sensor

(6)

Camshaft position sensor

(4)

Electronic throttle control

(7)

Crankshaft position sensor

(2)

Manifold absolute pressure sensor

(5)

Knock sensor

(8)

Oil temperature sensor

EN-02478

(1)

(2)

(3)

(5)

(4)

(7)

(5)

(6) (8)

(6)

EN(H6DO)(diag)-10

Electrical Component Location

ENGINE (DIAGNOSTICS)

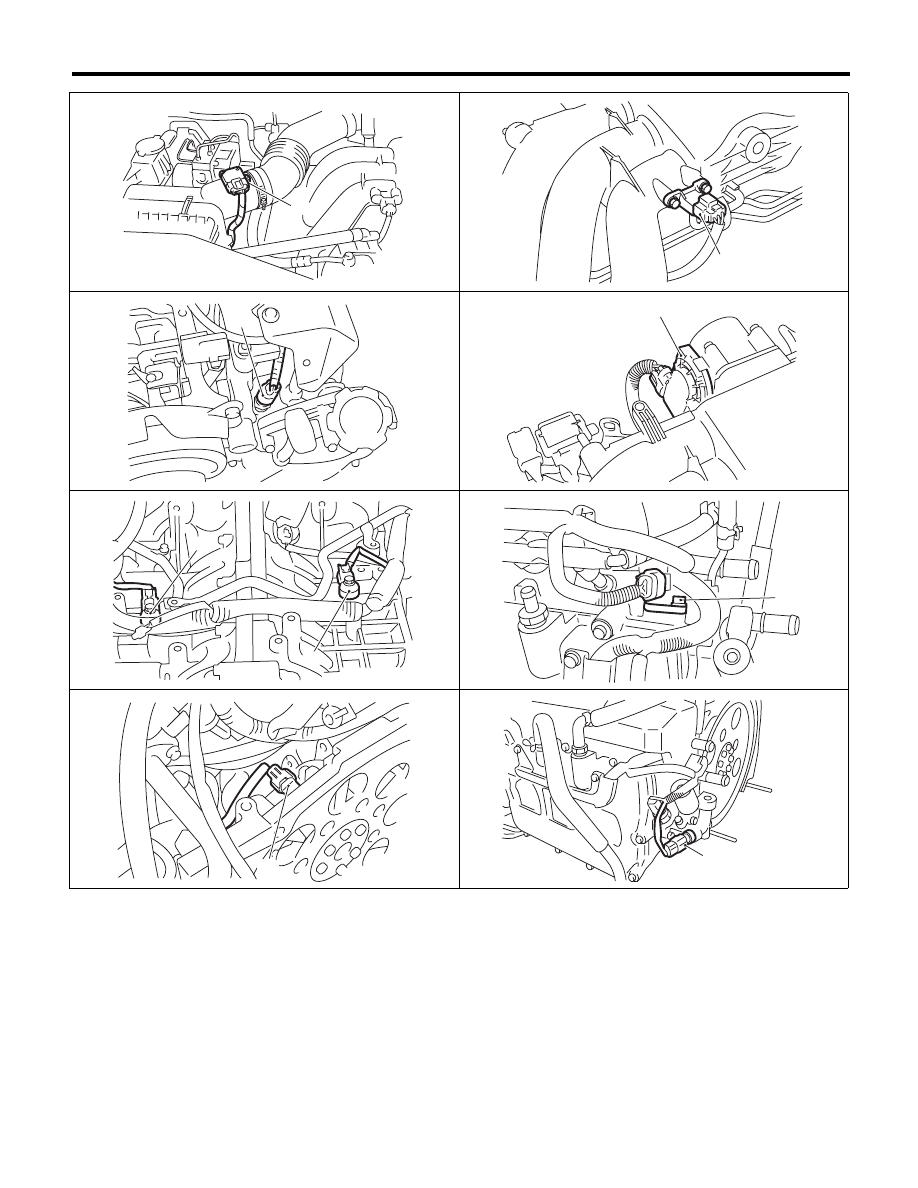

EN-02479

(1)

EN-02535

(2)

(3)

EN-00895

EN-02536

(4)

(5)

(5)

EN-00897

EN-02537

(6)

(7)

EN-00899

EN-02538

(8)

EN(H6DO)(diag)-11

Electrical Component Location

ENGINE (DIAGNOSTICS)

(1)

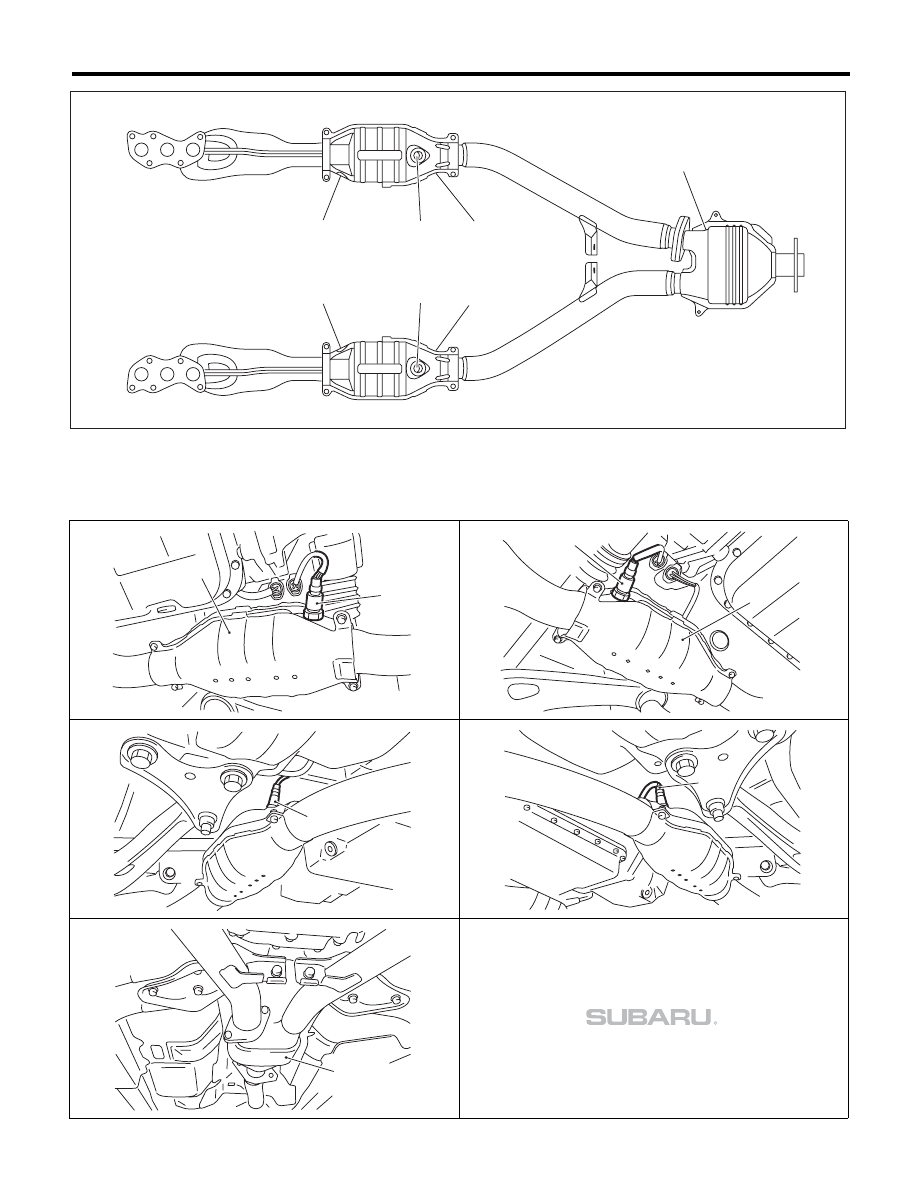

Front oxygen (A/F) sensor LH

(4)

Rear oxygen sensor RH

(6)

Front catalytic converter RH

(2)

Front oxygen (A/F) sensor RH

(5)

Front catalytic converter LH

(7)

Rear catalytic converter

(3)

Rear oxygen sensor LH









EN-02480

(2)

(1)

(3)

(4)

(6)

(7)

(5)

EN-02539

(5)

(1)

EN-02540

(2)

(6)

EN-02541

(3)

EN-02542

(4)

(7)

EN-02543

EN(H6DO)(diag)-12

Electrical Component Location

ENGINE (DIAGNOSTICS)

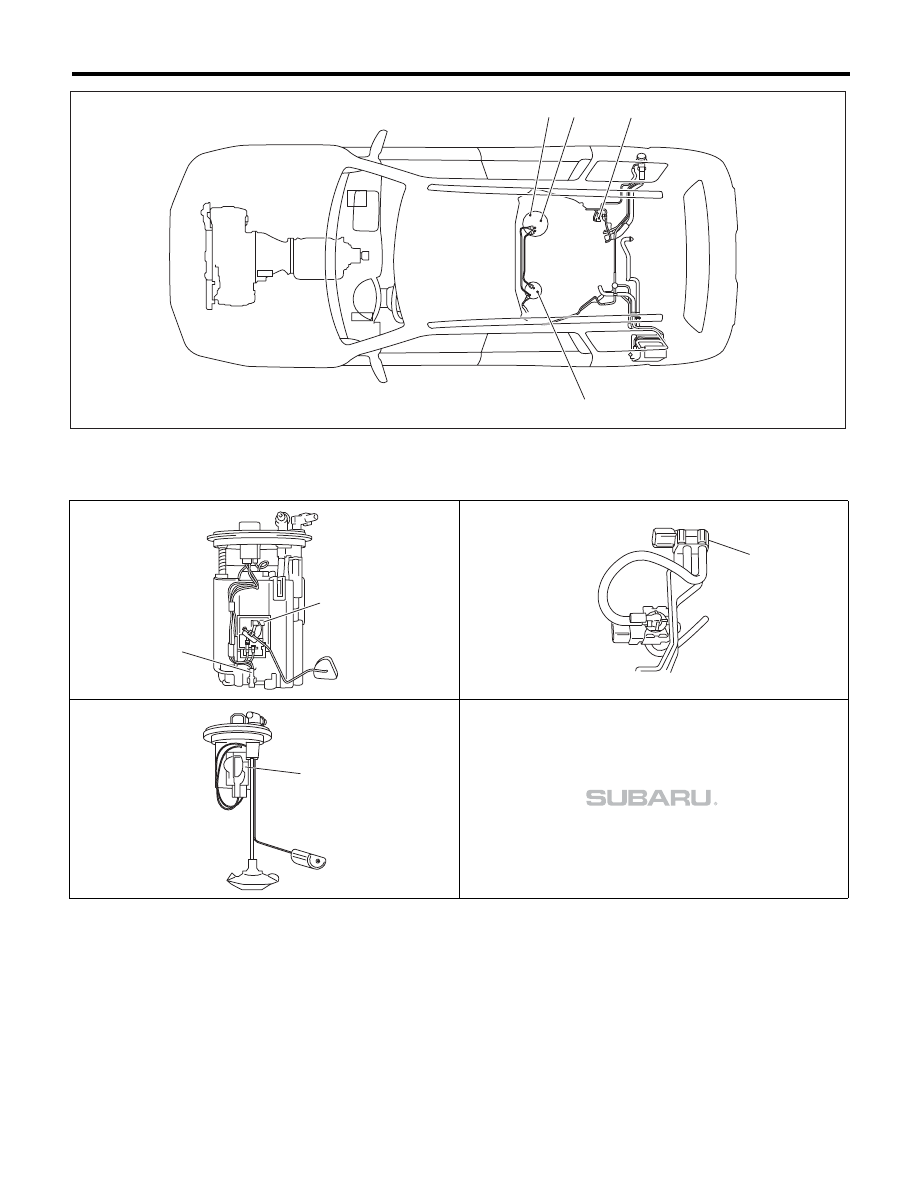

(1)

Fuel level sensor

(3)

Fuel tank pressure sensor

(4)

Fuel sub level sensor

(2)

Fuel

temperature

sensor





(1)

(4)

EN-05723

(2)

(3)

EN-05725

(2)

(1)

EN-03003

(3)

EN-03132

(4)
