ME(H6DO)-54

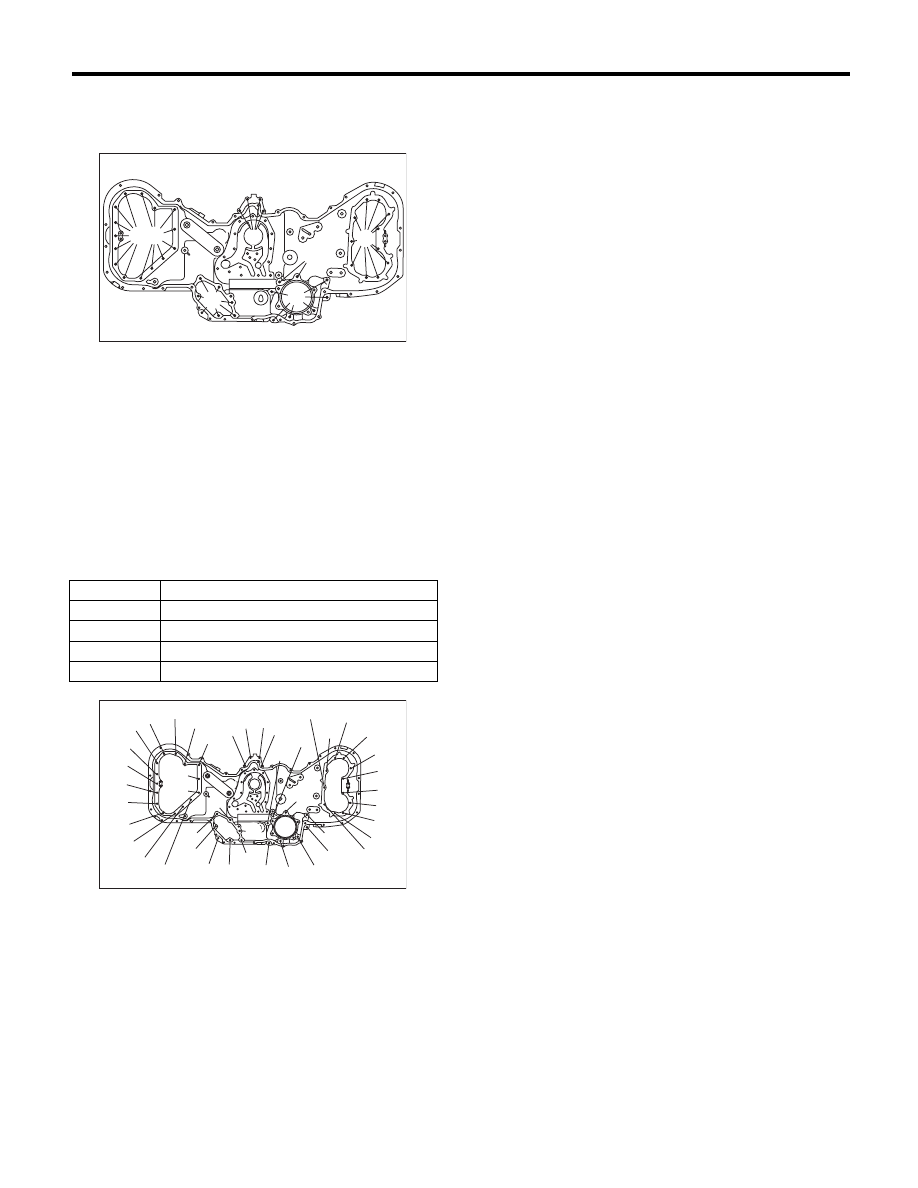

Rear Chain Cover

MECHANICAL

5) Temporarily tighten the rear chain cover.

NOTE:
Do not install the bolts in wrong place.

6) Tighten the bolts in the numerical order as
shown in the figure.

Tightening torque:

7) Install the water pump. <Ref. to CO(H6DO)-12,
INSTALLATION, Water Pump.>
8) Install the oil pump. <Ref. to LU(H6DO)-9, IN-
STALLATION, Oil Pump.>
9) Install the crank sprocket. <Ref. to ME(H6DO)-
52, INSTALLATION, Crank Sprocket.>
10) Install the cam sprocket. <Ref. to ME(H6DO)-
51, INSTALLATION, Cam Sprocket.>
11) Install the timing chain. <Ref. to ME(H6DO)-47,
INSTALLATION, Timing Chain Assembly.>

12) Install the front chain cover. <Ref. to
ME(H6DO)-44, INSTALLATION, Front Chain Cov-
er.>
13) Install the crank pulley. <Ref. to ME(H6DO)-43,
INSTALLATION, Crank Pulley.>
14) Install the V-belts. <Ref. to ME(H6DO)-42, IN-
STALLATION, V-belt.>

(A) M6 × 14

(B) M6 × 18 (Silver)

(C) M6 × 30

(D) M6 × 18

(E) M8 × 40

(F) M8 × 30

(G) M6 × 22

(1) — (11)

9 N·m (0.9 kgf-m, 6.6 ft-lb)

(12) — (19)

20 N·m (2.0 kgf-m, 14.8 ft-lb)

(20) — (30)

9 N·m (0.9 kgf-m, 6.6 ft-lb)

(31) — (38)

12 N·m (1.2 kgf-m, 8.9 ft-lb)

(39) — (45)

9 N·m (0.9 kgf-m, 6.6 ft-lb)

ME-02048

(F)

(C)

(D)

(E)

(G)

(A) (B)

ME-02051

(15)

(14)

(26)

(27)

(13)

(25)

(24)

(23)

(22)

(21)

(20)

(16)

(17)

(12)

(19)

(30)

(18)

(4)

(3)

(2)

(1)

(33)

(8)

(9)

(10)

(11)

(32)

(31)

(45)

(44)

(43)

(42)

(41)

(40)

(39)

(38)

(37)

(36)

(5)

(6)

(7)

(29)

(28)

(35)

(34)

ME(H6DO)-55

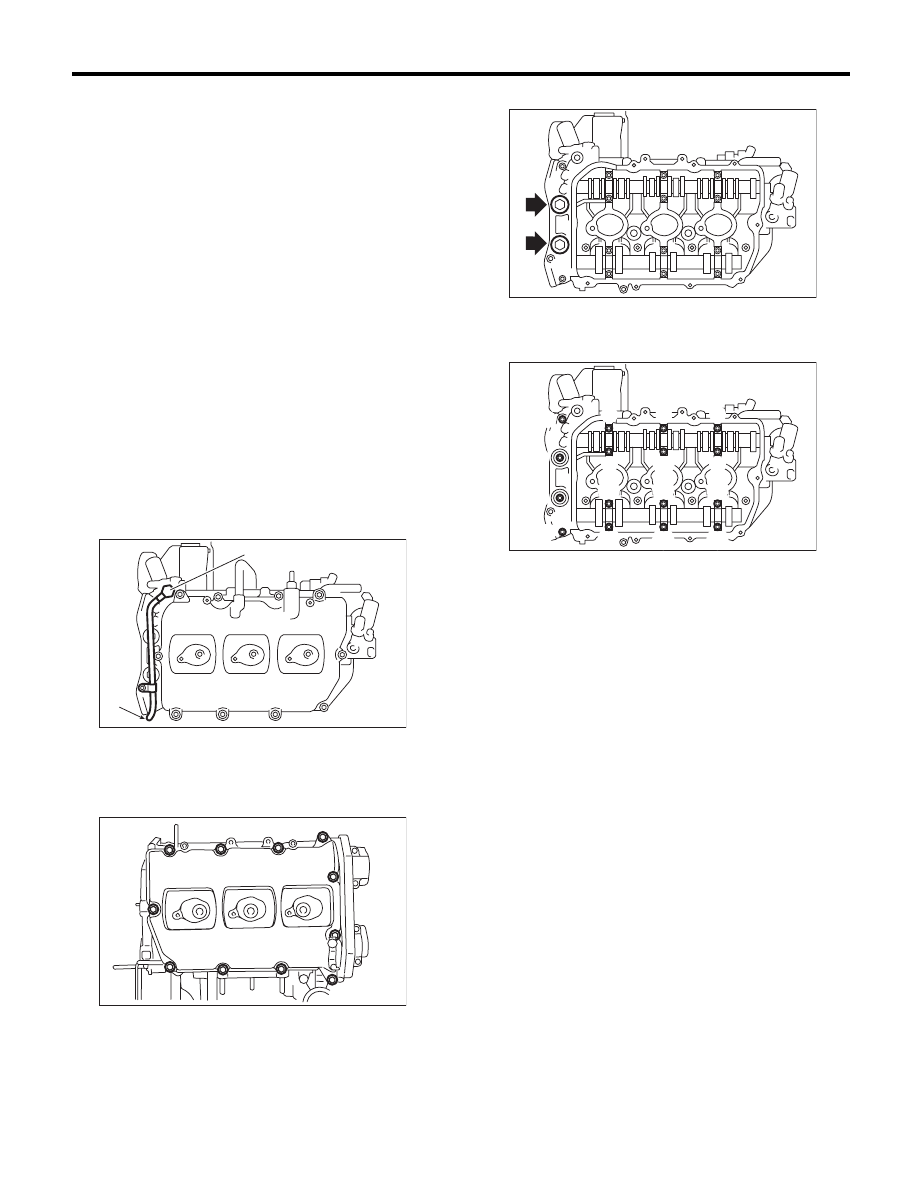

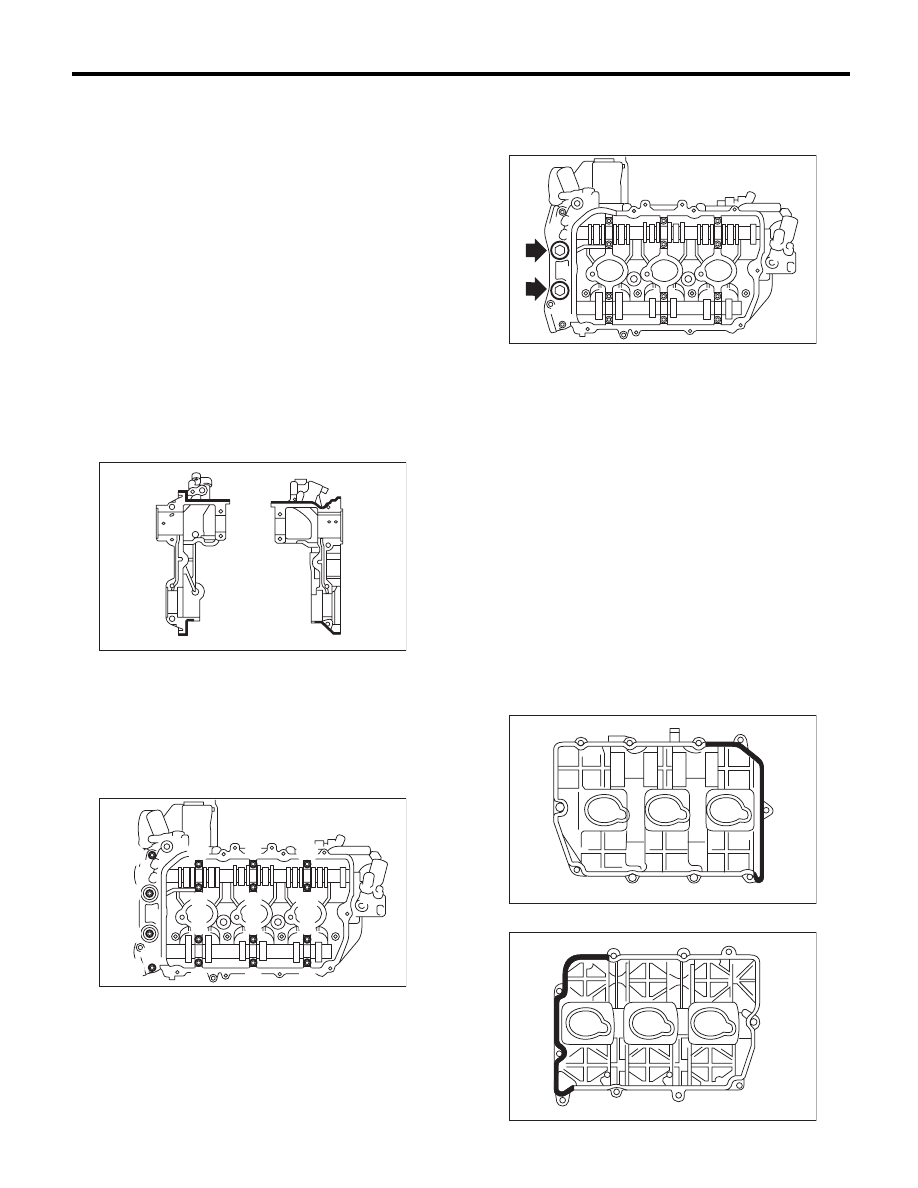

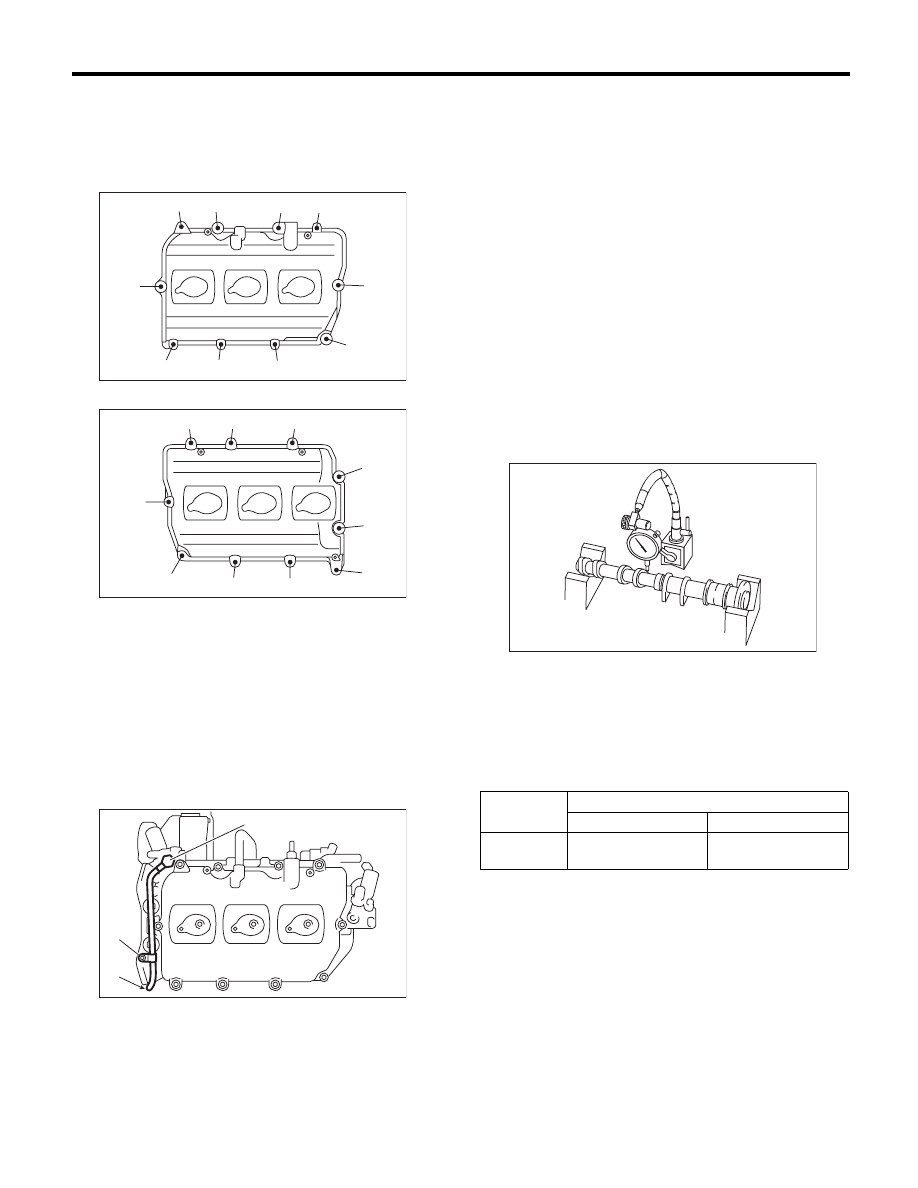

Camshaft

MECHANICAL

19.Camshaft

A: REMOVAL

NOTE:
When replacing the single part, perform the work
with the engine installed to body. Refer to “Valve
Clearance” for preparation procedures. <Ref. to
ME(H6DO)-28, Valve Clearance.>
1) Remove the V-belts. <Ref. to ME(H6DO)-42,
REMOVAL, V-belt.>
2) Remove the crank pulley. <Ref. to ME(H6DO)-
43, REMOVAL, Crank Pulley.>
3) Remove the front chain cover. <Ref. to
ME(H6DO)-44, REMOVAL, Front Chain Cover.>
4) Remove the timing chain assembly. <Ref. to
ME(H6DO)-46, REMOVAL, Timing Chain Assem-
bly.>
5) Remove the cam sprocket. <Ref. to ME(H6DO)-
51, REMOVAL, Cam Sprocket.>
6) Remove the crank sprocket. <Ref. to
ME(H6DO)-52, REMOVAL, Crank Sprocket.>
7) Remove the rear chain cover. <Ref. to
ME(H6DO)-53, REMOVAL, Rear Chain Cover.>
8) Disconnect the oil pipe.

9) Remove the rocker cover (LH).

10) Remove the plugs (LH).

11) Loosen the camshaft cap bolts equally, a little
at a time in numerical sequence shown in the fig-
ure.

12) Remove the camshaft caps and camshaft (LH).

NOTE:
Arrange camshaft caps in order so that they can be
installed in their original positions.
13) Similarly, remove the camshaft (RH) and relat-
ed parts.

(A) Bolt without filter (without protrusion)

(B) Bolt with filter (with protrusion)

ME-02513

(A)

(B)

ME-00529

ME-02055

ME-02054

(1)

(2)

(8)

(7)

(9)

(3)

(4)

(5)

(6)

(10)

(11)

(13)

(14)

(12)

(15)

(16)

ME(H6DO)-56

Camshaft

MECHANICAL

B: INSTALLATION

1) Apply engine oil to camshaft journals, and install
the camshaft.
2) Install the camshaft cap.

(1) Apply liquid gasket sparingly to back side of
front camshaft cap as shown in the figure.

CAUTION:
Do not apply liquid gasket excessively. Apply-
ing excessively may cause excess gasket to
flow toward cam journal, resulting in engine
seizure.

NOTE:
Install within 5 minutes after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100)
or equivalent

Applying liquid gasket diameter:

2.0

r

0.5 mm (0.079

r

0.020 in)

(2) Apply engine oil to cap bearing surface, and
install the cap to camshaft.
(3) Tighten the rocker cover bolts in the numer-
ical order as shown in the figure.

Tightening torque:

(1) — (12): 16 N·m (1.6 kgf-m, 11.8 ft-lb)
(13) — (16): 9.75 N·m (1.0 kgf-m, 7.2 ft-lb)

3) Install the plugs.

Tightening torque:

60 N·m (6.1 kgf-m, 44.3 ft-lb)

4) Install the rocker cover.

(1) Install the rocker cover gasket to the rocker
cover.

NOTE:
Use a new rocker cover gasket.

(2) Apply liquid gasket sparingly to the mating
surface of cylinder head and rocker cover as
shown in the figure.

CAUTION:
Do not apply liquid gasket excessively. Applying
excessively may cause excess gasket to flow to-
ward cam journal, resulting in engine seizure.

NOTE:
Install within 5 minutes after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100)
or equivalent

• LH  side

• RH side

ME-02057

ME-02058

(1)

(2)

(8)

(7)

(9)

(3)

(4)

(5)

(6)

(10)

(11)

(13)

(14)

(15)

(16)

(12)

ME-02055

ME-03940

ME-03941

ME(H6DO)-57

Camshaft

MECHANICAL

(3) Tighten the rocker cover bolts in the numer-
ical order as shown in the figure.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

• LH  side

• RH  side

5) Connect the oil pipe.

NOTE:
• Be careful not to mistake the location of (A) and
(B).
• Use a new gasket.

Tightening torque:

(A), (B)

29 N·m (3.0 kgf-m, 21.4 ft-lb)

(C)

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

6) Install the rear chain cover. <Ref. to ME(H6DO)-
53, INSTALLATION, Rear Chain Cover.>

7) Install the crank sprocket. <Ref. to ME(H6DO)-
52, INSTALLATION, Crank Sprocket.>
8) Install the cam sprocket. <Ref. to ME(H6DO)-51,
INSTALLATION, Cam Sprocket.>
9) Install the timing chain assembly. <Ref. to
ME(H6DO)-47, INSTALLATION, Timing Chain As-
sembly.>
10) Install the front chain cover. <Ref. to
ME(H6DO)-44, INSTALLATION, Front Chain Cov-
er.>
11) Install the crank pulley. <Ref. to ME(H6DO)-43,
INSTALLATION, Crank Pulley.>
12) Install the V-belts. <Ref. to ME(H6DO)-42, IN-
STALLATION, V-belt.>

C: INSPECTION

1) Measure the bend of camshaft. Repair or re-
place if bended.

Service limit:

0.020 mm (0.00079 in)

2) Check the journal for damage and wear. Re-
place if faulty.
3) Check the cutout portion used for camshaft sen-
sor for damage. Replace if faulty.
4) Measure the outside diameter of camshaft jour-
nal. If the journal diameter is not within specifica-
tion, check the oil clearance.

5) Measurement of the camshaft journal oil clear-
ance:

(1) Clean the camshaft cap and cylinder head
camshaft journal.
(2) Place the camshaft on the cylinder head.
(Do not attach the valve rockers.)
(3) Place a plastigauge across each camshaft
journals.
(4) Install the camshaft cap.

NOTE:
Do not turn the camshaft.

(5) Remove the camshaft cap.

(A) Bolt without filter (without protrusion)

(B) Bolt with filter (with protrusion)

(C) Oil pipe bolt

ME-02061

(2)

(7)

(3)

(1)

(10)

(6)

(8)

(4)

(5)

(9)

ME-03105

(8)

(1)

(3)

(5)

(7)

(9)

(2)

(4)

(6)

(10)

ME-02567

(A)

(C)

(B)

 Camshaft

journal

Front

Except for front

Standard

mm (in)

37.946 — 37.963

(1.4939 — 1.4946)

25.946 — 25.963

(1.0215 — 1.0222)

ME-00539
