Subaru Legacy IV (2008 year). Manual - part 476





ME(H6DO)-30

Valve Clearance

MECHANICAL

B: ADJUSTMENT

1. INTAKE SIDE

NOTE:
• Adjustment of valve clearance should be per-
formed while engine is cold.
• Do not wear gloves during removal and installa-
tion of valve lifter.
• Do not use valve lifters that were dropped or oth-
erwise exposed to strong impacts.
• When installing the valve lifter, align the anti-ro-
tation of valve lifter with groove on cylinder head,
and insert the valve lifter.
1) Measure all the valve clearances. <Ref. to
ME(H6DO)-28, INSPECTION, Valve Clearance.>

NOTE:
Record each valve clearance after measurement.
2) Remove the timing chain assembly. <Ref. to
ME(H6DO)-46, REMOVAL, Timing Chain Assem-
bly.>
3) Remove the cam sprocket. <Ref. to ME(H6DO)-
51, REMOVAL, Cam Sprocket.>
4) Remove the camshaft. <Ref. to ME(H6DO)-55,
REMOVAL, Camshaft.>
5) Remove the valve lifter.
6) Remove the shim from valve lifter.
7) Check the thickness of the shim from the mark-
ings on the side of the shim that was removed.
8) Select a shim of suitable thickness from the fol-
lowing table using the measured valve clearance
and shim thickness, and install it.

Unit: mm (in)

S = (V + T) – 0.20 (0.0079)

S: Required shim thickness
V: Measured valve clearance
T: Shim thickness to be used

Part No.

Thickness mm (in)

13218AK890

1.92 (0.0756)

13218AK900

1.94 (0.0764)

13218AK910

1.96 (0.0772)

13218AK920

1.98 (0.0780)

13218AK930

2.00 (0.0787)

13218AK940

2.02 (0.0795)

13218AK950

2.04 (0.0803)

13218AK960

2.06 (0.0811)

13218AK970

2.07 (0.0815)

13218AK980

2.08 (0.0819)

13218AK990

2.09 (0.0823)

13218AL000

2.10 (0.0827)

13218AL010

2.11 (0.0831)

13218AL020

2.12 (0.0835)

13218AL030

2.13 (0.0839)

13218AL040

2.14 (0.0843)

13218AL050

2.15 (0.0846)

13218AL060

2.16 (0.0850)

13218AL070

2.17 (0.0854)

13218AL080

2.18 (0.0858)

13218AL090

2.19 (0.0862)

13218AL100

2.20 (0.0866)

13218AL110

2.21 (0.0870)

13218AL120

2.22 (0.0874)

13218AL130

2.23 (0.0878)

13218AL140

2.24 (0.0882)

13218AL150

2.25 (0.0886)

13218AL160

2.26 (0.0890)

13218AL170

2.27 (0.0894)

13218AL180

2.28 (0.0898)

13218AL190

2.29 (0.0902)

13218AL200

2.30 (0.0906)

13218AL210

2.31 (0.0909)

13218AL220

2.32 (0.0913)

13218AL230

2.33 (0.0917)

13218AL240

2.34 (0.0921)

13218AL250

2.35 (0.0925)

13218AL260

2.36 (0.0929)

13218AL270

2.37 (0.0933)

13218AL280

2.38 (0.0937)

13218AL290

2.39 (0.0941)

13218AL300

2.40 (0.0945)

13218AL310

2.41 (0.0949)

13218AL320

2.42 (0.0953)

13218AL330

2.43 (0.0957)

13218AL340

2.44 (0.0961)

13218AL350

2.45 (0.0965)

13218AL360

2.46 (0.0969)

13218AL370

2.47 (0.0972)

13218AL380

2.48 (0.0976)

ME(H6DO)-31

Valve Clearance

MECHANICAL

9) Install the camshaft. <Ref. to ME(H6DO)-56, IN-
STALLATION, Camshaft.>
10) Install the cam sprocket. <Ref. to ME(H6DO)-
51, INSTALLATION, Cam Sprocket.>
11) Install the timing chain assembly. <Ref. to
ME(H6DO)-47, INSTALLATION, Timing Chain As-
sembly.>
12) Measure all valve clearance again at this time.
If the valve clearance is not correct, repeat the pro-
cedure over again from the first step.
13) After measuring, install the related parts in the
reverse order of removal.

NOTE:
Use a new rocker cover gasket.

2. EXHAUST SIDE

NOTE:
• Adjustment of valve clearance should be per-
formed while engine is cold.
• Do not wear gloves during removal and installa-
tion of valve lifter.
• Do not use valve lifters that were dropped or oth-
erwise exposed to strong impacts.
1) Measure all the valve clearances. <Ref. to
ME(H6DO)-28, INSPECTION, Valve Clearance.>

NOTE:
Record each valve clearance after measurement.
2) Remove the camshaft. <Ref. to ME(H6DO)-55,
REMOVAL, Camshaft.>
3) Remove the valve lifter.

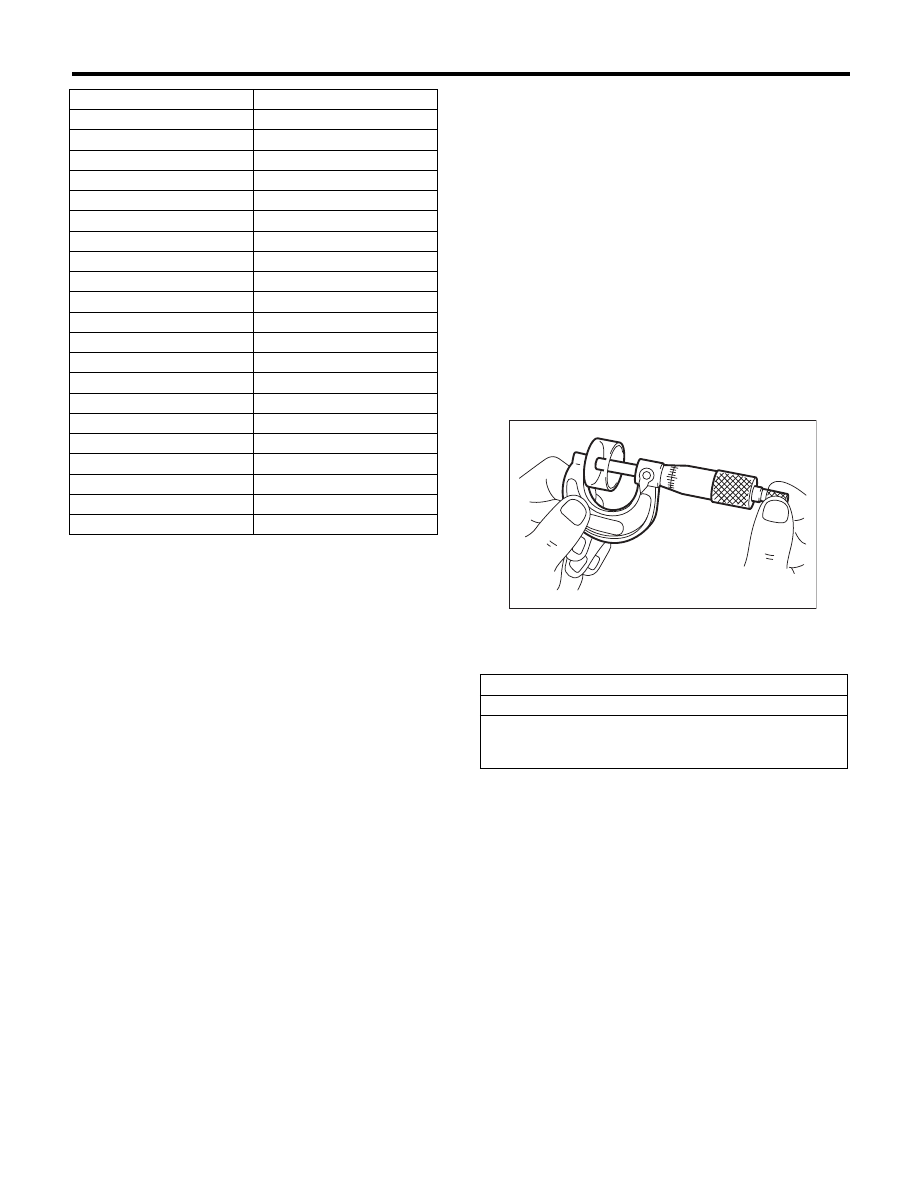

4) Measure the thickness of valve lifter using mi-
crometer.

5) Select a valve lifter of suitable thickness from the
following table using the measured valve clearance
and valve lifter thickness, and install it.

13218AL390

2.49 (0.0980)

13218AL400

2.50 (0.0984)

13218AL410

2.51 (0.0988)

13218AL420

2.52 (0.0992)

13218AL430

2.53 (0.0996)

13218AL440

2.54 (0.1000)

13218AL450

2.55 (0.1004)

13218AL460

2.56 (0.1008)

13218AL470

2.57 (0.1012)

13218AL480

2.58 (0.1016)

13218AL490

2.59 (0.1020)

13218AL500

2.60 (0.1024)

13218AL510

2.61 (0.1028)

13218AL520

2.62 (0.1032)

13218AL530

2.64 (0.1039)

13218AL540

2.66 (0.1047)

13218AL550

2.68 (0.1055)

13218AL560

2.70 (0.1063)

13218AL570

2.72 (0.1071)

13218AL580

2.74 (0.1079)

13218AL590

2.76 (0.1087)

Part No.

Thickness mm (in)

Unit: mm (in)

S = (V + T) – 0.35 (0.0138)

S: Valve lifter thickness required
V: Measured valve clearance
T: Valve lifter thickness to be used

ME-00025

ME(H6DO)-32

Valve Clearance

MECHANICAL

Part No.

Thickness mm (in)

13228AD181

4.32 (0.1701)

13228AD191

4.34 (0.1709)

13228AD201

4.36 (0.1717)

13228AD211

4.38 (0.1724)

13228AD221

4.40 (0.1732)

13228AD231

4.42 (0.1740)

13228AD241

4.44 (0.1748)

13228AD251

4.46 (0.1756)

13228AD261

4.48 (0.1764)

13228AD271

4.50 (0.1772)

13228AD281

4.52 (0.1780)

13228AD291

4.54 (0.1787)

13228AD301

4.56 (0.1795)

13228AD311

4.58 (0.1803)

13228AD321

4.60 (0.1811)

13228AC581

4.62 (0.1819)

13228AC591

4.63 (0.1823)

13228AC601

4.64 (0.1827)

13228AC611

4.65 (0.1831)

13228AC621

4.66 (0.1835)

13228AC631

4.67 (0.1839)

13228AC641

4.68 (0.1843)

13228AC651

4.69 (0.1846)

13228AC661

4.70 (0.1850)

13228AC671

4.71 (0.1854)

13228AC681

4.72 (0.1858)

13228AC691

4.73 (0.1862)

13228AC701

4.74 (0.1866)

13228AC711

4.75 (0.1870)

13228AC721

4.76 (0.1874)

13228AC731

4.77 (0.1878)

13228AC741

4.78 (0.1882)

13228AC751

4.79 (0.1886)

13228AC761

4.80 (0.1890)

13228AC771

4.81 (0.1894)

13228AC781

4.82 (0.1898)

13228AC791

4.83 (0.1902)

13228AC801

4.84 (0.1906)

13228AC811

4.85 (0.1909)

13228AC821

4.86 (0.1913)

13228AC831

4.87 (0.1917)

13228AC841

4.88 (0.1921)

13228AC851

4.89 (0.1925)

13228AC861

4.90 (0.1929)

13228AC871

4.91 (0.1933)

13228AC881

4.92 (0.1937)

13228AC891

4.93 (0.1941)

13228AC901

4.94 (0.1945)

13228AC911

4.95 (0.1949)

13228AC921

4.96 (0.1953)

13228AC931

4.97 (0.1957)

13228AC941

4.98 (0.1961)

13228AC951

4.99 (0.1965)

13228AC961

5.00 (0.1969)

13228AC971

5.01 (0.1972)

13228AC981

5.02 (0.1976)

13228AC991

5.03 (0.1980)

13228AD001

5.04 (0.1984)

13228AD011

5.05 (0.1988)

13228AD021

5.06 (0.1992)

13228AD031

5.07 (0.1996)

13228AD041

5.08 (0.2000)

13228AD051

5.09 (0.2004)

13228AD061

5.10 (0.2008)

13228AD071

5.11 (0.2012)

13228AD081

5.12 (0.2016)

13228AD091

5.13 (0.2020)

13228AD101

5.14 (0.2024)

13228AD111

5.15 (0.2028)

13228AD121

5.16 (0.2032)

13228AD131

5.17 (0.2035)

13228AD141

5.18 (0.2039)

13228AD151

5.19 (0.2043)

13228AD161

5.20 (0.2047)

13228AD171

5.21 (0.2051)

13228AD331

5.23 (0.2059)

13228AD341

5.25 (0.2067)

13228AD351

5.27 (0.2075)

13228AD361

5.29 (0.2083)

13228AD371

5.31 (0.2091)

13228AD381

5.33 (0.2098)

13228AD391

5.35 (0.2106)

13228AD401

5.37 (0.2114)

13228AD411

5.39 (0.2122)

13228AD421

5.41 (0.2130)

13228AD431

5.43 (0.2138)

13228AD441

5.45 (0.2146)

13228AD451

5.47 (0.2154)

13228AD461

5.49 (0.2161)

13228AD471

5.51 (0.2169)

13228AD481

5.53 (0.2177)

13228AD491

5.55 (0.2185)

13228AD501

5.57 (0.2193)

13228AD511

5.59 (0.2201)

Part No.

Thickness mm (in)

ME(H6DO)-33

Valve Clearance

MECHANICAL

6) Install the camshaft. <Ref. to ME(H6DO)-56, IN-
STALLATION, Camshaft.>
7) Install the cam sprocket. <Ref. to ME(H6DO)-51,
INSTALLATION, Cam Sprocket.>
8) Install the timing chain assembly. <Ref. to
ME(H6DO)-47, INSTALLATION, Timing Chain As-
sembly.>
9) Measure all valve clearance again at this time. If
the valve clearance is not correct, repeat the proce-
dure over again from the first step.
10) After measuring, install the related parts in the
reverse order of removal.

NOTE:
Use a new rocker cover gasket.
