Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

DR:DTC P2022 INTAKE MANIFOLD RUNNER POSITION SENSOR / SWITCH

CIRCUIT HIGH (BANK 2)

1. OUTLINE OF DIAGNOSIS

Detect open or short circuit of tumble generator valve position sensor.
Judge as NG if out of specification.

2. COMPONENT DESCRIPTION

3. ENABLE CONDITION

4. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 500 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: Less than 1 second

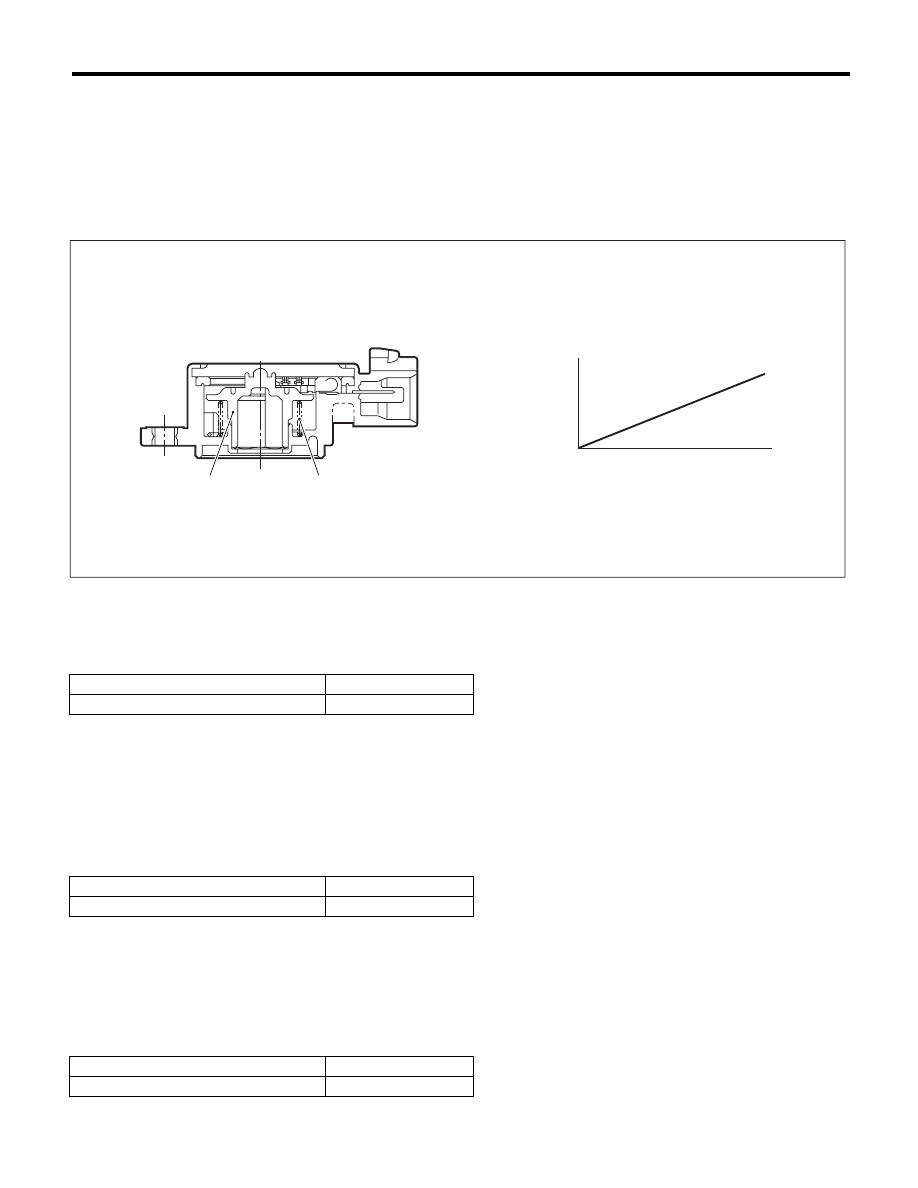

(1)

Rotor

(3)

Voltage (V)

(4)

Tumble generator valve opening (°)

(2)

Return

spring





Secondary Parameters

Enable Conditions

None



Judgement Value

Malfunction Criteria

Threshold Value

Output voltage

t 4.783 V

Judgement Value

Malfunction Criteria

Threshold Value

Output voltage

< 4.783 V

EN-01768

(3)

(4)

(1)

(2)

GD(H4DOTC)-199

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

DS:DTC P2088 INTAKE CAMSHAFT POSITION ACTUATOR CONTROL CIRCUIT

LOW (BANK 1)

1. OUTLINE OF DIAGNOSIS

Detect open or short circuit of the oil flow control solenoid valve.
Judge as NG when the current is small even though the duty signal is large.

2. ENABLE CONDITION

3. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

4. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 2000 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: 2000 ms

Secondary Parameters

Enable Conditions

None



Judgement Value

Malfunction Criteria

Threshold Value

Battery voltage

t 10.9 V

Oil flow control solenoid valve control
duty

t 99.61 %

Oil control solenoid valve control present
current

< 0.306 A

Judgement Value

Malfunction Criteria

Threshold Value

Battery voltage

t 10.9 V

Target current value of the oil flow control
solenoid valve

t 0.14 A

|Target current value of the oil flow con-
trol solenoid valve – Oil flow control sole-
noid valve control current value|

< 0.08 A

GD(H4DOTC)-200

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

DT:DTC P2089 INTAKE CAMSHAFT POSITION ACTUATOR CONTROL CIRCUIT

HIGH (BANK 1)

1. OUTLINE OF DIAGNOSIS

Detect open or short circuit of oil flow control solenoid valve.
Judge as NG when the current is large even though the duty signal is small.

2. ENABLE CONDITION

3. GENERAL DRIVING CYCLE

Always perform the diagnosis continuously.

4. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 2000 ms
Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: 2000 ms

Secondary Parameters

Enable Conditions

None



Judgement Value

Malfunction Criteria

Threshold Value

Battery voltage

t 10.9 V

Oil flow control solenoid valve control
duty

< 0.39 %

Oil control solenoid valve control present
current

t 0.306 A

Judgement Value

Malfunction Criteria

Threshold Value

Battery voltage

t 10.9 V

|Target current value of the oil flow con-
trol solenoid valve – Oil flow control sole-
noid valve control current value|

< 0.08 A

GD(H4DOTC)-201

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

DU:DTC P2092 INTAKE CAMSHAFT POSITION ACTUATOR CONTROL CIRCUIT

LOW (BANK 2)

1. OUTLINE OF DIAGNOSIS

NOTE:
For the detection standard, refer to DTC P2088. <Ref. to GD(H4DOTC)-199, DTC P2088 INTAKE CAM-
SHAFT POSITION ACTUATOR CONTROL CIRCUIT LOW (BANK 1), Diagnostic Trouble Code (DTC) De-
tecting Criteria.>

DV:DTC P2093 INTAKE CAMSHAFT POSITION ACTUATOR CONTROL CIRCUIT

HIGH (BANK 2)

1. OUTLINE OF DIAGNOSIS

NOTE:
For the detection standard, refer to DTC P2089. <Ref. to GD(H4DOTC)-200, DTC P2089 INTAKE CAM-
SHAFT POSITION ACTUATOR CONTROL CIRCUIT HIGH (BANK 1), Diagnostic Trouble Code (DTC) De-
tecting Criteria.>
