EN(H4DOTC)(diag)-149

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

AH:DTC P0171 SYSTEM TOO LEAN (BANK 1)

Refer to DTC P0172 for diagnostic procedure. <Ref. to EN(H4DOTC)(diag)-150, DTC P0172 SYSTEM TOO
RICH (BANK 1), Diagnostic Procedure with Diagnostic Trouble Code (DTC).>

CHECK HARNESS BETWEEN ECM AND
REAR OXYGEN SENSOR.
1) Turn the ignition switch to OFF.
2) Disconnect the connector from rear oxygen
sensor.
3) Turn the ignition switch to ON.
4) Measure the voltage between rear oxygen
sensor connector and chassis ground.

Connector & terminal

(T6) No. 3 (+) — Chassis ground (–):

Is the voltage 0.2 — 0.5 V?

Replace the rear
oxygen sensor.
<Ref. to
FU(H4DOTC)-48,
Rear Oxygen Sen-
sor.>

Repair the harness
and connector.

NOTE:
In this case, repair
the following item:
• Open circuit of
harness between
the ECM and rear
oxygen sensor
• Poor contact of
the rear oxygen
sensor connector
• Poor contact in
ECM connector

CHECK EXHAUST SYSTEM.
Check exhaust system parts.

NOTE:
Check the following items.
• Looseness and improper attachment of ex-
haust system parts
• Damage (crack, hole etc.) of parts
• Looseness and improper attachment of parts
between front oxygen (A/F) sensor and rear ox-
ygen sensor

Is there any fault in exhaust
system?

Repair or replace
faulty parts.

Replace the rear
oxygen sensor.
<Ref. to
FU(H4DOTC)-48,
Rear Oxygen Sen-
sor.>

Step

Check

Yes

EN(H4DOTC)(diag)-150

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

AI: DTC P0172 SYSTEM TOO RICH (BANK 1)

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H4DOTC)-66, DTC P0172 SYSTEM TOO RICH (BANK 1), Diag-
nostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Improper idling
• Engine stalls.
• Poor driving performance

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4DOTC)(diag)-
52, OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4DOTC)(diag)-43, PRO-
CEDURE, Inspection Mode.>.

Step

Check

Yes

CHECK EXHAUST SYSTEM.

Are there holes or loose bolts
on exhaust system?

Repair the exhaust
system.

Go to step 2.

CHECK AIR INTAKE SYSTEM.

Are there holes, loose bolts or
disconnection of hose on air
intake system?

Repair the air
intake system.

Go to step 3.

CHECK FUEL PRESSURE.

WARNING:
Place “NO OPEN FLAMES” signs near the
working area.

CAUTION:
Be careful not to spill fuel.
Measure the fuel pressure while disconnecting
pressure regulator vacuum hose from intake
manifold. <Ref. to ME(H4DOTC)-25, INSPEC-
TION, Fuel Pressure.>

CAUTION:
Release fuel pressure before removing the
fuel pressure gauge.

NOTE:
If fuel pressure does not increase, squeeze the
fuel return hose 2 to 3 times, then measure fuel
pressure again.

Is the measured value 284 —
314 kPa (2.9 — 3.2 kg/cm

41 — 46 psi)?

Go to step 4.

Repair the follow-
ing item.
Fuel pressure is
too high:
• Clogged fuel
return line or bent
hose
Fuel pressure is
too low:
• Improper fuel
pump discharge
• Clogged fuel
supply line

CHECK FUEL PRESSURE.
After connecting the pressure regulator vacuum
hose, measure fuel pressure. <Ref. to
ME(H4DOTC)-25, INSPECTION, Fuel Pres-
sure.>

CAUTION:
Release fuel pressure before removing the
fuel pressure gauge.

NOTE:
• If fuel pressure does not increase, squeeze
fuel return hose 2 to 3 times, then measure fuel
pressure again.
• If the measured value at this step is out of
specification, check or replace pressure regula-
tor and pressure regulator vacuum hose.

Is the measured value 230 —
260 kPa (2.35 — 2.65 kg/cm

33 — 38 psi)?

Go to step 5.

Repair the follow-
ing item.
Fuel pressure is
too high:
• Faulty pressure
regulator
• Clogged fuel
return line or bent
hose
Fuel pressure is
too low:
• Faulty pressure
regulator
• Improper fuel
pump discharge
• Clogged fuel
supply line

EN(H4DOTC)(diag)-151

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

CHECK ENGINE COOLANT TEMPERATURE
SENSOR.
1) Start the engine and warm up completely.
2) Read the data of engine coolant tempera-
ture sensor signal using Subaru Select Monitor
or general scan tool.

NOTE:
• Subaru Select Monitor
For detailed operation procedure, refer to
“READ CURRENT DATA FOR ENGINE”. <Ref.
to EN(H4DOTC)(diag)-34, Subaru Select Moni-
tor.>
• General scan tool
For detailed operation procedures, refer to the
general scan tool operation manual.

Is the engine coolant tempera-
ture 75°C (167°F) or higher?

Go to step 6.

Replace the
engine coolant
temperature sen-
sor. <Ref. to
FU(H4DOTC)-31,
Engine Coolant
Temperature Sen-
sor.>

CHECK MASS AIR FLOW AND INTAKE AIR
TEMPERATURE SENSOR.
1) Start the engine and warm up engine until
coolant temperature is higher than 75°C (167°F).
2) For AT models, set the select lever to “P”
range or “N” range, and for MT models, place
the shift lever in the neutral position.
3) Turn the A/C switch to OFF.
4) Turn all the accessory switches to OFF.
5) Read the data of the mass air flow and
intake air temperature sensor signal using Sub-
aru Select Monitor or general scan tool.

Is the measured value 2.0 —
5.0 g/s (0.26 — 0.66 lb/m)?

Go to step 7.

Replace the mass
air flow and intake
air temperature
sensor. <Ref. to
FU(H4DOTC)-36,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>

CHECK MASS AIR FLOW AND INTAKE AIR
TEMPERATURE SENSOR.
1) Start the engine and warm up engine until
coolant temperature is higher than 75°C (167°F).
2) For AT models, set the select lever to “P”
range or “N” range, and for MT models, place
the shift lever in the neutral position.
3) Turn the A/C switch to OFF.
4) Turn all the accessory switches to OFF.
5) Open the front hood.
6) Measure the ambient temperature.
7) Read the data of the mass air flow and
intake air temperature sensor signal using Sub-
aru Select Monitor or general scan tool.

Subtract ambient temperature
from intake air temperature. Is
the obtained value –10 — 50°C
(–18 — 90°F)?

Repair the poor
contact of ECM
connector.

Check the mass air
flow and intake air
temperature sen-
sor.
<Ref. to
FU(H4DOTC)-36,
Mass Air Flow and
Intake Air Temper-
ature Sensor.>

Step

Check

Yes

EN(H4DOTC)(diag)-152

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

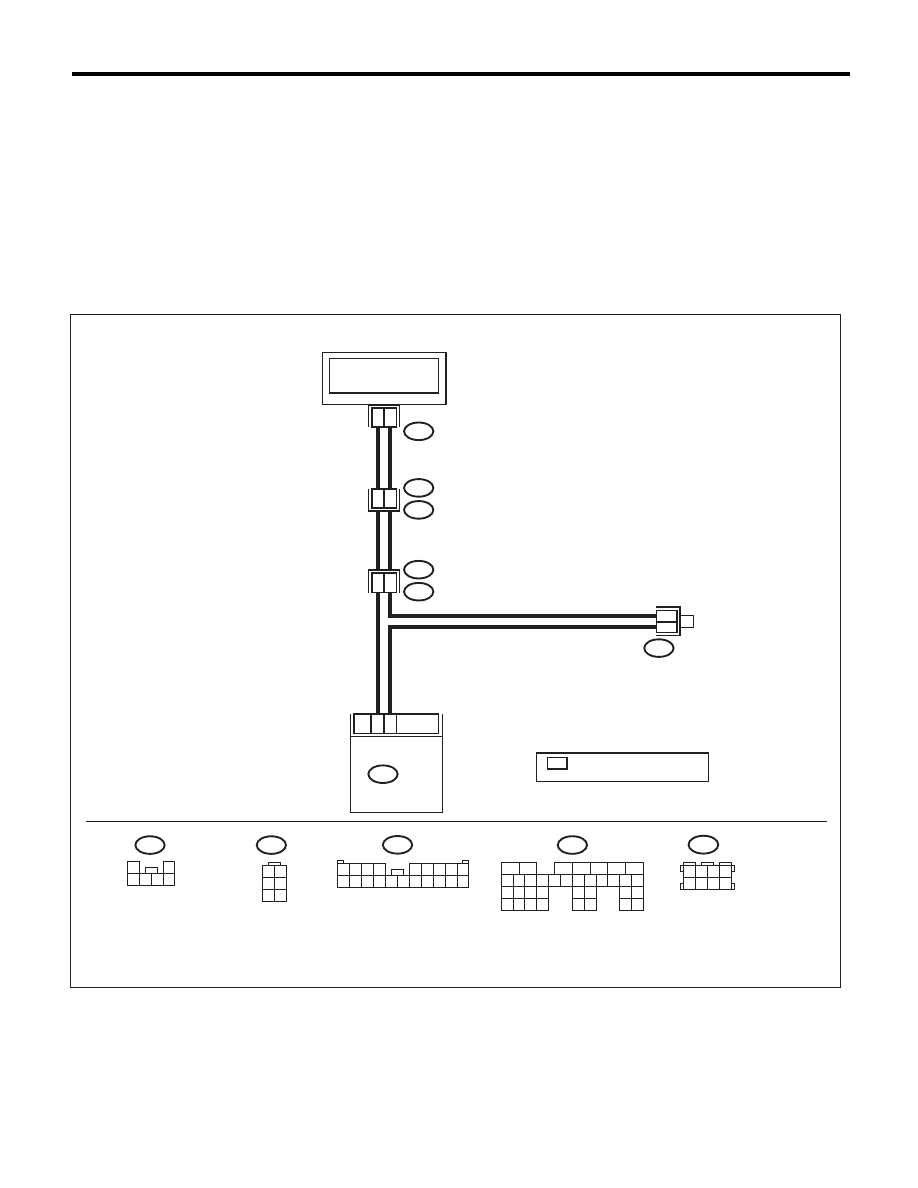

AJ:DTC P0181 FUEL TEMPERATURE SENSOR “A” CIRCUIT RANGE/

PERFORMANCE

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H4DOTC)-67, DTC P0181 FUEL TEMPERATURE SENSOR “A”
CIRCUIT RANGE/PERFORMANCE, Diagnostic Trouble Code (DTC) Detecting Criteria.>

EN-03923

B83

ECM

B135

R58

R67

R46

B97

R67

R58

B135

B83

FUEL TEMPERATURE

SENSOR

FUEL TANK

3 4 5 6

1 2
3 4
5 6

1 2 3 4

5 6 7 8 9

10 11 12 13 14 15 16 17 18 19 20

3 4

5 6

1 2

7 8

:TERMINAL No. OPTIONAL
ARRANGEMENT

22 23

11 12 13 14 15

26 27

16 17 18 19

20 21

29 30 31

32 33

34 35
