EN(H4DOTC)(diag)-129

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

W: DTC P0125 INSUFFICIENT COOLANT TEMPERATURE FOR CLOSED LOOP

FUEL CONTROL

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H4DOTC)-40, DTC P0125 INSUFFICIENT COOLANT TEMPER-
ATURE FOR CLOSED LOOP FUEL CONTROL, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Engine does not return to idle.

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4DOTC)(diag)-
52, OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4DOTC)(diag)-43, PRO-
CEDURE, Inspection Mode.>.

Step

Check

Yes

No

1

CHECK TIRE SIZE.

Is the tire size as specified and
the same size as three other
wheels?

Go to step 2.

Replace the tire.

2

CHECK ENGINE COOLANT.
Check the following items:
• Amount of engine coolant
• Engine coolant freeze
• Contamination of engine coolant

Is the engine coolant normal?

Go to step 3.

Fill or replace the
engine coolant.
<Ref. to
CO(H4DOTC)-14,
REPLACEMENT,
Engine Coolant.>

3

CHECK THERMOSTAT.

Does the thermostat remain
opened?

Replace the ther-
mostat. <Ref. to
CO(H4DOTC)-18,
Thermostat.>

Replace the
engine coolant
temperature sen-
sor. <Ref. to
FU(H4DOTC)-31,
Engine Coolant
Temperature Sen-
sor.>

EN(H4DOTC)(diag)-130

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

X: DTC P0126 INSUFFICIENT ENGINE COOLANT TEMPERATURE FOR STABLE

OPERATION

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H4DOTC)-42, DTC P0126 INSUFFICIENT ENGINE COOLANT
TEMPERATURE FOR STABLE OPERATION, Diagnostic Trouble Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
• Hard to start
• Improper idling
• Poor driving performance

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4DOTC)(diag)-
52, OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4DOTC)(diag)-43, PRO-
CEDURE, Inspection Mode.>.

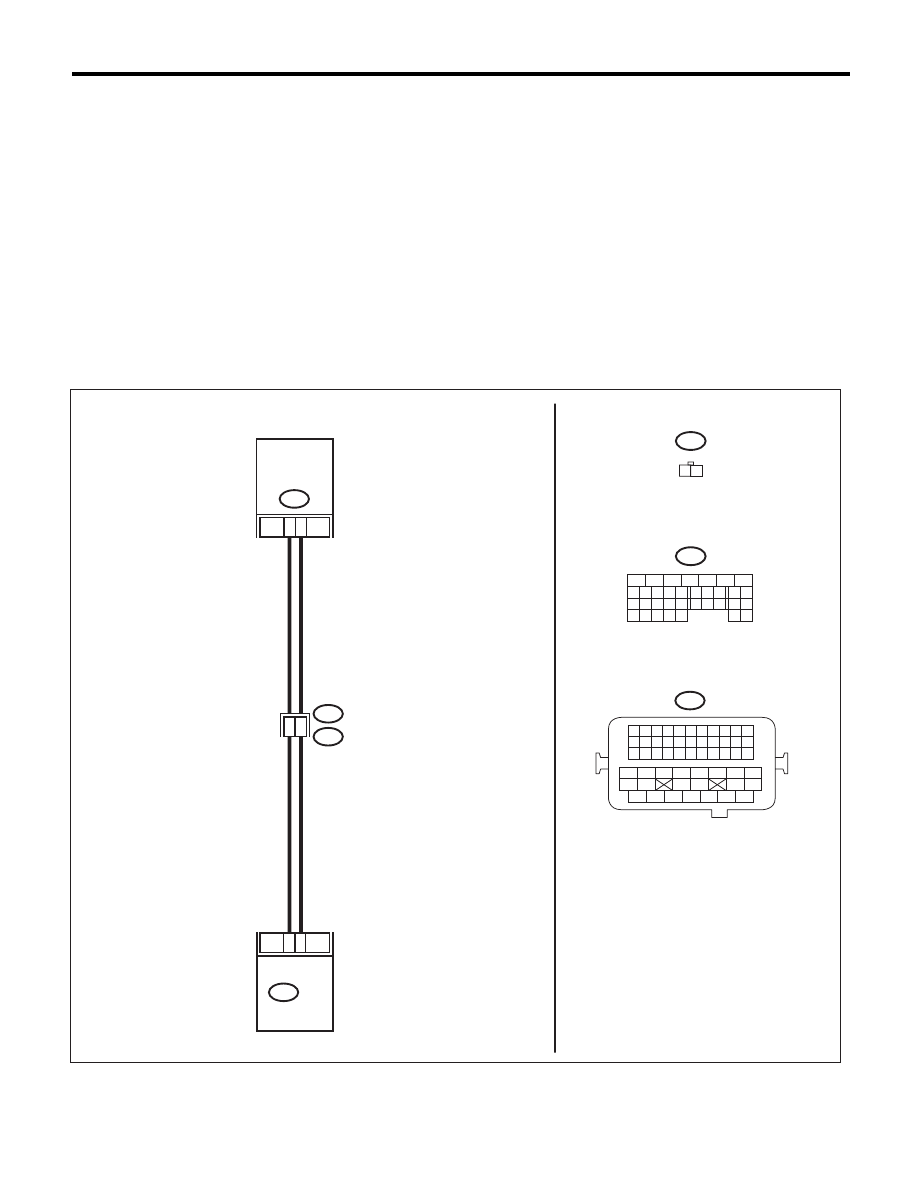

WIRING DIAGRAM:

EN-05672

B134

34

E8

2

1

12

6

E8

B134

B21

E2

B21

1 2 3 4

12 13 14 15

5 6 7 8

16 17 18 19

9 10 11

20 21 22

23 24 25 26 27 28 29 30 31 32 33

35

34

37

36

39

38

41

40

43

42

44

45

47

46

49

48

51

50

53

52

54

1 2

29

5

6

7

8

2

1

9

4

3

10

24

22 23

25

11 12 13 14 15

26 27

28

16 17

18 19 20 21

33 34

29

32

30 31

ENGINE

COOLANT

TEMPERATURE

SENSOR

ECM

EN(H4DOTC)(diag)-131

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Step

Check

Yes

No

1

CHECK ENGINE COOLANT TEMPERATURE
SENSOR.
Measure the resistance between engine cool-
ant temperature sensor terminals when the
engine coolant is cold and after warmed up.

Terminals

No. 1 — No. 2:

Is the resistance of engine cool-
ant temperature sensor differ-
ent between when engine
coolant is cold and after
warmed up?

Repair the poor
contact of ECM
connector.

Replace the
engine coolant
temperature sen-
sor. <Ref. to
FU(H4DOTC)-31,
Engine Coolant
Temperature Sen-
sor.>

EN(H4DOTC)(diag)-132

Diagnostic Procedure with Diagnostic Trouble Code (DTC)

ENGINE (DIAGNOSTICS)

Y: DTC P0128 COOLANT THERMOSTAT (ENGINE COOLANT TEMPERATURE

BELOW THERMOSTAT REGULATING TEMPERATURE)

DTC DETECTING CONDITION:
• Two consecutive driving cycles with fault
• GENERAL DESCRIPTION <Ref. to GD(H4DOTC)-44, DTC P0128 COOLANT THERMOSTAT (ENGINE
COOLANT TEMPERATURE BELOW THERMOSTAT REGULATING TEMPERATURE), Diagnostic Trouble
Code (DTC) Detecting Criteria.>
TROUBLE SYMPTOM:
Thermostat remains open.

CAUTION:
After repair or replacement of faulty parts, perform Clear Memory Mode <Ref. to EN(H4DOTC)(diag)-
52, OPERATION, Clear Memory Mode.>, and Inspection Mode <Ref. to EN(H4DOTC)(diag)-43, PRO-
CEDURE, Inspection Mode.>.

Step

Check

Yes

No

1

CHECK ENGINE COOLANT.

Are the coolant level and mix-
ture ratio of engine coolant to
anti-freeze solution correct?

Go to step 2.

Replace the
engine coolant.
<Ref. to
CO(H4DOTC)-14,
REPLACEMENT,
Engine Coolant.>

2

CHECK RADIATOR FAN.
1) Start the engine.
2) Check the radiator fan operation.

Does the radiator fan continu-
ously rotate for 3 minutes or
more during idling?

Repair radiator fan
circuit. <Ref. to
CO(H4DOTC)-25,
Radiator Main Fan
and Fan Motor.>
and <Ref. to
CO(H4DOTC)-27,
Radiator Sub Fan
and Fan Motor.>

Replace the ther-
mostat. <Ref. to
CO(H4DOTC)-18,
Thermostat.>
