EN(H4DOTC)(diag)-53
Compulsory Valve Operation Check Mode
ENGINE (DIAGNOSTICS)
14.Compulsory Valve Operation
Check Mode
A: OPERATION

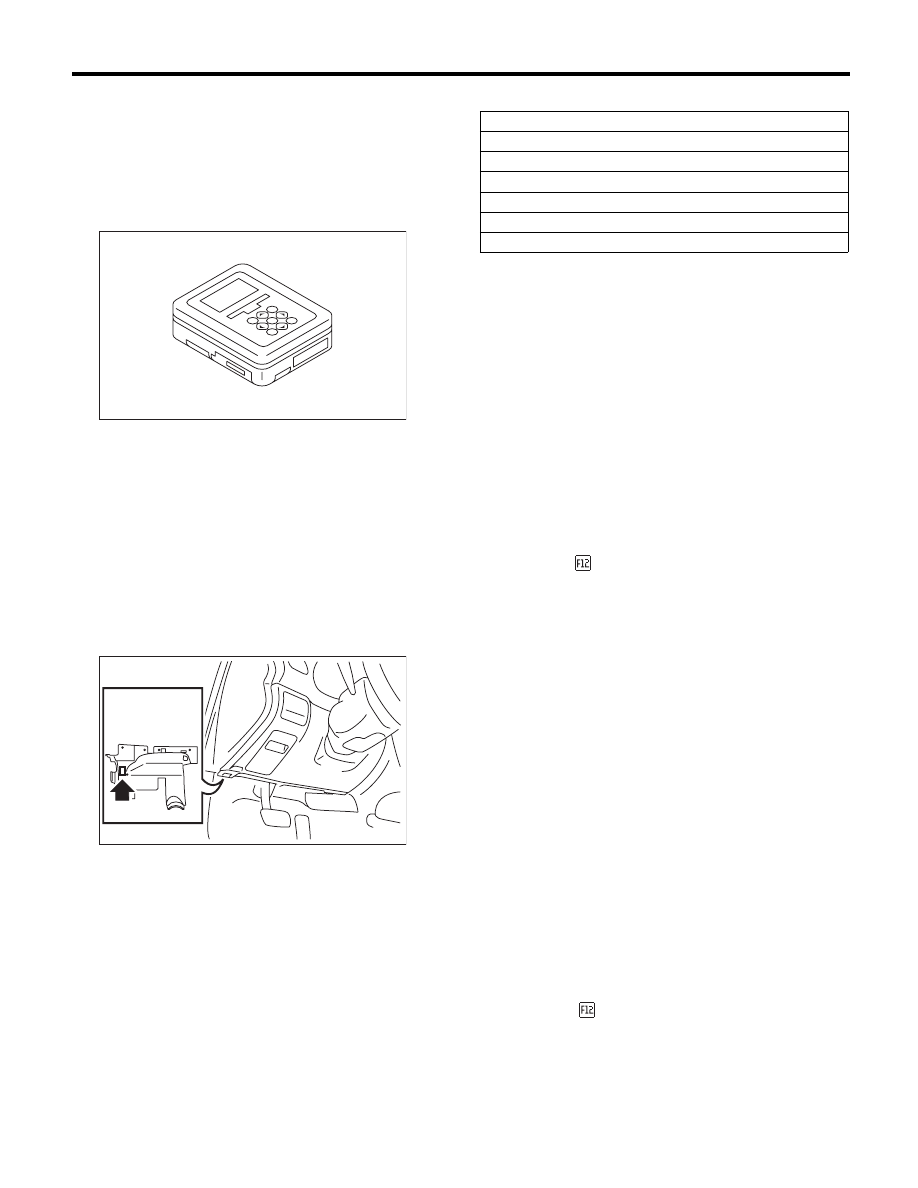

1) Prepare the Subaru Select Monitor kit. <Ref. to
EN(H4DOTC)(diag)-7, PREPARATION TOOL,
General Description.>
2) Prepare PC with Subaru Select Monitor in-
stalled.
3) Connect the USB cable between SDI (Subaru
Diagnosis Interface) and USB port on the personal
computer (dedicated port for the Subaru Select
Monitor).
NOTE:
The dedicated port for the Subaru Select Monitor
means the USB port which was used to install the
Subaru Select Monitor.
4) Connect the diagnosis cable to SDI.

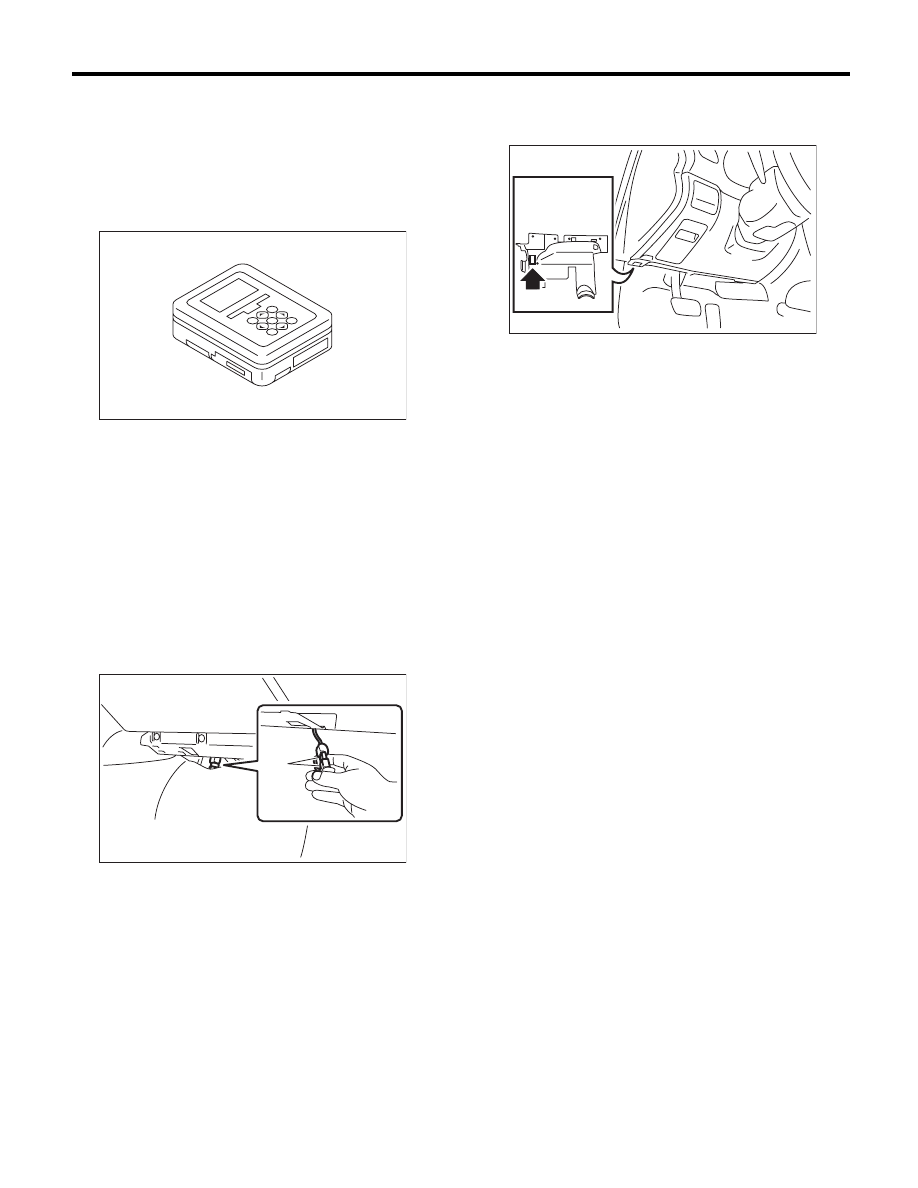

5) Connect the delivery (test) mode connector (A)
located under the glove box.
6) Connect SDI to data link connector located in the
lower portion of the instrument panel (on the driv-
er’s side).
CAUTION:
Do not connect the scan tools except for Suba-
ru Select Monitor and general scan tool.
7) Start the PC.
8) Turn the ignition switch to ON (engine OFF) and
run the “PC application for Subaru Select Monitor”.
9) On the «Main Menu» display screen, select the
{Each System Check}.
10) On the «System Selection Menu» display
screen, select the {Engine Control System}.
11) Click the [OK] button after the information of
engine type has been displayed.
12) On the «Engine Diagnosis» display screen, se-
lect the {System Operation Check Mode}.
13) On the «System Operation Check Mode» dis-
play screen, select the {Actuator ON/OFF Dr.}.
14) Select the desired compulsory actuator on the
«Actuator ON/OFF Operation» display screen and
click the [Next] button.
EN-05692
PI-00201
(A)
EN-02533
