EN(H4DOTC)(diag)-33

General Scan Tool

ENGINE (DIAGNOSTICS)

7. MODE $07

Refer to the data of DTC (pending code) for troubleshooting result about emission in the first time.

8. MODE $09

Refer to the data of vehicle specification (V.I.N., calibration ID, etc.).

EN(H4DOTC)(diag)-34

Subaru Select Monitor

ENGINE (DIAGNOSTICS)

9. Subaru Select Monitor

A: OPERATION

1. HOW TO USE THE SUBARU SELECT
MONITOR

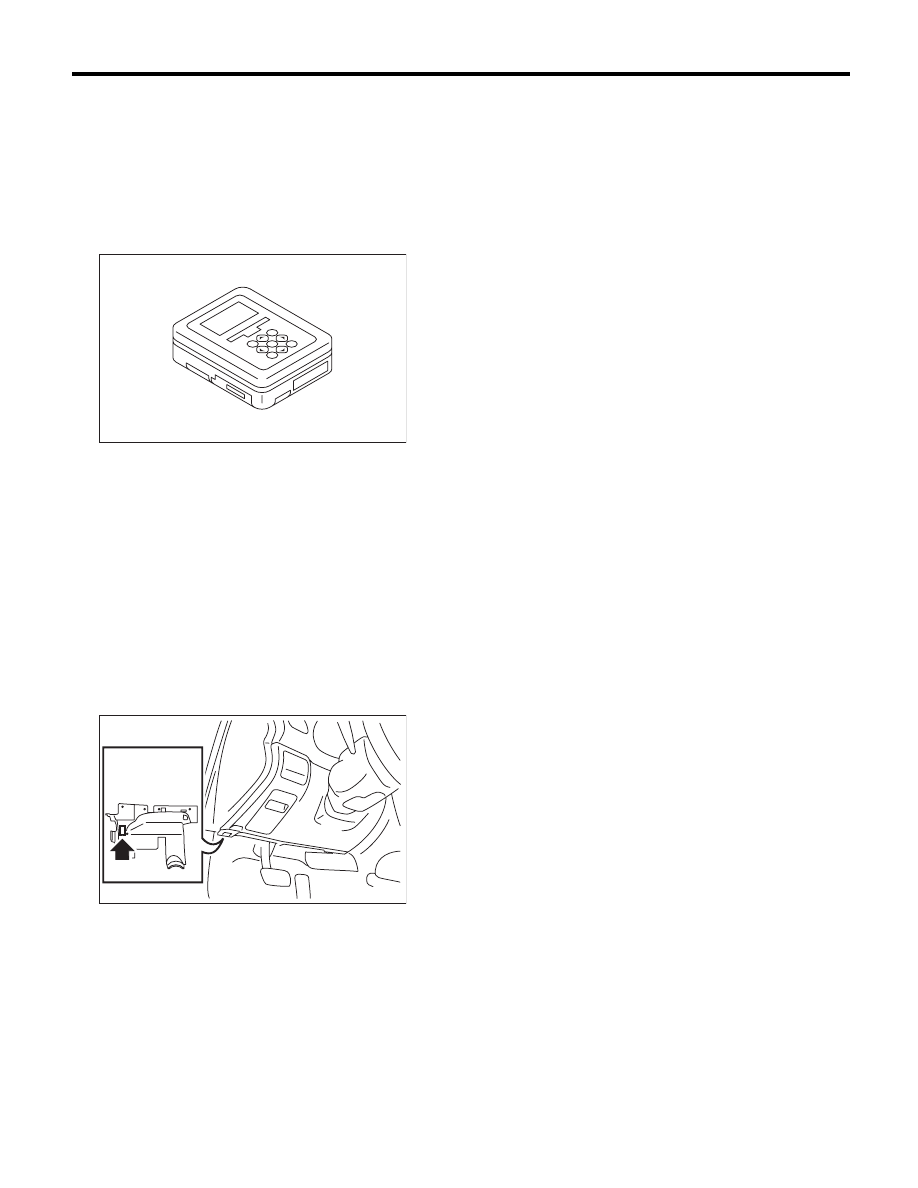

1) Prepare the Subaru Select Monitor kit. <Ref. to
EN(H4DOTC)(diag)-7, PREPARATION TOOL,
General Description.>

2) Prepare PC with Subaru Select Monitor in-
stalled.
3) Connect the USB cable between SDI (Subaru
Diagnosis Interface) and USB port on the personal
computer (dedicated port for the Subaru Select
Monitor).

NOTE:
The dedicated port for the Subaru Select Monitor
means the USB port which was used to install the
Subaru Select Monitor.
4) Connect the diagnosis cable to SDI.
5) Connect SDI to data link connector located in the
lower portion of the instrument panel (on the driv-
er’s side).

CAUTION:
Do not connect the scan tools except for Suba-
ru Select Monitor and general scan tool.
6) Start the PC.
7) Turn the ignition switch to ON (engine OFF) and
run the “PC application for Subaru Select Monitor”.
8) Call up DTC and data, then record them.

NOTE:
For detailed operation procedures, refer to the “PC
application help for Subaru Select Monitor”.

EN-05692

EN-02533

EN(H4DOTC)(diag)-35

Subaru Select Monitor

ENGINE (DIAGNOSTICS)

2. READ CURRENT DATA FOR ENGINE (NORMAL MODE)

1) On the «Main Menu» display screen, select the {Each System Check}.
2) On the «System Selection Menu» display screen, select the {Engine Control System}.
3) Click the [OK] button after the information of engine type has been displayed.
4) On the «Engine Diagnosis» display screen, select the {Current Data Display & Save}.
5) On the «Current Data Display & Save» display screen, select the {Normal sampling}.
6) Using the scroll key, scroll the display screen up or down until the desired data is shown.
• A list of the support data is shown in the following table.

Contents

Display

Unit of measure

Note (at idling)

Engine Load

21.0%

Engine coolant temperature signal

Coolant Temp.

°C or °F

80 — 100°C or

176 — 212°F

A/F correction 1

A/F Correction #1

–10 — +10%

A/F learning 1

A/F Learning #1

–15 — +15%

Intake manifold absolute pressure

Mani. Absolute Pressure

mmHg, kPa,

inHg or psig

220 — 275 mmHg,

29.5 — 37 kPa,

8.7 — 10 inHg or

4.2 — 5.3 psig

Engine speed signal

Engine Speed

rpm

630 — 770 rpm

(Agree with the tachome-

ter indication)

Meter vehicle speed signal

Vehicle Speed

km/h or MPH

0 km/h or 0 MPH

(at parking)

Ignition timing signal

Ignition Timing

deg

10 — 15 deg

Intake air temperature signal

Intake Air Temp.

°C or °F

20 — 50°C or

68 — 122°F

Intake air amount

Mass Air Flow

g/s or lb/m

2.1 — 3.1 g/s or

0.35 — 0.40 lb/m

Throttle opening angle signal

Throttle Opening Angle

2.0 — 2.4%

Rear oxygen sensor voltage

Rear O2 Sensor

0 — 1.0 V

Battery voltage

Battery Voltage

12 — 15 V

Mass air flow voltage

Air Flow Sensor Voltage

1.0 — 1.7 V

Injection 1 pulse width

Fuel Injection #1 Pulse

1.2 — 2.2 ms

Atmospheric pressure

Atmosphere Pressure

mmHg, kPa,

inHg or psig

—

Intake manifold relative pressure

Mani. Relative Pressure

mmHg, kPa,

inHg or psig

(Intake manifold absolute

pressure — atmo-

spheric pressure)

Ignition timing learning value

Learned Ignition Timing

deg

0 deg

Acceleration opening angle signal

Accel. Opening Angle

0.0%

Fuel temperature signal

Fuel Temp.

°C or °F

+28°C or 82°F

Primary supercharged pressure control signal

Primary Control

0.0%

Purge control solenoid duty ratio

CPC Valve Duty Ratio

0 — 25%

Tumble generator valve RH opening signal

TGV Position Sensor R

0.81 V

Tumble generator valve LH opening signal

TGV Position Sensor L

0.81 V

Fuel pump duty ratio

Fuel Pump Duty

30 — 40%

AVCS advance angle amount RH

VVT Adv. Ang. Amount R

deg

5 deg

AVCS advance angle amount LH

VVT Adv. Ang. Amount L

deg

5 deg

Oil flow control solenoid valve duty RH (AVCS)

OCV Duty R

0 — 20%

Oil flow control solenoid valve duty LH (AVCS)

OCV Duty L

0 — 20%

Oil flow control solenoid valve current RH

OCV Current R

40 — 100 mA

Oil flow control solenoid valve current LH

OCV Current L

40 — 100 mA

A/F sensor current value 1

A/F Sensor #1 Current

–20 — 20 mA

EN(H4DOTC)(diag)-36

Subaru Select Monitor

ENGINE (DIAGNOSTICS)

A/F sensor resistance value 1

A/F Sensor #1 Resistance

27 — 35 mA

A/F sensor output lambda 1

A/F Sensor #1

—

1.0

A/F correction 3

A/F Correction #3

0.00%

A/F learning 3

A/F Learning #3

0.00%

SI drive mode

SI Drive mode

—

I, S or S#

Throttle motor duty

Throttle Motor Duty

–5%

Throttle power supply voltage

Throttle Motor Voltage

12 — 15 V

Sub throttle sensor voltage

Sub-Throttle Sensor

1.5 V

Main throttle sensor voltage

Main-Throttle Sensor

0.6 V

Sub accelerator sensor voltage

Sub-Accelerator Sensor

1.1 V

Main acceleration sensor voltage

Main-Accelerator Sensor

1.0 V

Secondary air supply piping pressure signal

Sec. Air Piping Pressure

mmHg, kPa,

inHg or psig

765 mmHg, 102 kPa,

30.1 inHg or 14.8 psig

Secondary airflow signal

Sec. Air Flow

g/s or lb/m

0.00 g/s or 0.00 lb/m

Memory vehicle speed

Memorized Cruise Speed

km/h or MPH

—

Fuel level sensor resistance

Fuel level resistance

4 — 96

Odd Meter

Odometer

—

#1 cylinder roughness monitor

Roughness Monitor #1

—

#2 cylinder roughness monitor

Roughness Monitor #2

—

#3 cylinder roughness monitor

Roughness Monitor #3

—

#4 cylinder roughness monitor

Roughness Monitor #4

—

Knock sensor correction

Knocking Correction

deg

0.0 deg

Fuel tank pressure signal

Fuel Tank Pressure

mmHg, kPa,

inHg or psig

+8.8 mmHg, +1.2 kPa,

+0.4 inHg or +0.2 psig

AT/MT identification terminal

AT Vehicle ID Signal

—

AT vehicle/MT vehicle

Delivery (test) mode terminal

Test Mode Signal

—

OFF

D check request flag

D-check Require Flag

—

OFF

Delivery (test) mode terminal

Delivery Mode Connector
(Test Mode Connector)

—

OFF

Neutral position switch signal

Neutral Position Switch

—

Soft idle switch signal

Idle Switch Signal

—

Ignition switch signal

Ignition Switch

—

Power steering switch signal

P/S Switch Signal

—

OFF input (When OFF)

Air conditioning switch signal

A/C Switch

—

OFF input (When OFF)

Starter switch signal

Starter Switch

—

OFF

Rear oxygen monitor

Rear O2 Rich Signal

—

Rich/Lean

Knocking signal

Knocking Signal

—

None

Crankshaft position sensor signal

Crankshaft Position Sig.

—

Camshaft position sensor signal

Camshaft Position Sig.

—

Rear defogger switch signal

Rear Defogger SW

—

OFF input (When OFF)

Blower fan switch signal

Blower Fan SW

—

OFF input (When OFF)

Light switch signal

Light Switch

—

OFF input (When OFF)

A/C middle pressure switch signal

A/C Mid Pressure Switch

—

OFF input (When OFF)

Air conditioner compressor relay output signal

A/C Compressor Signal

—

OFF output (when OFF)

Radiator fan relay 1 signal

Radiator Fan Relay #1

—

OFF output (when OFF)

Radiator fan relay 2 signal

Radiator Fan Relay #2

—

OFF output (when OFF)

PCV hose assembly diagnosis signal

Blow-by leak Connector

—

Connected

Pressure control solenoid valve signal

PCV Solenoid Valve

—

OFF output (when OFF)

Tumble generator valve output signal

TGV Output

—

None

Tumble generator valve driving signal

TGV Drive

—

Opening direction

Contents

Display

Unit of measure

Note (at idling)
