Subaru Legacy IV (2008 year). Manual - part 291

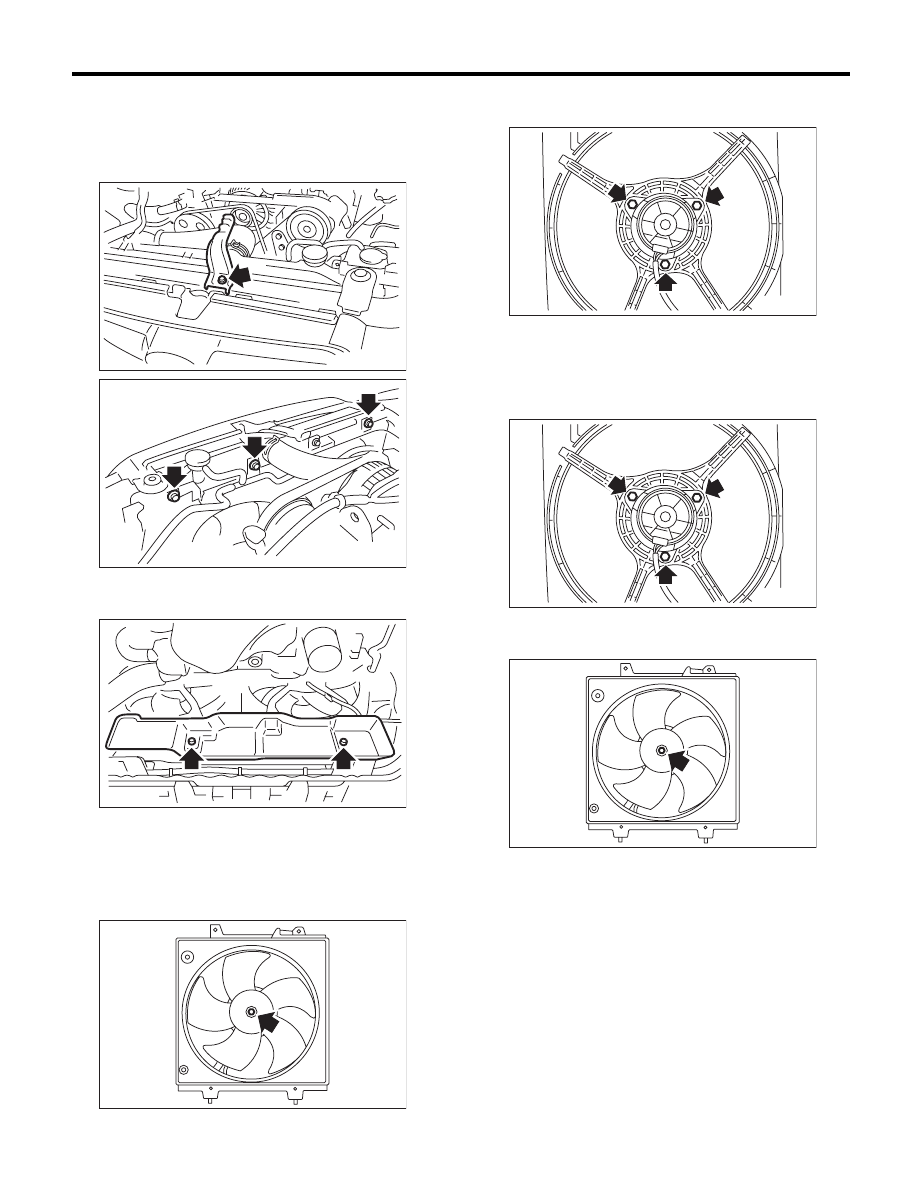

CO(H4DOTC)-26

Radiator Main Fan and Fan Motor

COOLING

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

Tightening torque:

3 N·m (0.3 kgf-m, 2.2 ft-lb)

C: DISASSEMBLY

1) Remove the clip holding the main fan motor con-
nector on the radiator main fan shroud.
2) Remove the nuts holding the radiator main fan to
the main fan motor.

3) Remove the bolts holding the main fan motor
onto the radiator main fan shroud.

D: ASSEMBLY

Assemble in the reverse order of disassembly.

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

Tightening torque:

3.4 N·m (0.3 kgf-m, 2.5 ft-lb)

CO-02493

CO-02494

CO-02355

CO-02142

CO-00098

CO-00098

CO-02142

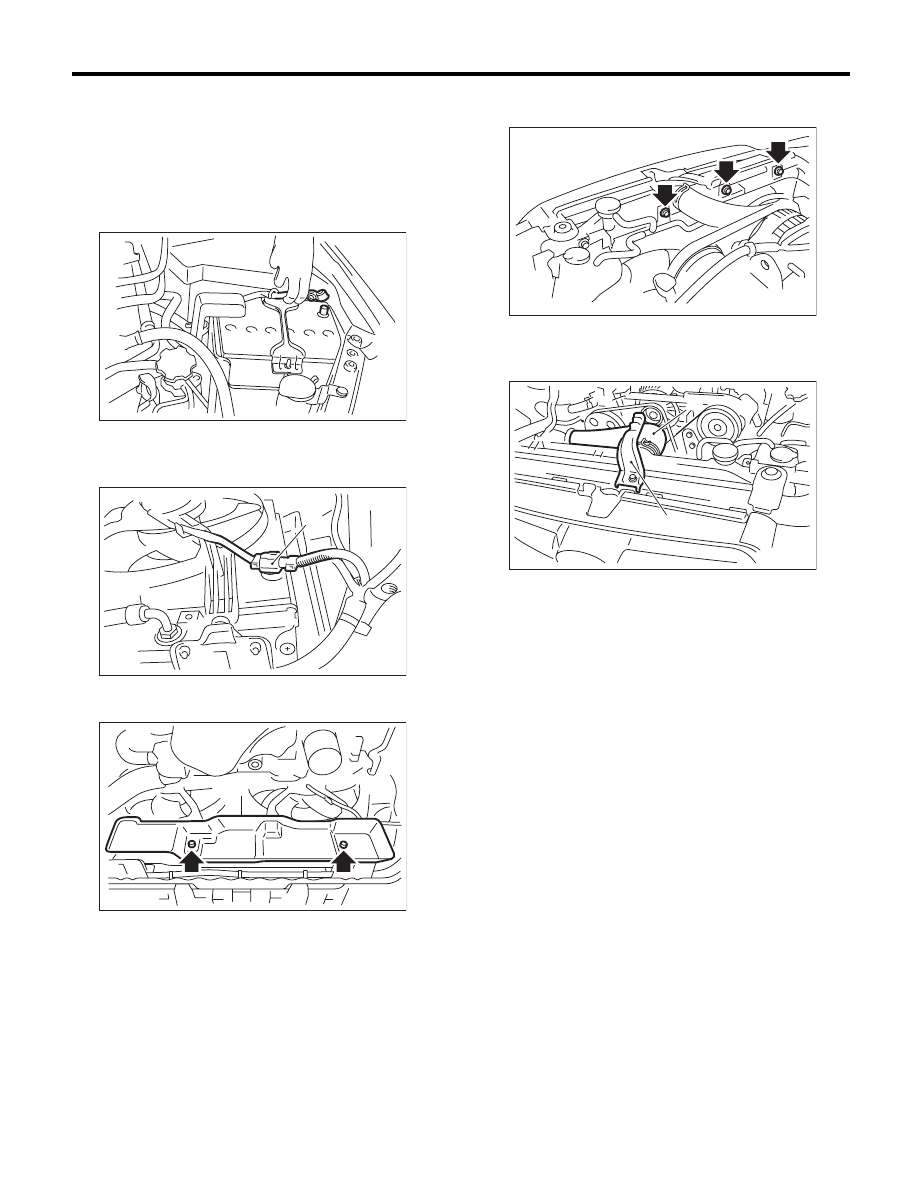

CO(H4DOTC)-27

Radiator Sub Fan and Fan Motor

COOLING

9. Radiator Sub Fan and Fan

Motor

A: REMOVAL

1) Set the vehicle on a lift.
2) Remove the collector cover.
3) Disconnect the ground cable from battery.

4) Lift up the vehicle.
5) Remove the under cover.
6) Disconnect the sub fan motor connector (B).

7) Remove the heat shield cover from radiator. (AT
model)

8) Drain approximately 3.0

2 (3.2 US qt, 2.6 Imp

qt) of coolant. <Ref. to CO(H4DOTC)-14, DRAIN-
ING OF ENGINE COOLANT, REPLACEMENT,
Engine Coolant.>
9) Lower the vehicle.
10) Remove the air intake duct. <Ref. to
IN(H4DOTC)-9, REMOVAL, Air Intake Duct.>

11) Remove the bolts that hold the radiator sub fan
motor assembly and the over flow pipe.

12) Disconnect the radiator inlet hose (A) from the
radiator.
13) Remove the hood stay holder (B).

14) Remove the radiator sub fan motor assembly
from the vehicle.

IN-00203

CO-00252

(B)

CO-02355

CO-02495

CO-00255

(A)

(B)

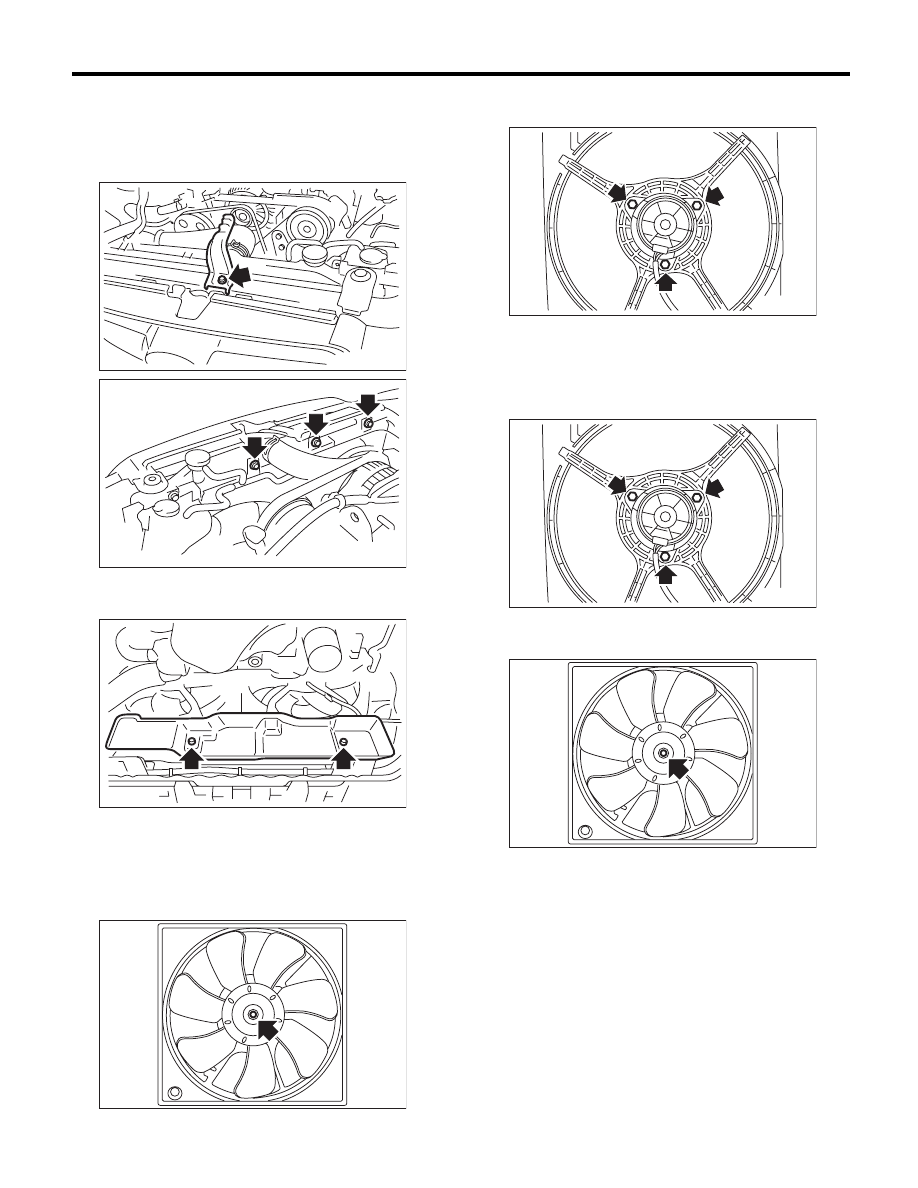

CO(H4DOTC)-28

Radiator Sub Fan and Fan Motor

COOLING

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

Tightening torque:

3 N·m (0.3 kgf-m, 2.2 ft-lb)

C: DISASSEMBLY

1) Remove the clip holding the sub fan motor con-
nector on the radiator sub fan shroud.
2) Remove the nuts holding the radiator sub fan to
the sub fan motor.

3) Remove the bolts holding the sub fan motor to
the radiator sub fan shroud.

D: ASSEMBLY

Assemble in the reverse order of disassembly.

Tightening torque:

5 N·m (0.5 kgf-m, 3.7 ft-lb)

Tightening torque:

3.4 N·m (0.3 kgf-m, 2.5 ft-lb)

CO-02493

CO-02495

CO-02355

CO-02143

CO-00098

CO-00098

CO-02143

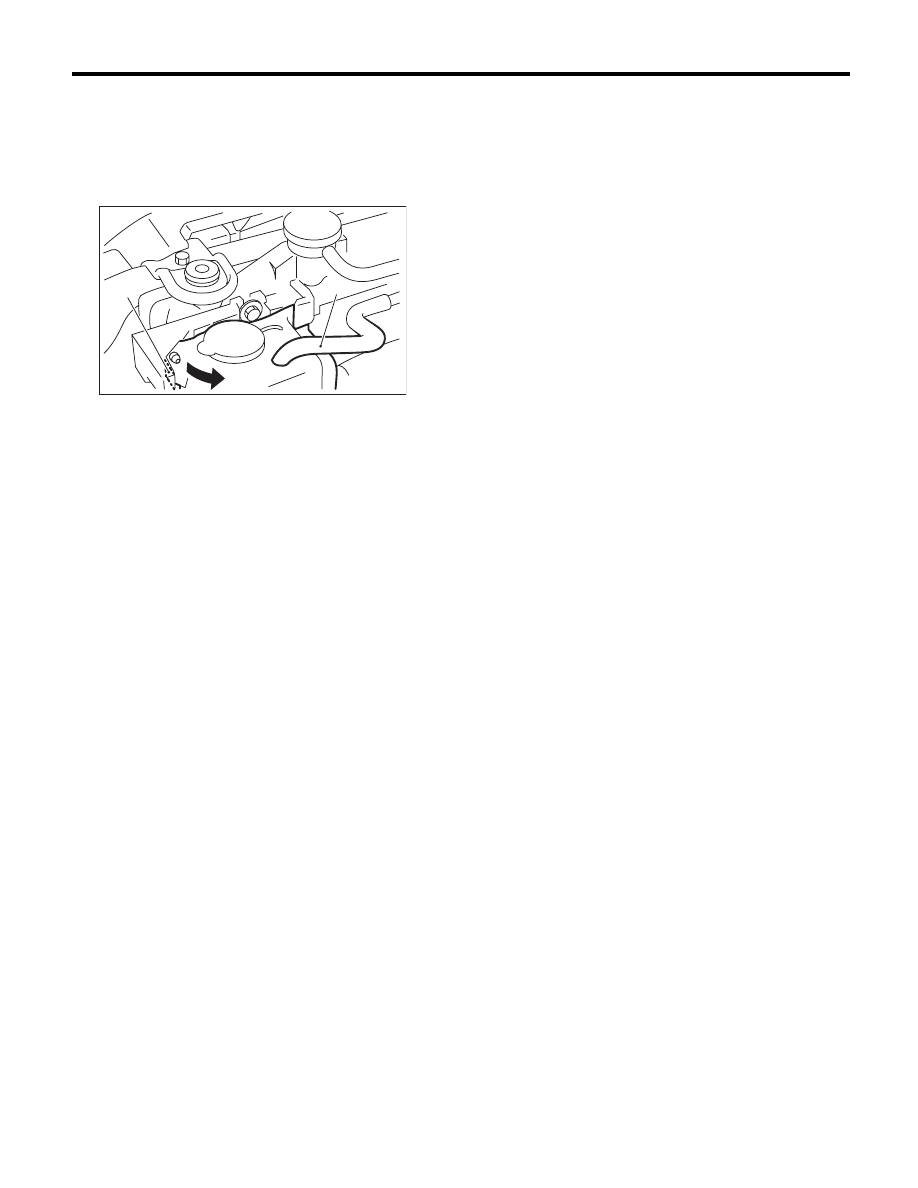

CO(H4DOTC)-29

Reservoir Tank

COOLING

10.Reservoir Tank

A: REMOVAL

1) Pull out the over flow hose (A).
2) Pull out the reservoir tank to the arrow direction
while pushing the claw (B).

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

Make sure the engine coolant level is between
“FULL” and “LOW”.

CO-02457

(B)

(A)
