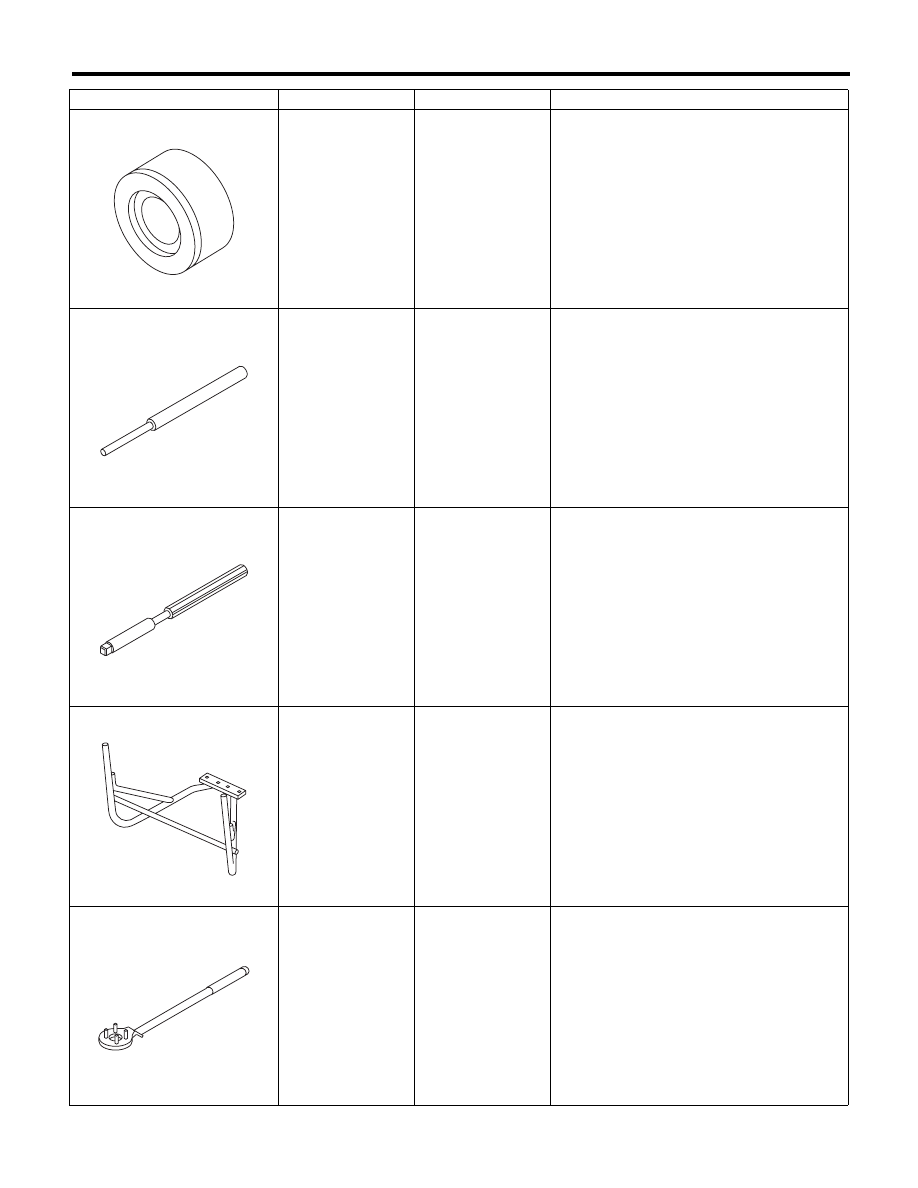

ME(H4DOTC)-16

General Description

MECHANICAL

18251AA020

VALVE GUIDE
ADJUSTER

Used for installing intake and exhaust valve
guides.

499767200

VALVE GUIDE
REMOVER

Used for removing valve guides.

499767400

VALVE GUIDE
REAMER

Used for reaming valve guides.

499817100

ENGINE STAND

• Stand used for engine disassembly and
assembly.
• Used together with the ENGINE STAND
ADAPTER RH (498457000) & LH (498457100).

499977100

CRANK PULLEY
WRENCH

Used to stop rotation of the crank pulley when
loosening or tightening crank pulley bolts. (MT
model)

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST18251AA020

ST-499767200

ST-499767400

ST-499817100

ST-499977100

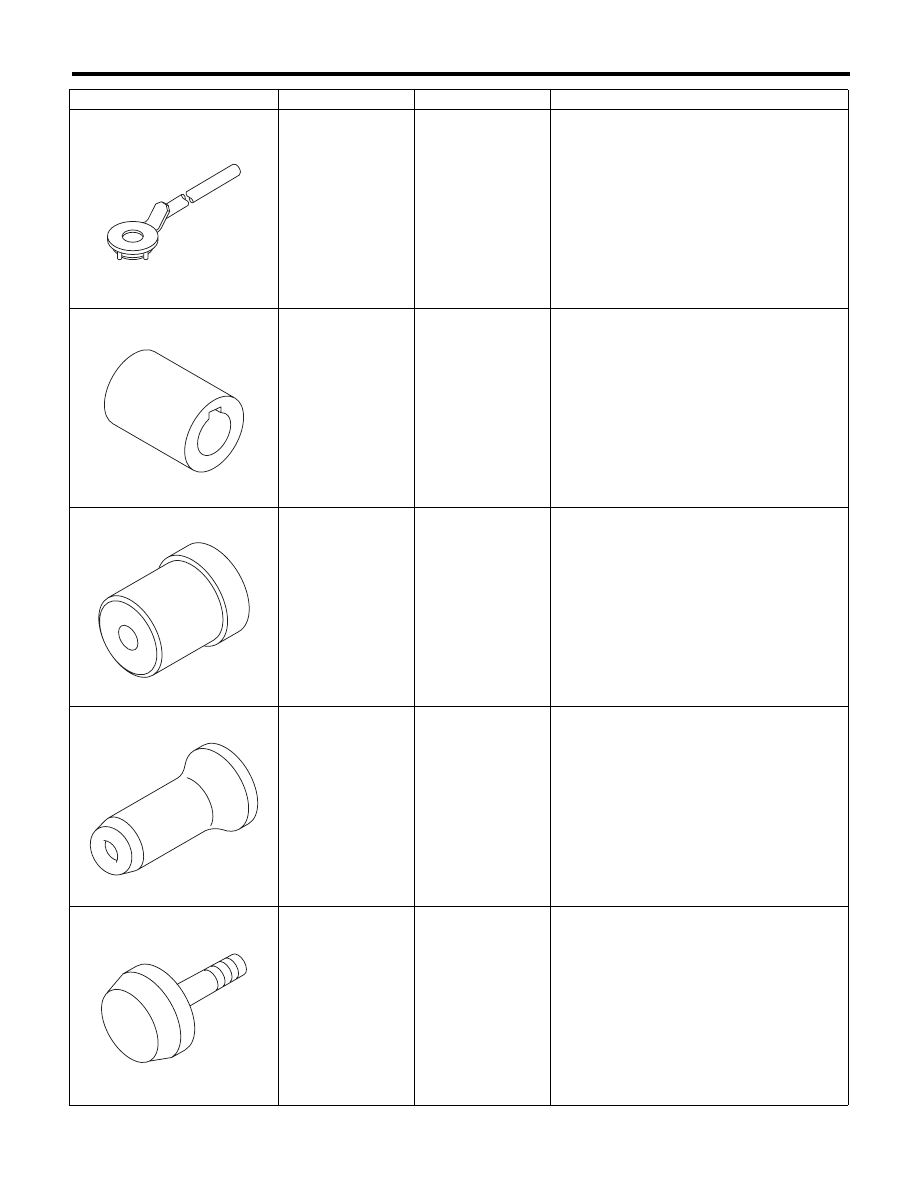

ME(H4DOTC)-17

General Description

MECHANICAL

499977400

CRANK PULLEY
WRENCH

Used to stop rotation of the crank pulley when
loosening or tightening crank pulley bolts. (AT
model)

499987500

CRANKSHAFT
SOCKET

Used for rotating crankshaft.

499587100

OIL SEAL
INSTALLER

Used for installing oil pump oil seal.

499587600

OIL SEAL
INSTALLER

Used for installing camshaft oil seal.

499597200

OIL SEAL GUIDE

• Used for installing camshaft oil seal.
• Used together with the OIL SEAL INSTALLER
(499587600).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-499977400

ST-499987500

ST-499587100

ST-499587600

ST-499597200

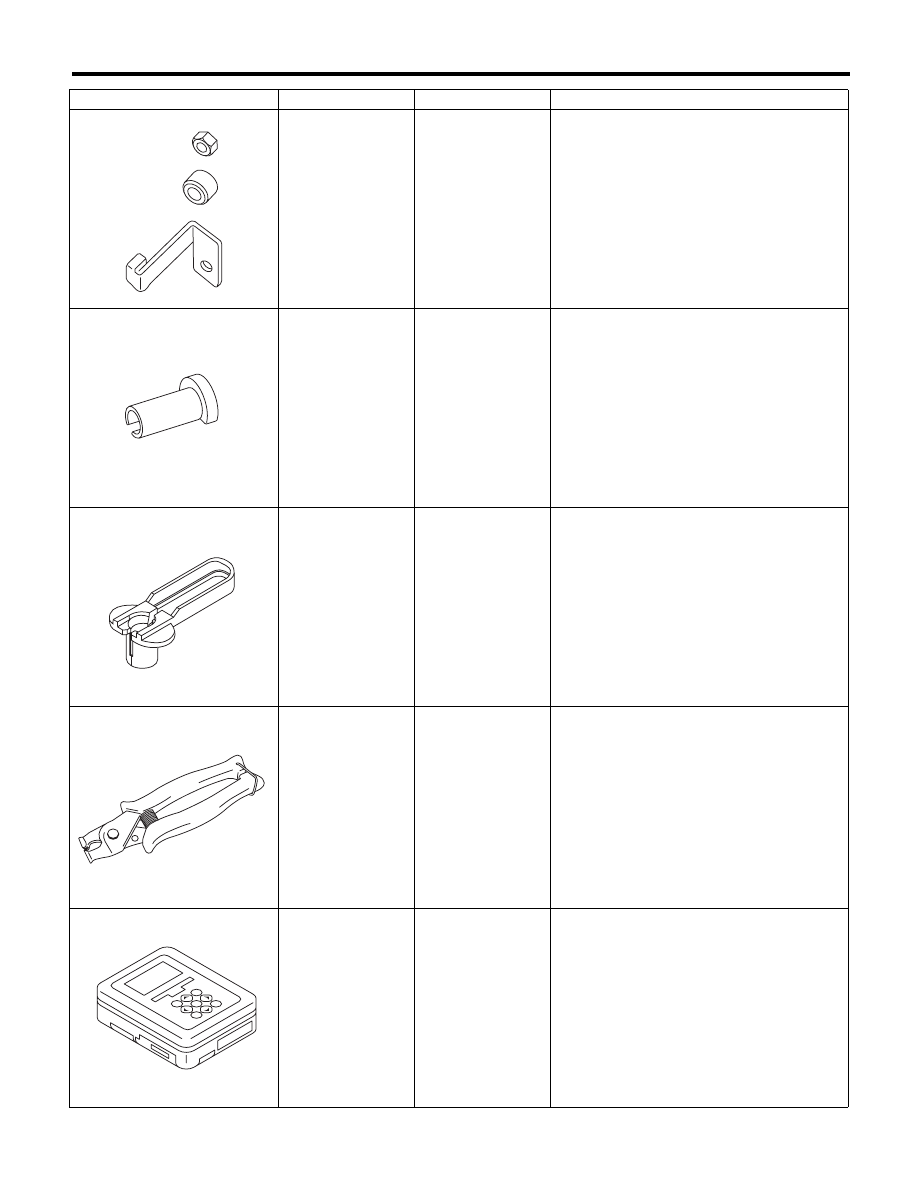

ME(H4DOTC)-18

General Description

MECHANICAL

498277200

STOPPER SET

Used for installing automatic transmission
assembly to engine.

42099AE000

QUICK
CONNECTOR
RELEASE

Used for disconnecting quick connector of the
engine compartment.

18371AA000

CONNECTOR
REMOVER

Used for disconnecting the quick connector on
the fuel return hose of the engine compartment.

18353AA000

CLAMP PLIERS

• Used for removing and installing the PCV
hose.
• This tool is made by the French company
CAILLAU. (code) 54.0.000.205
To make it easier to obtain, it has been provided
with a tool number.

1B022XU0

SUBARU SELECT
MONITOR III KIT

Used for troubleshooting the electrical system.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498277200

ST42099AE000

ST18371AA000

ST18353AA000

ST1B022XU0

ME(H4DOTC)-19

General Description

MECHANICAL

2. GENERAL TOOL

E: PROCEDURE

It is possible to conduct the following service procedures with engine on vehicle, however, the procedures
described in this section are based on the condition that the engine is removed from vehicle.
• V-belt
• Timing belt
• Camshaft
• Cylinder head

TOOL NAME

REMARKS

Compression gauge

Used for measuring compression.

Timing light

Used for measuring ignition timing.

Vacuum gauge

Used for measuring intake manifold vacuum.

Oil pressure gauge

Used for measuring engine oil pressure.

Fuel pressure gauge

Used for measuring fuel pressure.
