GD(H4SO)-134

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

5. DIAGNOSTIC METHOD

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Time Needed for Diagnosis: 1000 ms
Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cy-
cles.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: Less than 1 second

Judgement Value

Malfunction Criteria

Threshold Value

Battery voltage

t 10.9 V

Elapsed time after starting the engine

t 3000 ms

Output voltage

t 7.212 V

Judgement Value

Malfunction Criteria

Threshold Value

Battery voltage

t 10.9 V

Elapsed time after starting the engine

t 3000 ms

Output voltage

< 7.212 V

GD(H4SO)-135

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

BS:DTC P0464 FUEL LEVEL SENSOR CIRCUIT INTERMITTENT

1. OUTLINE OF DIAGNOSIS

Detect the unstable output faults from the fuel level sensor caused by noise. Judge as NG when the max. val-
ue and cumulative value of output voltage variation of the fuel level sensor is larger than the threshold value.

2. ENABLE CONDITION

3. GENERAL DRIVING CYCLE

• Always perform the diagnosis continuously at idle speed.
• Pay attention to the fuel level.

Malfunction Criteria

Threshold Value

Engine speed

t 500 rpm

Elapsed time after starting the engine

t 1 second

Battery voltage

t 10.9 V

Idle switch

ON

Fuel level

t 9.6

2 (2.54 US gal,

2.11 Imp gal)

 and

 <

54.4

2 (14.37 US gal,

11.97 Imp gal)

Vehicle speed = 0 km/h (0 MPH)

t 10000 ms

GD(H4SO)-136

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

4. DIAGNOSTIC METHOD

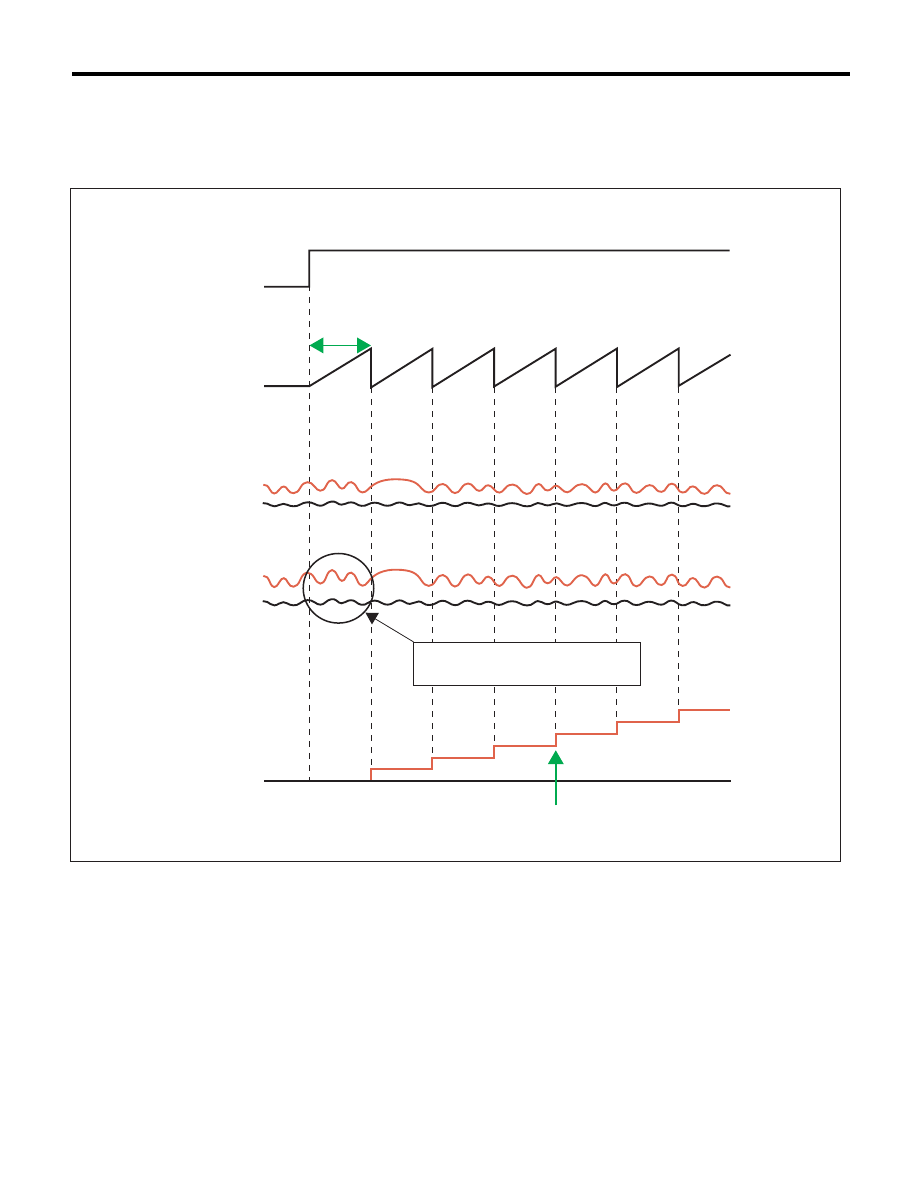

Calculate the Max. value (DELFLMAX) and cumulative value (SUMFL) of output voltage variation of fuel level
sensor during 12.2 seconds. Judge it normal when both max. and cumulative values are not over the thresh-
old value. Otherwise, when either of them is over the threshold value, the diagnosis counter counts up. Judge
as NG if the counter indicated 4 time(s).

(A)

12288 ms

(C)

Malfunction

(D)

Normal

(B)

NG at 4 time(s)









Diagnosis condition

Diagnosis timer

(A)

Fuel level sensor
A/D value

Amount of Fuel level
output voltage variation

Diagnosis counter

(B)

Calculate the Max. value (DELFLMAX)
and the cumulative value (SUMFL).

1

2

3

4

5

6

0

(C)

(D)

EN-05569

GD(H4SO)-137

Diagnostic Trouble Code (DTC) Detecting Criteria

GENERAL DESCRIPTION

• Abnormality Judgement

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

The diagnosis counter does not count up when the following conditions are completed within 12288 ms.

Time Needed for Diagnosis: 12288 ms × 4 time(s)
Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cy-
cles.

• Normality Judgement

Judge as OK and clear the NG if the continuous time while the following conditions are established is more
than the predetermined time.

Time Needed for Diagnosis: 12288 ms

Judgement Value

Malfunction Criteria

Threshold Value

Integrated times of the condition reaching
follows,

t 4 time(s)

DELFLMAX

t Value from Map

or



SUMFL

t 25.92 V

At this time,



DELFLMAX: Maximum difference of sen-
sor output for 12288 ms

SUMFL: Integrated value of the sensor
output deviation for12288 ms

Map

Fuel level (

2, US gal, Imp gal)

0, 0, 0

10, 2.64,

2.2

20, 5.28,

4.4

30, 7.93,

6.6

40, 10.57,

8.8

50, 13.21,

11

60, 15.85,

13.2

Measured voltage (V)

0.27

0.27

0.426

0.582

0.738

0.894

0.894

Maximum value – Minimum value of
change of tank pressure for 12288 ms

t 0 kPa (0.375 mmHg,
0 inHg)

Maximum value – Minimum value of bat-
tery voltage for 12288 ms

t 0.609 V

Judgement Value

Malfunction Criteria

Threshold Value

DELFLMAX

< Value from Map

SUMFL

< 25.92 V

At this time,



DELFLMAX: Maximum difference of sen-
sor output for 12288 ms

SUMFL: Integrated value of the sensor
output deviation for12288 ms
