EI-19

General Description

EXTERIOR/INTERIOR TRIM

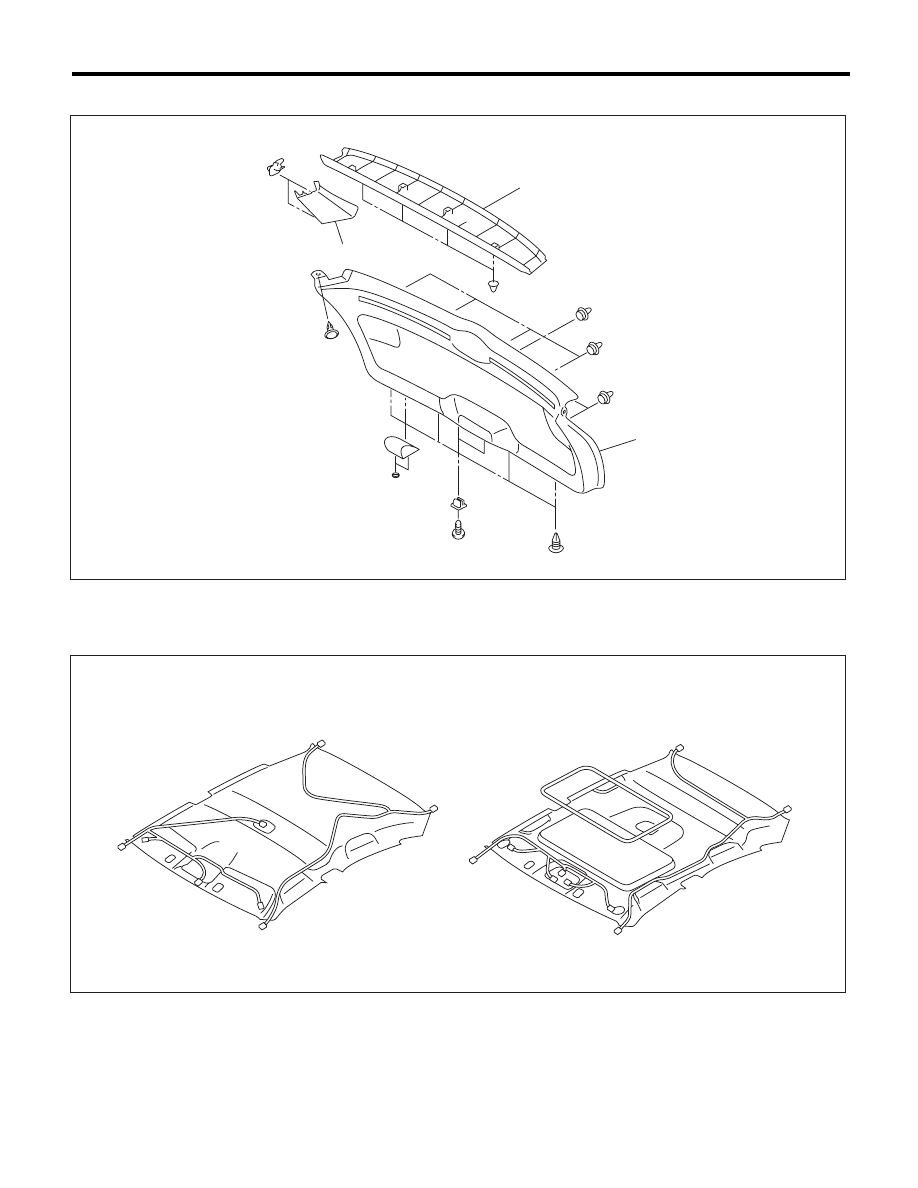

22.REAR GATE TRIM

23.ROOF TRIM (SEDAN MODEL)

(1)

Rear gate panel upper trim

(2)

Rear gate panel pillar trim

(3)

Rear gate panel lower trim

EI-00808

(3)

(2)

(1)

EI-00755

EI-20

General Description

EXTERIOR/INTERIOR TRIM

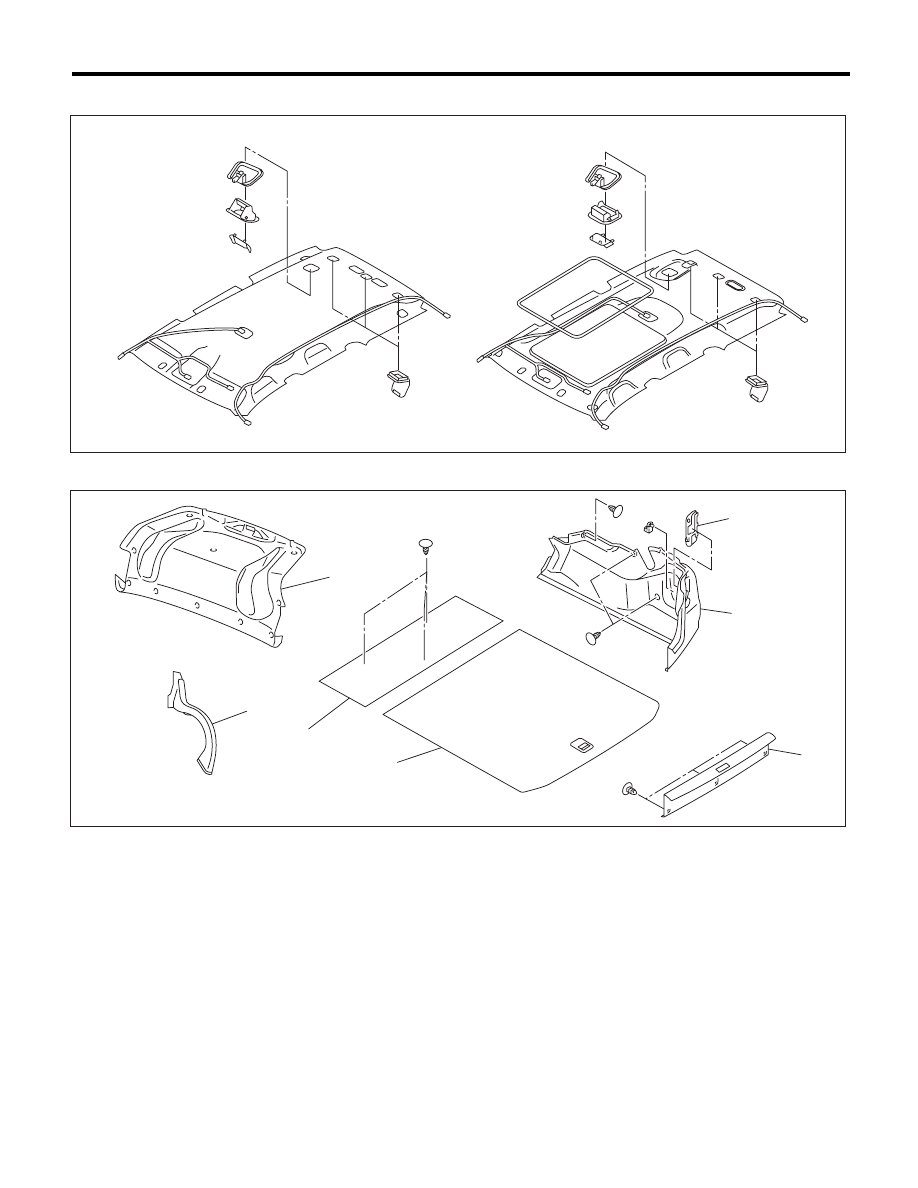

24.ROOF TRIM (WAGON MODEL)

25.TRUNK ROOM TRIM

(1)

Trunk lid trim

(4)

Trunk side trim

(6)

Trunk room end cover

(2)

Trunk lid arm cover

(5)

Combination light cover

(7)

Spacer trunk

(3)

Trunk room mat

EI-01062

EI-01750

(1)

(3)

(2)

(4)

(5)

(6)

(7)

EI-21

General Description

EXTERIOR/INTERIOR TRIM

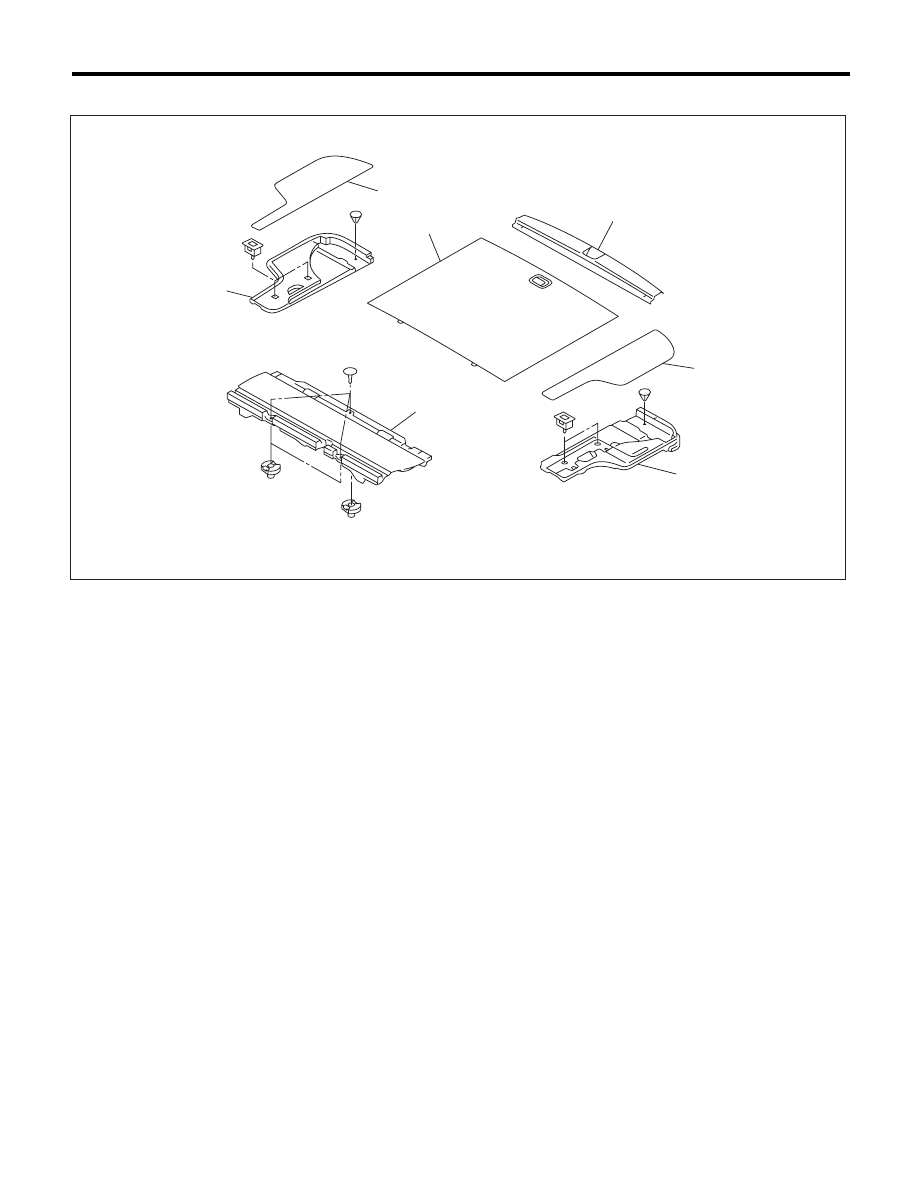

26.LUGGAGE FLOOR MAT

(1)

Front floor mat

(4)

Center floor mat

(6)

Side floor mat (LH)

(2)

Floor box (RH)

(5)

Side floor mat (RH)

(7)

Luggage floor end cover

(3)

Floor

box

(LH)





EI-01064

(1)

(2)

(7)

(3)

(6)

(4)

(5)

EI-22

General Description

EXTERIOR/INTERIOR TRIM

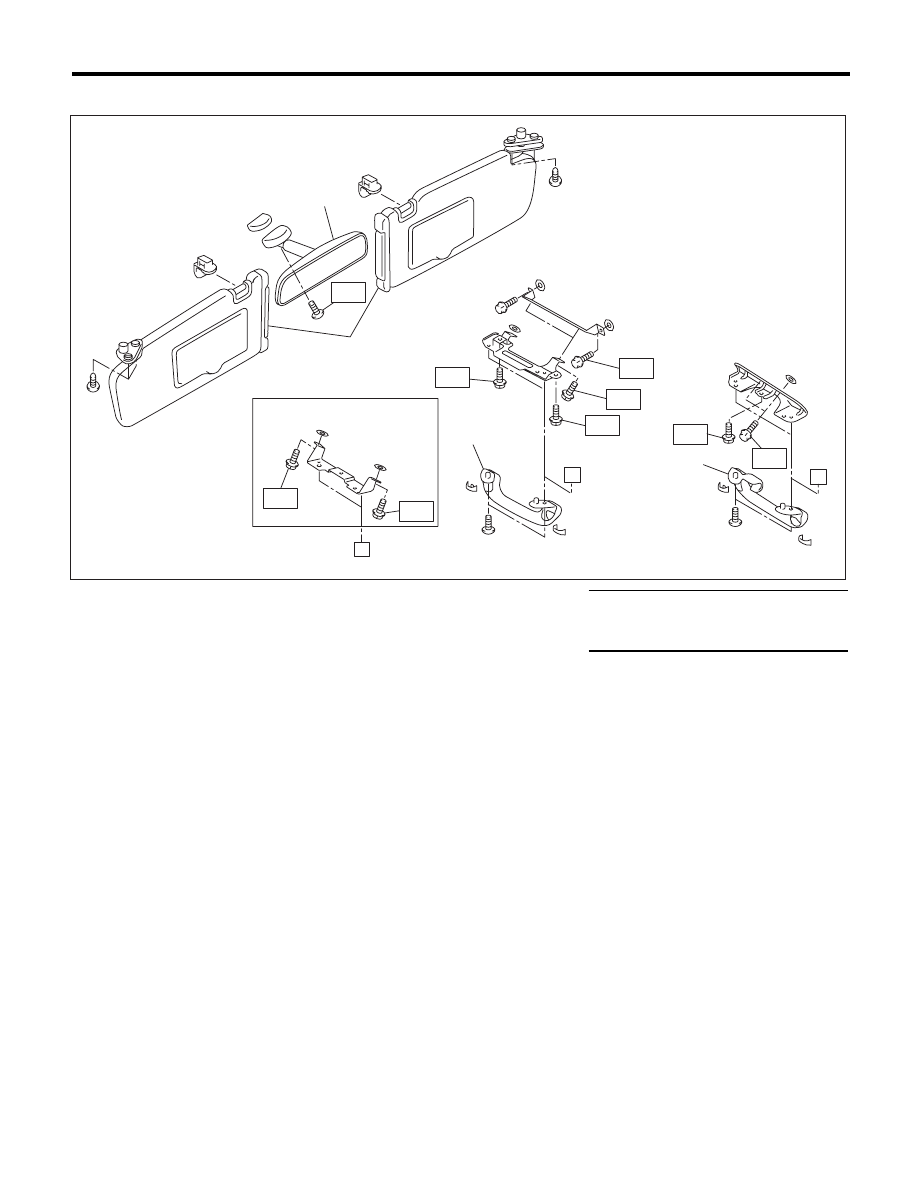

27.ROOM INNER PARTS

(1)

Room mirror

(3)

Assist grip

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Sun visor





T1: 2.0 (0.2, 1.48)

T2: 7.5 (0.76, 5.5)

T2

T1

T2

T2

T2

T2

T2

T2

T2

E

E

E

(1)

(2)

(3)

(3)

EI-01012
