EI-7

General Description

EXTERIOR/INTERIOR TRIM

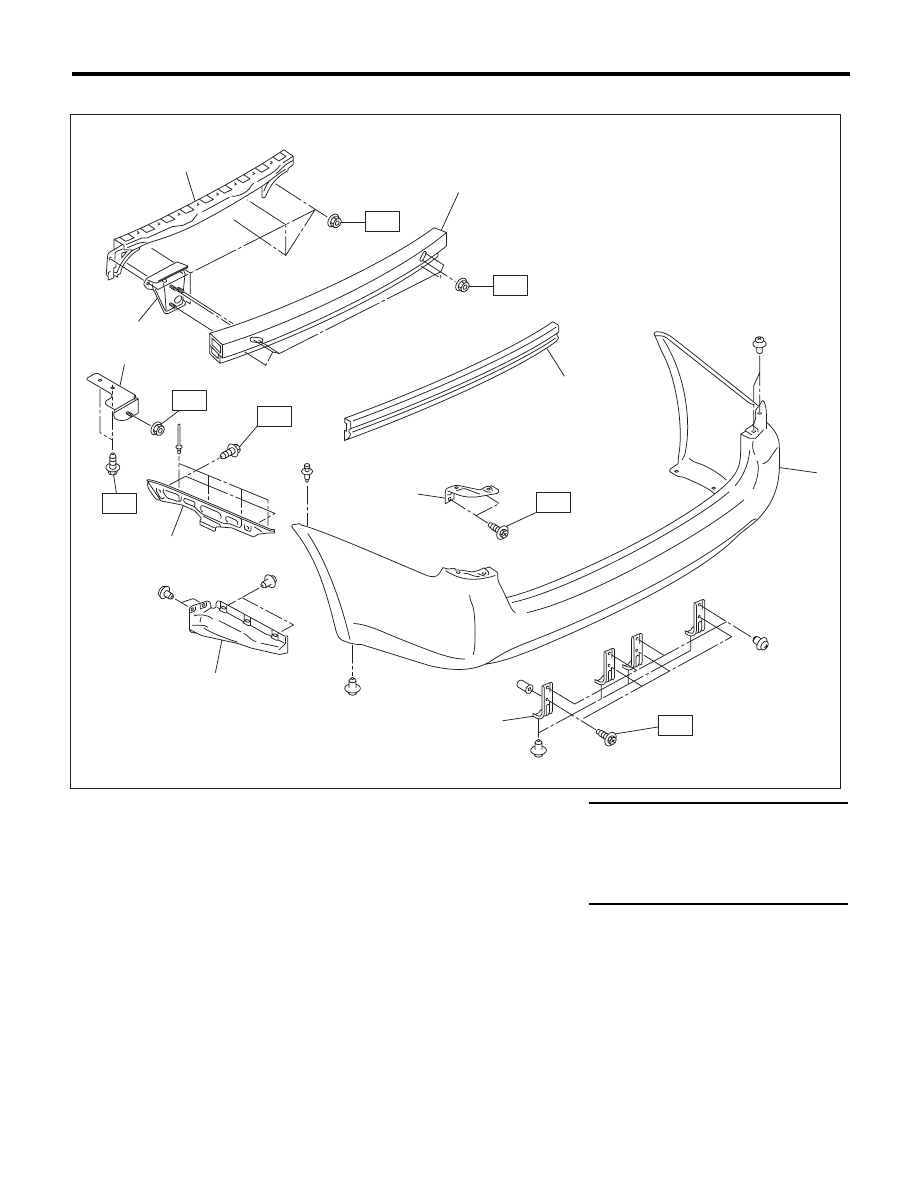

7. REAR BUMPER (WAGON MODEL)

(1)

Bumper face

(7)

Lower bracket

Tightening torque:N·m (kgf-m, ft-lb)

(2)

Energy absorber foam

(8)

Bumper side support lower

T1: 2 (0.2, 1.48)

(3)

Bumper beam reinforcement

(9)

Bumper side support upper

T2: 7.5 (0.76, 5.5)

(4)

Bumper beam bracket

(10)

Rear bumper gusset (for installing
trailer hitch, OUTBACK only)

T3: 33 (3.4, 24)

(5)

Beam upper rear

T4: 72 (7.3, 53.1)

(6)

Bracket corner

EI-01435

(1)

(7)

(6)

(2)

(8)

(9)

(5)

(3)

(4)

T3

T3

T2

T2

T1

(10)

T2

T4

EI-8

General Description

EXTERIOR/INTERIOR TRIM

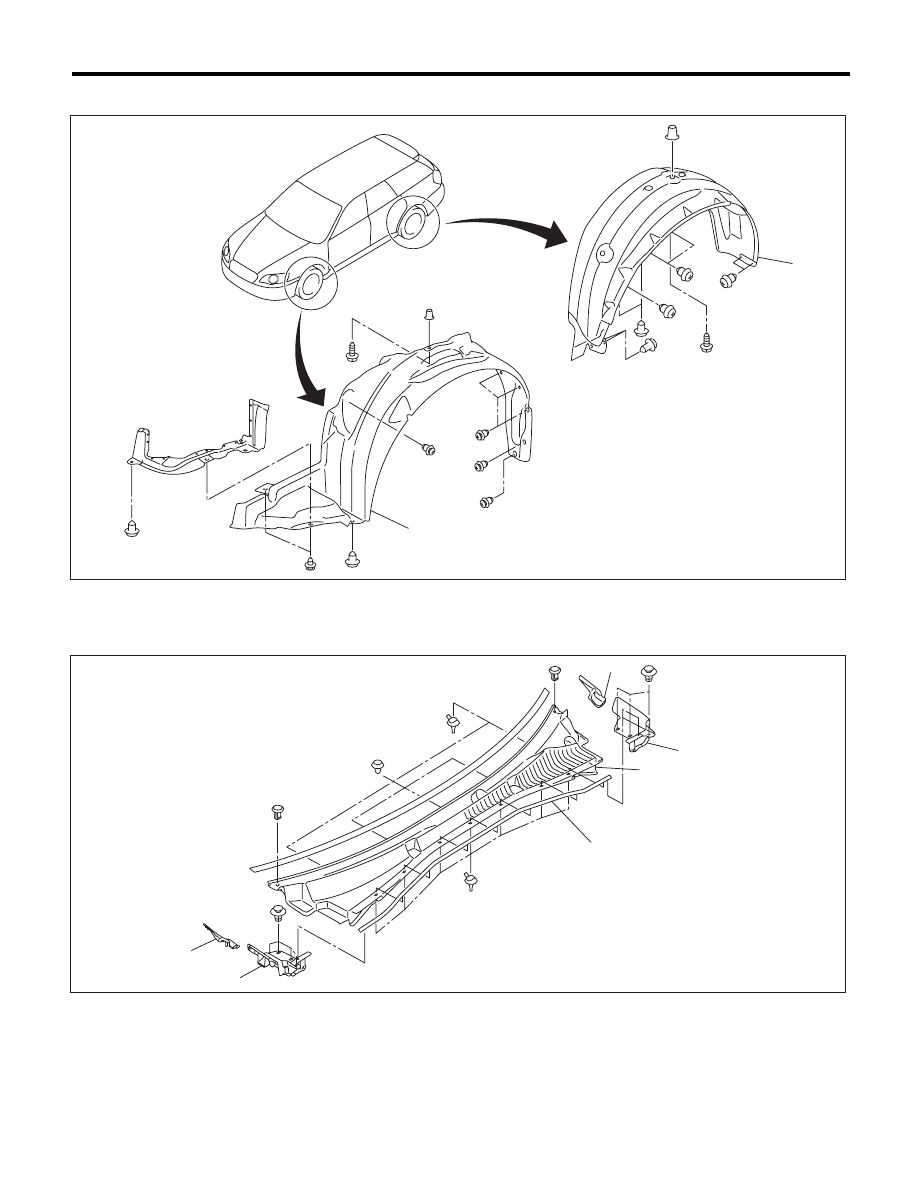

8. MUD GUARD

9. COWL PANEL

(1)

Front mud guard

(2)

Rear mud guard





(1)

Cowl panel

(3)

Cover cowl panel

(4)

Cowl side panel

(2)

Weather

strip





EI-01757

(2)

(1)

EI-01078

(1)

(4)

(3)

(3)

(4)

(2)

EI-9

General Description

EXTERIOR/INTERIOR TRIM

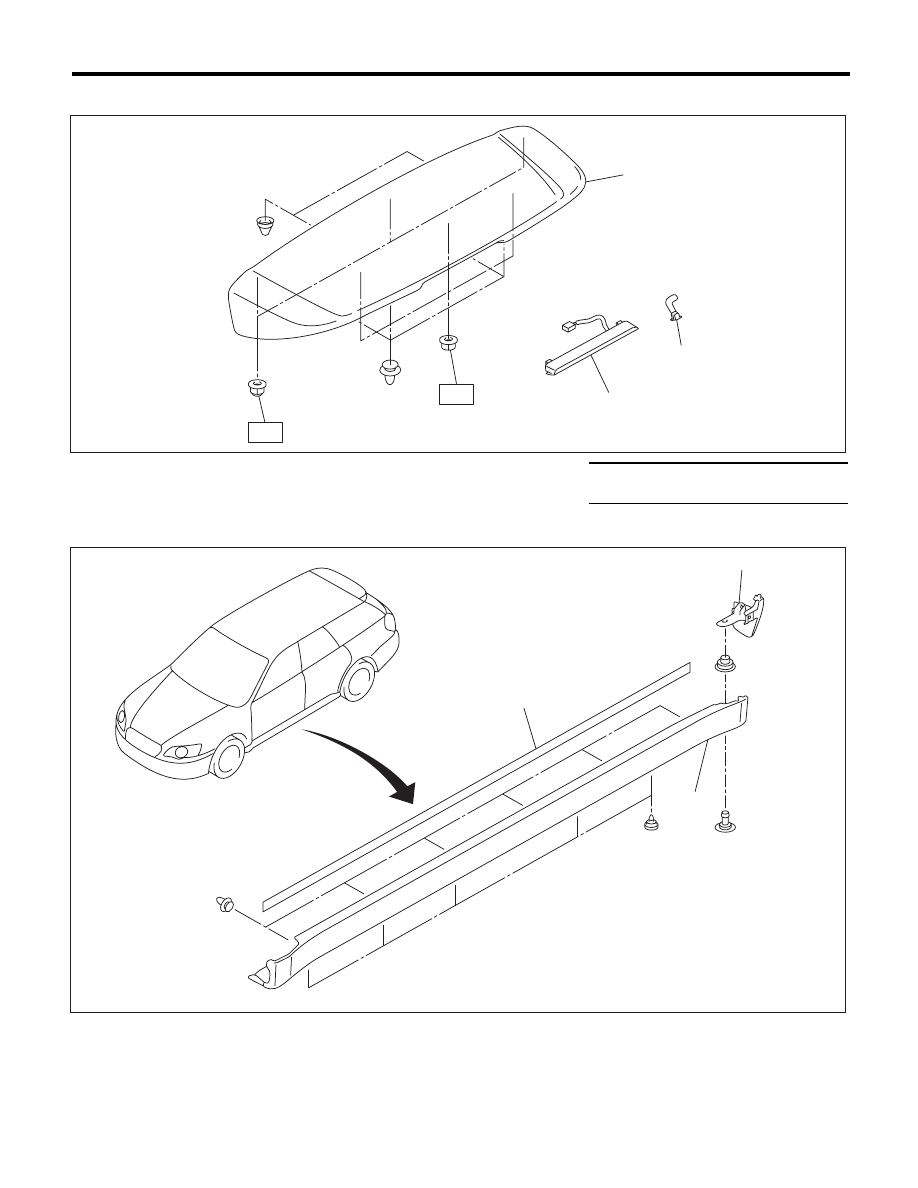

10.ROOF SPOILER

11.SIDE SILL SPOILER

(1)

Roof spoiler

(3)

Washer nozzle

Tightening torque:N·m (kgf-m, ft-lb)

(2)

High-mounted stop light





T: 4.5 (0.46, 3.32)

(1)

Side sill spoiler

(2)

Double-sided tape

(3)

Air flap side sill end

EI-01079

(1)

(2)

(3)

T

T

EI-01080

(1)

(2)

(3)

EI-10

General Description

EXTERIOR/INTERIOR TRIM

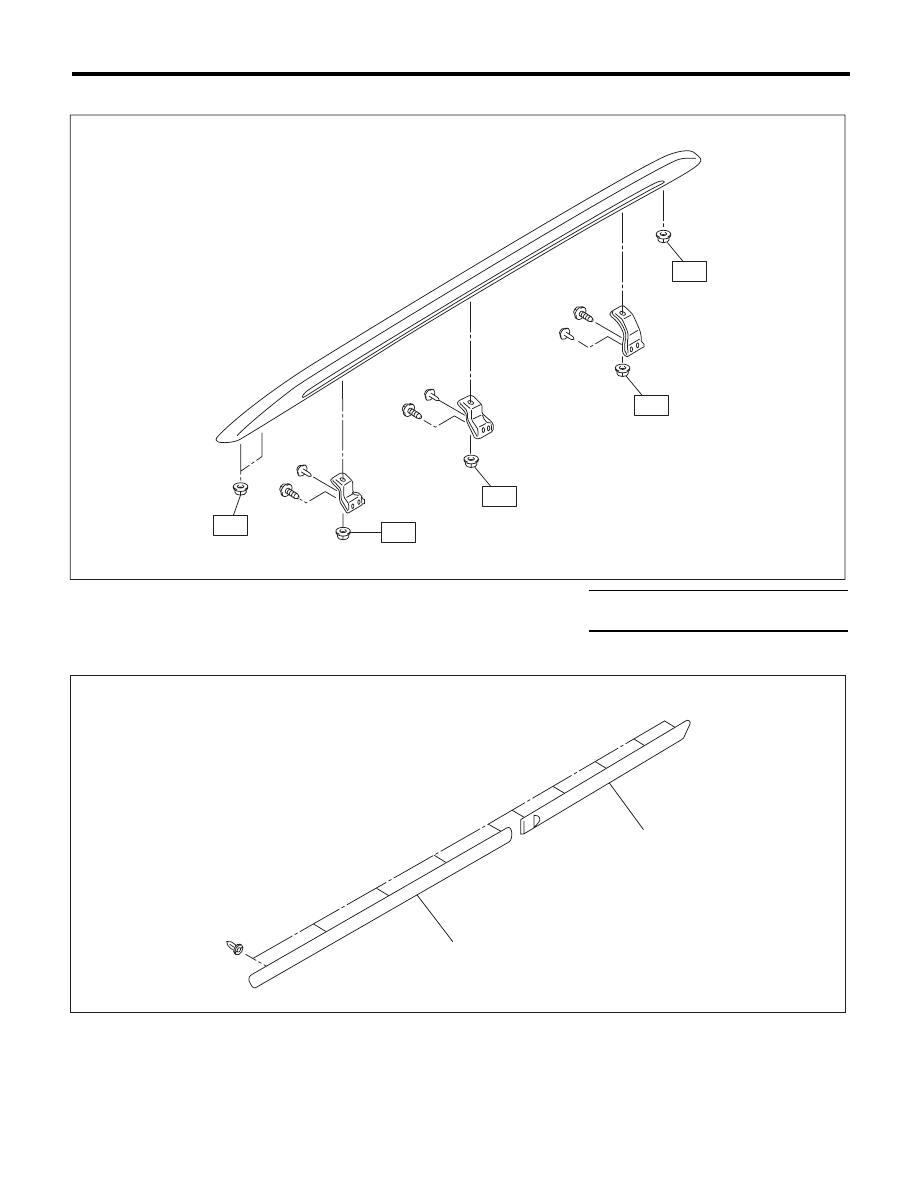

12.ROOF RAIL

13.SIDE PROTECTOR









Tightening torque:N·m (kgf-m, ft-lb)









T: 7.5 (0.76, 5.5)

(1)

Front door protector

(2)

Rear door protector





EI-01033

T

T

T

T

T

EI-01752

(1)

(2)
