9. CHECK IGNITION SWITCH CIRCUIT

10.CHECK DOOR KEY CYLINDER SWITCH & CIRCUIT

Step

Check

Yes

No

1

CHECK IGNITION SWITCH VOLTAGE.
1) Prepare the Subaru Select Monitor kit.
2) Turn the ignition switch to ON (engine OFF)
and run the “PC application for Subaru Select
Monitor”.
3) On the «System Selection Menu» display,
select the {Integ. unit mode}.
4) Select the {Current Data Display & Save}.
5) Check the {BATT voltage} and {IG power
supply voltage}.

Is the {IG power supply voltage}
within

r1 V against {BATT volt-

age}?

The ignition switch
input circuit is OK.

Go to step 2.

2

CHECK IGNITION SWITCH CIRCUIT.
1) Turn the ignition switch to OFF.
2) Disconnect the harness connector of body
integrated unit.
3) Turn the ignition switch to ON.
4) Measure the voltage between harness con-
nector terminal and chassis ground.

Connector & terminal

(i84) No. 1 (+) — Chassis ground (–):

Is the voltage 10 V or more?

Check the body
integrated unit.
<Ref. to
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>

Check the harness
for open or short
circuit between the
body integrated
unit and fuse.

Step

Check

Yes

No

1

CHECK DOOR KEY CYLINDER SWITCH
CIRCUIT.
Measure the resistance between the harness
connector terminal and chassis ground when
moving the door key cylinder switch to
UNLOCK.

Connector & terminal

(i84) No. 12 — Chassis ground:

Is the resistance less than 10

:? Door key cylinder

switch is OK.

Go to step 2.

2

CHECK DOOR KEY CYLINDER SWITCH.
1) Disconnect the door key cylinder switch har-
ness connector.
2) Measure the resistance between door key
cylinder switch terminals when turning the door
key cylinder switch to LOCK.

Terminals

No. 1 — No. 2:

Is the resistance less than 1

:? Check the harness

for open or short
circuits between
the body integrated
unit and the door
key cylinder switch.

Replace the door
key cylinder switch.

SL-34

Front Inner Remote

SECURITY AND LOCKS

5. Front Inner Remote

A: REMOVAL

1) Remove the door trim. <Ref. to EI-49, REMOV-
AL, Door Trim.>

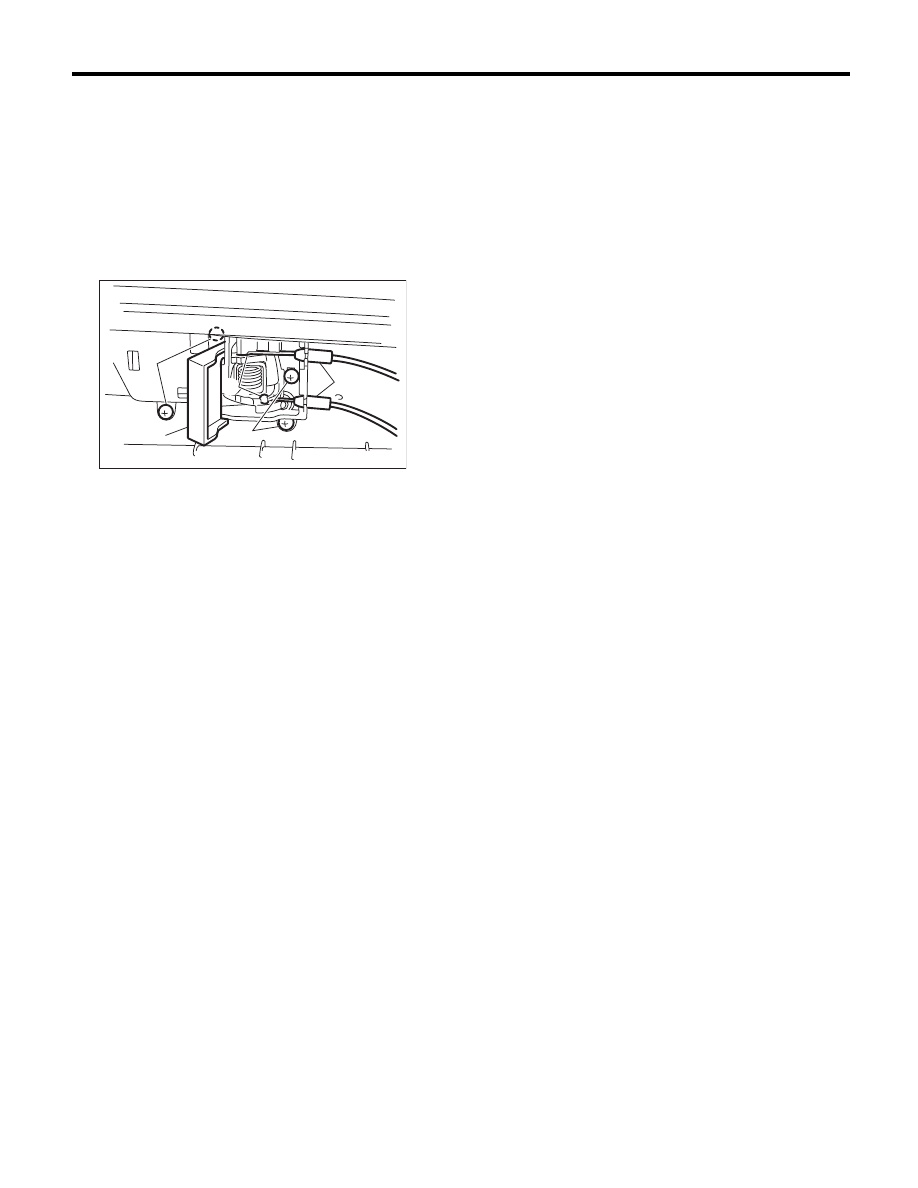

2) Remove the back cover (1) of inner remote.
3) Remove the cable (2).
4) Remove the cable end ball (3).
5) Remove the screws (4), and remove the inner
remote.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Check the cable of the door opener and door
lock for deformation. When it is deformed, straight-
en it because failure operations may occur. When it
is unrepairable, replace the front door latch and
door lock actuator assembly.
2) Check the handle and cable for smooth opera-
tion.

SL-00279

(2)

(4)

(1)

(3)

(4)

SL-35

Front Outer Handle

SECURITY AND LOCKS

6. Front Outer Handle

A: REMOVAL

1) Raise the front door glass to the top position.
2) Remove the door trim. <Ref. to EI-49, REMOV-
AL, Door Trim.>
3) Remove the cable from the front inner remote.
<Ref. to SL-34, REMOVAL, Front Inner Remote.>
4) Remove the sealing cover. <Ref. to EB-19, RE-
MOVAL, Front Sealing Cover.>

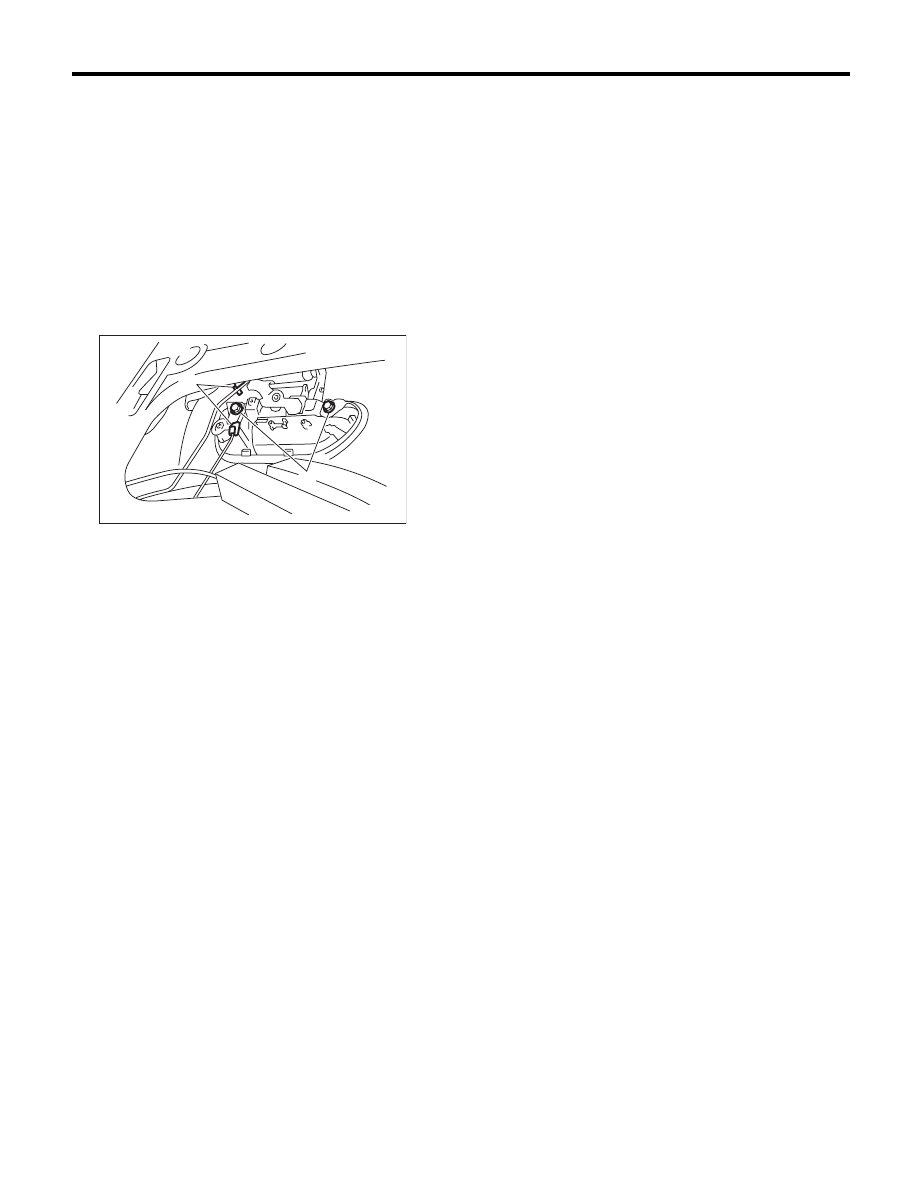

5) Remove the rod clamps (1).
6) Remove bolts (2), then remove the front outer
handle.

CAUTION:
Do not apply excessive force to remove the
handle from the door panel. The door panel
may become deformed.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to SL-2, DOOR LOCK ASSEM-
BLY, COMPONENT, General Description.>

C: INSPECTION

1) Check the rod for deformation.
2) Check the lever and rod for smooth operation.

SL-00280

(2)

(1)

SL-36

Front Door Latch and Door Lock Actuator Assembly

SECURITY AND LOCKS

7. Front Door Latch and Door

Lock Actuator Assembly

A: REMOVAL

1) Remove the front door trim. <Ref. to EI-49, RE-
MOVAL, Door Trim.>
2) Remove the cable from the front inner remote.
<Ref. to SL-34, REMOVAL, Front Inner Remote.>
3) Remove the sealing cover. <Ref. to EB-19, RE-
MOVAL, Front Sealing Cover.>
4) Remove the front door glass. <Ref. to GW-11,
REMOVAL, Front Door Glass.>
5) Remove the rear sash. <Ref. to GW-17, RE-
MOVAL, Front Regulator and Motor Assembly.>
6) Open the handle rod cover of the latch assem-
bly.

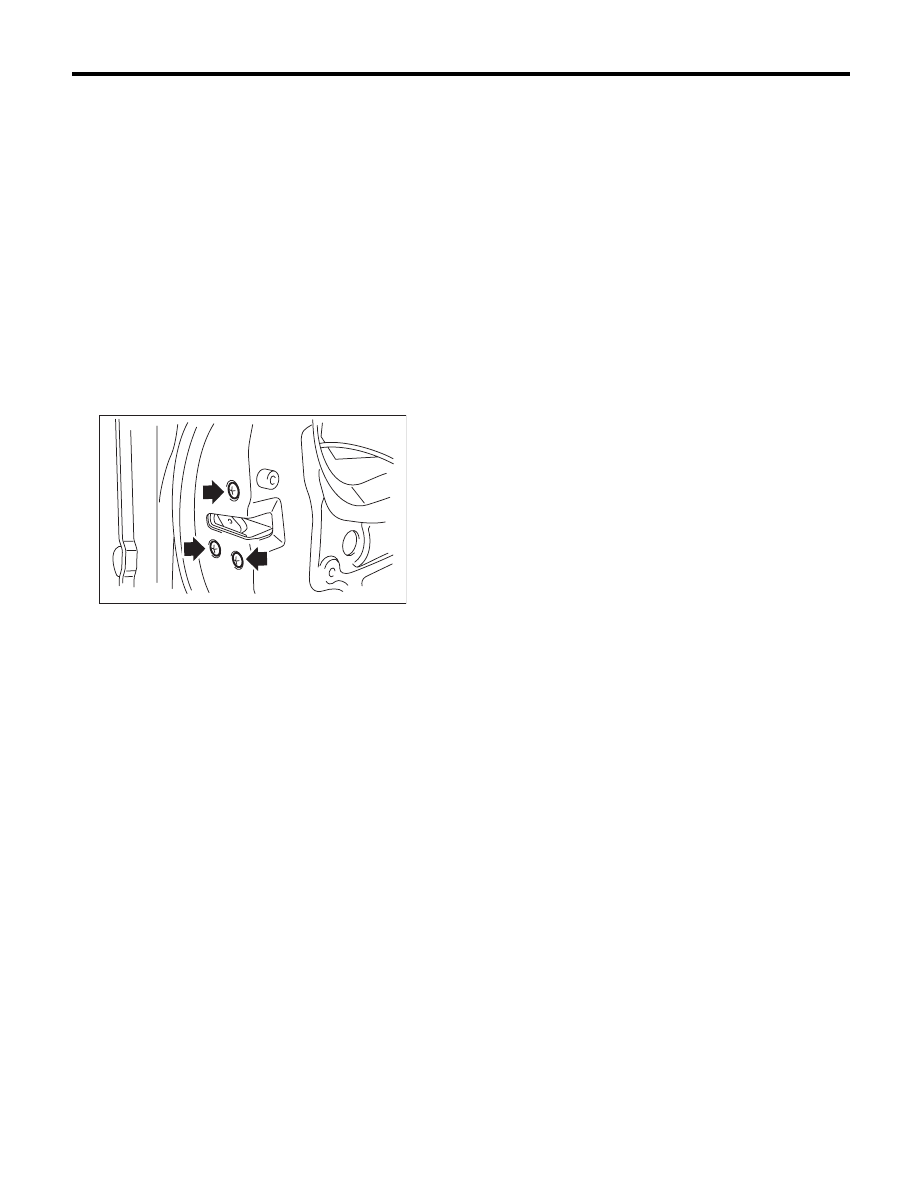

7) Remove the three screws.

8) Remove the front door latch and door lock actu-
ator assembly, and disconnect the connector.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to SL-2, DOOR LOCK ASSEM-
BLY, COMPONENT, General Description.>

C: INSPECTION

1) Check the rod and cable for deformation. When
it is deformed, straighten it because failure opera-
tions may occur. When it is unrepairable, replace
the front door latch and door lock actuator assem-
bly.
2) Check the lever, rod and cable for smooth oper-
ation.

SL-00281
