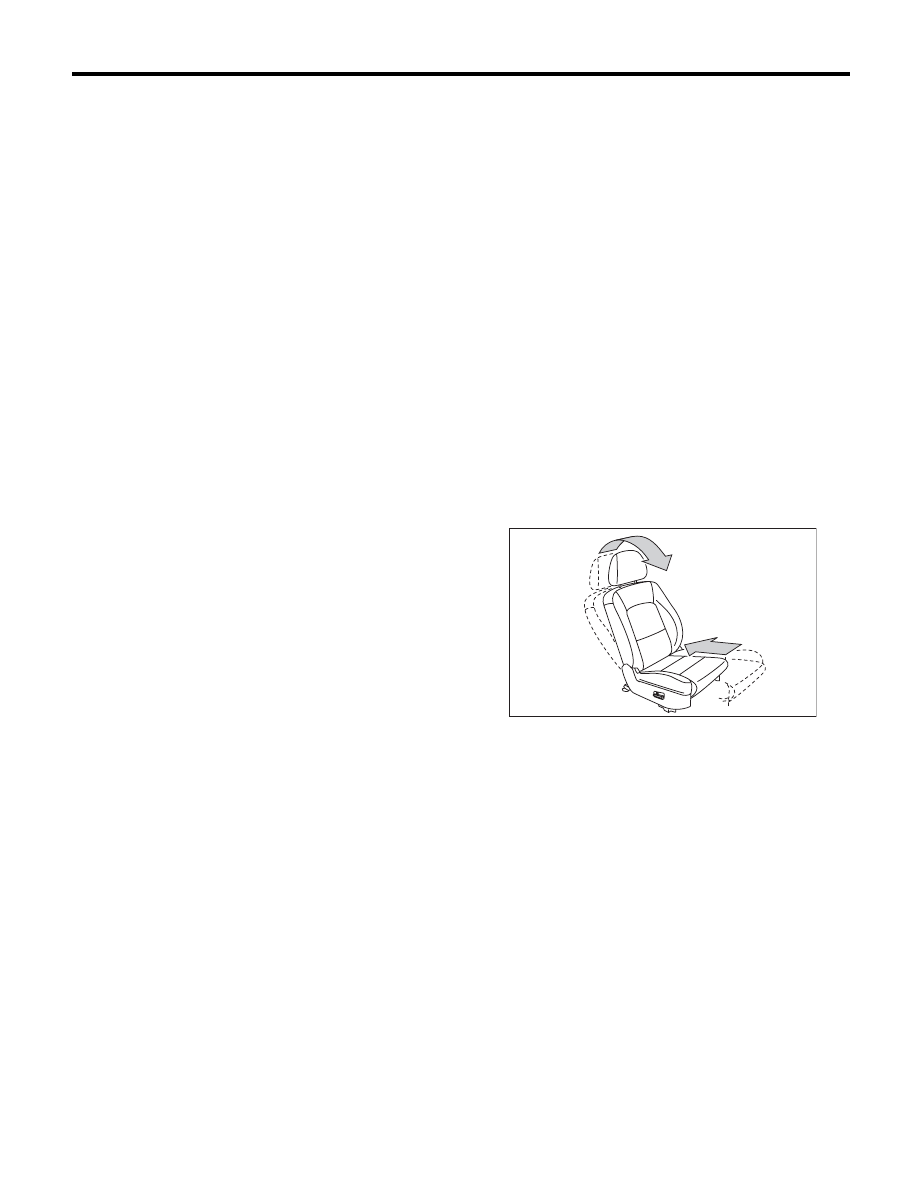

OD(diag)-13 Control Module I/O Signal OCCUPANT DETECTION SYSTEM (DIAGNOSTICS) 6. Control Module I/O Signal A: ELECTRICAL SPECIFICATION CAUTION: B: WIRING DIAGRAM Refer to the electrical wiring diagram. <Ref. to WI-126, WIRING DIAGRAM, Occupant Detection System.> Terminal name Terminal No. Input/Output value Remarks IG – power supply 9 9 — 16 V When ignition switch ON Airbag control module communication (COM) 10 Open collector terminal Communication line Airbag control module communication (GND) 5 0 V Ground Belt tension sensor (Vcc) 4 0 — 5 V Belt tension sensor power supply (Vout) 16 0.5 — 4.5 V Sensor output voltage (GND) 14 0 V Sensor ground Occupant detection sensor (Vcc) 6 0 — 5 V Pressure sensor power supply (Vout) 7 0.5 — 4.5 V Sensor output voltage (GND) 15 0 V Sensor ground Buckle switch 1 0 — IG voltage Ignition voltage when switch ON Buckle switch (GND) 2 0 V Switch ground |
