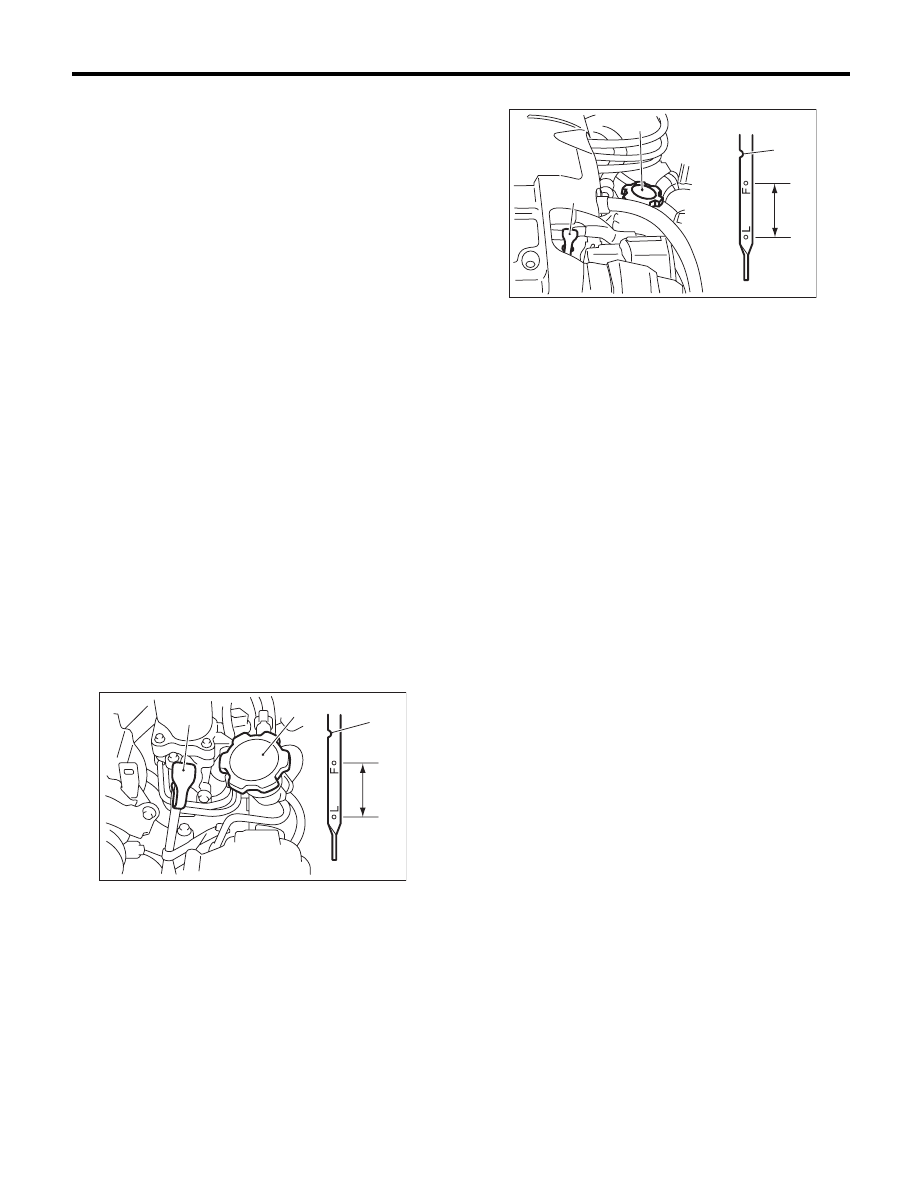

LU(H4SO)-9

Engine Oil

LUBRICATION

3. Engine Oil

A: INSPECTION

CAUTION:
If the engine oil is spilt over exhaust pipe or the
under cover, wipe it off with cloth to avoid emit-
ting smoke or causing a fire.
1) Park the vehicle on a level surface.
2) Remove the oil level gauge and wipe away the
oil.
3) Reinsert the oil level gauge all the way. Be sure
that the oil level gauge is correctly inserted and
properly orientated.
4) Pull out the oil level gauge again, and check the
oil level. If the engine oil level is below “L” line,
check for oil leakage from engine and add oil to
bring the level up to the “F” line.
5) Start the engine and warm it up for a time.
6) After turning off the engine, wait a few minutes
for the oil to return to the oil pan before checking
the level.

NOTE:
• Just after driving or while the engine is warm, en-
gine oil level shows in the range between “F” line
and cutout portion. This is caused by thermal ex-
pansion of engine oil.
• To prevent overfilling of engine oil, do not add oil
above “F” line when the engine is cold.
• As the oil level gauge is used for daily mainte-
nance, “F” line and “L” line is set assuming that the
engine is cold.
• Non-turbo model

• Turbo model

(C)

(F)

(B)

(A)

(E)

(D)

PM-00362

(A) Oil level gauge

(B) Engine oil filler cap

(D) “L” line

(E) Approx. 1.0

2 (1.1 US qt, 0.9 Imp qt)

(F) Notch mark

(C)

(B)

(A)

(E)

(F)

(D)

PM-00367

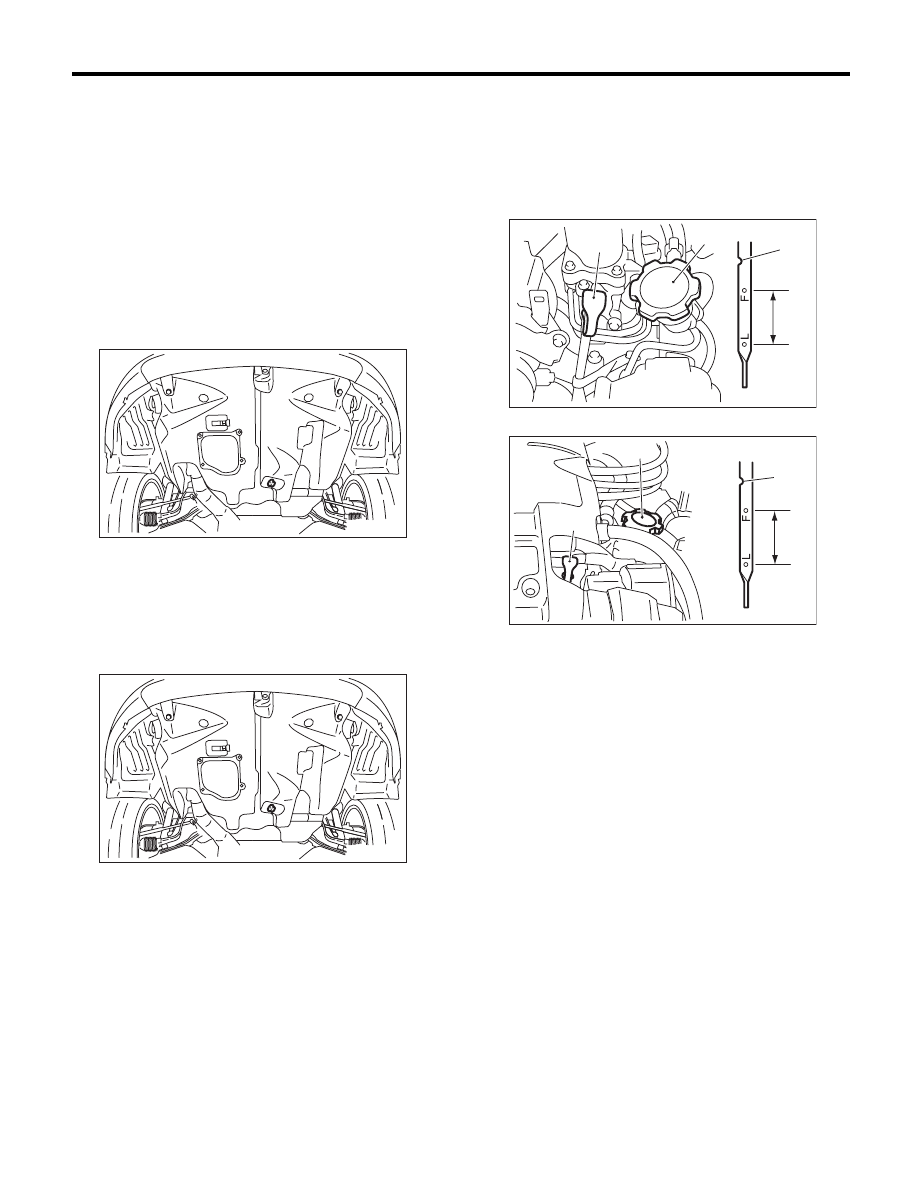

LU(H4SO)-10

Engine Oil

LUBRICATION

B: REPLACEMENT

CAUTION:
If the engine oil is spilt over exhaust pipe or the
under cover, wipe it off with cloth to avoid emis-
sion of smoke or causing a fire.
1) Set the vehicle on a lift.
2) Open the engine oil filler cap for quick draining of
engine oil.
3) Lift up the vehicle.
4) Drain engine oil by loosening the engine oil drain
plug.

NOTE:
Prepare the container for draining of engine oil.

5) Tighten the engine oil drain plug after draining
engine oil.

NOTE:
Use a new drain plug gasket.

Tightening torque:

44 N·m (4.5 kgf-m, 32.5 ft-lb)

6) Lower the vehicle.
7) Using engine oil of proper quality and viscosity,
fill engine oil through the oil filler duct to the “F” line
on the level gauge. Make sure that the vehicle is
parked on a level surface when checking oil level.

Recommended oil:

Refer to “SPECIFICATION” for the recom-
mended oil. <Ref. to LU(H4SO)-2, SPECIFI-
CATION, General Description.>

Engine oil capacity:

Refer to “SPECIFICATION” for the engine oil
capacity. <Ref. to LU(H4SO)-2, SPECIFICA-
TION, General Description.>

8) Close the engine oil filler cap.
9) Start the engine, and spreads the oil in engine
room.
10) After stopping the engine, recheck the oil level.
If necessary, add engine oil up to the “F” line on oil
level gauge.
• Non-turbo model

• Turbo model

PM-00323

(A) Oil level gauge

(B) Engine oil filler cap

(D) “L” line

(E) Approx. 1.0

2 (1.1 US qt, 0.9 Imp qt)

(F) Notch mark

(C)

(F)

(B)

(A)

(E)

(D)

PM-00362

(C)

(B)

(A)

(E)

(F)

(D)

PM-00367

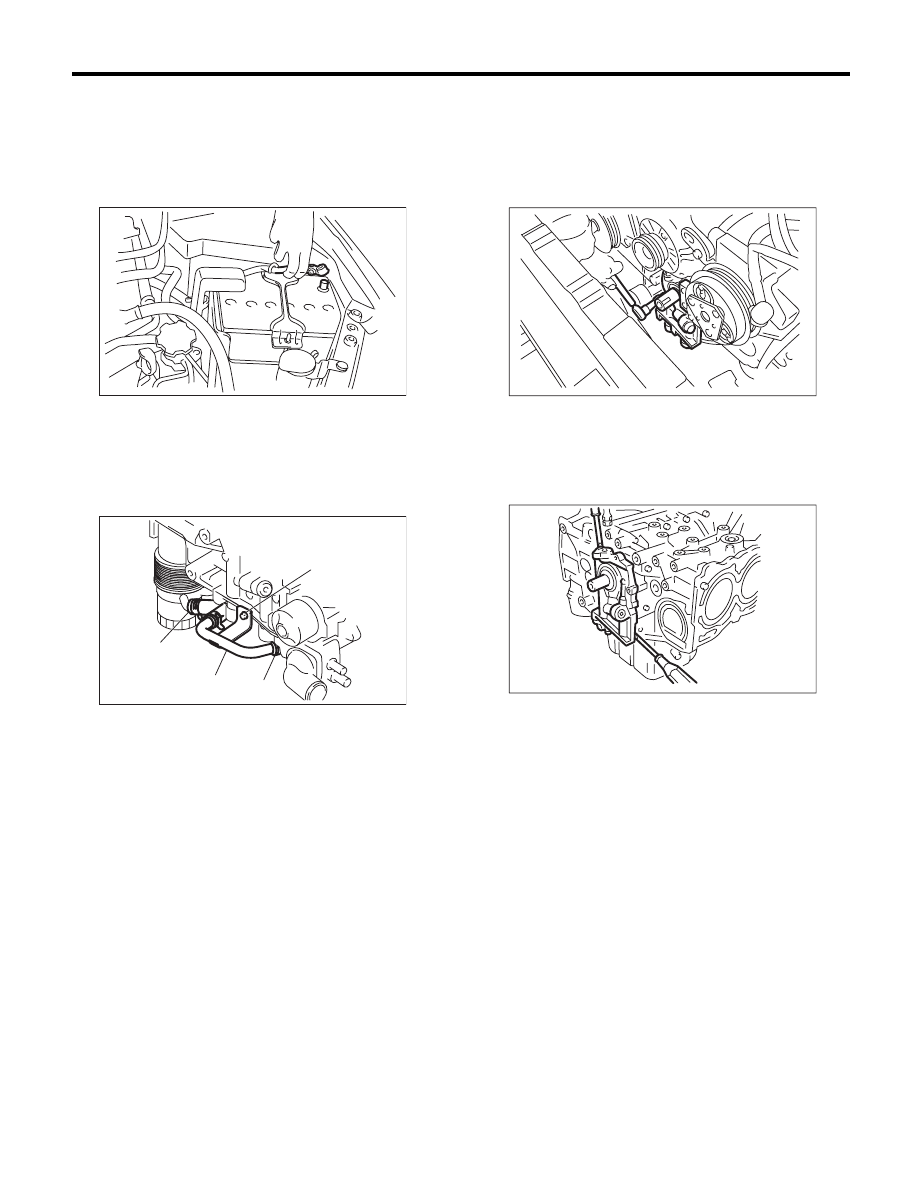

LU(H4SO)-11

Oil Pump

LUBRICATION

4. Oil Pump

A: REMOVAL

1) Set the vehicle on a lift.
2) Remove the collector cover. (Turbo model)
3) Disconnect the ground cable from battery.

4) Lift up the vehicle.
5) Remove the under cover.
6) Remove the bolt (B) holding the oil cooler pipe to
the oil pump. (Turbo model)
7) Remove the oil cooler pipe (A) and hose (C).
(Turbo model)

8) Lower the vehicle.
9) Remove the radiator. <Ref. to CO(H4SO)-19,
REMOVAL, Radiator.> <Ref. to CO(H4DOTC)-20,
REMOVAL, Radiator.>
10) Remove the crankshaft position sensor. <Ref.
to FU(H4SO)-23, REMOVAL, Crankshaft Position
Sensor.> <Ref. to FU(H4DOTC)-32, REMOVAL,
Crankshaft Position Sensor.>
11) Remove the water pump. <Ref. to CO(H4SO)-
15, REMOVAL, Water Pump.> <Ref. to
CO(H4DOTC)-20, REMOVAL, Radiator.>
12) Remove the crank sprocket. <Ref. to
ME(H4SO)-50, REMOVAL, Crank Sprocket.>
<Ref. to ME(H4DOTC)-57, REMOVAL, Crank
Sprocket.>

13) Remove the bolts which install oil pump onto
cylinder block.

NOTE:
When disassembling and checking the oil pump,
loosen the relief valve before removing the oil
pump.

14) Remove the oil pump by using flat tip screw-
driver.

CAUTION:
Be careful not to scratch mating surfaces of
cylinder block and oil pump.

15) Remove the front oil seal from the oil pump.

IN-00203

LU-02396

(B)

(C)

(A)

LU-00015

LU-00016

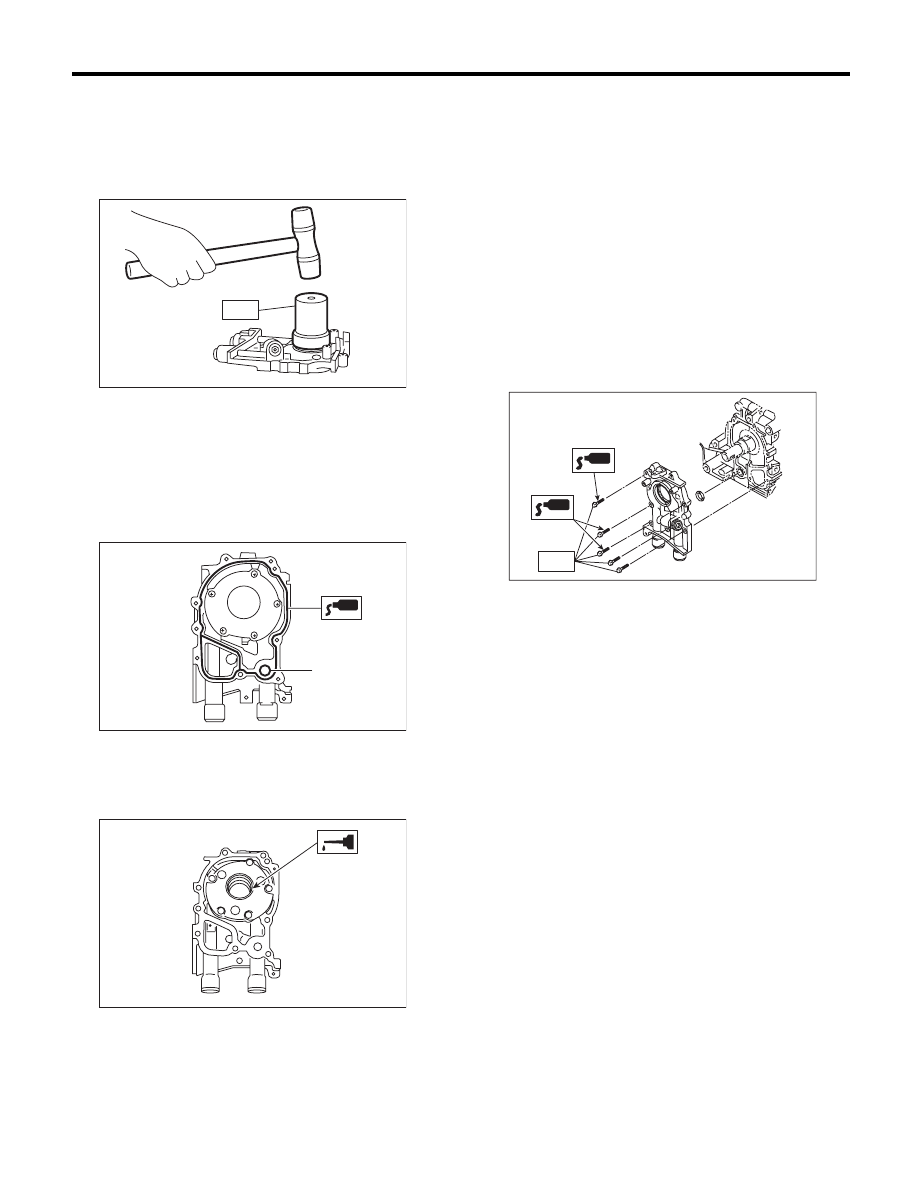

LU(H4SO)-12

Oil Pump

LUBRICATION

B: INSTALLATION

1) Using the ST, install the front oil seal.
ST

499587100

OIL SEAL INSTALLER

NOTE:
Use a new front oil seal.

2) Apply liquid gasket to the mating surfaces of oil
pump.

NOTE:
Install within 5 min. after applying liquid gasket.

Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100)
or equivalent

3) Apply a coat of engine oil to the inside of front oil
seal.

4) Install the oil pump to cylinder block. Be careful
not to damage the front oil seal during installation.

NOTE:
• Make sure the front oil seal lip is not folded.
• Align the flat surface of oil pump’s inner rotor with
crankshaft before installation.
• Use new O-rings.
• Do not forget to install O-rings.
5) Apply liquid gasket to the three bolts thread
shown in figure. (when reusing bolts)

Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or
equivalent

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

6) Install the crank sprocket. <Ref. to ME(H4SO)-
50, INSTALLATION, Crank Sprocket.> <Ref. to
ME(H4DOTC)-57, INSTALLATION, Crank Sprock-
et.>
7) Install the water pump. <Ref. to CO(H4SO)-16,
INSTALLATION, Water Pump.> <Ref. to
CO(H4DOTC)-16, INSTALLATION, Water Pump.>
8) Attach the crankshaft position sensor. <Ref. to
FU(H4SO)-23, INSTALLATION, Crankshaft Posi-
tion Sensor.> <Ref. to FU(H4DOTC)-32, INSTAL-
LATION, Crankshaft Position Sensor.>
9) Install the radiator. <Ref. to CO(H4SO)-20, IN-
STALLATION, Radiator.> <Ref. to CO(H4DOTC)-
21, INSTALLATION, Radiator.>
10) Lift up the vehicle.
11) Install the oil cooler pipe (A) and hose (C). (Tur-
bo model)

(A) O-ring

LU-00021

ME-00165

(A)

ME-00312

LU-02103
