EC(H4SO)-14

Drain Filter

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

12.Drain Filter

A: SPECIFICATION

Canister is a non-disassembled part, so do not re-
move the drain filter from canister.
Refer to “Canister” for removal and installation pro-
cedures. <Ref. to EC(H4SO)-5, REMOVAL, Canis-
ter.> <Ref. to EC(H4SO)-6, INSTALLATION,
Canister.>

EC(H4SO)-15

Shut Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

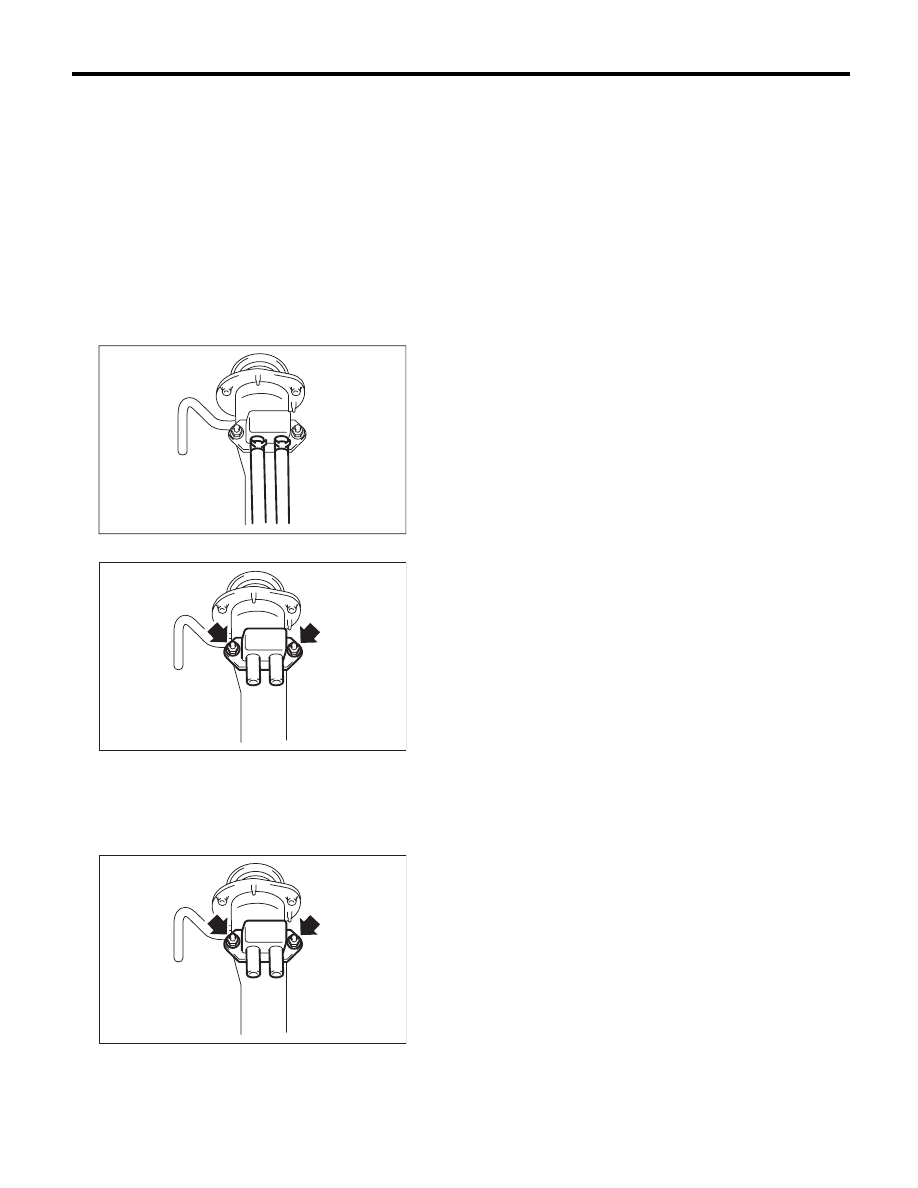

13.Shut Valve

A: REMOVAL

WARNING:
Place “NO OPEN FLAMES” signs near the
working area.

CAUTION:
Be careful not to spill fuel.
1) Remove the fuel filler pipe.
<Ref. to FU(H4SO)-52, REMOVAL, Fuel Filler
Pipe.>
2) Disconnect the evaporation hose from the shut
valve.

3) Remove the shut valve from the fuel filler pipe.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

4.5 N·m (0.5 kgf-m, 3.3 ft-lb)

C: INSPECTION

Make sure the hoses are not cracked or loose.

EC-02088

EC-02089

EC-02089

EC(H4SO)-16

Drain Valve

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

14.Drain Valve

A: SPECIFICATION

Canister is a non-disassembled part, so do not re-
move the drain valve from canister.
Refer to “Canister” for removal and installation pro-
cedures. <Ref. to EC(H4SO)-5, REMOVAL, Canis-
ter.> <Ref. to EC(H4SO)-6, INSTALLATION,
Canister.>

EC(H4SO)-17

PCV Hose Assembly

EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)

15.PCV Hose Assembly

A: REMOVAL

CAUTION:
Do not remove unless the PCV hose, diagnos-
tics connector and PCV valve are damaged.
1) Remove the air intake chamber. <Ref. to
IN(H4SO)-7, REMOVAL, Air Intake Chamber.>

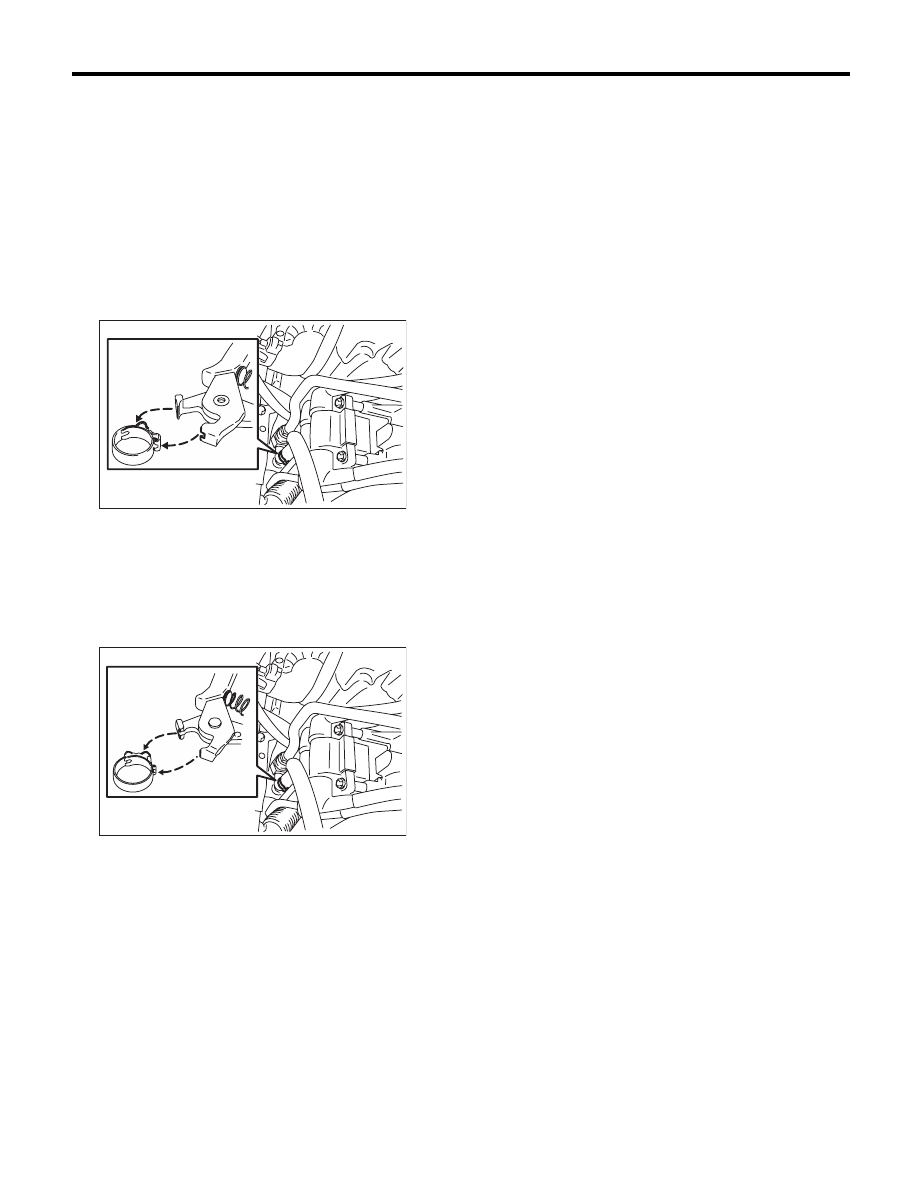

2) Fit the depression in the ST with the protrusion
on the clamp to unlock.
3) Remove the PCV hose assembly.
ST

18353AA000

CLAMP PLIERS

B: INSTALLATION

1) Install the PCV hose assembly, then lock by fit-
ting the ST on the clamp protrusion.

NOTE:
Replace the clamp with a new part.
ST

18353AA000

CLAMP PLIERS

2) Install the air intake chamber. <Ref. to
IN(H4SO)-7, INSTALLATION, Air Intake Cham-
ber.>

EC-02151

EC-02152
