NT-12
Note
NOTE
2) Full-time AWD AT model
(1) Keep the front or rear wheels on the ground
during measurement.
(2) When the brake dragging force is large.
• Check the dragging of brake pad or brake
shoe.
Specifications:
• When measurement is difficult to carry out
because both of front wheels are locked, brake
force measurement in this condition conforms
to standard grand total.

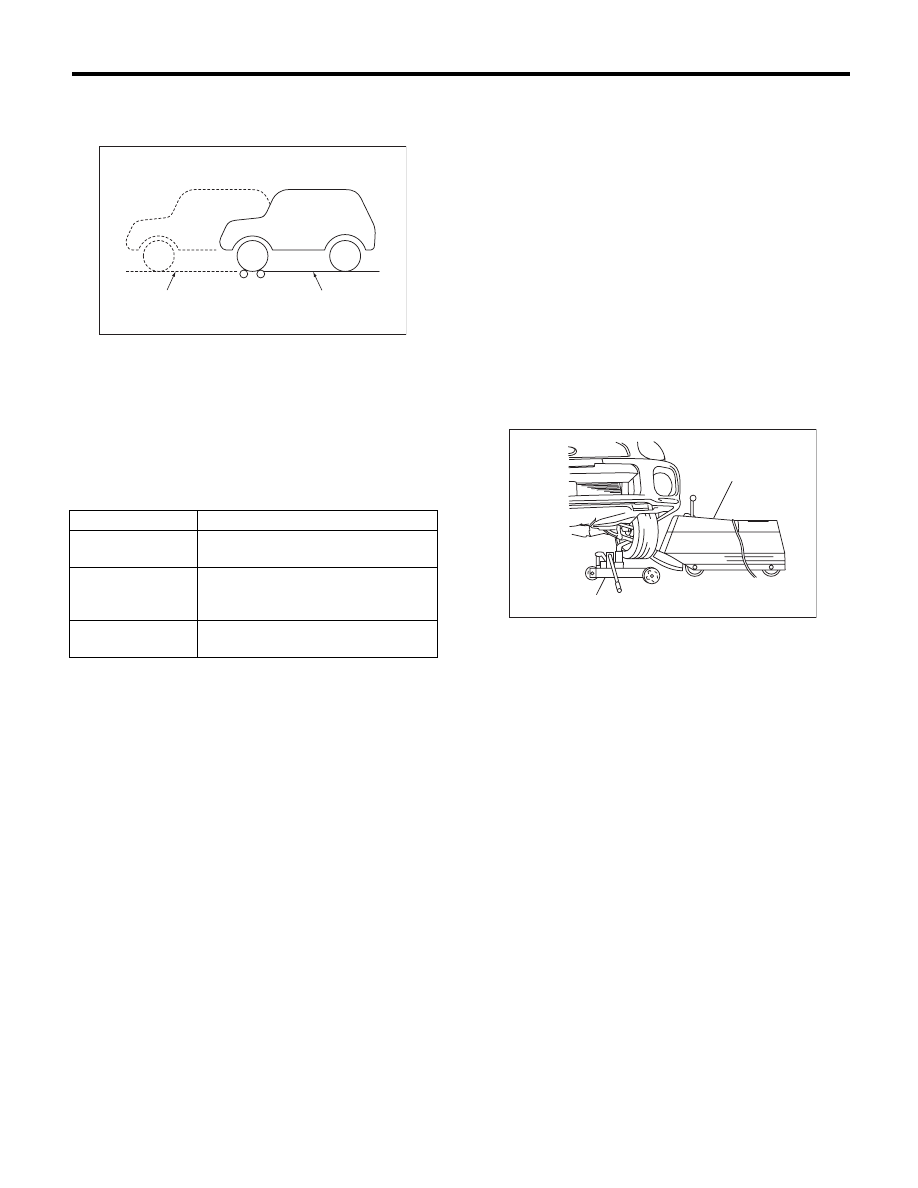

15.ON THE CAR WHEEL BALANCING
CAUTION:
• Carry out this procedures after measuring
the balance of each single tire.
• Set the vehicle so that the front and rear
wheels are the same height.
• Release the parking brake during measure-
ment.
• Rotate each wheel by hands, and make sure it
rotates without dragging.
• Do not operate the clutch quickly and do not
accelerate or decelerate suddenly during work.
• When an error is indicated during engine
drive, do not use the motor drive together.
1) Set the rigid rack to the specified locations of
side sill, jack up the front or rear two wheels of non-
measuring side and set the pickup stands to two
wheels of measuring side.
2) For drive wheel, drive the tires with engine for
measurement.
3) For non-drive wheel, drive the tires from the on
the car wheel balancer for measurement.
(A) Brake tester
(B) Position for measuring front wheel
(C) Position for measuring rear wheel
Braking
force
Rear wheel total
10% or more of load on front or rear
wheels
Difference between
right and left
wheels
8% or less of load on front or rear
wheels
Grand total
50% or more of vehicle weight at the
time of test
NT-00029
(C)
(A)
(B)
(A) Balancer body
(B) Pickup stand
NT-00031
(A)
(B)
