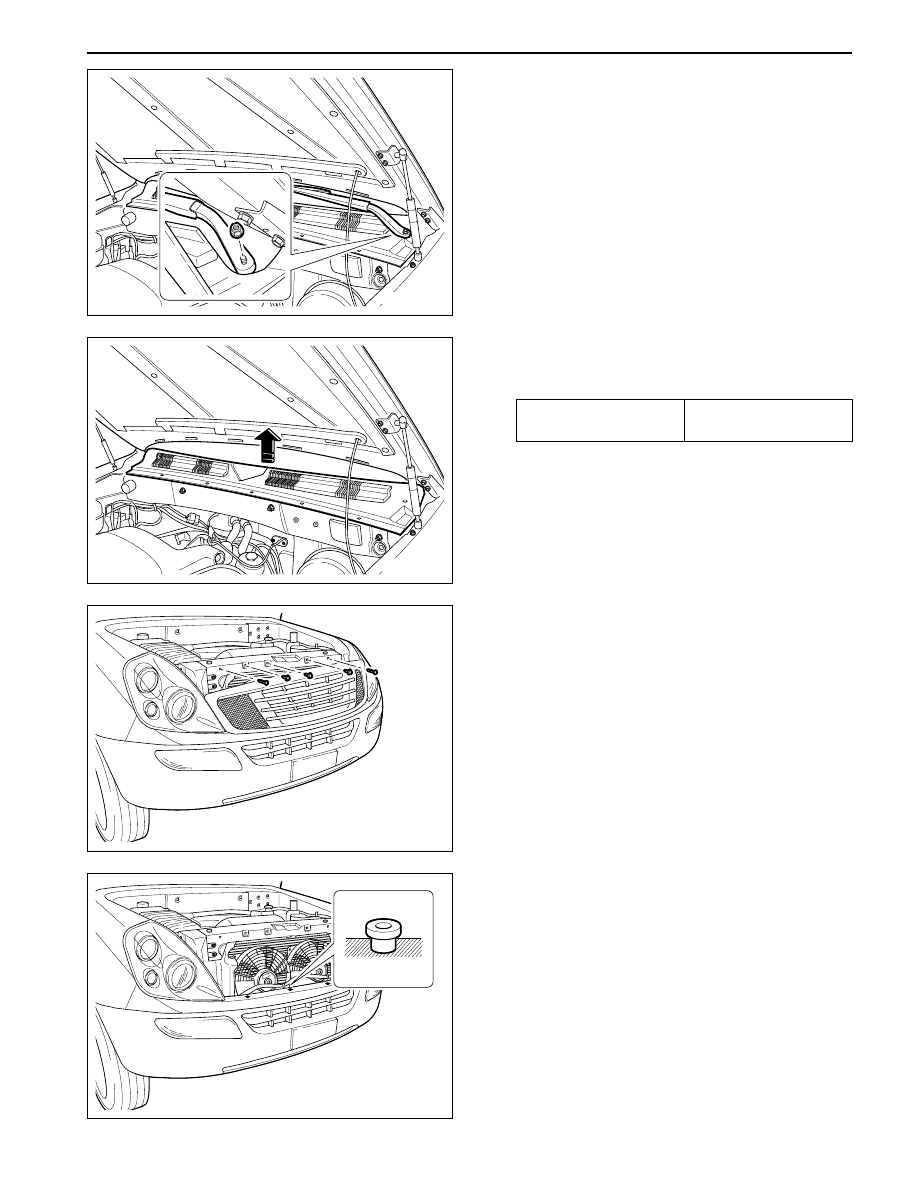

4. Remove cowl of left / right. (first, cowl of right is

removed, and then cowl of left is removed)

5. Install reverse order of removal.

3. Separate fixing clip of cowl. (4 EA)

Wiper Fixing Nut

14 - 17 N•m

(44 - 52 lb-ft)

RADIATOR GRILL

Removal and Installation

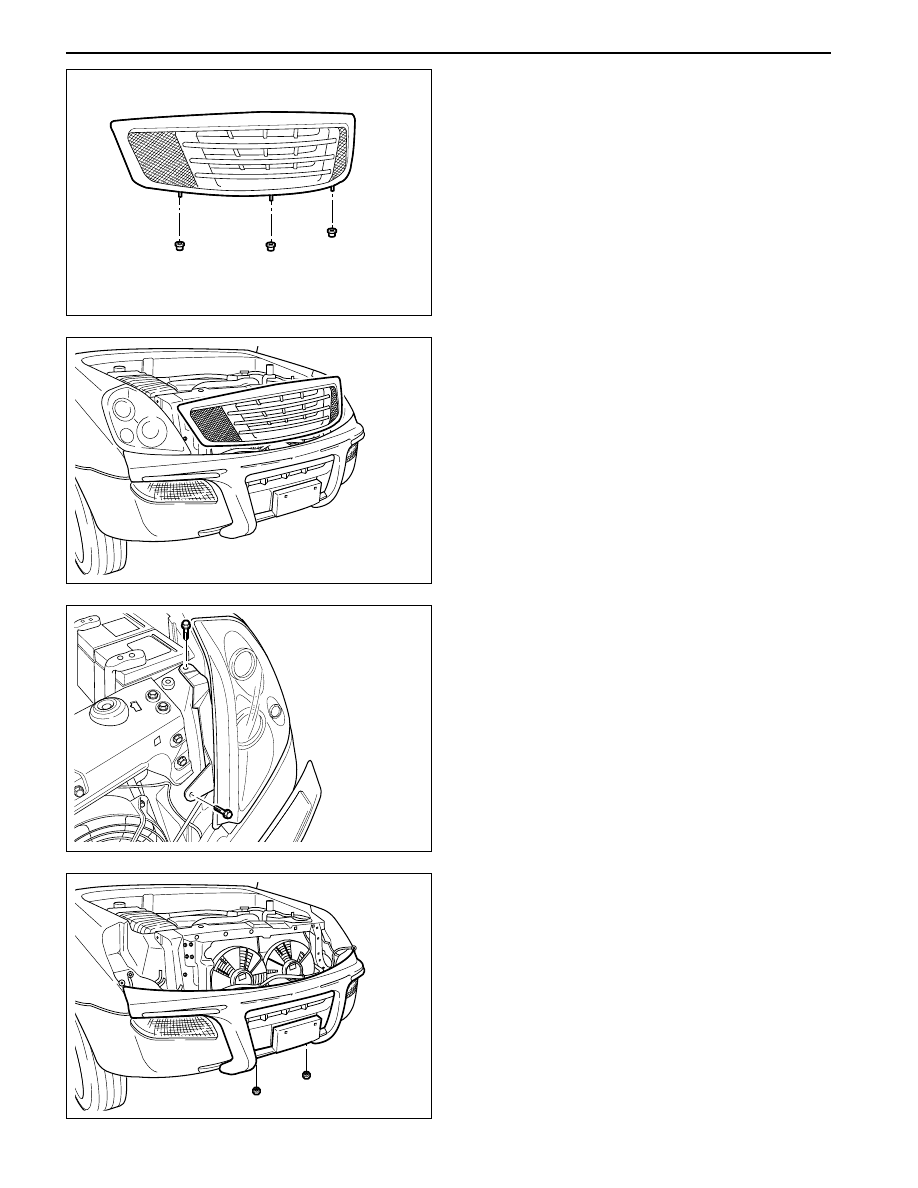

1. Remove fixing screw (2 ea) of radiator grill and

rivet (3 ea).

2. Remove radiator grill and fixing rubber of grill.

SSANGYONG Y200

9C-14 BODY EXTERIOR

YAD9C270

YAD9C280

YAD9C290

YAD9C300

3. Install reverse order of removal.

Notice: Check damage of fixing rubber and

damage of grill.

FRONT BUMPER ASSEMBLY

Removal and Installation

1. After releasing screw of radiator grill and screw

rivet, remove grill assembly.

2. After releasing fixing bolt, remove connector of

headlamp and remove headlamp. (first, after
removing cap of wheel house cover, remove fixing
nut of headlamp)

3. After releasing fixing bolt (4 ea) of bumper guide,

remove bumper guide from bumper.

- After releasing fixing bolt of bumper guide

support, remove bumper guide support.

BODY EXTERIOR 9C-15

SSANGYONG Y200

YAD9C310

YAD9C320

YAD9C330

YAD9C340

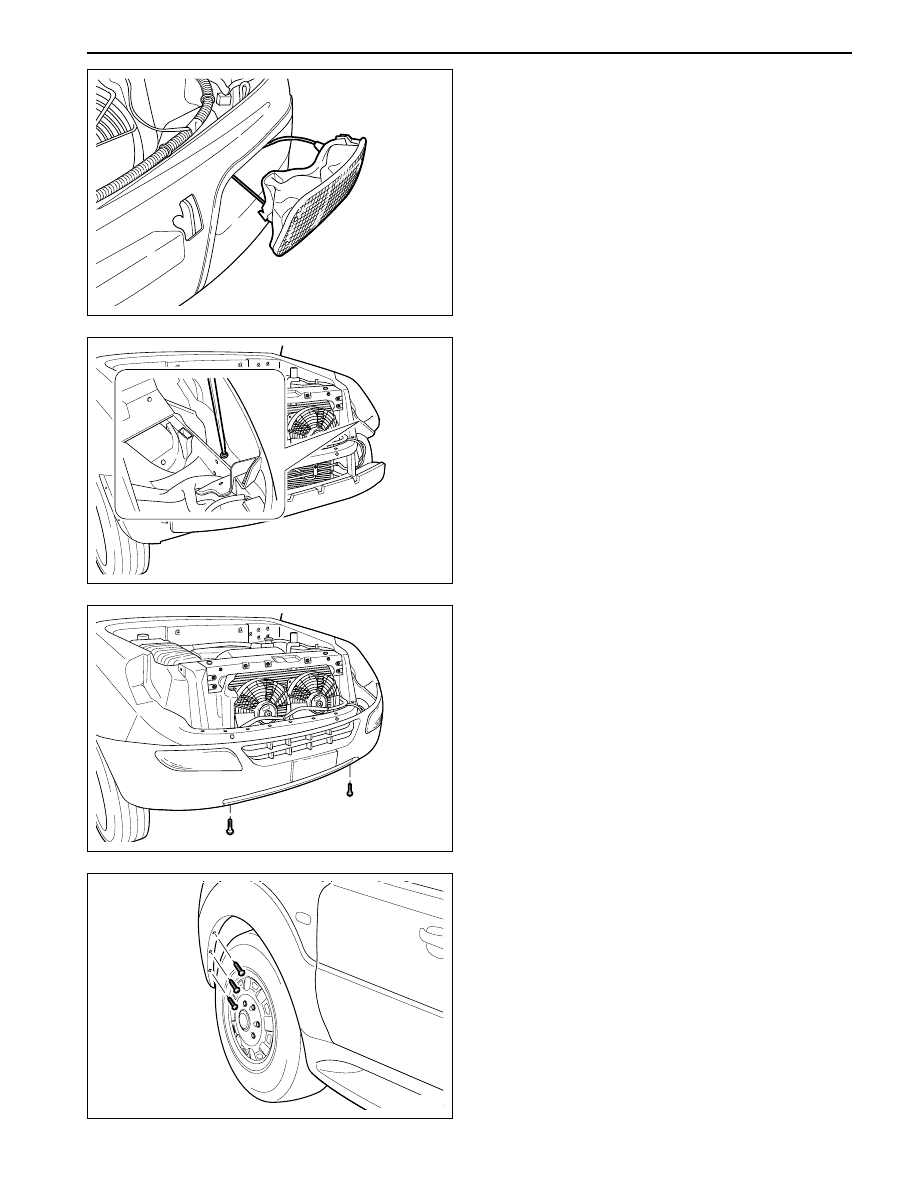

4. Remove fog lamp. (After releasing nut (2 ea) of

internal section of bumper facia)

5. Remove bumper cover

1) Separate rivet (6 ea) of the upper of bumper

facia.

- Remove screw (2 ea) and nut (2 ea) of fender.

2) Separate screw of the lower of bumper facia.

(2 ea)

3) Separate screw of bumper facia in the wheel

house.

- Side section : 4 ea

- Rivet of lower section : 1 ea

SSANGYONG Y200

9C-16 BODY EXTERIOR

YAD9C350

YAD9C360

YAD9C370

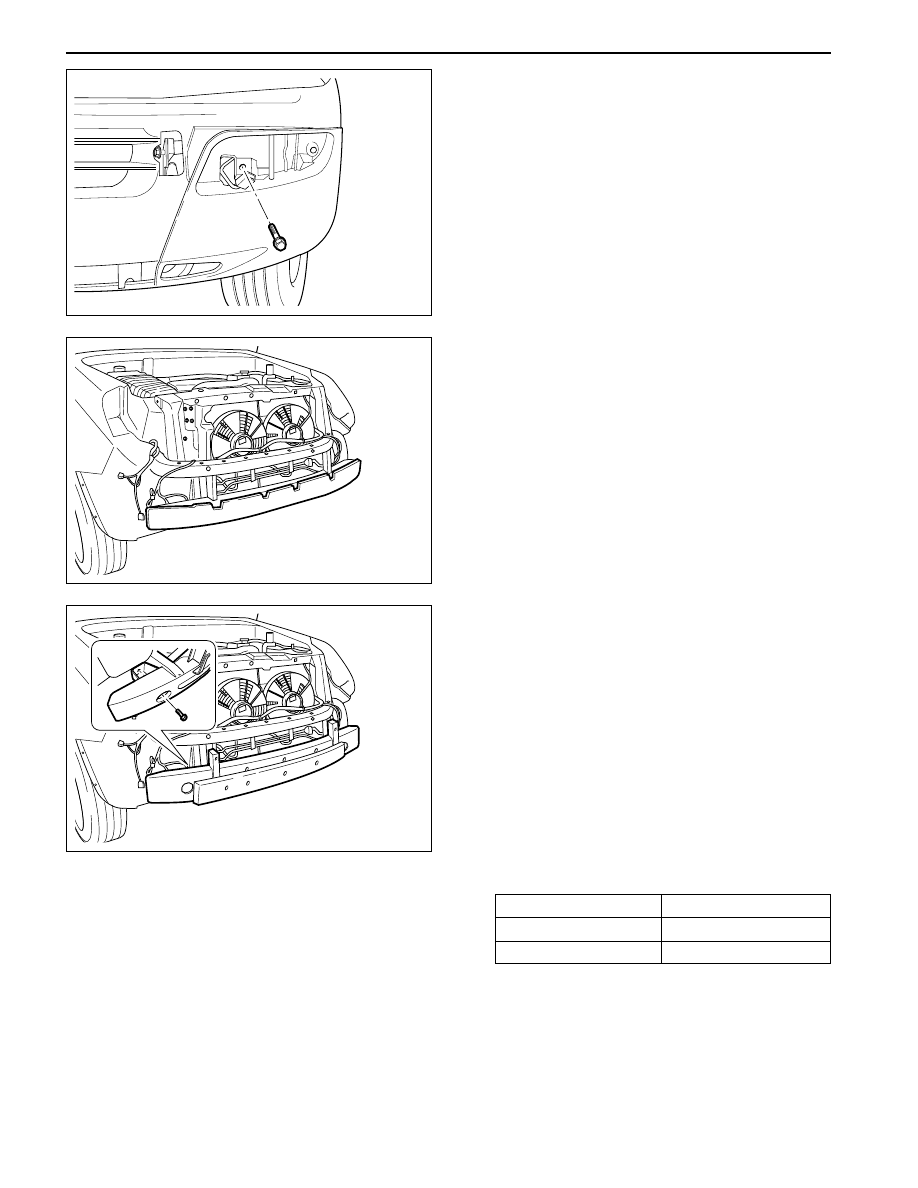

4) After releasing fixing bolt of center of bumper

facia, remove bumper facia.

- Left : 1 ea

- Right: 1 ea

6. Remove energy absorber.

7. After releasing fixing bolt of bumper in the frame,

remove bumper.

8. Install reverse order of removal.

76 - 114 N•m

2.8 - 5.2 N•m

16.8 - 31.2 N•m

Fixing Bolt of Bumper

Bolt of Bumper cover

Bolt of Bumper Guide
