SSANGYONG  Y200

9B-2  BODY INTERIOR

   COMPONENTS LOCATION

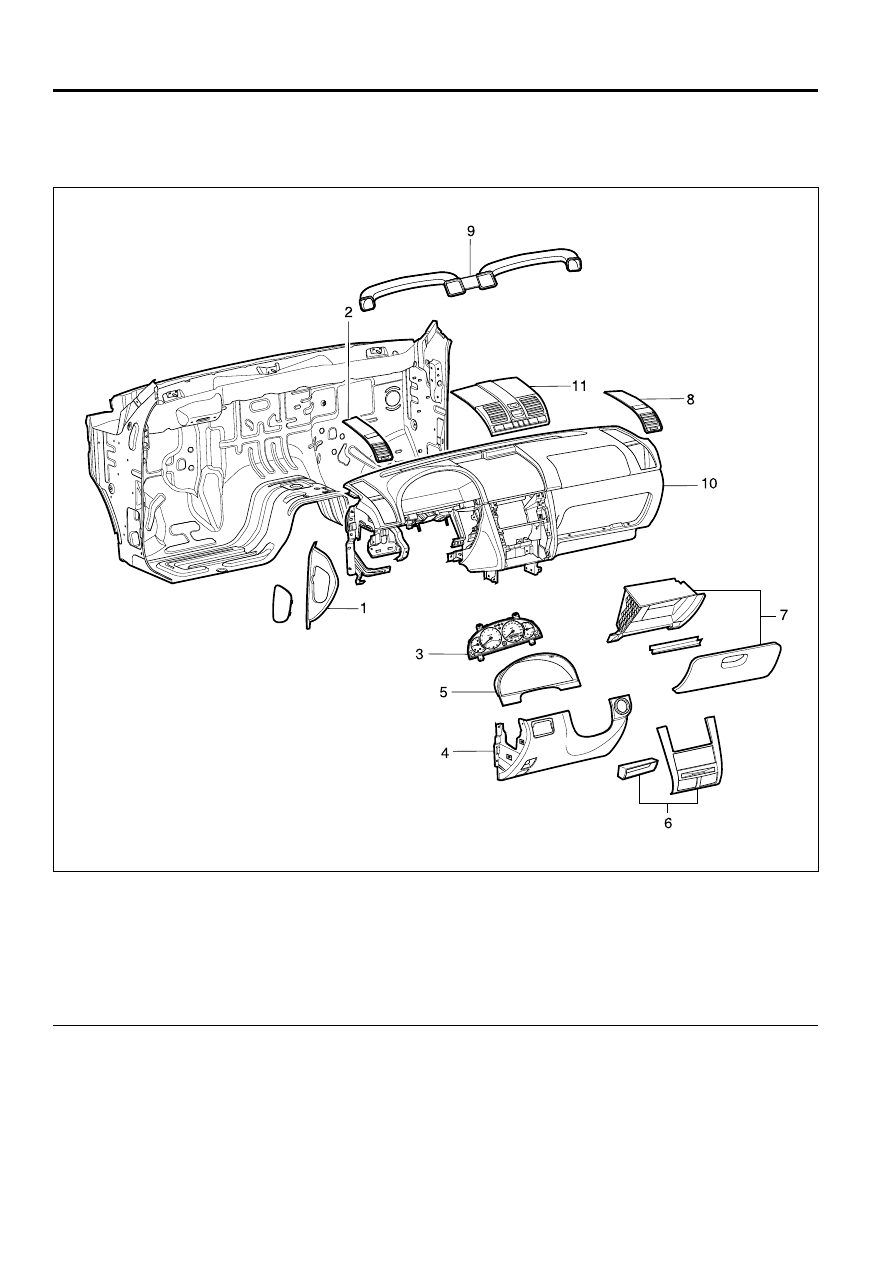

    INSTRUMENTS  ASSEMBLY

YAD9B010

1 Fuse Box Cover
2 Side Facia Panel
3 Instrument Panel
4 Instrument Lower Main Panel
5 Cluster Facia Panel
6 Center Facia Lower Panel

7 Groove Box
8 Side Facia Panel
9 Duct

10 Instrument Assembly
11 Center Facia Upper Panel

BODY INTERIOR  9B-3

SSANGYONG  Y200

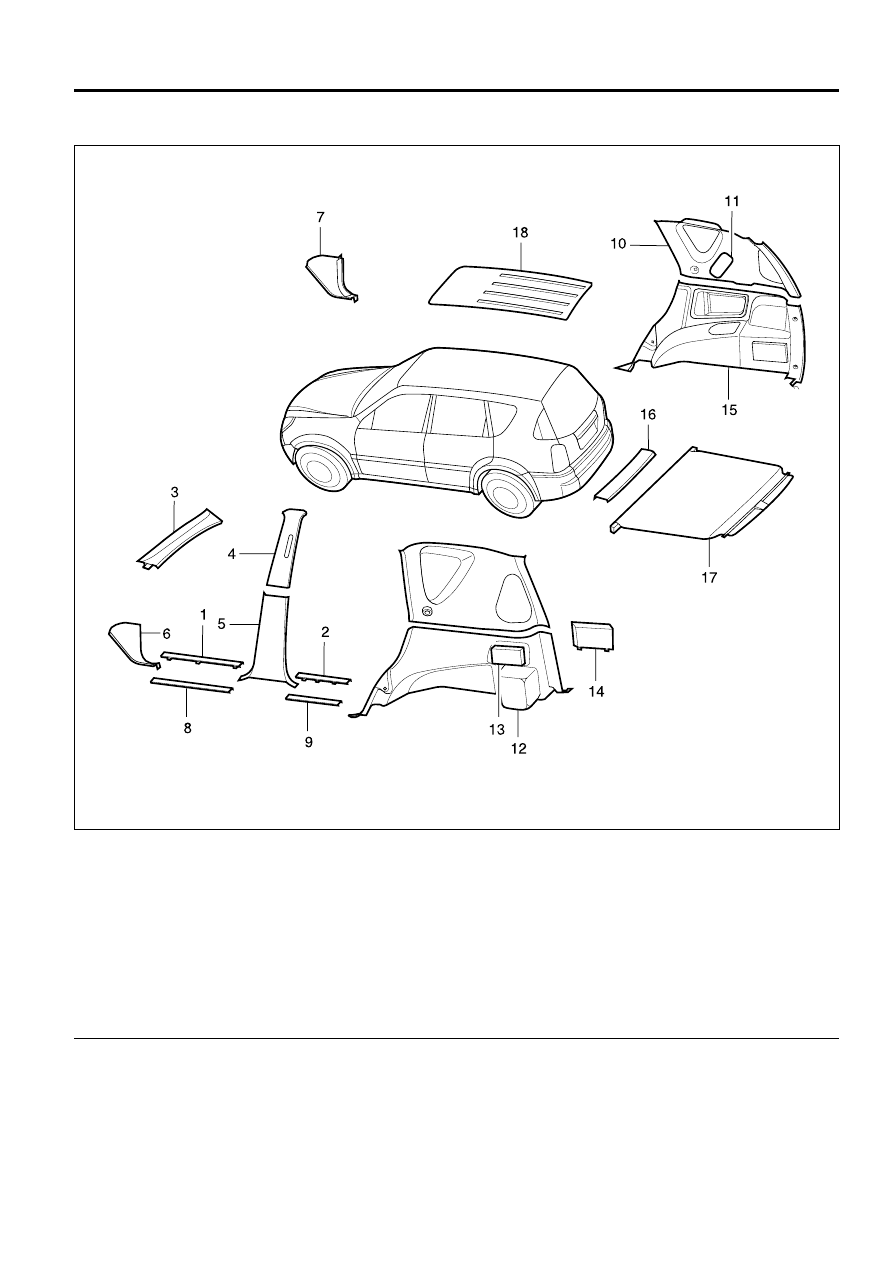

SIDE  TRIM AND ROOF ASSEMBLY

YAD9B020

1 Door Scuff Front
2 Door Scuff Rear
3 A-Pillar
4 B-Upper Pillar
5 B-Lower Pillar
6 Side Cowl
7 Side Cowl
8 Out Side Step Front
9 Out Side Step Rear

10 Upper Quarter
11 Rear Aircon (Facia)
12 Lower Quarter
13 Jack Cover
14 Lower Quarter (Cover)
15 Lower Quarter
16 Rear Transverse Trim
17 Baggage Room Cover
18 Roof Panel

SSANGYONG  Y200

9B-4  BODY INTERIOR

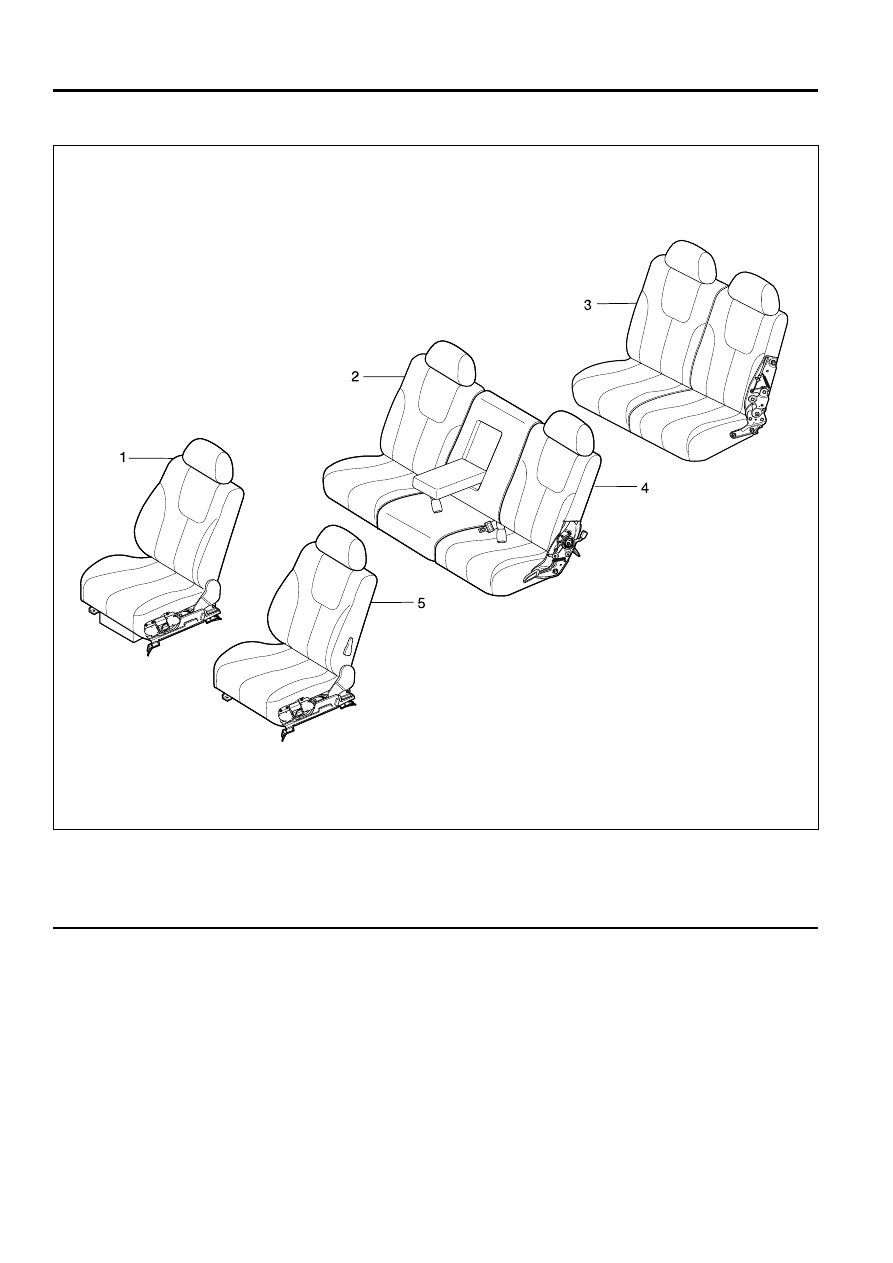

SEAT

YAD9B030

1 Front Seat - Right Side
2 Rear Seat - Right Side
3 3 Row Seat

4 Rear Seat - Left Side
5 Front Seat - Left Side

BODY INTERIOR  9B-5

SSANGYONG  Y200

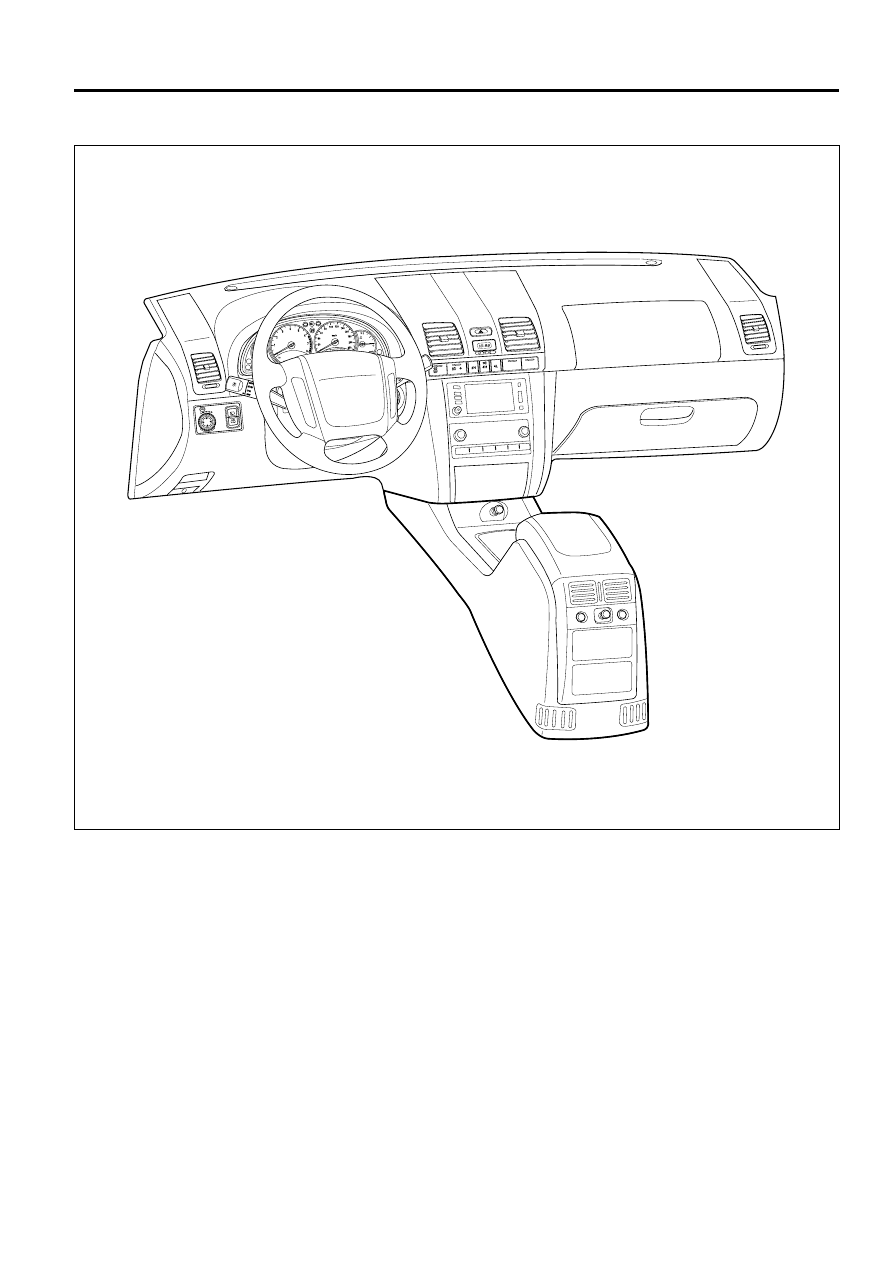

CONSOLE

YAD9B040
