8A-8  SEAT BELTS

•

Tighten seat belt lower bolt as specified torque.

YAD8A140

YAD8A150

YAD8A160

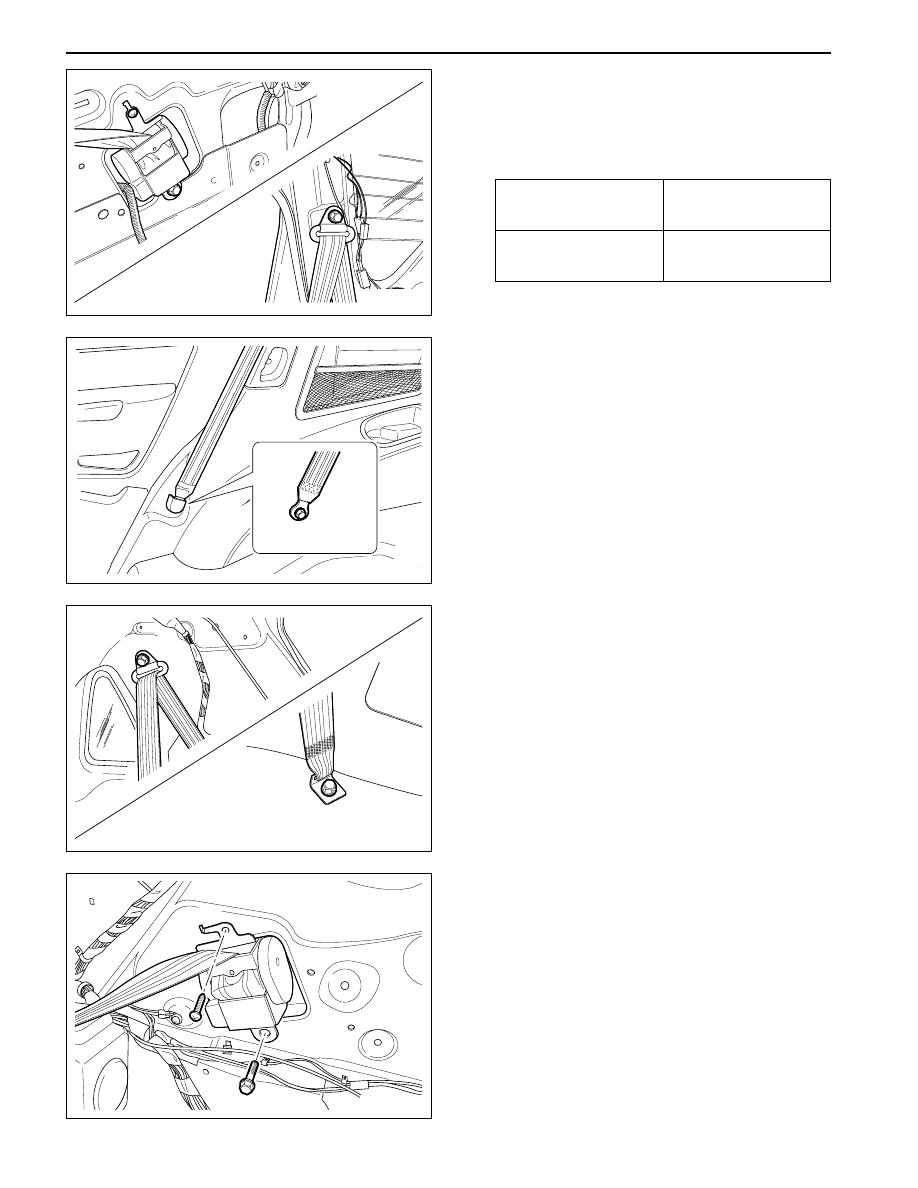

3RD-ROW SEAT BELT

Removal and Installation Procedure

1. Remove the upper/lower bolt of the seat belt.

Notice: Push the 3rd row seat down and perform
the work with the upper quarter trim removed.

2. Remove the retractor bolt and screw of the 3rd

row seat and then remove the seat belt assembly.

YAD8A130

6. Installation should follow the removal procedure

in the reverse order.

•

Tighten the seat belt retractor bolt and the upper
bolt as specified torque.

Installation Notice

Retractor Mounting

Bolt (1)

30 - 45 N•m

 (22 - 33 lb-ft)

30 - 45 N•m

 (22 - 33 lb-ft)

Upper Bolt (2)

SEAT BELTS  8A-9

SSANGYONG  Y200

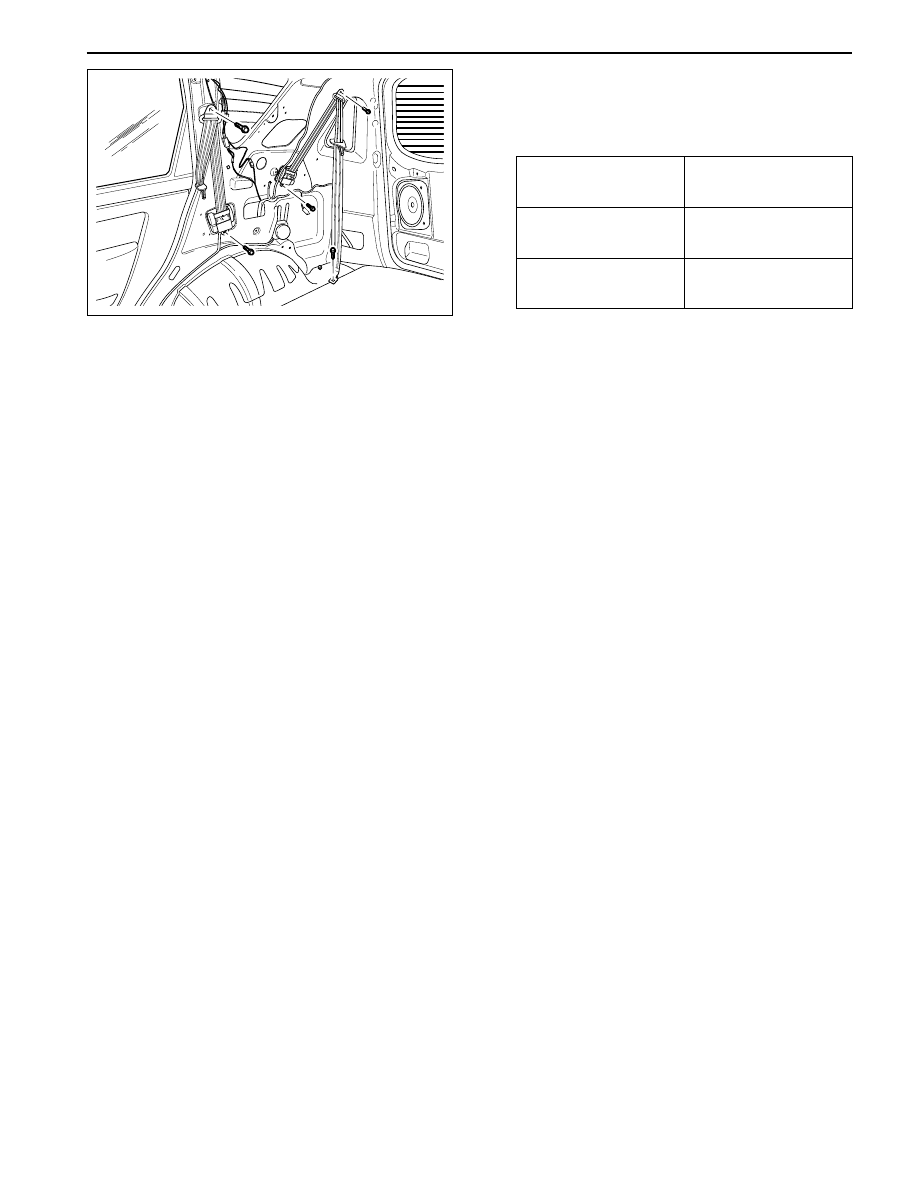

3. Installation should follow the removal procedure

in the reverse order. Tighten each bolt as specified
torque.

Installation Notice

YAD8A170

Upper Bolt (1)

30 - 45 N•m

 (22 - 33 lb-ft)

30 - 45 N•m

 (22 - 33 lb-ft)

Lower Bolt (2)

30 - 45 N•m

 (22 - 33 lb-ft)

Retractor Bolt (3)

SECTION 8B

RESTRAINTS

TABLE OF CONTENTS

General Description and Operation ..................... 8B-2

General Precautions ............................................. 8B-2

SIR System ......................................................... 8B-3

SIR System Operation ......................................... 8B-3

Airbag Module Discard ........................................ 8B-3

Component Function ............................................ 8B-5

Front Airbag ........................................................ 8B-7

Side Airbag ......................................................... 8B-8

Component Locator ............................................. 8B-9

Driver Airbag Assembly ....................................... 8B-9

Passenger Airbag Assembly ............................. 8B-10

Diagnostic Information and Procedures ............ 8B-11

General Diagnosis ............................................. 8B-11

Diagnosis .......................................................... 8B-12

Diagnostic Trouble Codes .................................. 8B-13

Maintenance and Repair ................................... 8B-16

On-Vehicle Service ............................................. 8B-16

Airbag Module (Driver) ....................................... 8B-16

Contact Coil ....................................................... 8B-17

Airbag Module (Passenger) ................................ 8B-18

Belt Pretensioner ............................................... 8B-19

Sensing and Diagnostic Module (SDM) .............. 8B-19

Special Tool and Equipment .............................. 8B-20

Special Tools Table ........................................... 8B-20

SSANGYONG  Y200

8B-2  RESTRAINTS

Sensing and Diagnostic Module

(SDM)

Driver-side Airbag Module

Passenger-side Airbag Module

Side Airbag Module

(Driver, Passenger)

Seatbelt Pretensioner

(Driver, Passenger)

Side Impact Sensor

(Driver, passenger)

1

2

3

4

5

6

SDM

DAB

PAB

SAB

PRET

SIS

GENERAL PRECAUTIONS

When the ignition is switched ON, the supplemental
inflatable restraints (SIR) warning lamp must blink at
seven times for 7 seconds and then turn off.

There is a fault in the airbag system if the warning
lamp does not turn OFF or the warning lamp illuminates
while the vehicle is in operation. If the warning lamp
indicates there is a fault in the airbag system, assume
that the SIR system may not be functional.

Notice: Failure to follow all service procedures in the
correct sequence can cause the airbag system to
deploy unexpectedly and possibly cause a serious
injury.

•

Only trained personnel at franchised SsangYong
dealers and authorized SsangYong service
dealerships may service the airbag system.

•

Never attempt to disassemble, repair or reuse the
following component;

- Airbag modules

- Clock spring

- Sensing and diagnostic module

- Wiring harness

•

When repairing SIR component, follow the service
notice;

- Inspect any SIR part before it is installed.

- Use only new parts.

- Do not install used SIR parts from other vehicles.

- Do not install any part that has been dropped or

that has dents, cracks or other defects.

•

Before testing, disconnect the negative battery
cable. Wait one minute for the SDM capacitor to
discharge. The capacitor supplies reserve power
to deploy the airbags, even if the battery is
disconnected. Unintentional deployment of the
airbags can cause injury.

GENERAL DESCRIPTION AND OPERATION

YAD8B010

SIR SYSTEM

SIR system consists of 6-Loop (DAB, PAB, 2*SAB,
2*PRET) fully and the block diagram is as shown below.

On this diagram, SDM sends the output signal to DAB,
PAB, 2*SAB, 2*PRET and receives the input of side
impact from 2*SIS (Side Impact Seasor).

Abbreviation
