6E-12  STEERING COLUMN

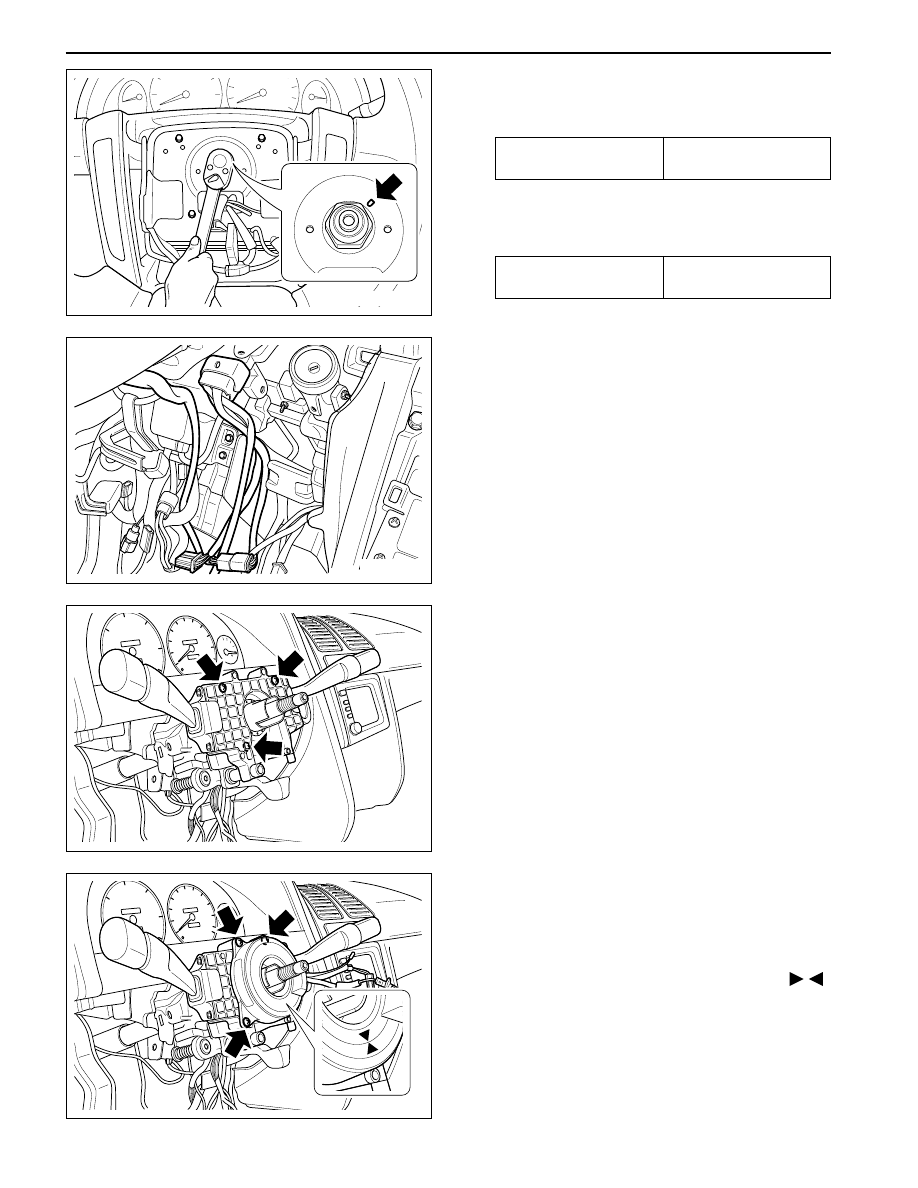

5. Connect each wiring connector of steering column.

YAD6E230

YAD6E240

YAD6E250

6. Install the combination switch assembly in

steering column shaft.

7. Install the contact coil in steering column shaft

which the combination switch is installed.

Notice: When you adjust the neutral position of
contact coil, rotate the contact coil to C.W.
direction until it stops and then again rotate it by
2.9 ±0.2 to C.C.W. direction. Align the mark (            )
Which is marked in contact coil.

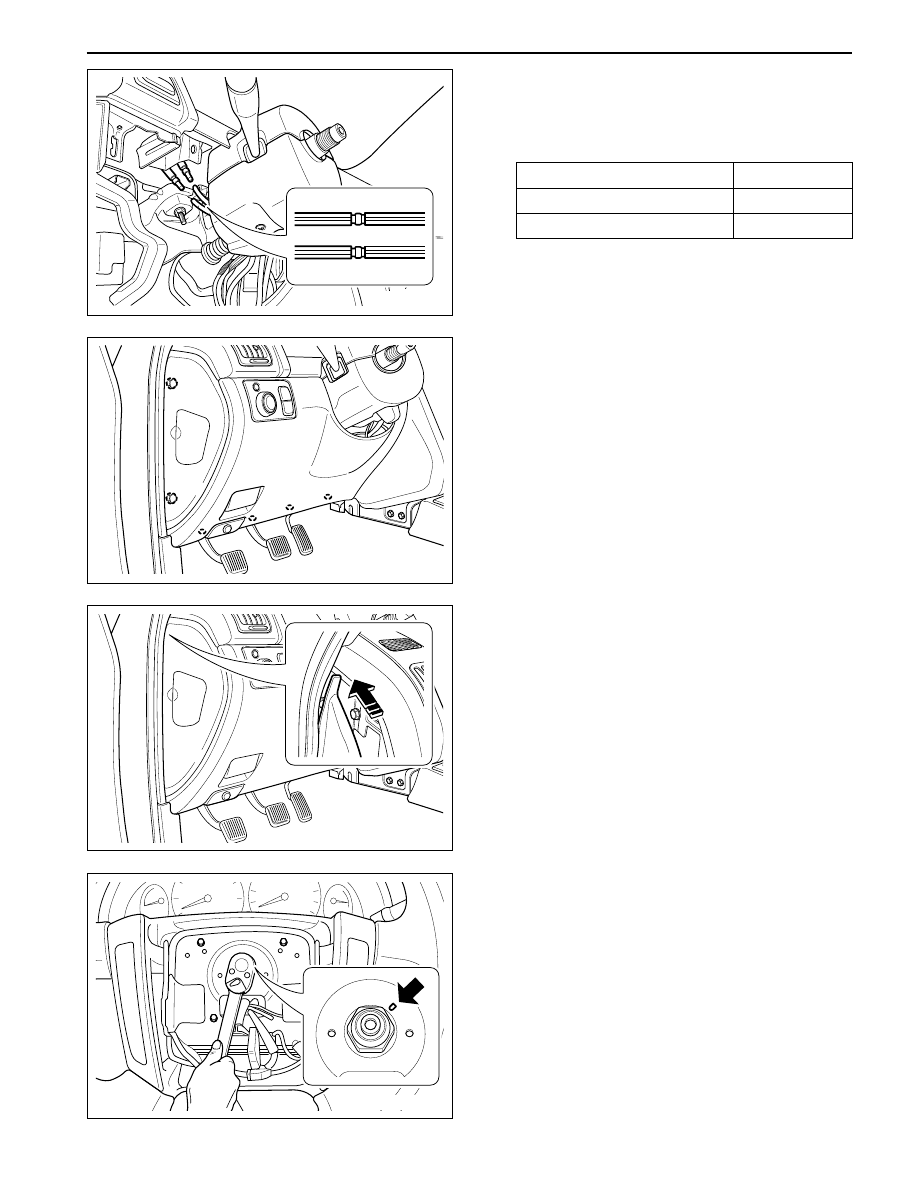

3. Tighten the floor bolt of steering column as

specified torque.

Installation Notice

4. Tighten the upper bolt of steering column shaft

as specified torque.

Installation Notice

Tightening Torque

20 - 25 N•m

(15 - 18 lb-ft)

Tightening Torque

20 - 25 N•m

(15 - 18 lb-ft)

YAD6E220

STEERING COLUMN  6E-13

SSANGYONG  Y200

YAD6E270

YAD6E220

YAD6E280

9. Install the steering column cover and instrument

panel.

10. Install the fuse box in the panel, each cable and

switch. Insert the panel side cover.

Notice: The panel side cover should be inserted
to the inside of molding and then installed.

11. Install the steering wheel in order that it is aligned

to the assembly marting of column shaft.

Notice: Apply the grease to the shaft spline part
in order that the wheel is installed easily.

YAD6E260

8. Connect the fuel cut vacuum hose with the

connector.

Notice: The identification color is marked in fuel
cut vacuum hose.

Color

Green

Blue

Classification

Fuel Cut Vacuum Hose-Inlet

Fuel Cut Vacuum Hose-Outlet

SSANGYONG  Y200

6E-14  STEERING COLUMN

YAD6E290

12. Before installing the horn pad in steering wheel,

first install each connector and then install the horn
pad.

Notice: When installing the pad, insert the safety
pin to the wheel hold and align the shaf end part
with the pad groove.

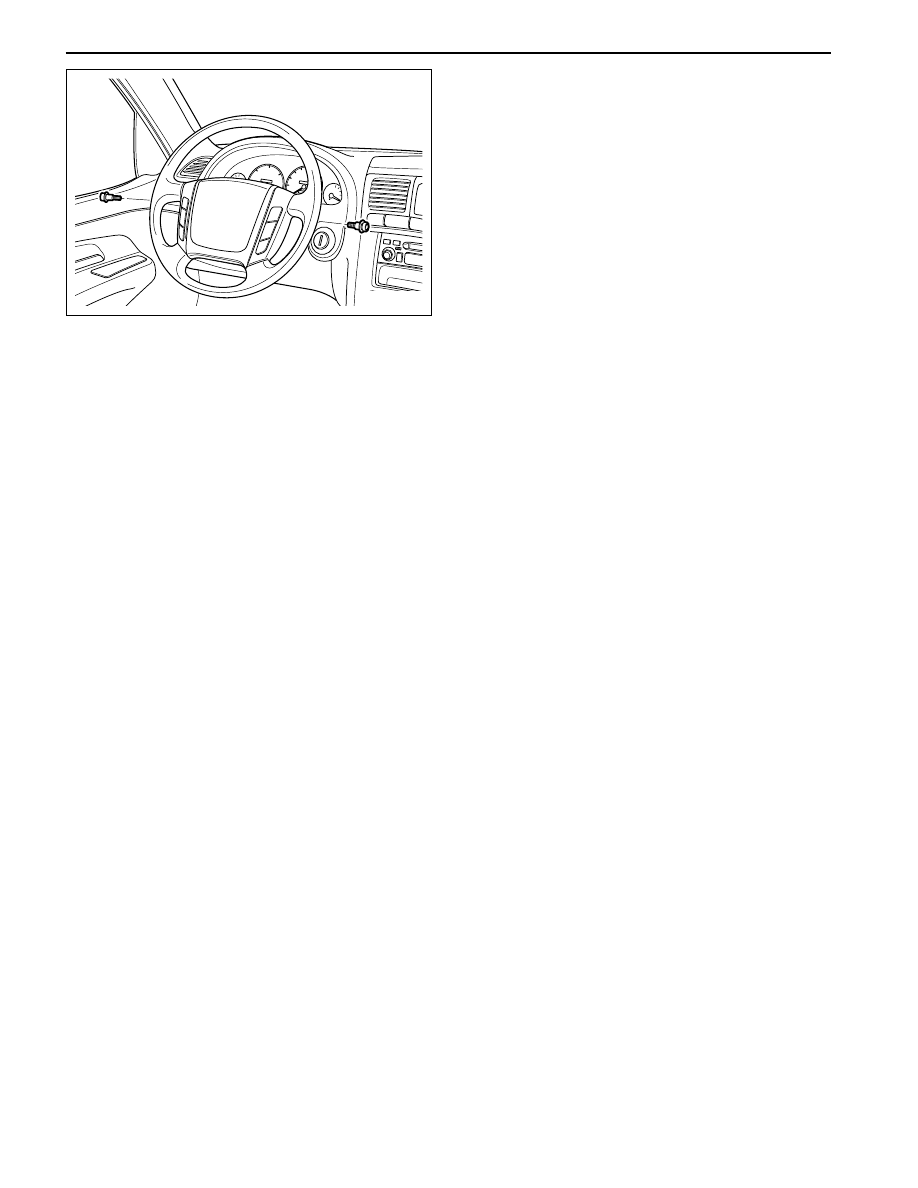

13. Tighten the left/right screw of steering wheel and

connect the negative terminal of battery.

STEERING COLUMN  6E-15

SSANGYONG  Y200

1

UNIT REPAIR

STEERING GEAR BOX

Disassembly

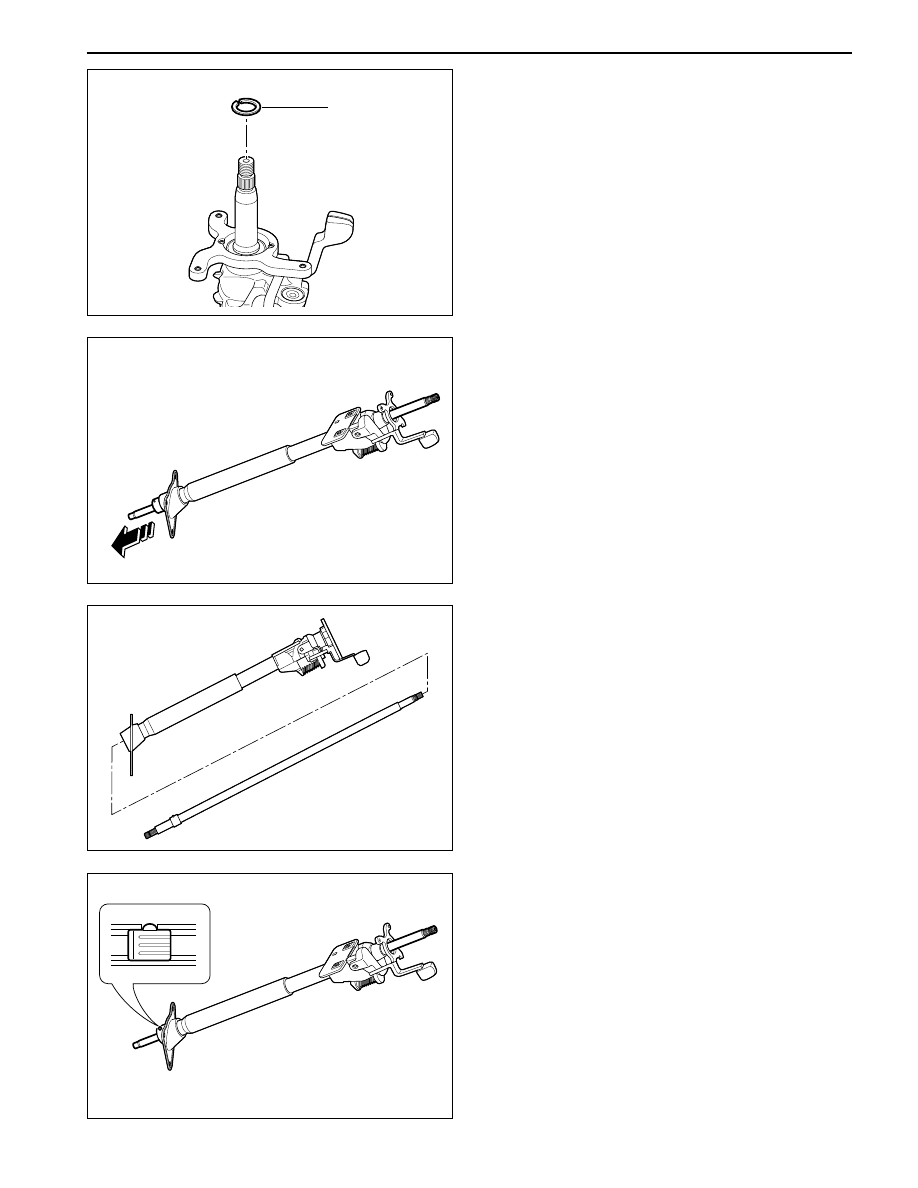

1. Remove the steering column assembly from the

vehicle.

Notice: Be careful so that the steering column/
steering column shaft is not gotten the impact. If
being gotten the impact, in case of the frontal
collision, the plastic sleeve may be broken.

YAD6E300

YAD6E310

YAD6E330

YAD6E320

2. Remove the steering column shaft from the

steering column.

•

Remove the retainer ring.

•

Push the steering column shaft strongly
downward.

Assembly

1. Assemble in reverse order of disassembly.
