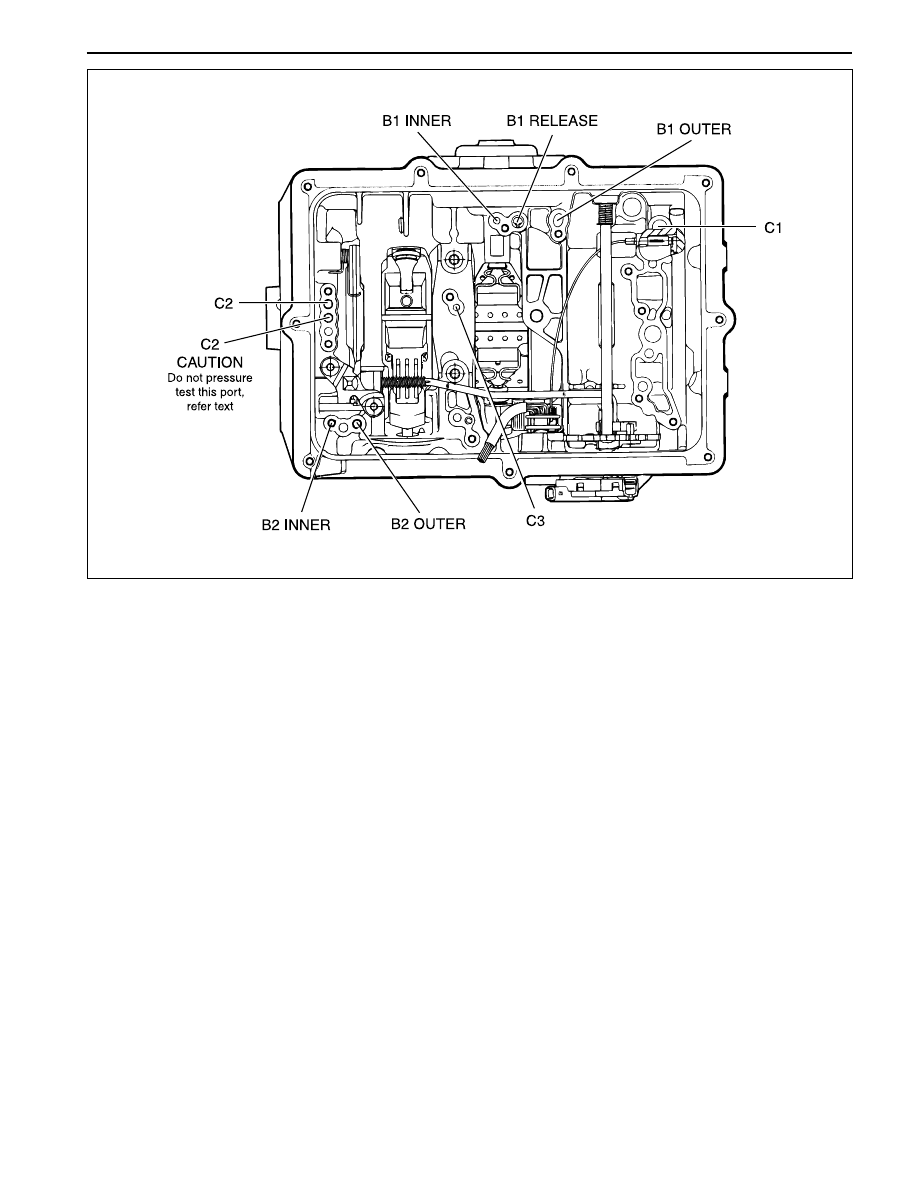

AUTOMATIC TRANSMISSION  5A-203

SSANGYONG  Y200

KAA5A2G0

5A-204  AUTOMATIC TRANSMISSION

SSANGYONG  Y200

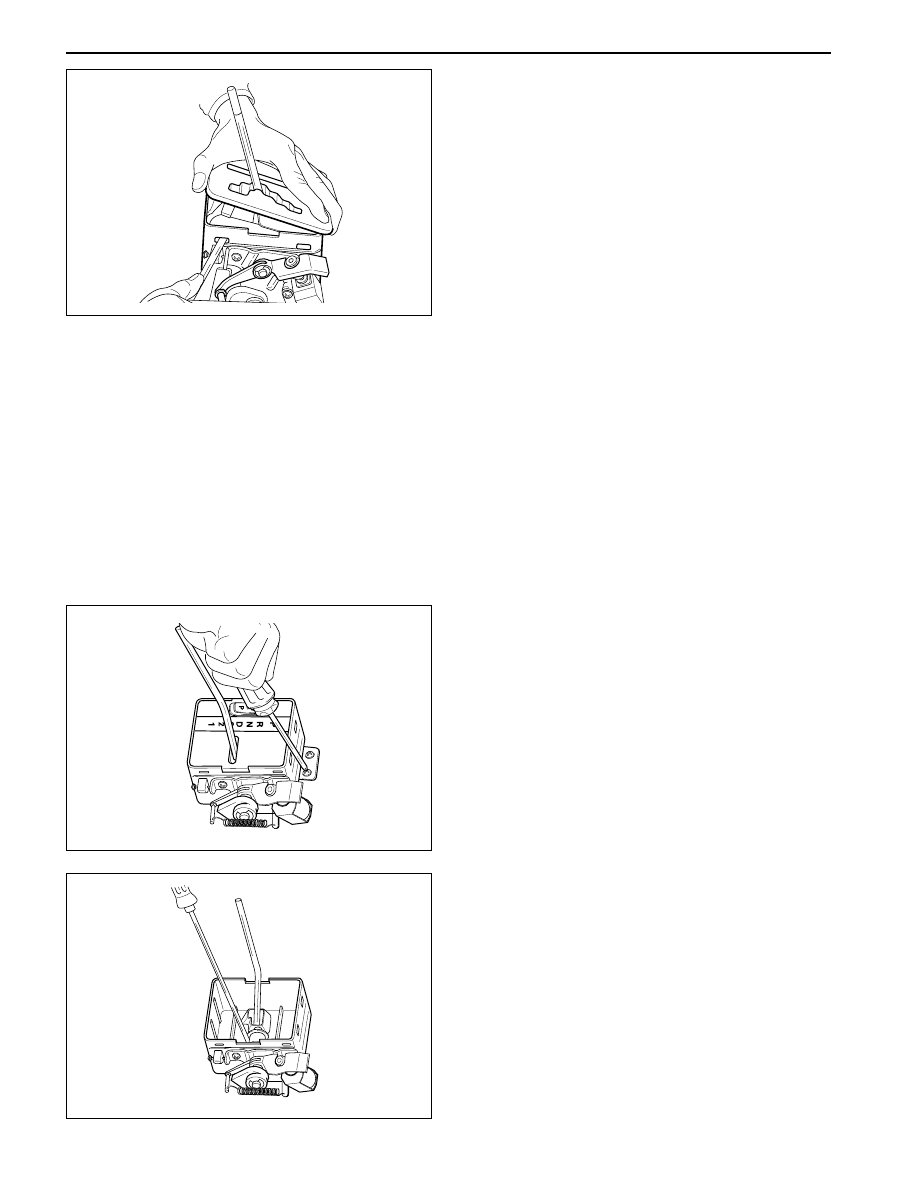

GEAR SHIFT CONTROL LEVER

Disassembly and Assembly Procedure

1. Disconnect the negative battery cable.

2. Remove the gear shift control lever assembly.

Refer to Section 9G, interior Trim.

3. Remove the gear shift control lever knob.

4. Separate the upper and middle housing from the

gear shift control lever assembly by unlocking the
lock.

5. Remove the upper housing.

6. Disconnect the P position lamp by turning it from

the middle housing.

7. Remove the P position switches assembly bolts.

8. Remove the middle housing with the mode selector

switch wiring harness from the gear shift control
lever assembly.

9. Separate the P position switches assembly with

the P position lamp wiring harness from the gear
shift control lever assembly.

Notice: Adjust the brake transmission shift interlock
ease the operation well.

10. Remove the clips supporting the springs and

bushes from the pin of the pin of the gear shift
control lever.

11. Remover the spring and bushes from the pin of

the gear shift control lever.

12. Remove the gear shift control lever by pushing

the pin.

13. Installation should follow the removal procedure

in the reverse order.

KAA5A5P0

KAA5A5Q0

KAA5A5R0

AUTOMATIC TRANSMISSION  5A-205

SSANGYONG  Y200

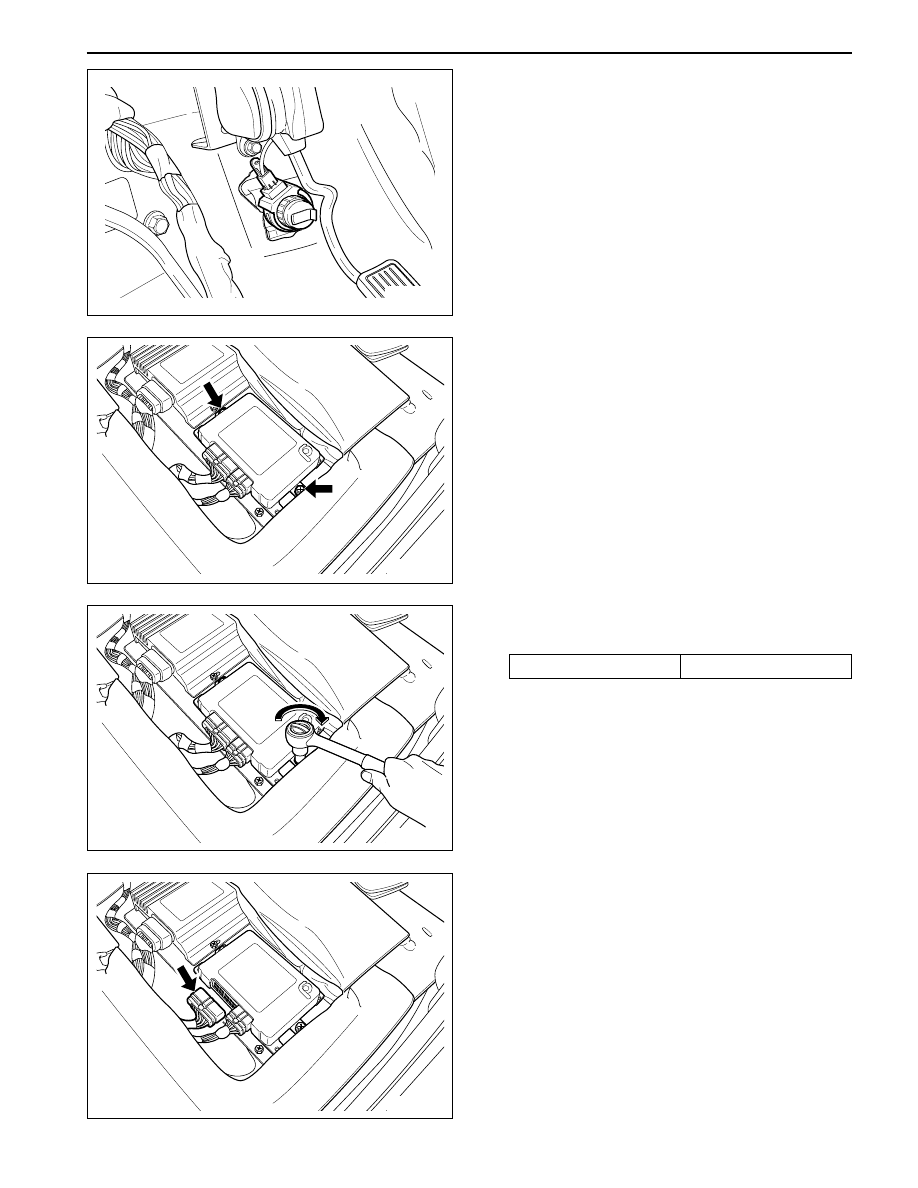

KICKDOWN SWITCH

1. Separate the Kickdown Switch from the Kickdown

Switch bracket by pushing the lock.

2. Disconnect the Kickdown Switch connector.

3. Installation should follow the removal procedure in

the reverse order.

KAA5A5S0

TRANSMISSION CONTROL
MODULE

Removal and Installation Procedure

1. Disconnect the negative battery cable.

2. P u s h   t h e   d r i v e r ' s   s e a t   a n d   d i s c o n n e c t   t h e

transmission control module connector.

4. Installation should follow the removal procedure in

the reverse order.

Tightening Torque

10 N•m (89 lb-ft)

3. Removal the TCM mounting bolts and TCM.

Installation Notice

YAD5A160

YAD5A170

YAD5A180

5A-206  AUTOMATIC TRANSMISSION

SSANGYONG  Y200

SPECIFICATIONS

GENERAL SPECIFICATION

Model Specifications

Clutch Pack Details

Model Part Numbers And Applications

Descriprtion

260 mm (10.2 in.)

2.0 : 1

2.741 : 1

1.508 : 1

1.000 : 1

0.708 : 1

2.429 : 1

Castrol TQ95

9.0 Liters (approx.)

4.5 Liters (approx.)

0.50 - 0.65 mm (0.020 - 0.026 in.)

0.10 - 0.50 mm (0.004 - 0.020 in.)

Application

Torque Converter

Mean Diameter of Fluid Circuit Description

Maximum Torque Multiplication

Gear Ratios

First

Second

Third

Fourth

Reverse

Lubricant

Type

Capacity

Dry System

Service Refill

Gear Train End Float

Gear Set Pinion End Float

Transmission

0574-000013

0574-000012

0574-000014

Torque Converter

179K

150K

150K

Engine Version

E23

E32

662LA

SYMC P/NO

36100-05442

36100-05432

36100-05412

C1

Composition

Steel

C2

Composition

Steel

C3

Composition

Steel

C4

Composition

Steel

0574-000012

5

5

5

4

4

4

3

4

0574-000013 (14)

4

6

4

5

3

5

3

4
