PARKING BRAKE  4D-5

SSANGYONG  Y200

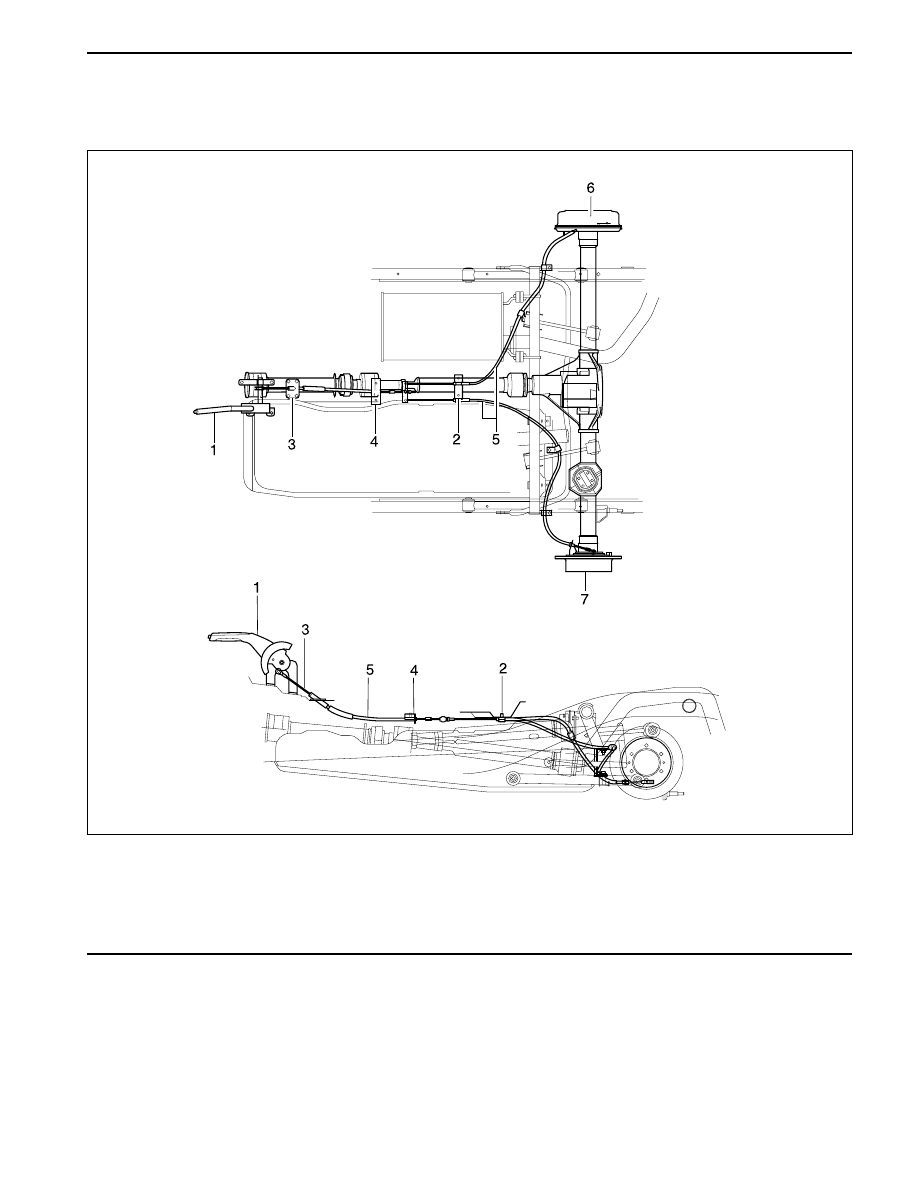

COMPONENT LOCATOR

CROSS SECTIONAL VIEW

YAD4D020

1 Parking Brake Lever
2 Parking Brake Cable Bracket (Rear)
3 Parking Brake Cable Bracket (Front)
4 Parking Brake Cable Bracket (Center)

5 Cable
6 With Drum Brake
7 With Disc Brake

SSANGYONG  Y200

4D-6  PARKING BRAKE

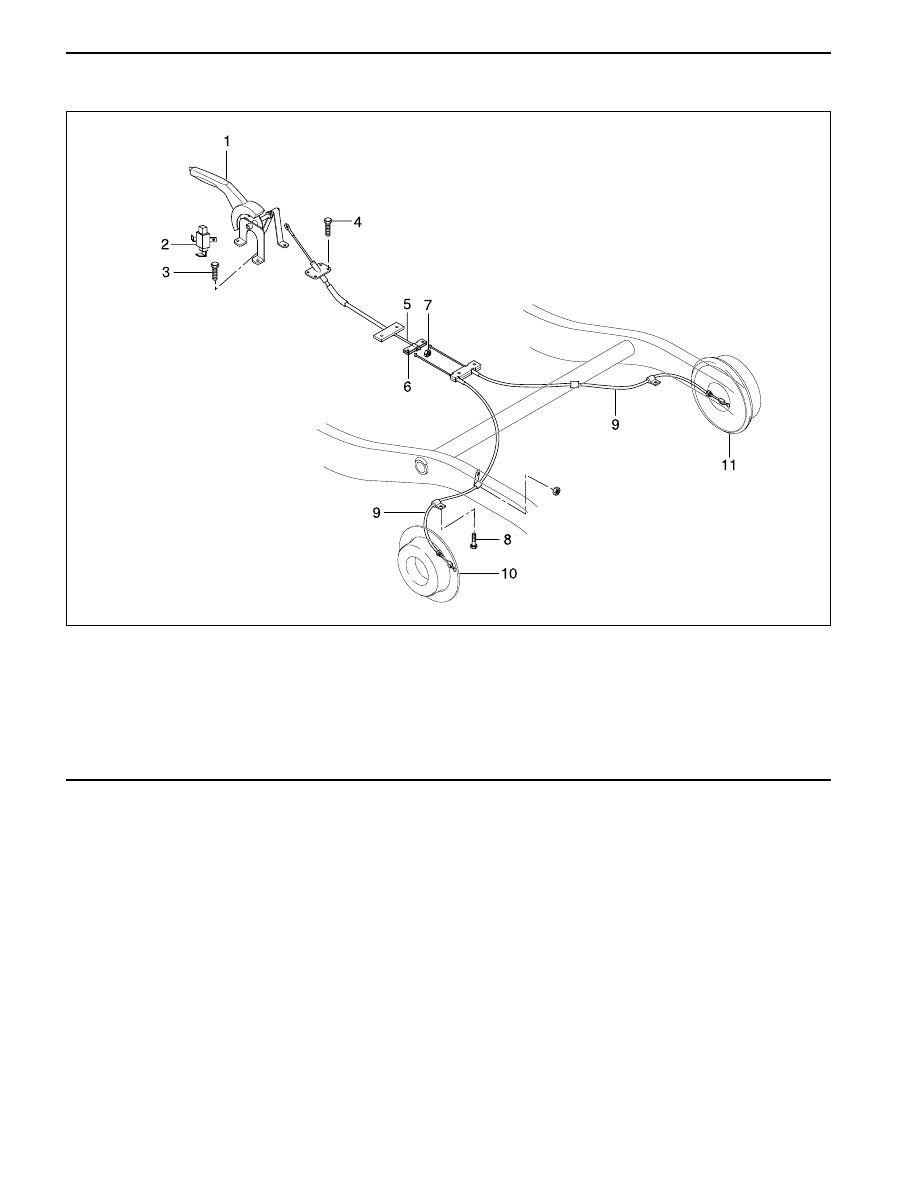

PARKING BRAKE LEVER AND CABLE

YAD4D050

1 Parking Brake Lever
2 Parking Brake Warning Lamp Switch
3 Bolt
4 Bolt
5 Front Parking Brake Cable
6 Equalizer

7 Nut
8 Bolt
9 Rear Parking Brake Cable

10 Brake Disc (Rear Disc Brake Type)
11 Brake Drum (Rear Drum Brake Type)

PARKING BRAKE  4D-7

SSANGYONG  Y200

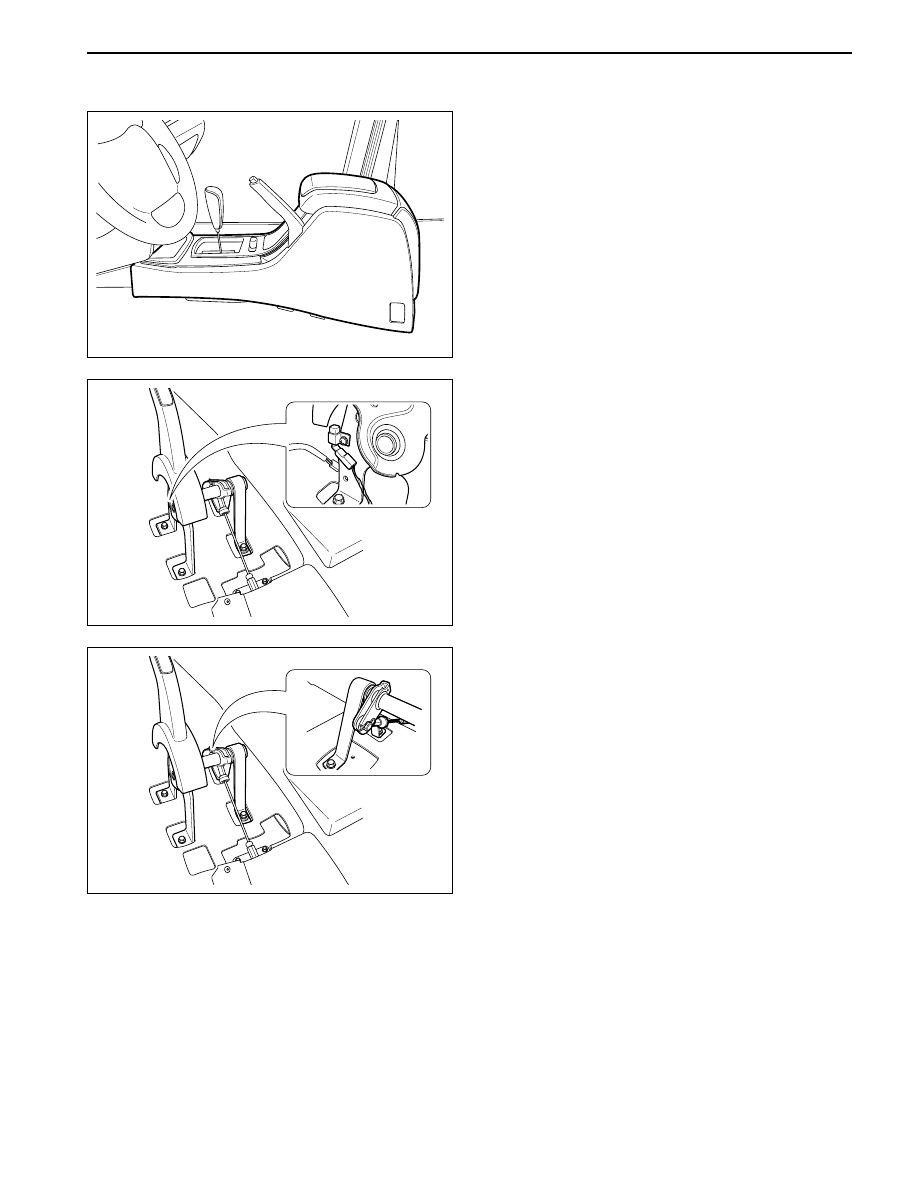

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

PARKING BRAKE

Removal Procedure

1. Remove the console assembly.

2. Disconnect the parking brake warning lamp

connector.

3. Disconnect the cable from the parking brake lever

with parking brake released.

YAD4D060

YAD4D070

YAD4D080

SSANGYONG  Y200

4D-8  PARKING BRAKE

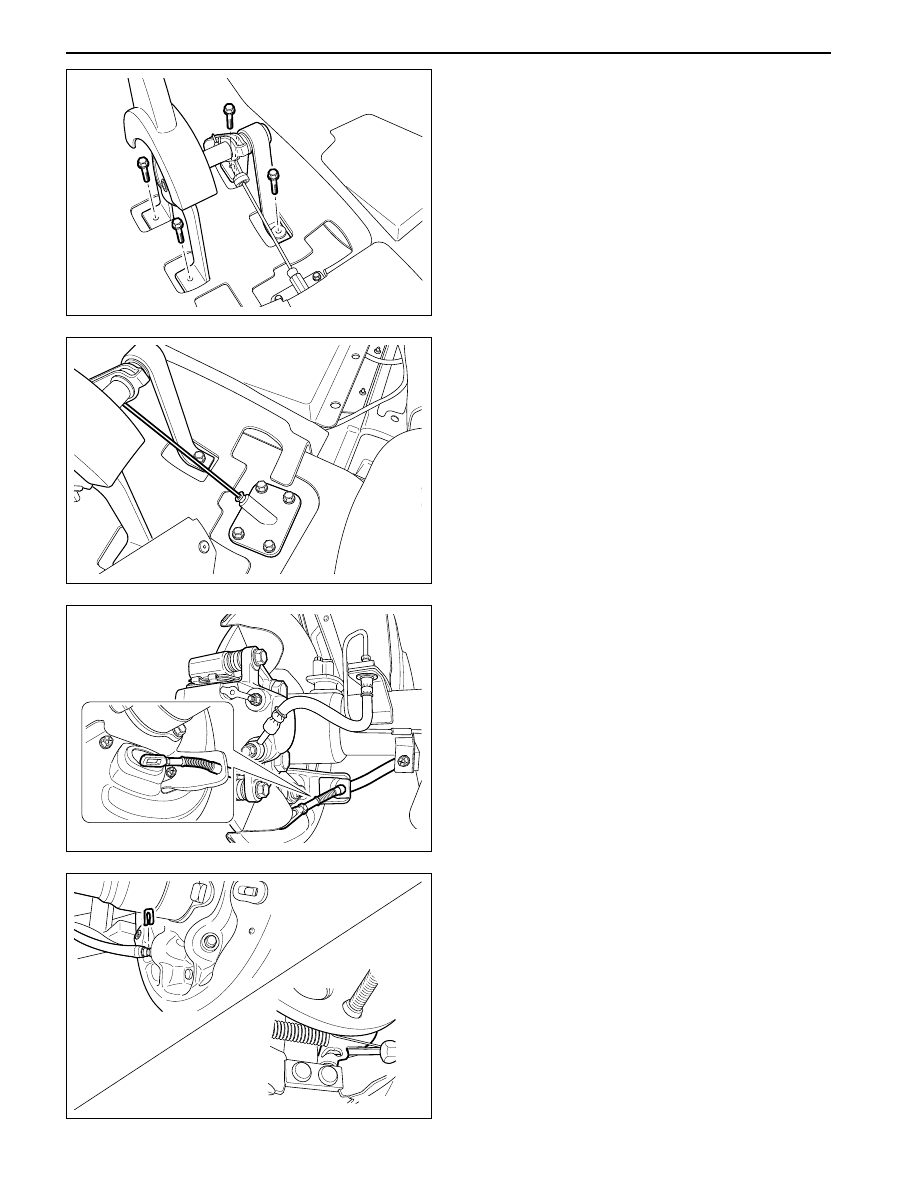

4. Remove the parking brake lever bracket mounting

bolt and remove the lever assembly.

5. Remove the cable plate at the under floor.

6. Disconnect the parking brake cable from the rear

brake.

Disc Type

•

Disconnect the cable from the parking brake
lever.

•

Remove the clip from the brake plate.

Drum Type

•

Remove the clip from the brake plate.

•

Move the parking brake lever as shown using
driver etc. and then disconnect the cable.

7. Disconnect the cable bracket and the cable.

YAD4D090

YAD4D100

YAD4D110

YAD4D120
