FRONT BRAKE  4B-5

SSANGYONG  Y200

YAD4B060

YAD4B070

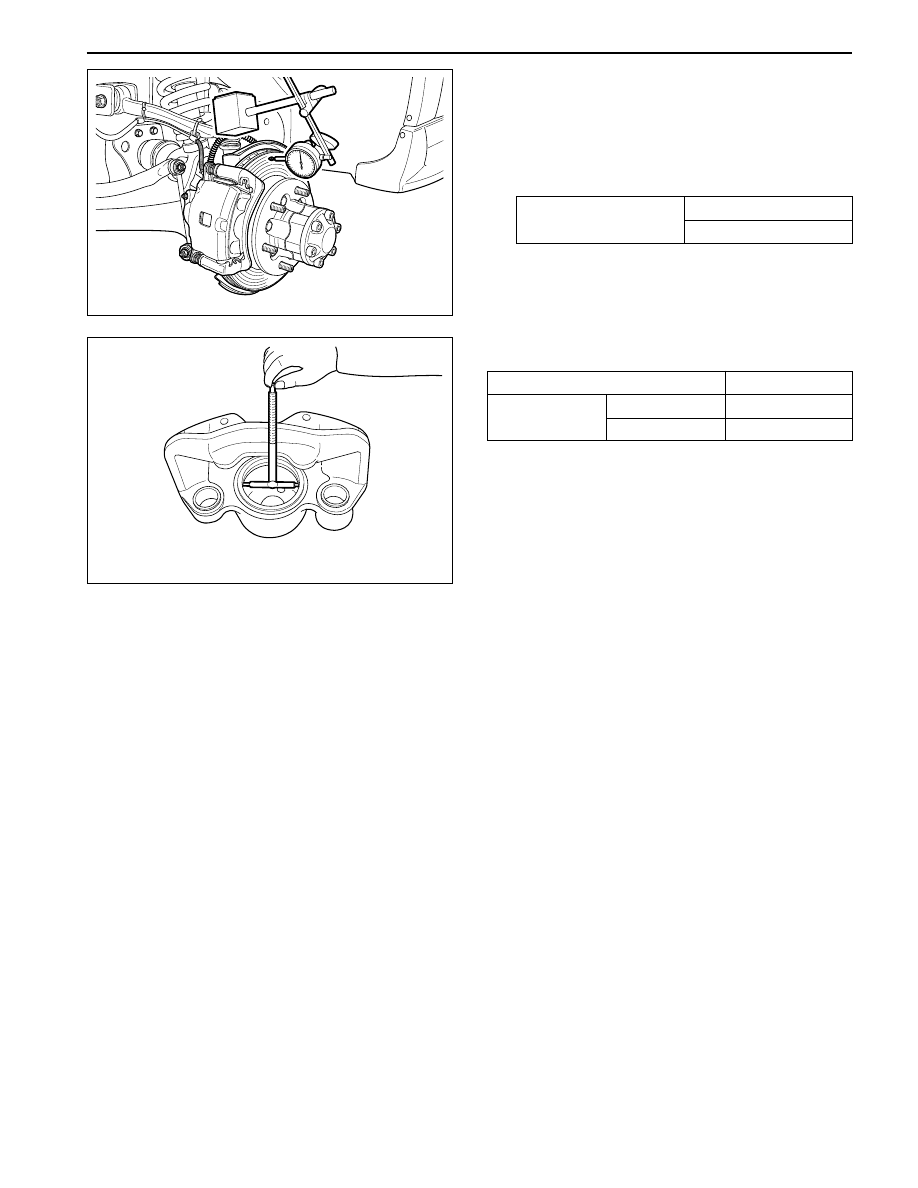

BRAKE DISC RUN OUT

1. Fasten a dial indicator to the brake disc side and

measure the run out by rotating the disc.

2. If lateral run out exceeds the specification, replace

the brake disc to prevent the pedal’s vibration at
braking.

Run Out Limit

0.03 mm (Disc only)

0.07 mm (On vehicle)

Application

Spec.

Ø 60.0 mm

Ø 61.0 mm

Non-ABS/ABS

I.D

Wear Limit

CALIPER HOUSING I.D

SSANGYONG  Y200

4B-6  FRONT BRAKE

YAD4B030

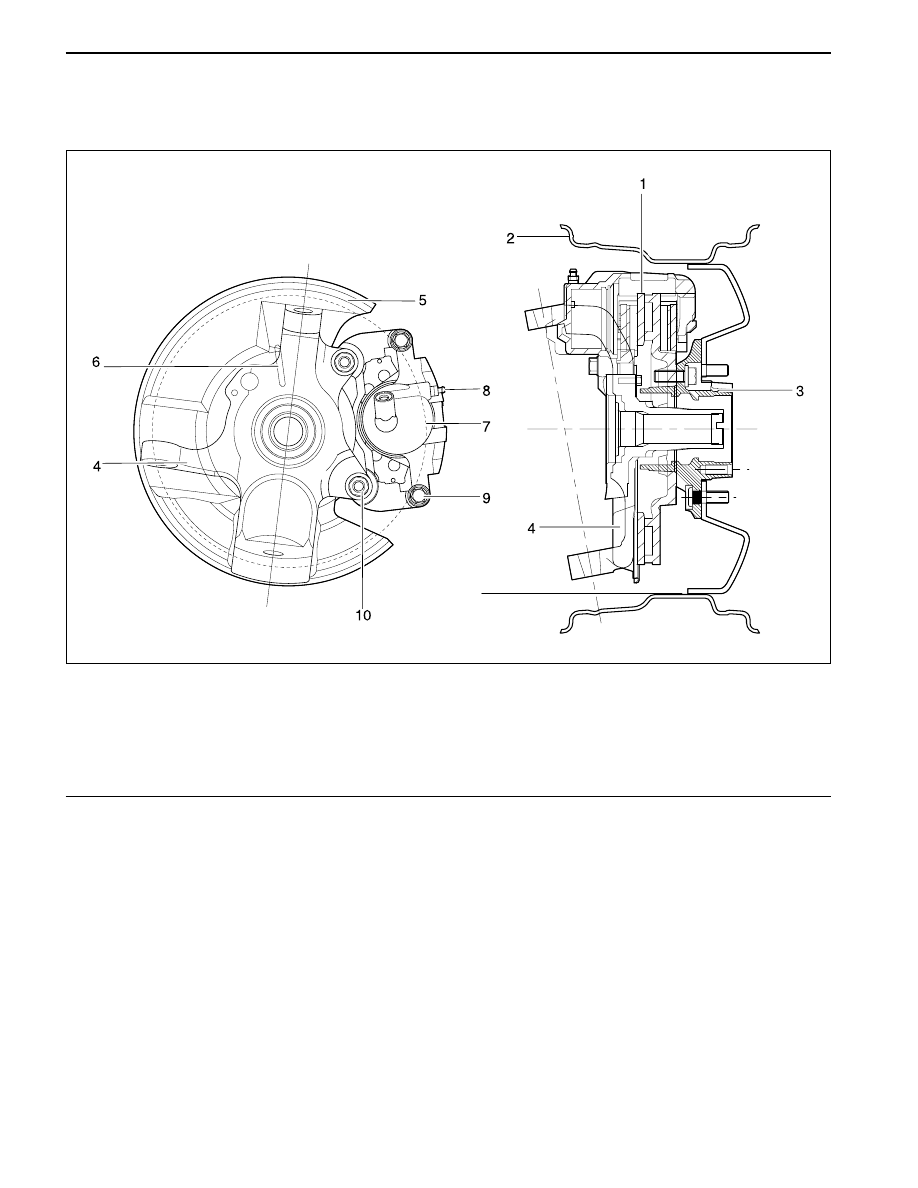

COMPONENT LOCATOR

CROSS-SECTIONAL VIEW

1 Brake Disc
2 Wheel (Rim)
3 Hub Range
4 Knuckle
5 Dust Shield

6 Vacuum Hose Nipple
7 Caliper
8 Brake Fluid Nipple
9 Caliper Guide Bolt

10 Caliper Bolt

FRONT BRAKE  4B-7

SSANGYONG  Y200

YAD4B080

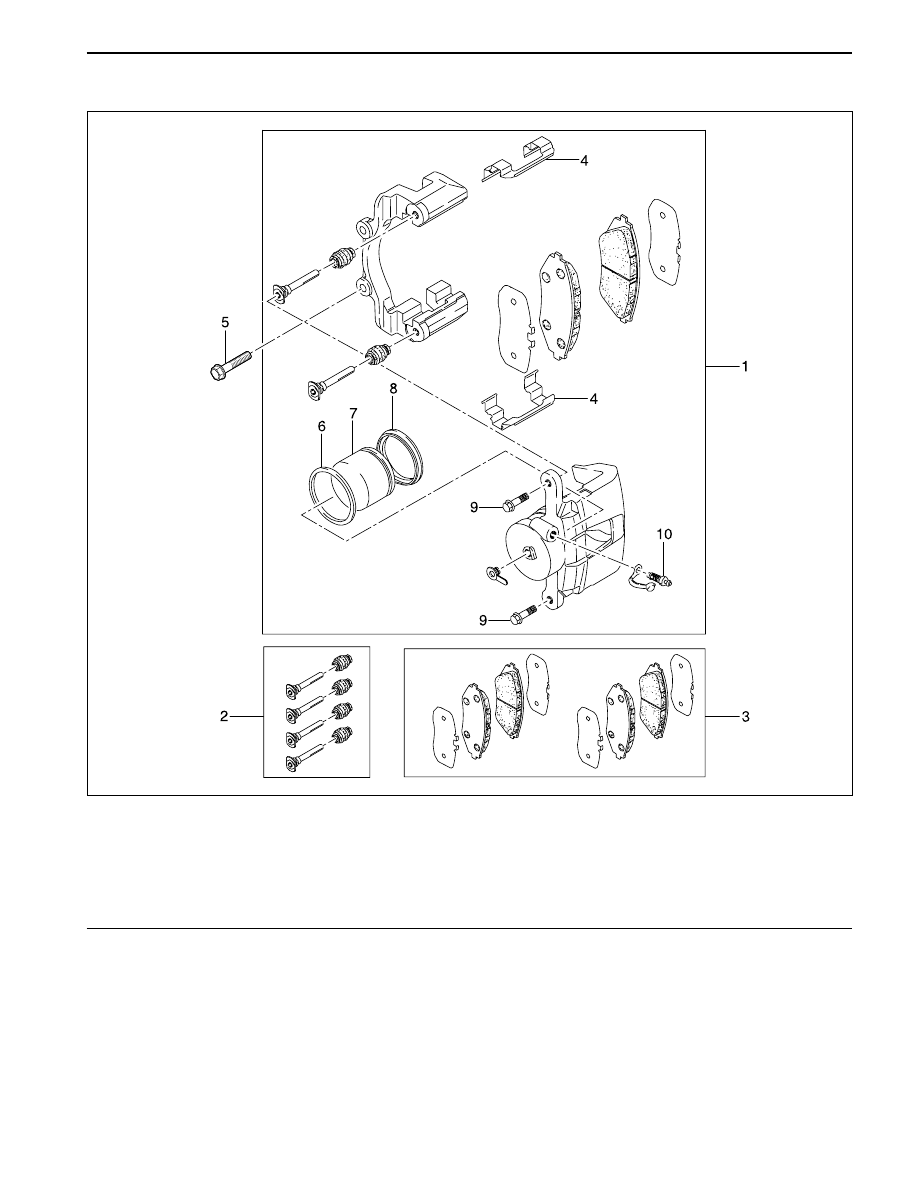

FRONT CALIPER BRAKE

1 Brake Caliper Assembly
2 Guide Rod Set
3 Brake Pad
4 Brake Pad Spring
5 Caliper Mounting Bolt

6 Piston Seal
7 Piston
8 Piston Boot
9 Caliper Guide Rod Bolt

10 Bleeder Screw

SSANGYONG  Y200

4B-8  FRONT BRAKE

YAD4B090

YAD4B100

YAD4B110

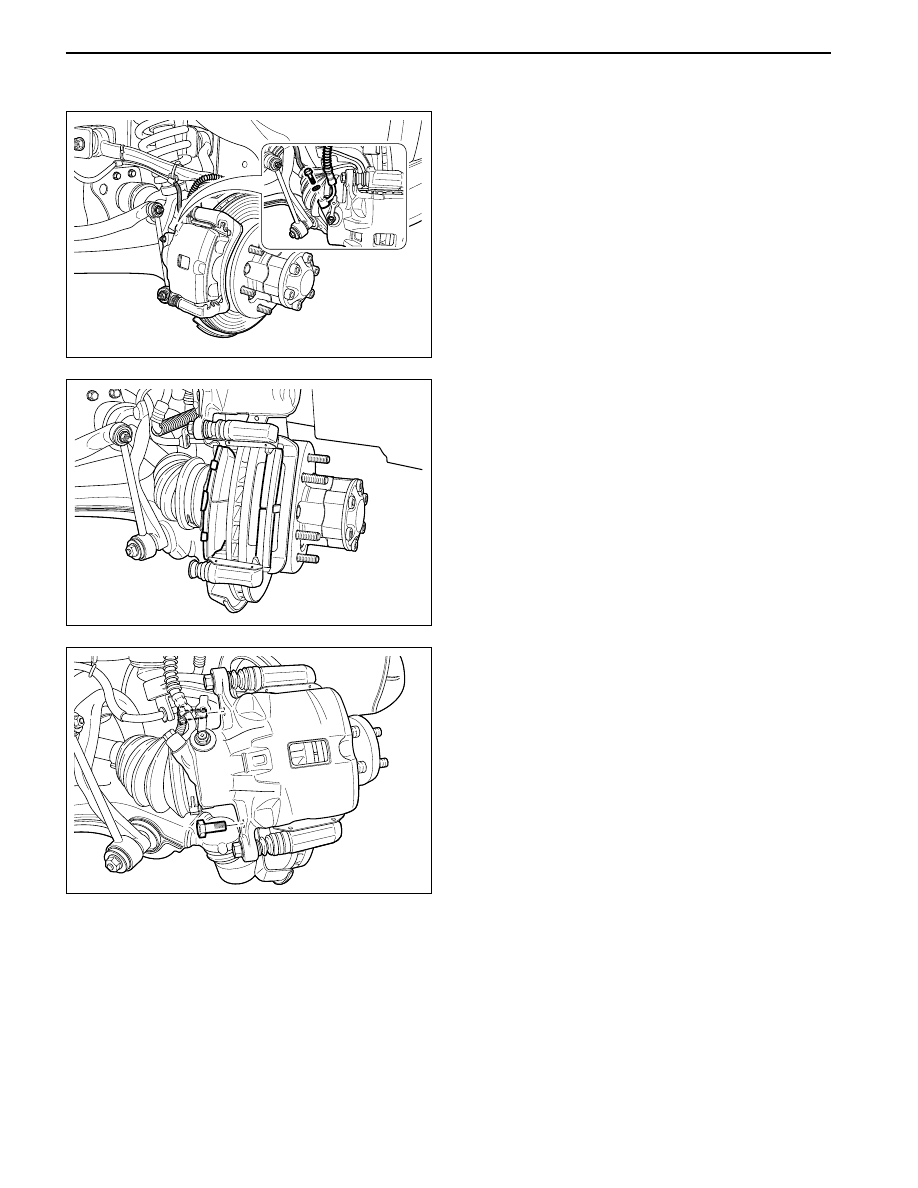

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

FRONT BRAKE

Removal Procedure

1. Remove the front wheel and remove the brake hose

from the brake caliper.

Notice: Be carefully to prevent the brake fluid loss
and contamination.

2. Remove the cylinder mounting bolt and remove

the disc pad and the cylinder.

3. Remove the caliper mounting bolt and remove the

caliper assembly.
