SSANGYONG Y200

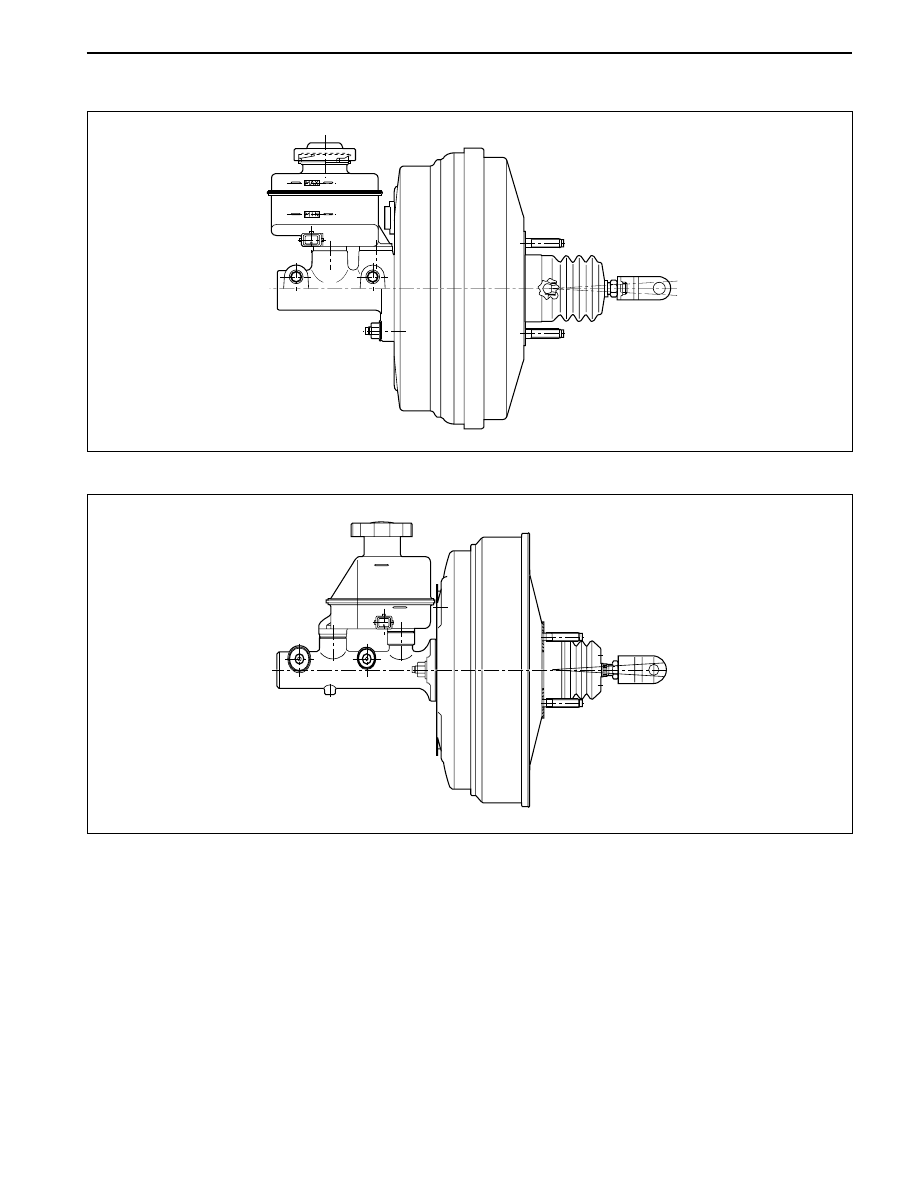

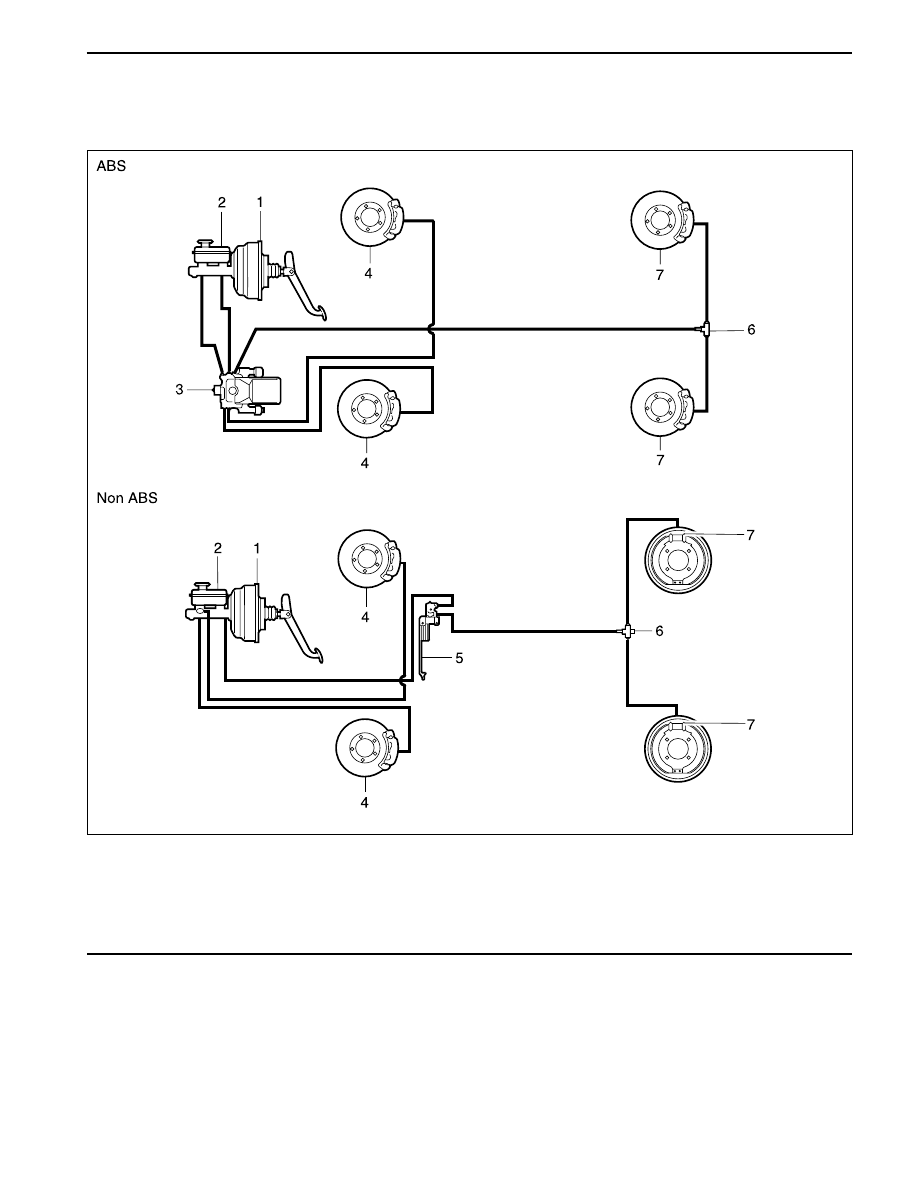

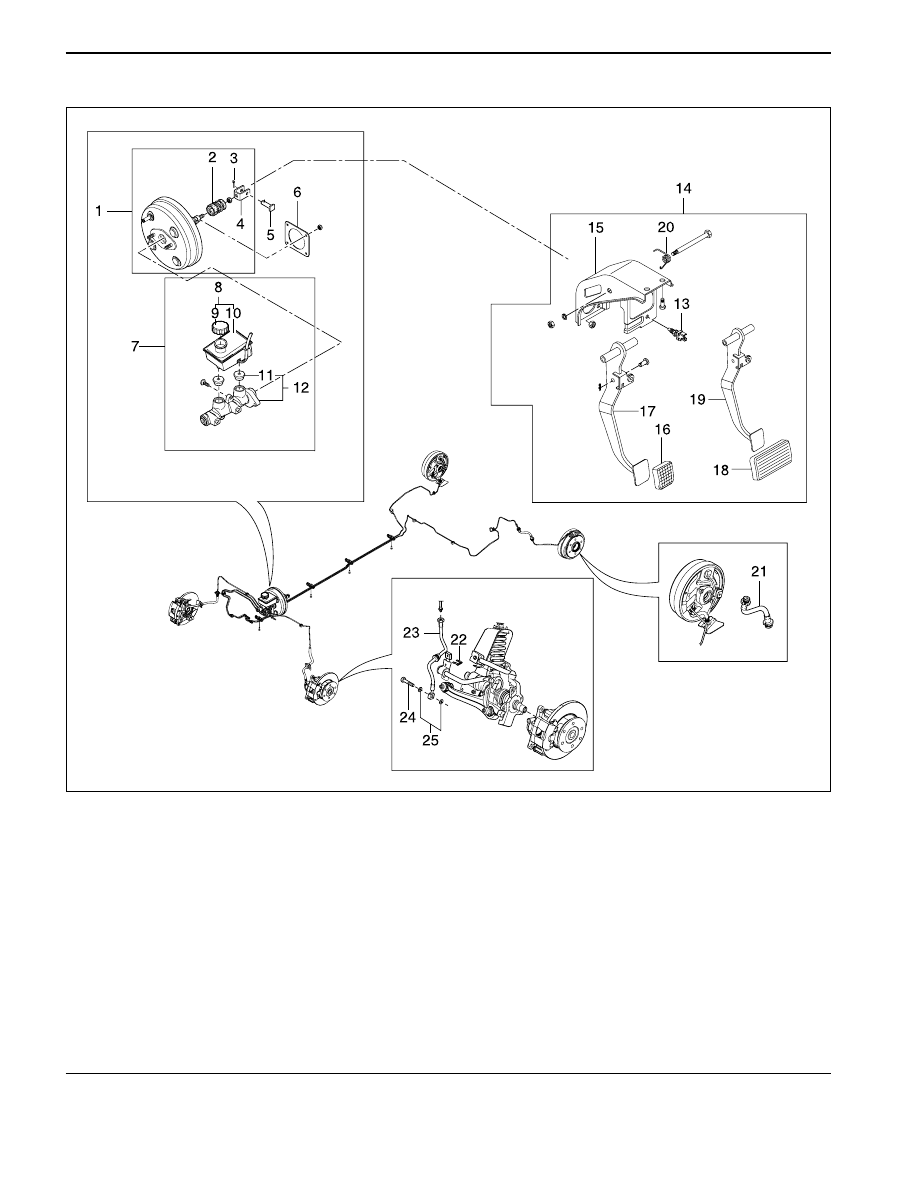

4A-10 BRAKE SYSTEM
YAD4A190
4. Place alignment marks between the lock nut (b)
and adjusting screw (c) after the valve setting.
5. LCRV setting should be performed with unloaded
vehicle condition.

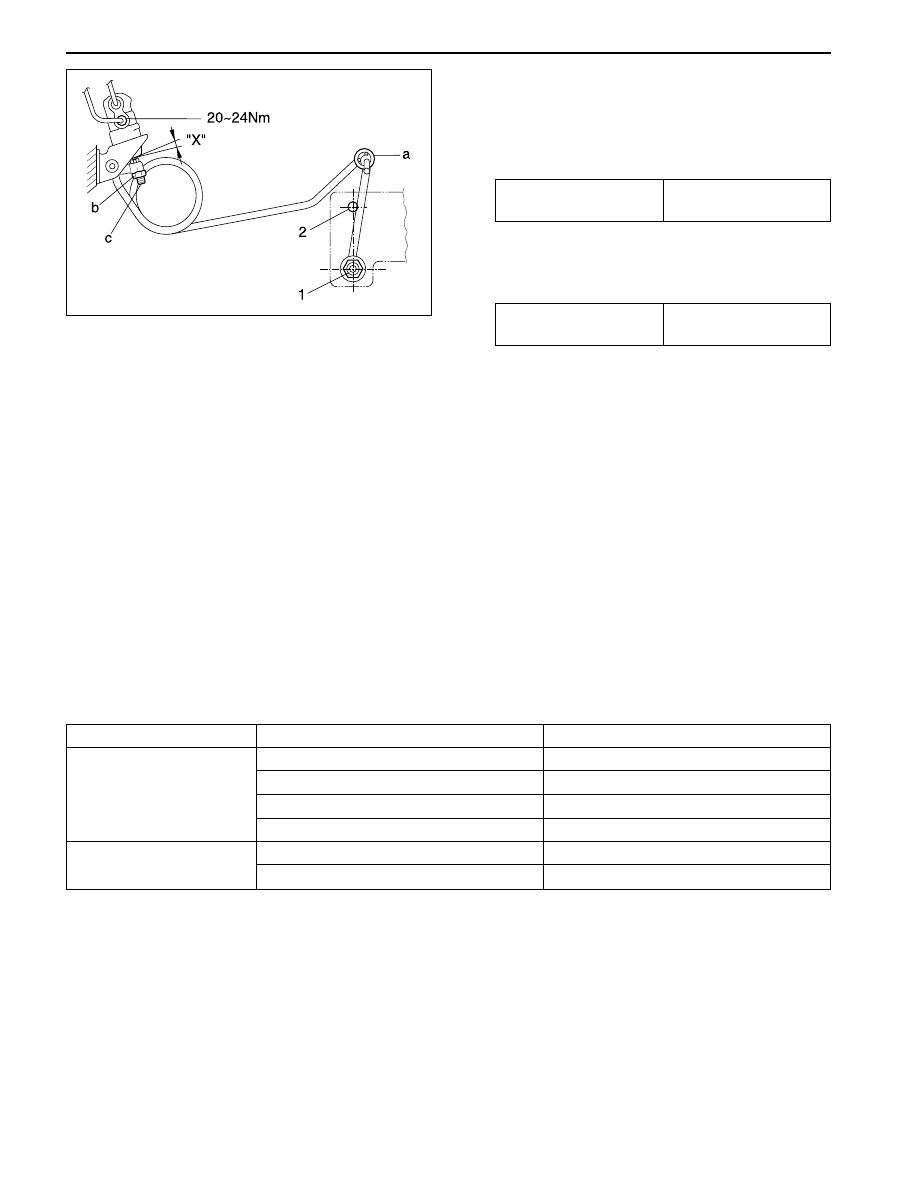

Setting Method
1. Install the connecting rod (a) to the No.1 hole.
2. Adjust the clearance “X” to be 0mm and tighten
the bolt (c) using the lock nut (b).
Installation Notice
Tightening Torque
14 - 18 N•m
(10 - 13 lb-ft)
3. Remove the connecting rod (a) from the No.1 hole
and reinstall it to the No.2 hole.
Installation Notice
Tightening Torque
14 - 18 N•m
(10 - 13 lb-ft)
Inspection
When it occurs the malfunction in the LCRV, the sensor
spring, valve body assembly, rear axle or rear spring
may be replaced. For these replacement, the following
inspection should perform;
Symptom
Poor Braking Performance
Rear Wheels Lock Early
Possible Cause
Air in Brake System
Poor Adjustment of Sensor Spring
Damaged Sensor Spring
Fluid Leaking from LCRV
Poor Adjustment of Sensor Spring
Internal Fluid Leaking of LCRV
Action
Bleeding
Adjust
Replace
Replace
Adjust
Replace
Notice:
•
Fluid leaking from LCRV results from poor valve
open/close or sealing wear caused by the foreign
materials in the LCRV.
•
When you change or repair the LCRV, it may affect
the braking performance. Thus, ensure to use the
approved part.
