SsangYong Rexton. Manual - part 477

FRONT AXLE 3A-3

SSANGYONG Y200

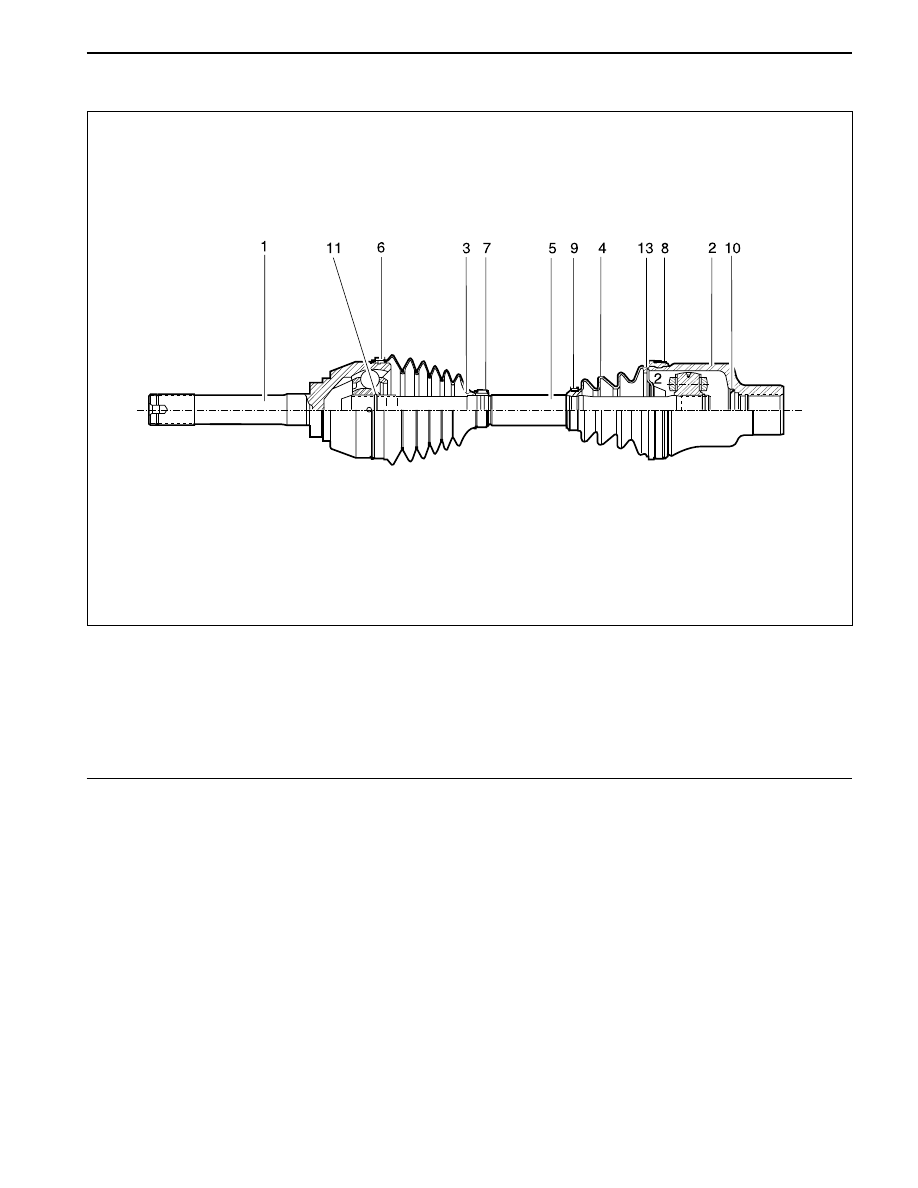

AXLE SHAFT ASSEMBLY

YAD3A030

1 Drive Shaft
2 Housing (Inboard)
3 Boot (Outboard)
4 Boot (Inboard)
5 Shaft
6 Boot Band

7 Boot Band
8 Boot Band
9 Boot Band

10 Seal
11 Ball Joint

SSANGYONG Y200

3A-4 FRONT AXLE

Drive Shaft Type

Axle Housing Type

Differential

Reduction Ratio Gaso.

(E32 or E23)

Oil

Type

Gear Type

Gasoline + M/T

Diesel + M/T

Gasoline + M/T

Diesel + M/T

Capacity

Specification

SPECIFICATIONS

CV Joint

Build up

Conventional

Hypoid Gear

3.73

4.27

4.56

4.89

1.4 L

SAE 80W / 90 or API Gl-5

FRONT AXLE 3A-5

SSANGYONG Y200

DIAGNOSIS INFORMATION AND PROCEDURES

Lack of Oil

Low Viscosity of Oil

Inferior Oil

Excessive Backlash of Ring Gears

Worn or Damaged Tooth of Ring and Pinion Gear

Worn or Damaged Tooth of Drive Pinion Gear

Wear of Side Bearing and Side Gear Spline

Bending of Axle Housing

Distortion of Differential Case

Wear of Pinion Shaft

Incorrect Drive Pinion Preload.

Incorrect Contact of Ring Gear and Pinion

Excessive Oil

Fault Seal of Carrier Contact Surface

Axle Housing Crack

Worn or Damaged Oil Seal

Worn or Damaged Tooth of Pinion or Side Gear

Wear of Pinion Shaft

Excessive Backlash of Pinion Gear and Side Gear

Excessive End-Play of Rear Axle Shaft

Incorrect Contact of Side Gear and Differential Case

Axle Housing Crack

Distortion or Poor Installation of Drive pinion Oil Seal

Damaged of Torn Drive Pinion Oil Seal

Loosened Bearing Collar

Worn or Damaged Universal Joint

Worn or damaged Axle Shaft Bearing

Lack of Oil

Insufficient Backlash of Gears

Excessive Preload of Bearing

Replenish

Replace

Adjust

Replace

Adjust

Reassembly

Adjust

Correct

Replace

Adjust

Replace

Replenish

Adjust

Checks

Phenomena

Noise (During Straight

Driving)

Oil Leakage

Noise (During Turning)

Heating

Action

SSANGYONG Y200

3A-6 FRONT AXLE

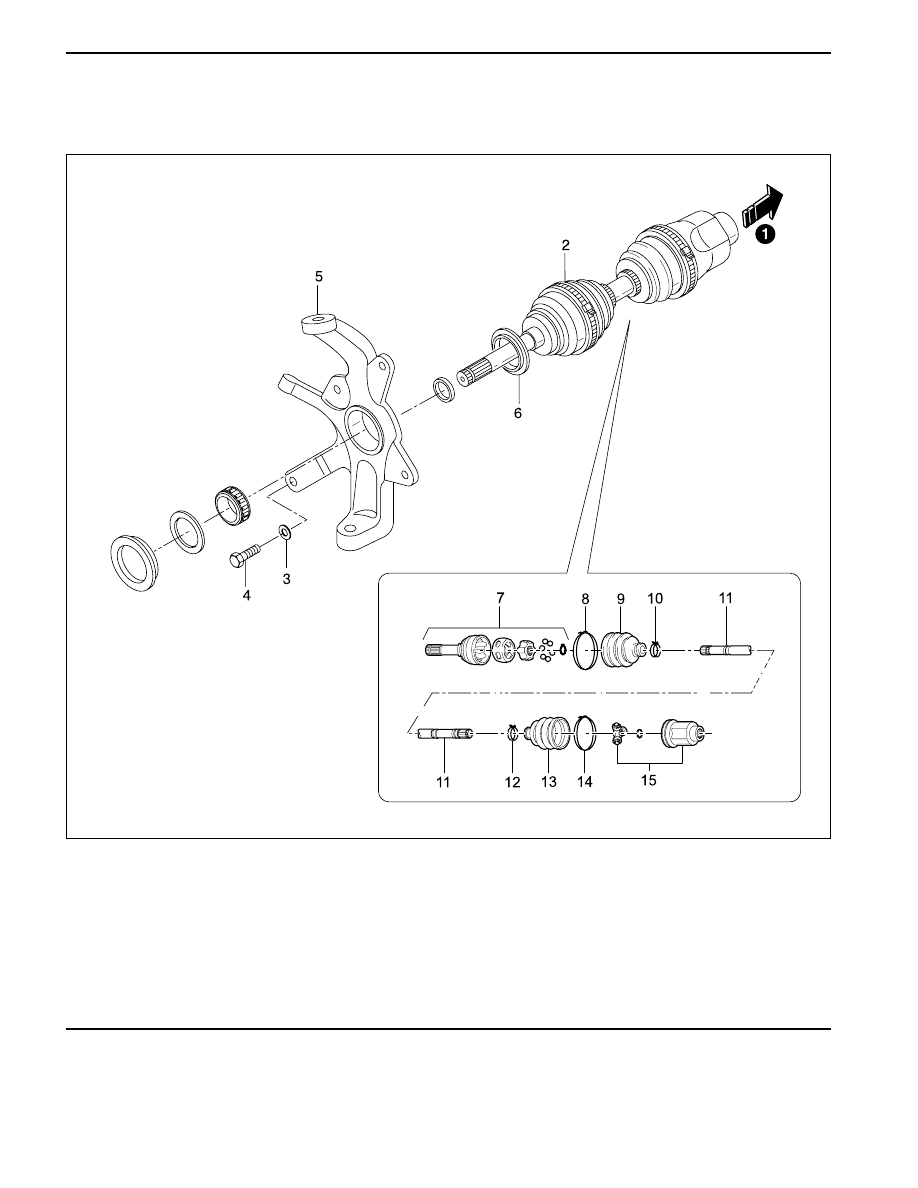

COMPONENT LOCATOR

FRONT AXLE SHAFT

YAD3A040

1 Front Axle Inner Shaft Mounting (Axle Housing)
2 Front Axle Drive Shaft
3 Washer
4 Bolt
5 Steering Knuckle
6 Dust Seal
7 Outboard Joint Assembly
8 Boot Clamp

9 Outboard Boot

10 Boot Clamp
11 Shaft
12 Boot Clamp
13 Inboard Boot
14 Boot Clamp
15 Inboard Joint Assembly
