REAR SUSPENSION  2D-13

SSANGYONG  Y200

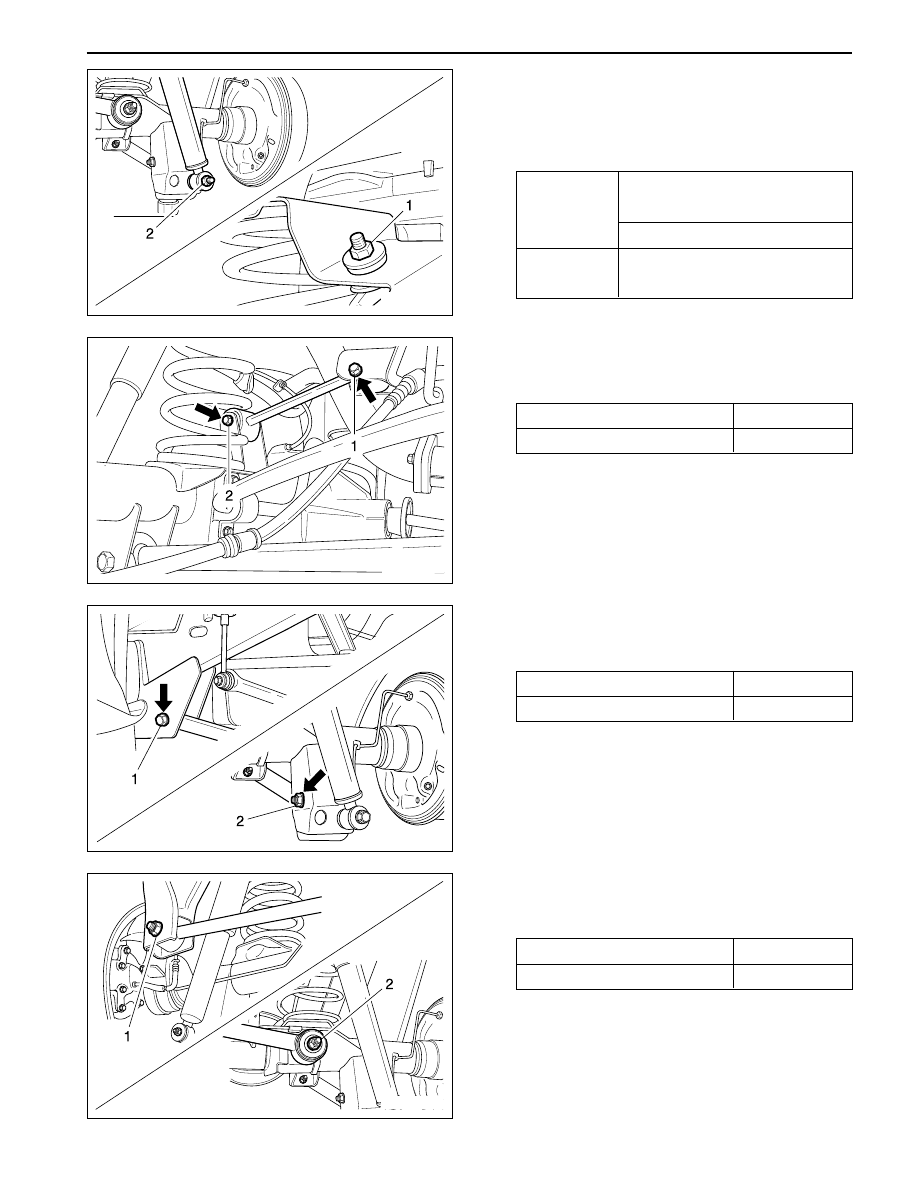

3. Insert the upper side of the shock absorber to the

frame and tighten nuts manually. And then install
the lower side’s to the axle and tighten nuts as
specified torque.

Installation Notice

6. Install the lateral rod to both the frame and axle

side.

Installation Notice

YAD2D220

YAD2D230

YAD2D240

YAD2D250

4. Install the upper arm to the frame bracket and the

axle. And then tighten bolts as specified torque.

Installation Notice

5. Install the lower arm to the frame bracket and the

axle. And then tighten bolts as specified torque.

Installation Notice

Tightening Torque(frame(1))

Tightening Torque(axle(2))

165 N•m

165 N•m

Tightening Torque(frame(1))

Tightening Torque(axle(2))

165 N•m

165 N•m

Tightening Torque(frame(1))

Tightening Torque(axle(2))

165 N•m

165 N•m

Upper side (1)

Lower side (2)

Tightening Torque : 30 - 45 N•m

(22 - 33 lb-ft)

Tightening Length : 6 - 9 mm

Tightening Torque : 50 - 65 N•m

(37 - 48 lb-ft)

SSANGYONG  Y200

2D-14  REAR SUSPENSION

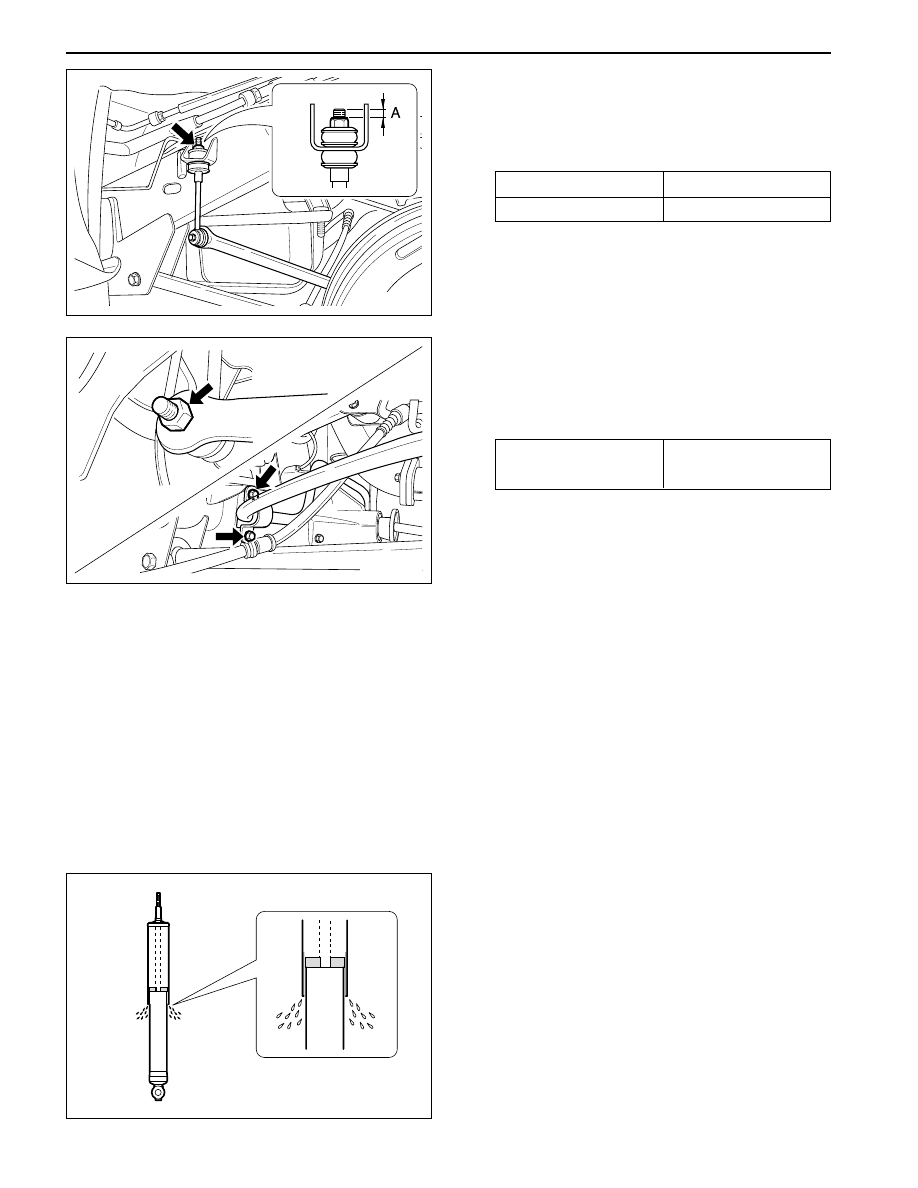

7. Install the connecting rod to the frame bracket.

Notice: Follow the tightening length for installing
the nut.

Installation Notice

YAD2D260

YAD2D270

8. Install the stabilizer bar to the axle bracket with

the mounting cap and connect the bar with the
connecting rod. And then tighten the mounting cap
bolt and nut as specified torque.

Installation Notice

9. The rubbers installation should follow the

connecting order of the link rubber(packing).

Notice: Always replace a new part when there is
any wear or damage in the lever.

10. Check the shock absorber for any damage, oil

leakage or abnormal noise.

YAD2D280

Tightening Torque

Tightening Length(A)

38 N•m (28 lb-ft)

7 - 12 mm

Tightening Torque

30 - 45 N•m

(22 - 33 lb-ft)

REAR SUSPENSION  2D-15

SSANGYONG  Y200

YAD2D290

Notice: For scrapping the gas shock absorber, drill
the hole in the “A” section with the shock absorber full
expansion and discharge the gas.

SSANGYONG  Y200

2D-16  REAR SUSPENSION

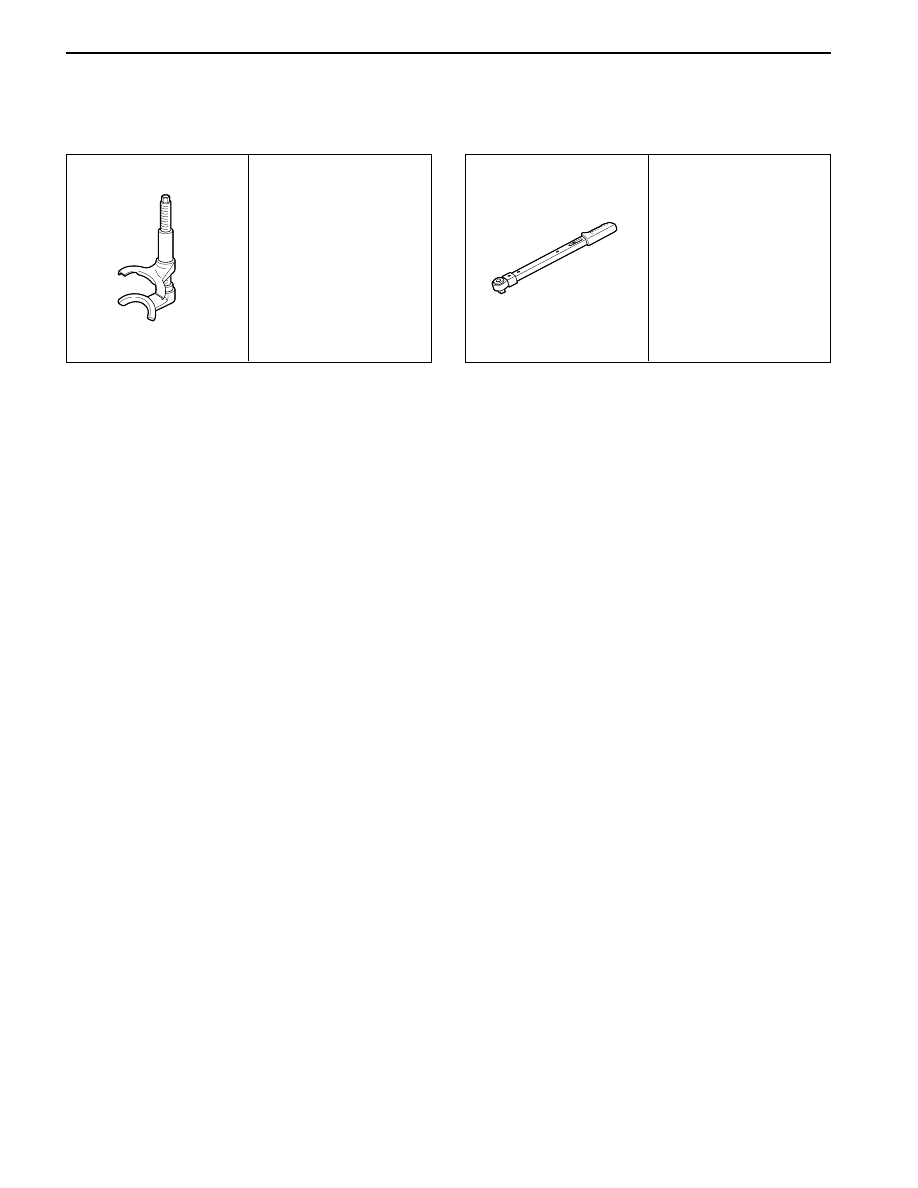

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

661 589 12 33 00

Rear spring compressor

Torque  Wrench

YAD2D300

YAD2D310
