SECTION 2D

REAR SUSPENSION

TABLE OF CONTENTS

Description and Operation ................................... 2D-2

Rear Suspension ................................................. 2D-2

Specifications ...................................................... 2D-3

Component Locator ............................................. 2D-4

Rear Suspension Assembly ................................. 2D-4

Shock Absorber ................................................... 2D-5

Diagnostic Information and Procedures .............. 2D-6

Rear Suspension ................................................. 2D-6

Wheel Bearing End Play ...................................... 2D-7

Wheel Bearing Free load ...................................... 2D-7

Repair Instructions ................................................ 2D-8

On-Vehicle Service ............................................... 2D-8

Rear Suspension Assembly ................................. 2D-9

Special Tools and Equipment ............................ 2D-16

Special Tools Table ............................................ 2D-16

SSANGYONG  Y200

2D-2  REAR SUSPENSION

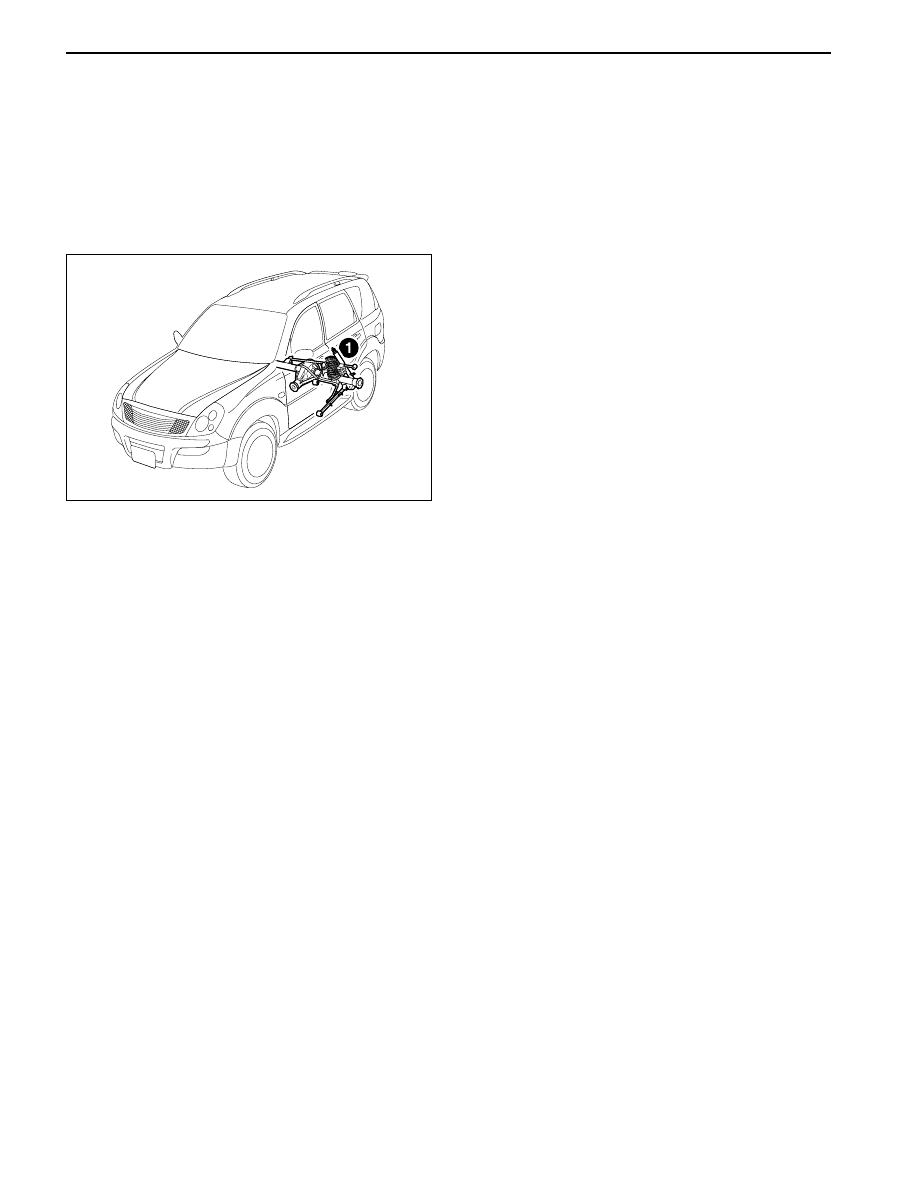

The rear suspension system is to keep the ride comfort
or safety and this vehicle is applied to 5 link
suspension system. This system consists of both coil
spring, upper/lower arm, the lateral rod, stabilizer,
connecting rod and bumper.

DESCRIPTION AND OPERATION

REAR SUSPENSION

YAD2D010

1. Stabilizer:

It enables to keep the balance on turning and to
minimize the vehicle’s slope when both right and
left wheels move differently.

2. Lateral Rod:

It allows to control the load at the lateral direction.

3. Upper/Lower Arm:

It allows to control the load at the front/rear direction
side.

4. Shock Absorber:

It allows to absorb the vibration at the vertical
direction in order to make ride comfort feel better
and reduce the spring fatigue.

5. Coil Spring:

It is installed between the rear axle and body frame.
This unit enables to release any shock or any
vibration from tires in order to prevent its force from
delivering to the body.

REAR SUSPENSION  2D-3

SSANGYONG  Y200

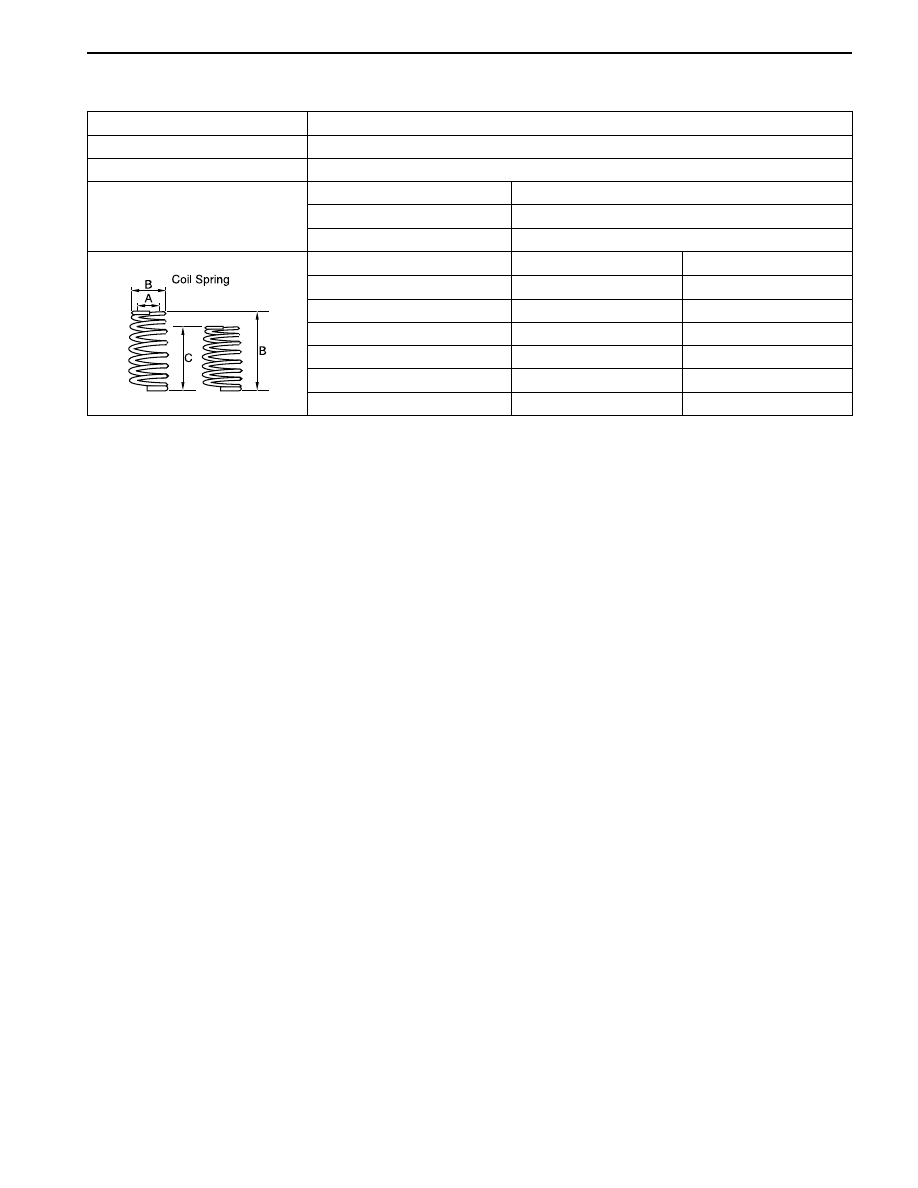

SPECIFICATIONS

Type

Max. Length

Min. Length

Engine Type

Coil O.D.

Coil I.D(A)

Free-load Height(B)

Compression Height(C)

O.D(D)

Constant

Suspension Type

Spring Type

Stabilizer Type

Shock Absorber

5 Links (Two Upper Arm, Two Lower Arm, One Lateral Rod)

Coil Spring

Torsion Bar Type

YAD2D020

GSL 3.2, DSL(A/T)

13.1 mm

Ø 114 mm

405.7 mm

260.0 mm

Ø



127.1 mm

2.45 ± 5%

DSL(M/T)

13.0 mm

Ø



114 mm

386.8 mm

250.0 mm

Ø



127.0 mm

2.45 ± 5%

Telescopic Double Tube Type

495 mm

308 mm

SSANGYONG  Y200

2D-4  REAR SUSPENSION

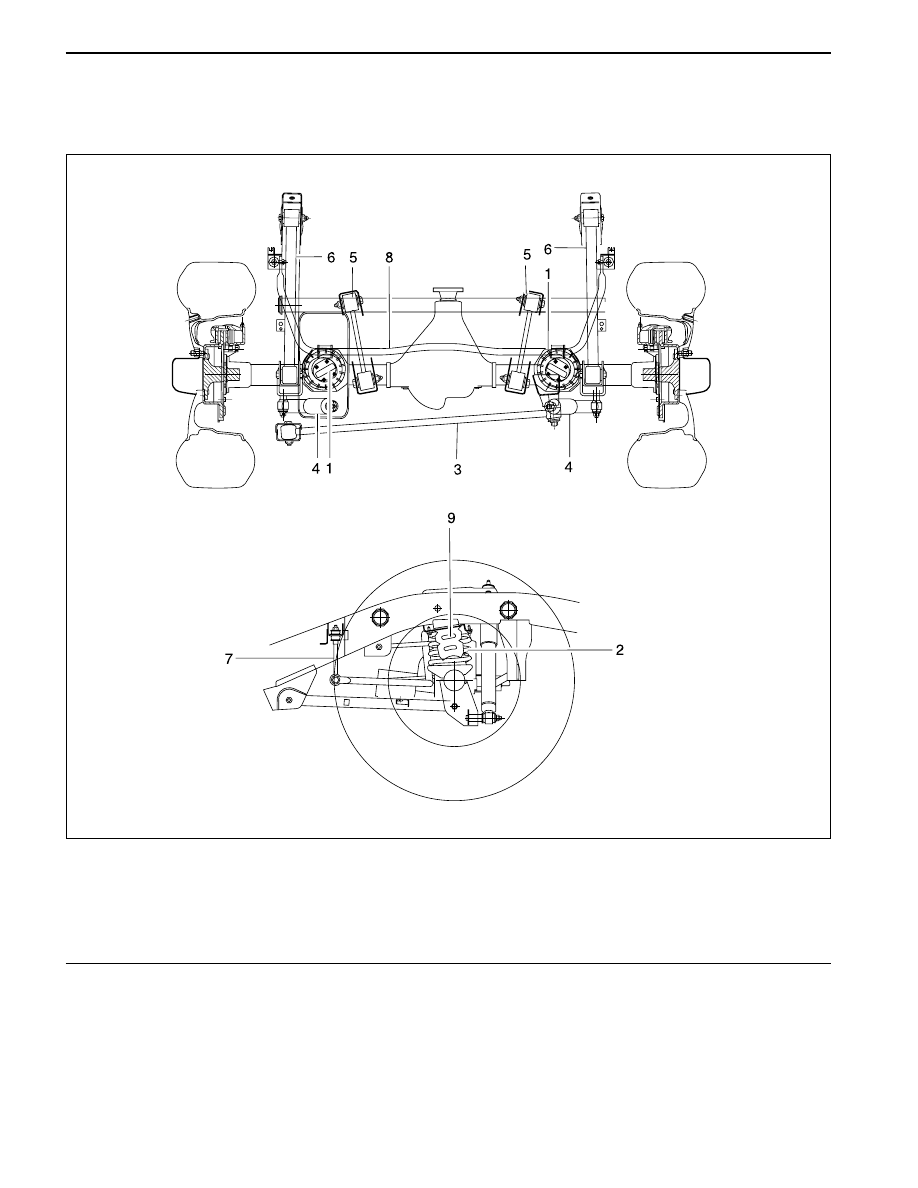

COMPONENT LOCATOR

REAR SUSPANSION ASSEMBLY

1 Coil Spring Seat(upper)
2 Coil Spring
3 Lateral Rod
4 Shock Absorber
5 Upper arm(link)

6 Lower Arm (link)
7 Stabilizer Link
8 Stabilizer
9 Pump Stopper

YAD2D030
