FRONT SUSPENSION  2C-9

SSANGYONG  Y200

REPAIR INSTRUCTIONS

ON-VEHICLE SERVICE

YAD2C080

SSANGYONG  Y200

2C-10  FRONT SUSPENSION

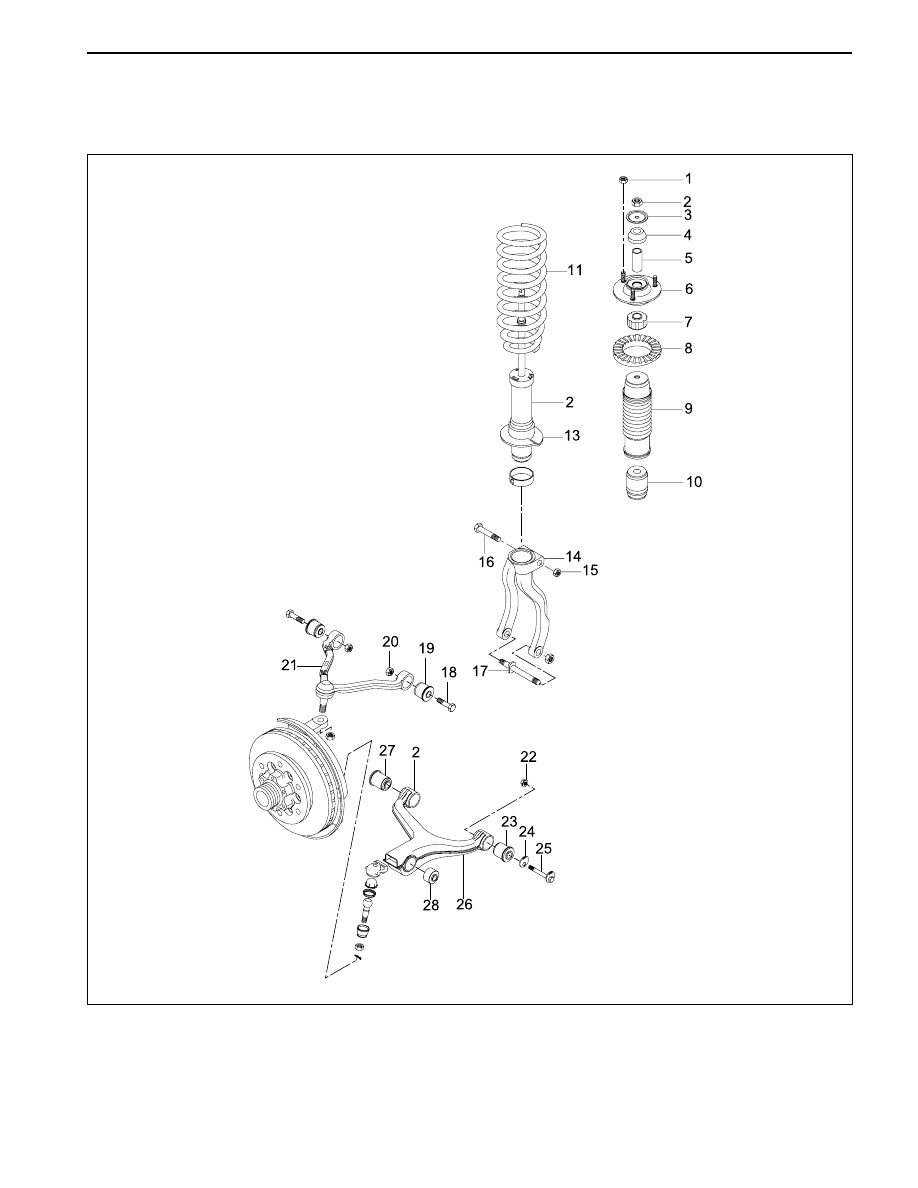

1 Nut
2 Nut
3 Washer
4 Rubber
5 Bushing
6 Upper Spring Sheet
7 Rubber
8 Spring Sheet Rubber
9 Boot

10 Boot
11 Spring
12 Shock Absorber
13 Lower Spring Sheet
14 Yoke

15 Nut
16 Bolt
17 Bolt
18 Bolt
19 Bushing
20 Nut
21 Upper Arm
22 Nut
23 Bushing
24 Washer
25 Bolt
26 Lower Arm
27 Bushing
28 Bushing

FRONT SUSPENSION  2C-11

SSANGYONG  Y200

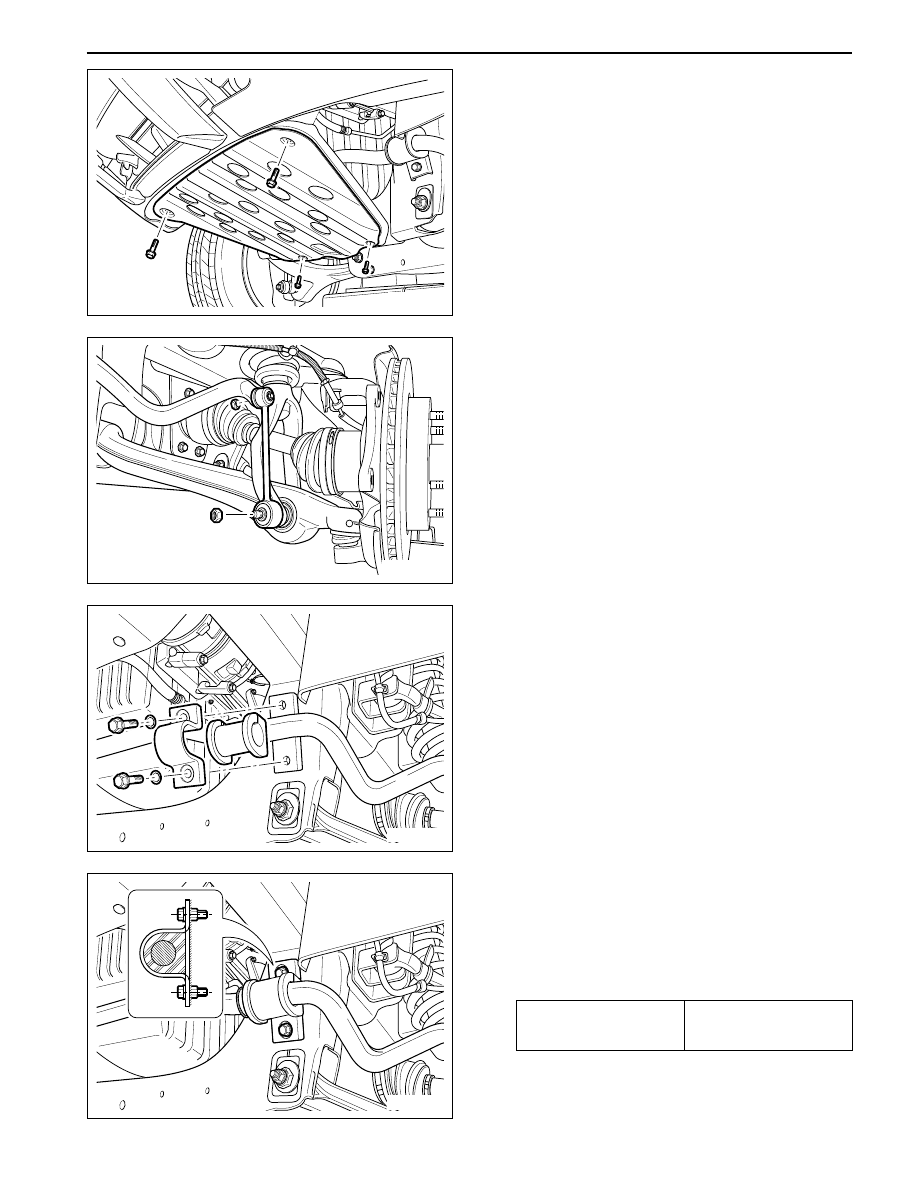

STABILIZER

Removal Procedure

1. Remove the skid plate at front bottom side.

YAD2C090

YAD2C100

YAD2C110

2. Remove the upper mounting nut and the lower

mounting nut from the front stabilizer bar link.
Remove the front stabilizer bar link.

3. Remove the mounting cap bolt from the front

stabilizer bar and remove the front stabilizer bar.

YAD2C120

Installation Procedure

1. Install the front stabilizer bar to the frame and

tighten manually the stabilizer bar mounting cap
bolt. It allows the bar link to install to it’s original
position.

Installation Notice

Tightening Torque

60 - 80 N•m

(44 - 59 lb-ft)

SSANGYONG  Y200

2C-12  FRONT SUSPENSION

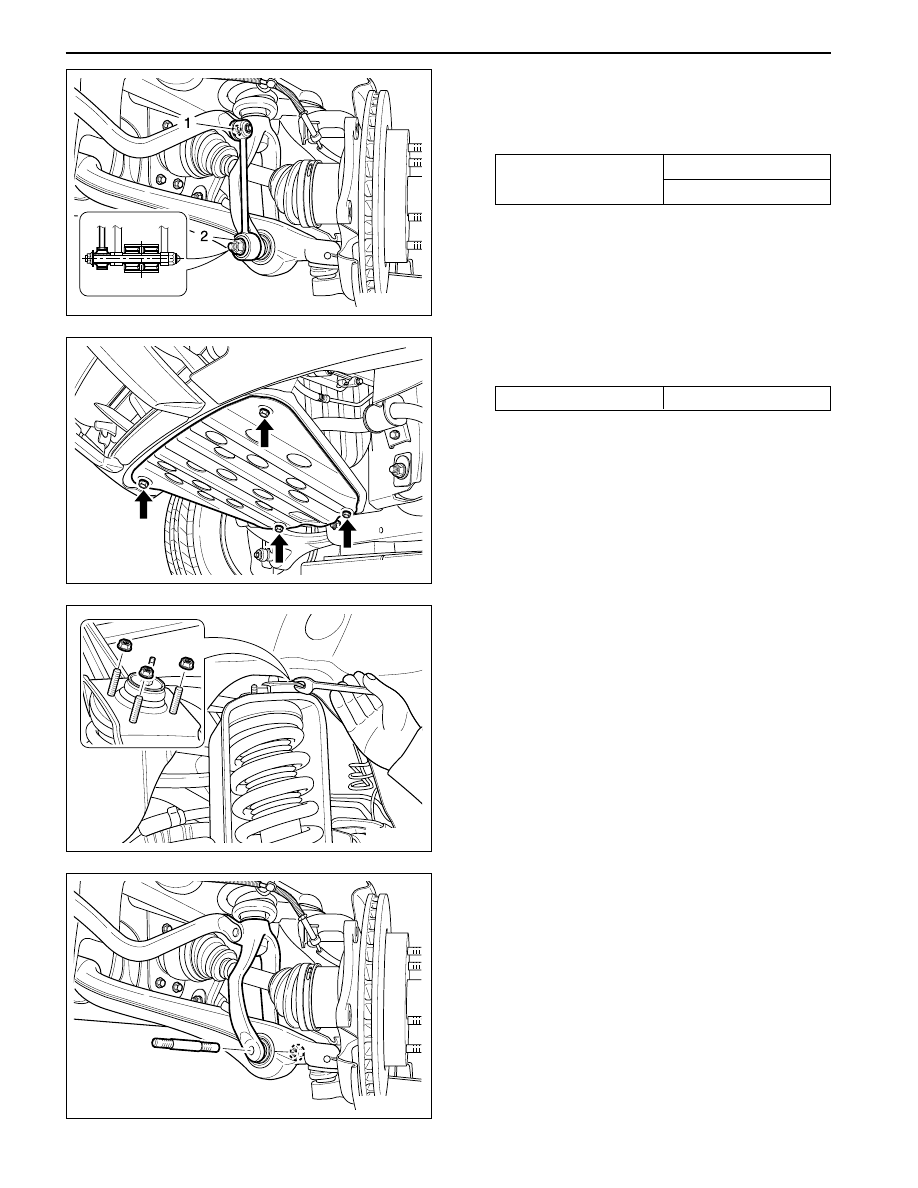

3. Install the front stabilizer bar and the skid plate.

Installation Notice

YAD2C140

YAD2C150

SHOCK ABSORBER ASSEMBLY

Removal Procedure

1. Remove three upper nuts from the shock absorber

assembly.

2. Install the bra link between the stabilizer bar and

the lower arm and tighten the mounting nut as the
specified torque.

Installation Notice

YAD2C130

Tightening

Torque

(1) 110 - 120 N•m

(2) 110 - 130 N•m

YAD2C160

2. Remove the yoke mounting pin nut at the lower

arm and the yoke mounting pin.

Tightening Torque

35 N•m (26 lb-ft)
