1F3-68  DIESEL ENGINE CONTROLS

SCHEMATIC AND ROUTING DIAGRAMS

YAD1FDF0

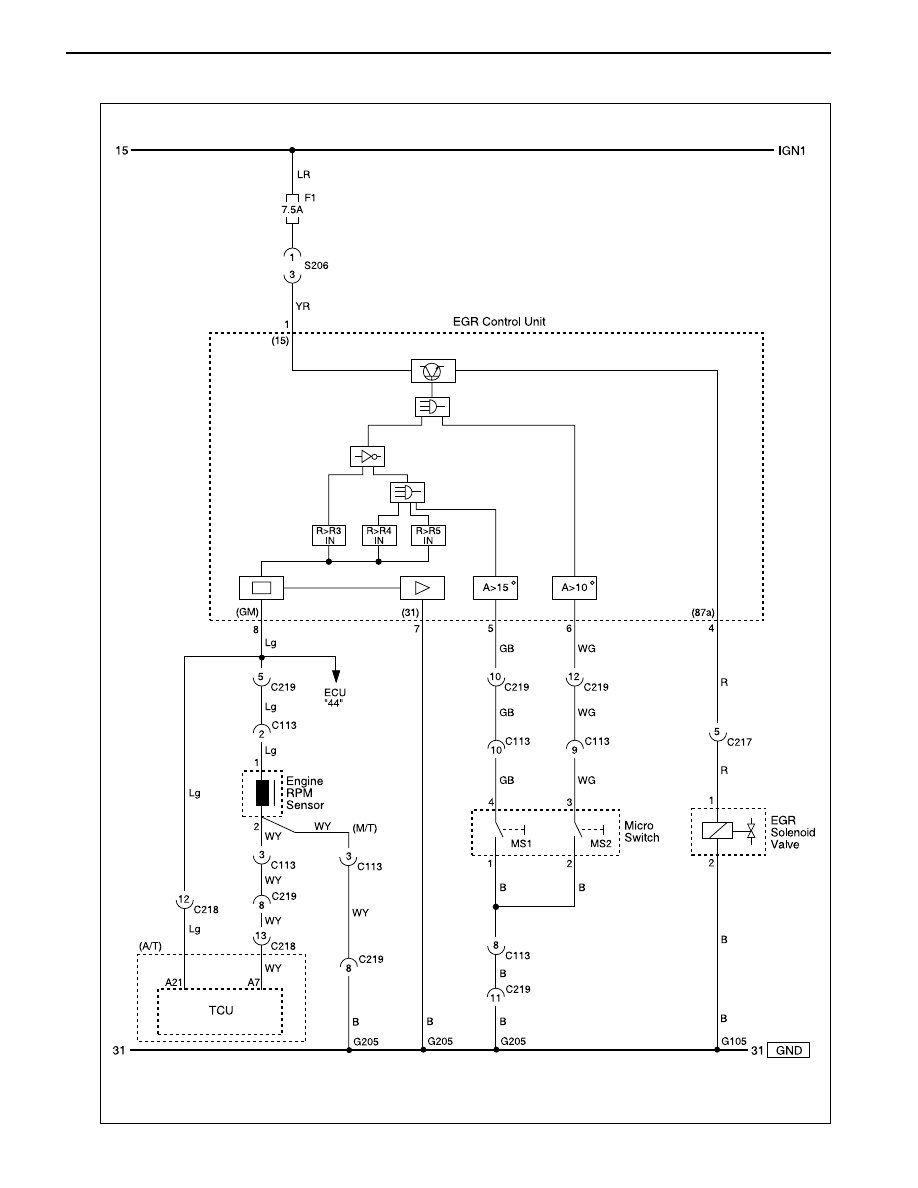

EGR SYSTEM

DIESEL ENGINE CONTROLS  1F3-69

SSANGYONG  Y200

SPECIAL TOOLS AND EQUIPMENT

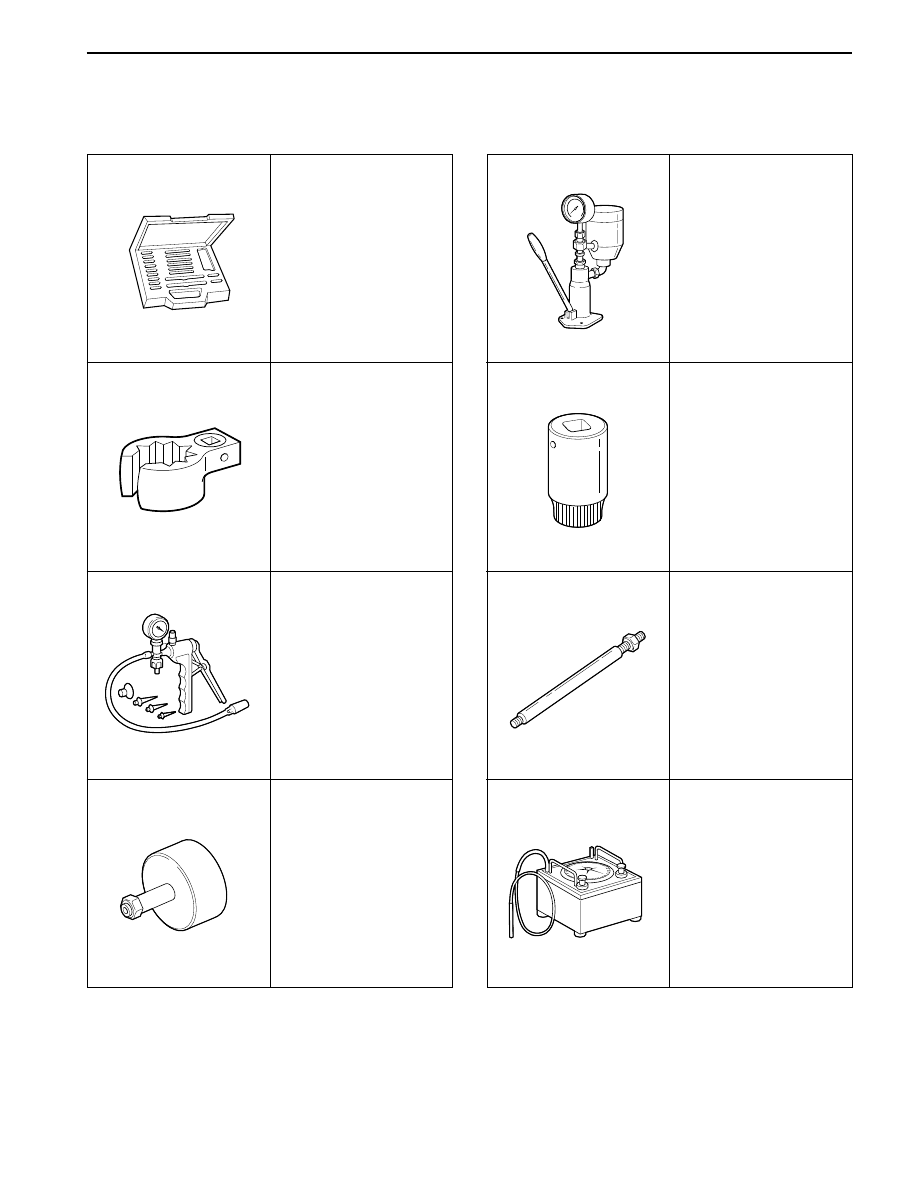

SPECIAL TOOLS TABLE

001 589 73 21 00

Vacuum Pump

116 589 20 33 00

Sliding Hammer

000 589 00 68 00

Cleaning Set

000 589 77 03 00

Box Wrench Insert

116 589 02 34 00

Threaded Bolt

201 589 13 21 00

Vacuum Tester

000 589 14 27 00

Fuel Injection Nozzle

Tester

001 589 65 09 00

Serration Wrench

YAD1FDU0

YAD1FDK0

YAD1FDT0

YAD1BKB0

YAD1A190

YAD1BLH0

YAD1B580

YAD1FDG0

SSANGYONG  Y200

1F3-70  DIESEL ENGINE CONTROLS

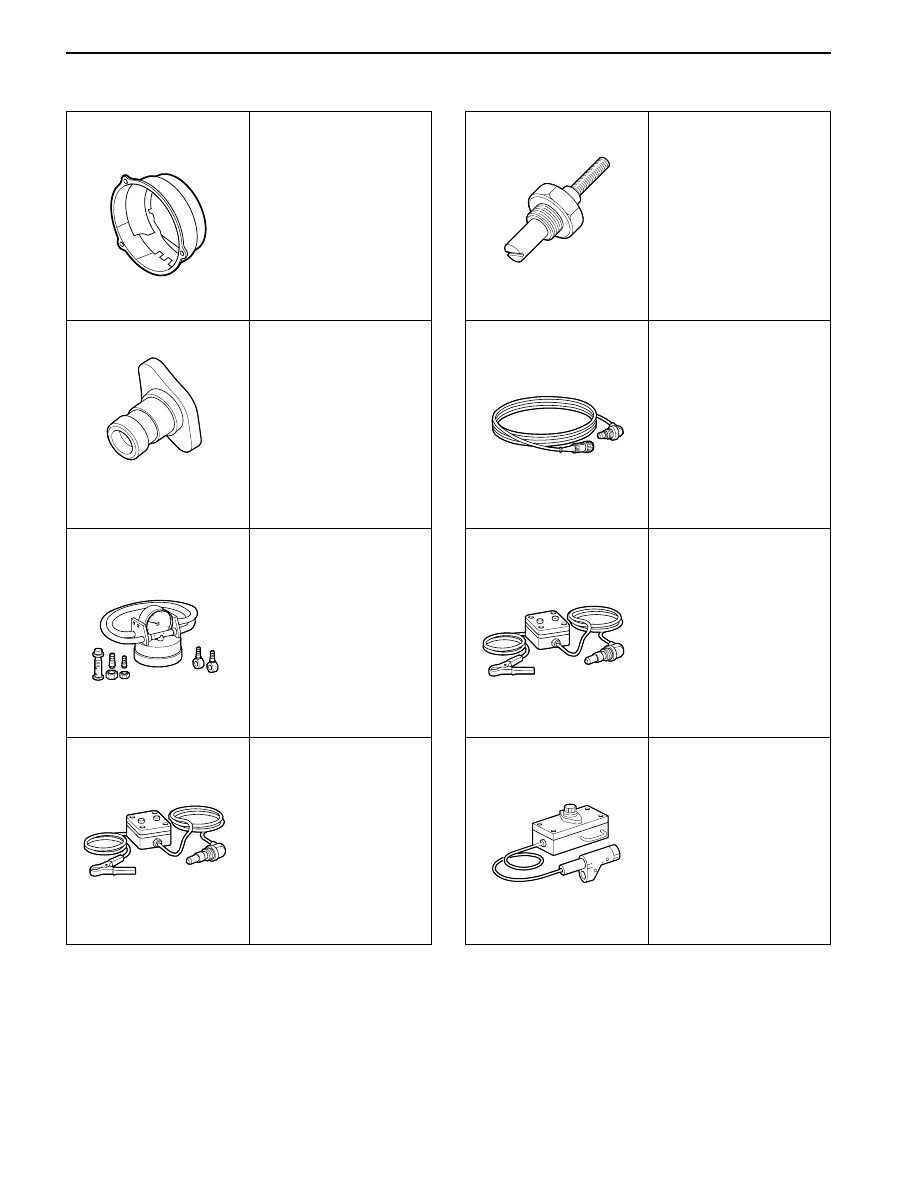

SPECIAL TOOLS TABLE (Cont’d)

617 589 04 21 00

Tester

617 589 08 21 00

Position Sensor

601 589 05 14 00

Assembly Cage

610 589 00 08 00

Flange

617 589 08 21 01

Micro Switch Setting

Device

617 589 09 21 00

Ri Adapter

601 589 05 21 00

Locking Sensor

617 589 00 21 00

Ri Sensor

YAD1FDS0

YAD1FDQ0

YAD1FDP0

YAD1FDN0

YAD1FDJ0

YAD1FDL0

YAD1FDL0

YAD1FDM0

DIESEL ENGINE CONTROLS  1F3-71

SSANGYONG  Y200

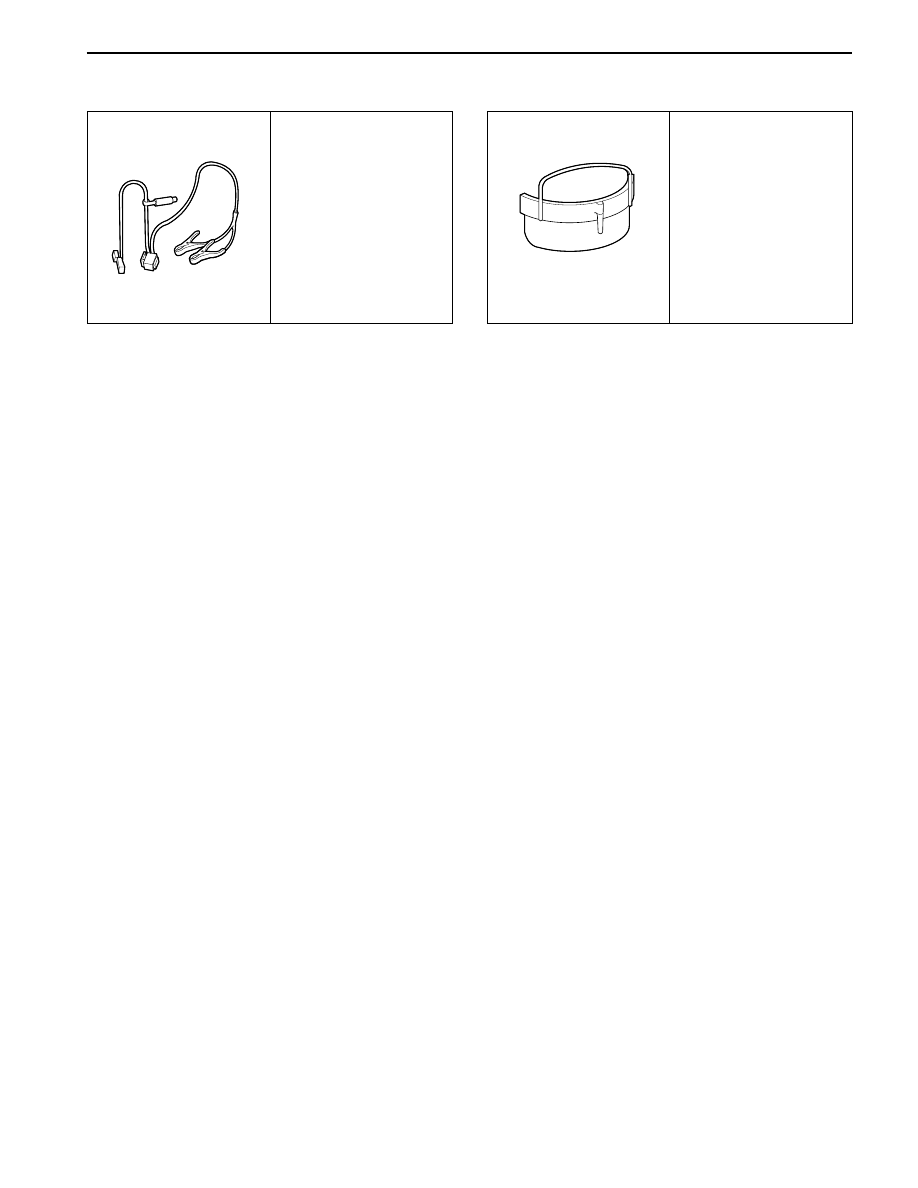

SPECIAL TOOLS TABLE  (Cont’d)

667 589 00 21 00

TDC Pulse Generator

667 589 04 63 00

Retaining Plate

YAD1FDH0

YAD1FDR0
