SSANGYONG  Y200

1F2-40  M161 ENGINE CONTROLS

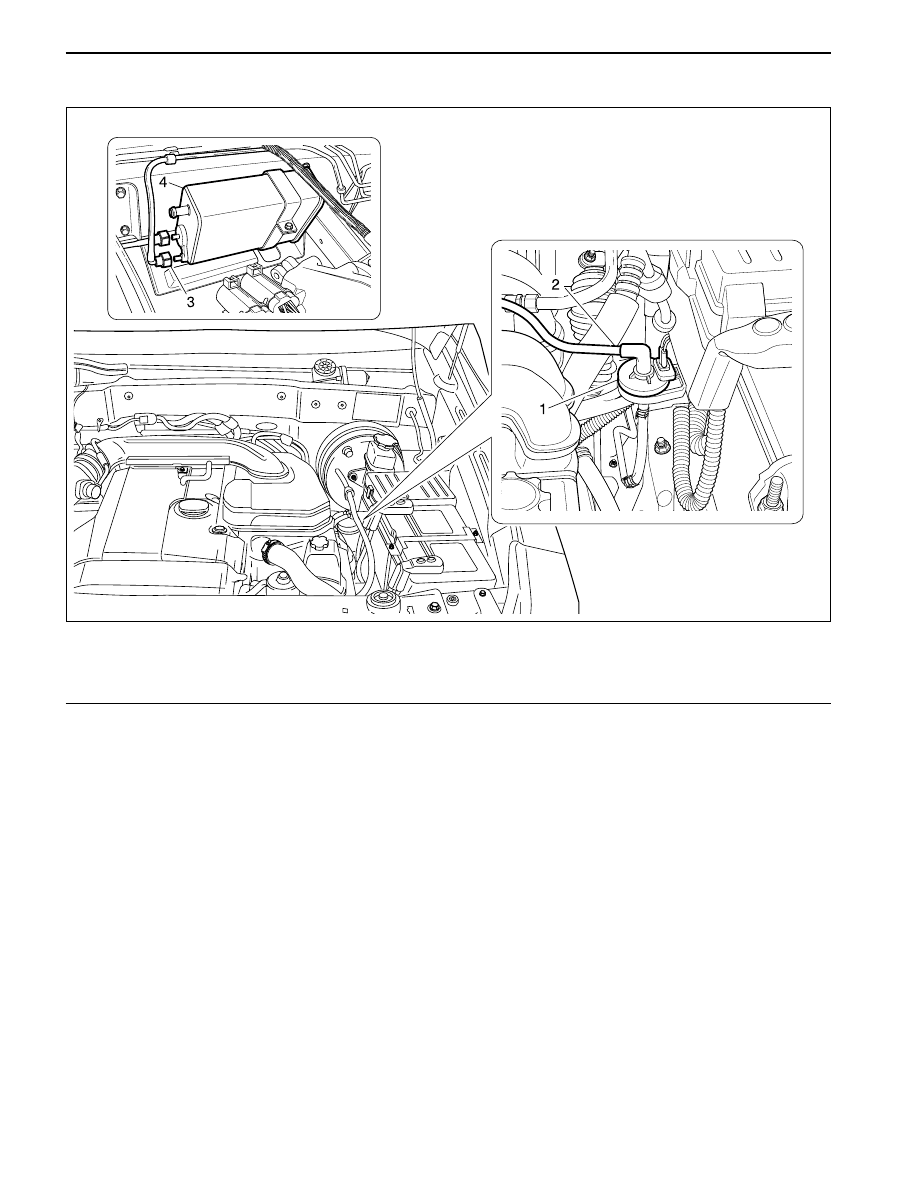

PURGE CONTROL  VALVE

YAA1F440

The fuel vaporization control system is installed to inhibit the fuel vaporized gas from discharging into the
atmosphere. The fuel vaporized gas that is accumulated in the canister abstracts through the purge control valve
purification during the engine combustion (except the decreasing mode) and coolant temperature of over 80 ° C.
For this reason, the Engine Control  Module (ECM) transacts the engine speed, air inflow quantity, coolant
temperature, and intake temperature.

The purge control valve is activated by the ECM frequency according with the engine rotating speed to adjust the
purification rate. The purification rate is determined by the continuous valve opening interval.

The purge control valve is activated by the ECM for the following conditions:

•

Coolant temperature of over 80 ° C

•

Engine speed of over 1,000 rpm

•

2 minutes after starting

•

When the fuel cut-off mode is not activated

1 Purge Control Valve
2 Line to Engine

3 Line to Canister
4 Canister

M161 ENGINE CONTROLS  1F2-41

SSANGYONG  Y200

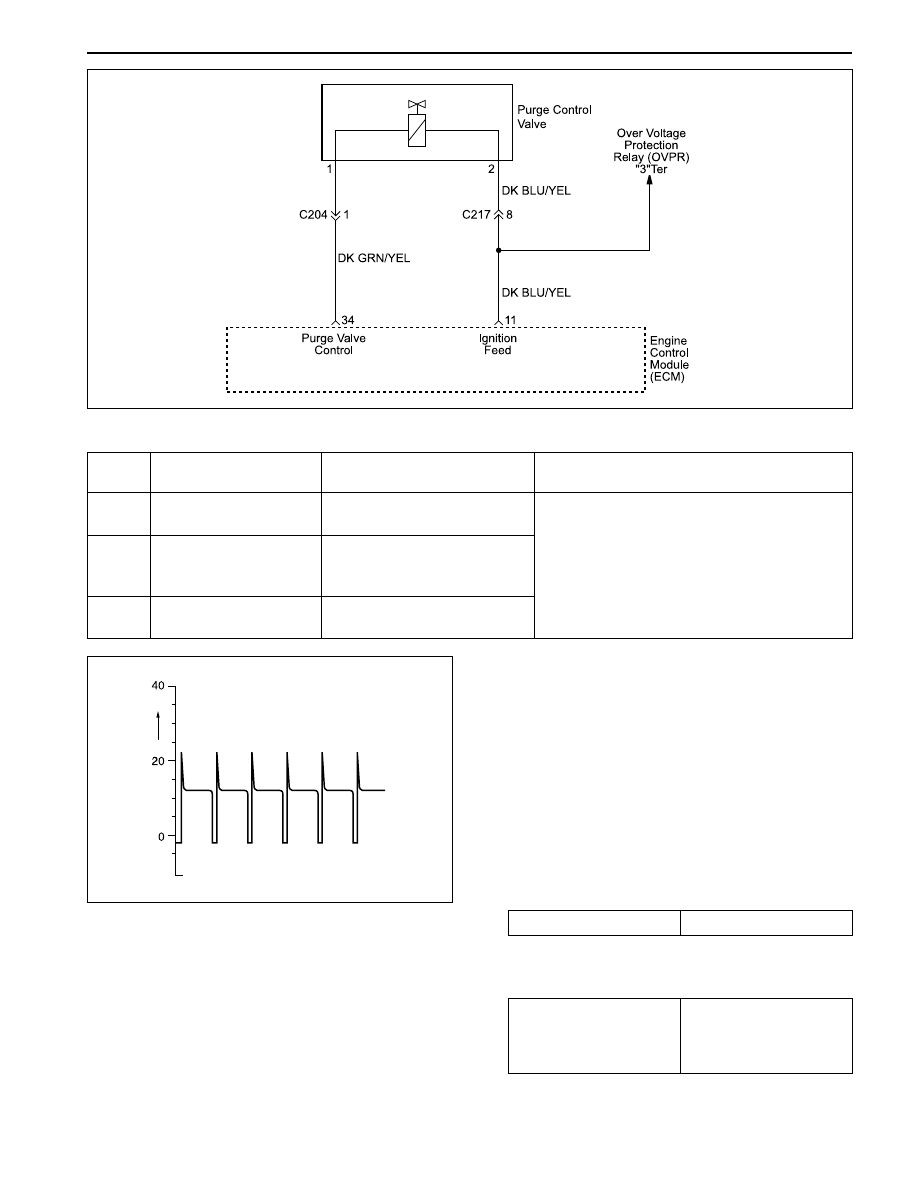

Test

1. Maintain the normal temperature and idling state

by operating the engine.

2. Connect the ECM terminal No. 11 and No. 34 and

check for normal operation through the output waves
using oscilloscope.

Notice: Test during purge control valve operation
after the minimum of 1 minute after the engine
turned on.

3. Connect the ECM terminal No. 34 and No.10 and

check for current consumption during the ignition
switch ON.

4. Remove the line to canister and measure the

pressure with the vacuum pressure gauge.

YAD1F310

Failure

Code

Description

Trouble  Area

Maintenance Hint

Purge control valve

short circuit to battery

Purge control valve

short circuit to ground

or open

Purge control circuit

malfunction

When short circuit to power

source

When short circuit to ground

or open

When malfunction of purge

control : not work

•

Inspection the ECM pin 34 about short
circuit or open with bad contact

•

Inspection the source power of valve

•

Inspection the purge control solenoid
vale

•

Inspection the ECM

40

Specified Value

0.3 ~ 0.5 A

Notice:  Test while at normal temperature and at
idling state by operating the engine.

41

54

Specified Value

> 500 mbar

(after approx. 1 min.)

purge control valve

operates at this time

SSANGYONG  Y200

1F2-42  M161 ENGINE CONTROLS

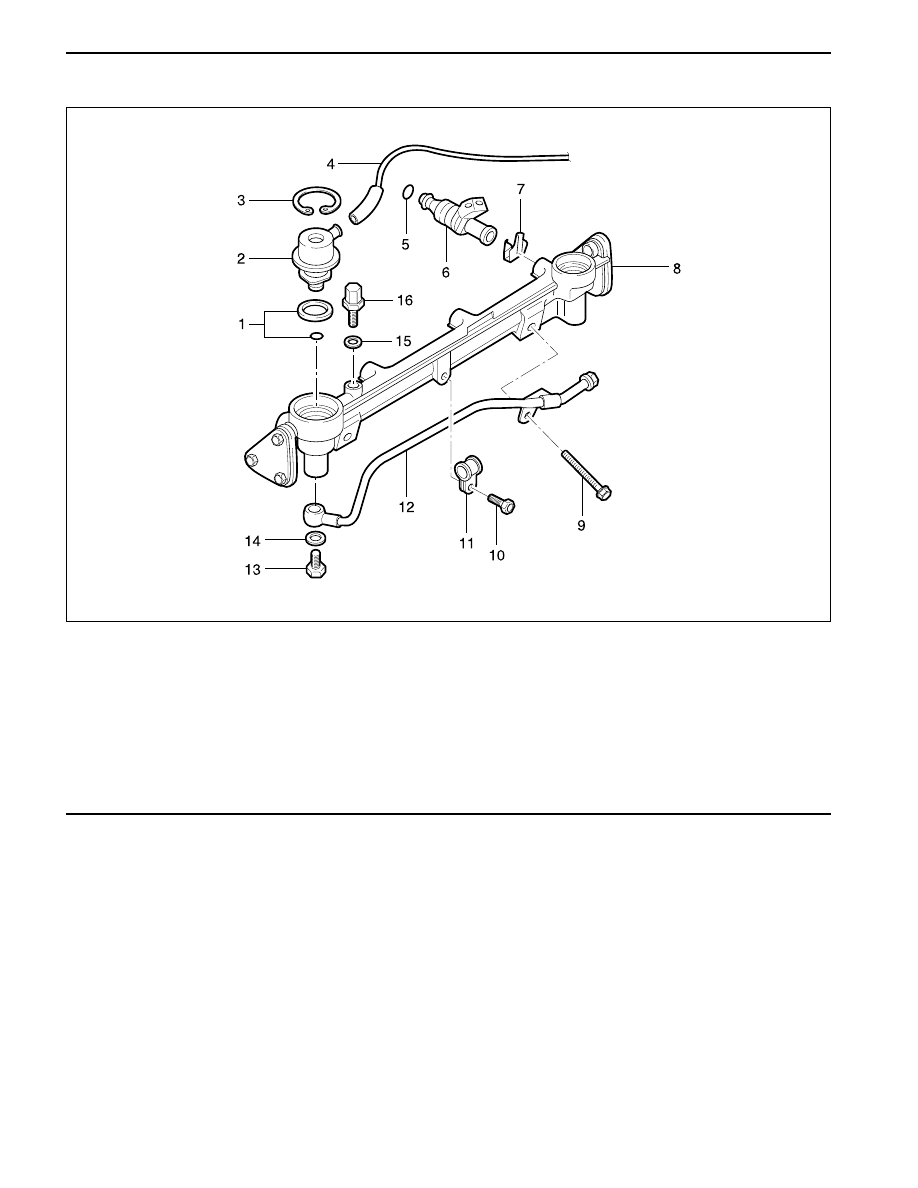

FUEL RAIL

YAA1F0E0

1 O-Ring
2 Fuel Pressure Regulator
3 Circlip
4 Vacuum Hose
5 O-Ring
6 Injector
7 Injector Bracket
8 Fuel Rail

9 Combination Bolt

10 Bolt
11 Clamp
12 Fuel Return Line
13 Hollow Bolt
14 Seal Ring
15 Seal Ring
16 Fuel Pressure Test Connector

M161 ENGINE CONTROLS  1F2-43

SSANGYONG  Y200

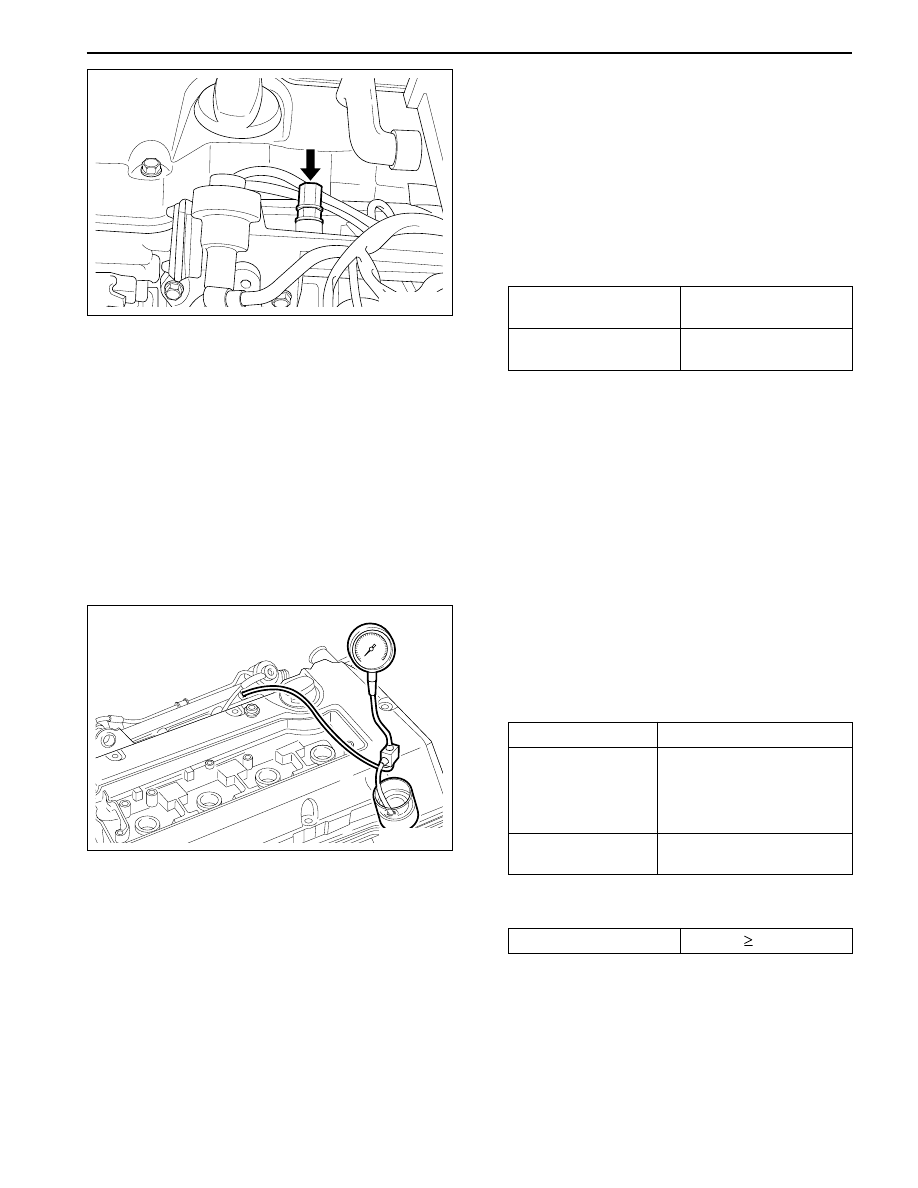

Fuel pressure (bar)

  2.5

Internal Leakage Test

1. Connect the fuel pressure gauge103 589 002100 to

the fuel pressure test connector.

Fuel Pressure Test

Tools Required

103 589 00 21 00 Fuel Pressure Gauge

1. Turn the ignition switch to “OFF” position.

2. Remove the fuel pressure test connector.

3. Connect the fuel pressure gauge to the fuel pressure

test connector.

4. Test the fuel pressure at idling by operating the

engine using the fuel pressure gauge 103 589 00
21 00.

YAA1F700

Vacuum Hose

Connected (bar)

Vacuum Hose

Disconnected (bar)

3.2 ~ 3.6

3.7 ~ 4.2

YAA1F0K0

2. Stop the engine for approximately 30 minutes and

then check the fuel pressure changes.

Pressure change

Fuel pressure
drops slowly

Fuel pressure
drops rapidly

•

Fuel leakage at the injector

•

Faulty fuel pressure
regulator’s diaphragm
and O-ring

•

Faulty check valve in
the fuel pump

3. If there is no change in fuel pressure and maintain

the following pressure over 30minutes, it is normal.

5. Replace the pressure regulator diaphragm if out of

the specification.
