SsangYong Rexton. Manual - part 416

SSANGYONG  Y200

1F1-82  M162 ENGINE CONTROLS

Communication with

transponder missing

Unprogramed ECM with

immobilizer

YAD1F630

Failure

Code

Description

Trouble  Area

Maintenance Hint

When missing the

transponder signal

When malfunction of

immobilizer

Required immobilizer

encoding, no paired

condition of immobilizer even

through start trial

•

D Inspection the Engine Control Module

(ECM) pin 13, 14 about short circuit or
open with bad contact

•

Inspection the power source or ground

short circuit or open of immobilizer unit

•

Inspection the transponder condition

(broken etc.)

•

Inspection the ECM

•

Fulfill the immobilizer pairing

25

IMMOBILIZER

141

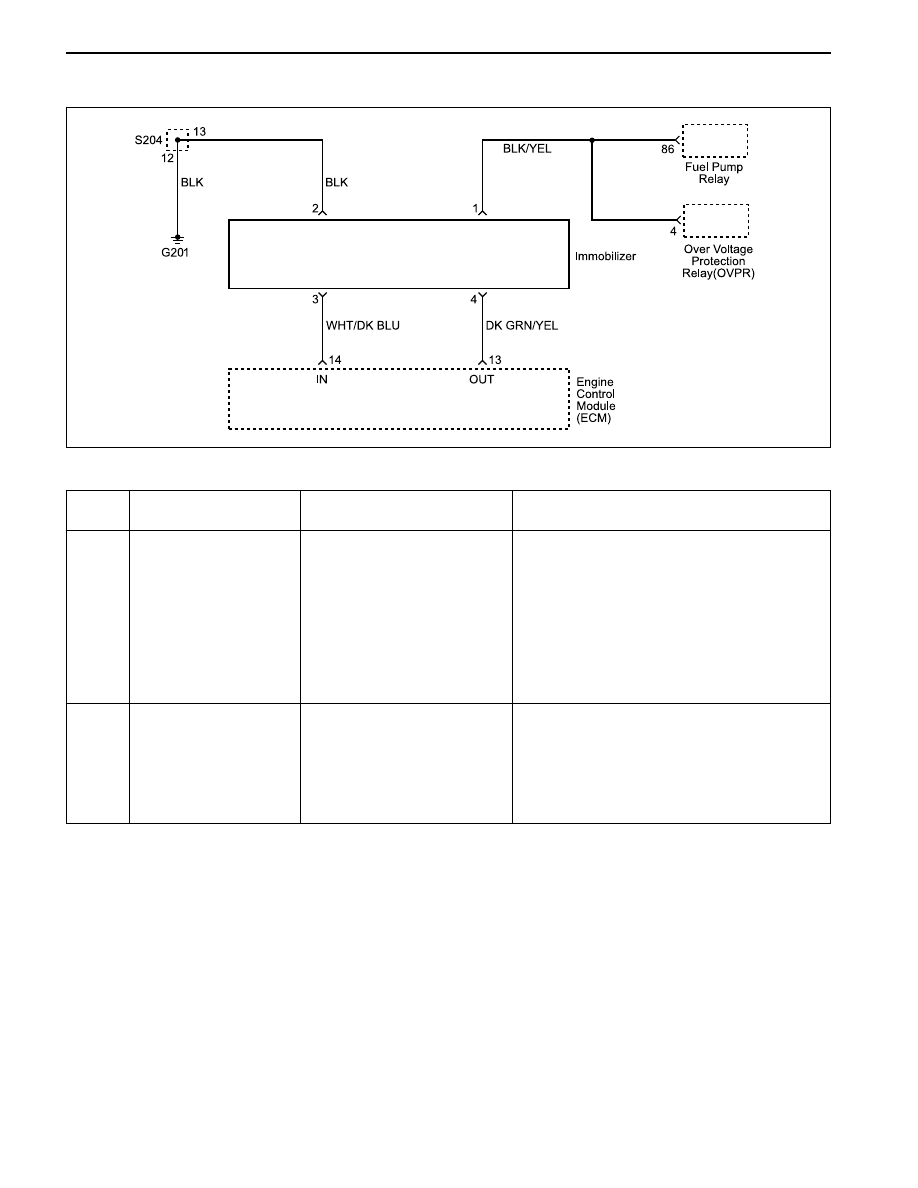

Circuit Description

Immobilizer is a device disabling vehicle ignition unless a specific key is used and designed to help prevent
vehicle theft.

Immobilizer is comprised of two devices, a key with encoded transponder and ECM with the same encoding of
the transponder. When a key is inserted into the hole to start vehicle and turned to ON, the ECM reads and
decodes the transponder code and, if the same, starts the engine, it is called immobilizer. It means immobilizer
system disables starting by stopping fuel supply if the code in the transponder does not match the code stored
in ECM each other.

M162 ENGINE CONTROLS  1F1-83

SSANGYONG  Y200

MAINTENANCE AND REPAIR

KAA1F430

KAA1F440

YAA1F170

ON-VEHICLE SERVICE

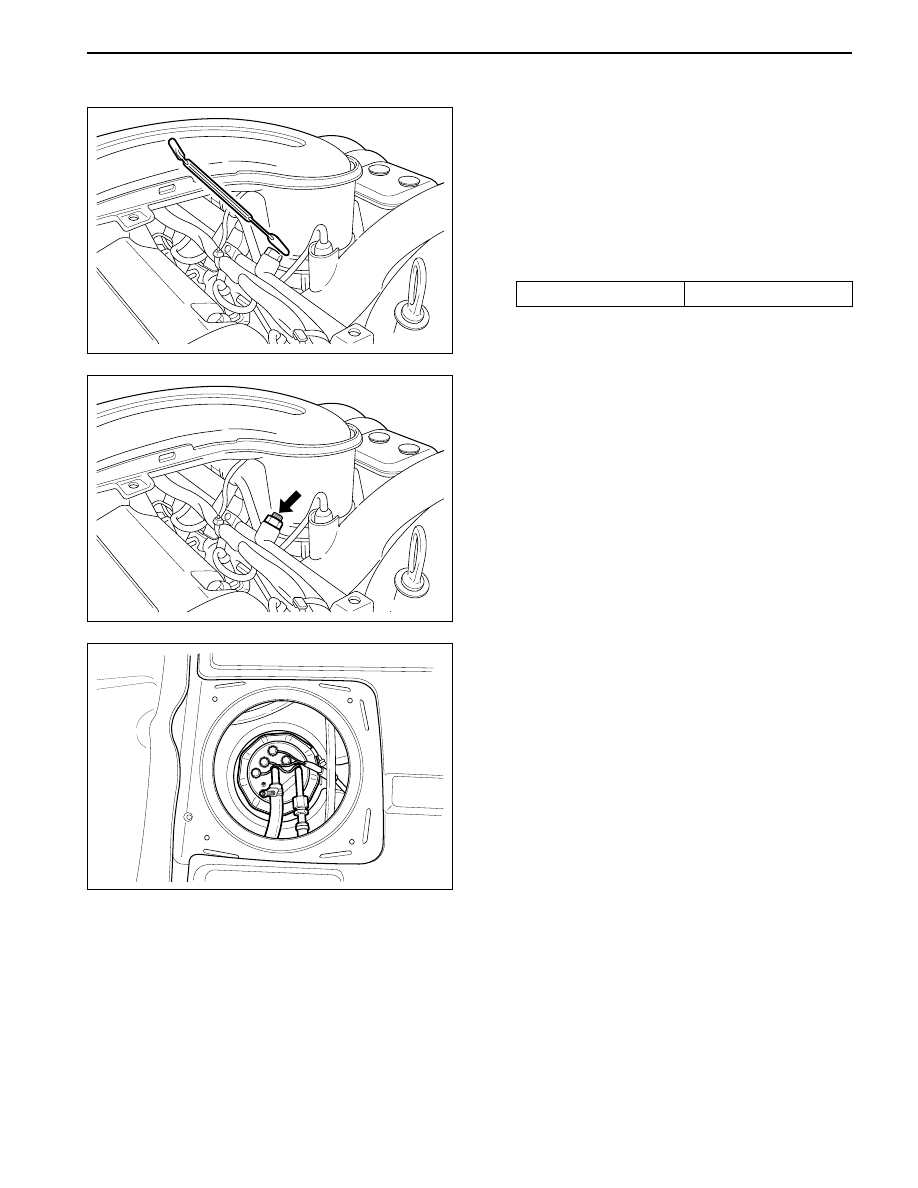

DISCHARGING THE PRESSURE IN
FUEL SYSTEM

Removal and Installation Procedure

1. Remove the fuel pressure test connector.

Installation Notice

Tightening Torque

25 N•m (18 lb-ft)

FUEL PUMP

Tools Required

661 589 00 46 00

Fuel Tank Cap Wrench

Removal and Installation Procedure

Caution: The fuel system is under pressure. To avoid
fuel spillage and the risk of personal injury or fire,
it is necessary to relieve the fuel system pressure
before disconnecting the fuel lines.

1. Relieve the fuel system pressure. Refer to

“Discharging the Pressure in Fuel System” in this
section.

2. Disconnect the negative battery cable.

3. Put aside the floor carpet to remove the fuel pump

access cover.

4. Remove the fuel pump access cover.

5. Remove the fuel pump wiring connectors.

6. Disconnect the fuel supply and return pipes.

7. Remove the fuel pump locking cap band.

2. Remove the fuel pressure in fuel system by

pressing the service valve with a clean, pointy
tool.

Notice: Place a cloth so that the fuel doesn’t stain
around.

3. Installation should follow the removal procedure

in the reverse order.

SSANGYONG  Y200

1F1-84  M162 ENGINE CONTROLS

YAA1F550

YAA1F190

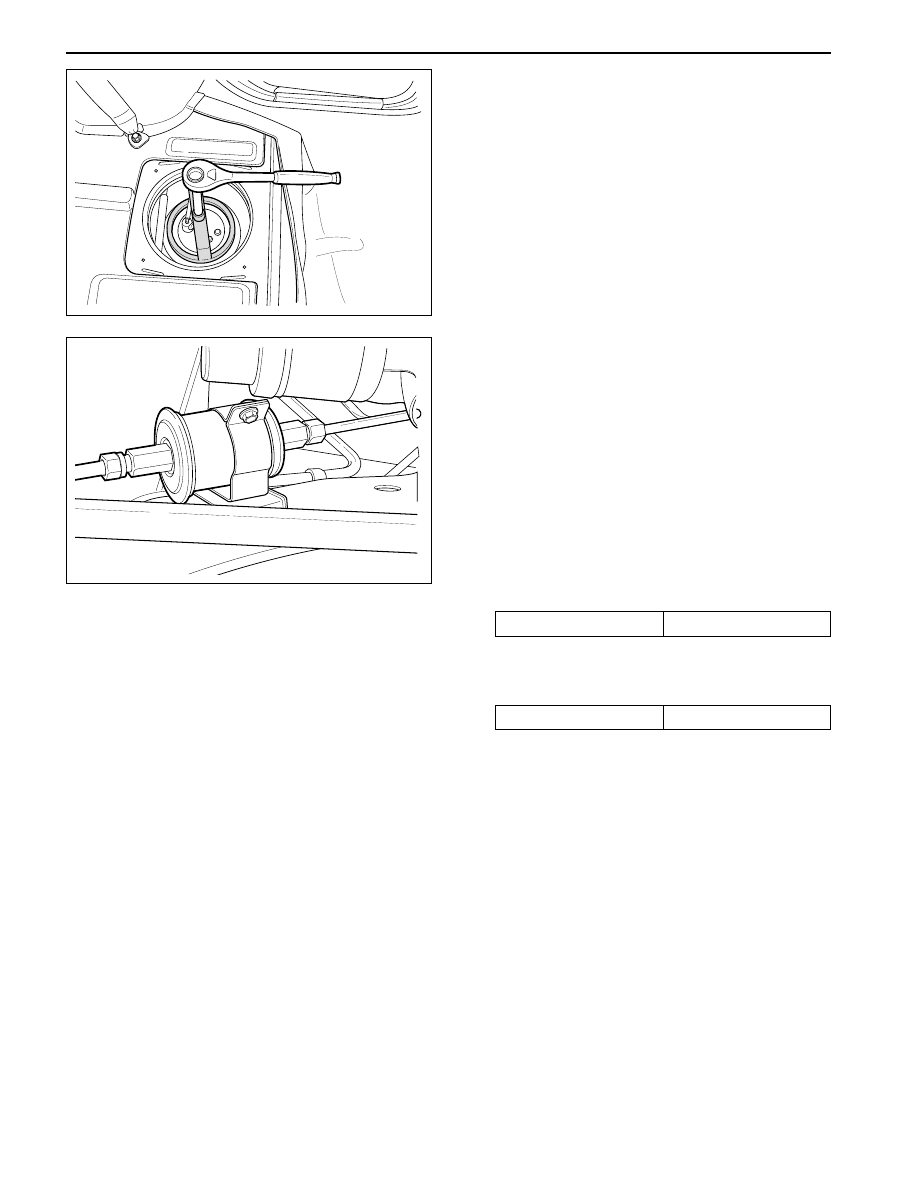

8. Using the fuel tank cap wrench 661 589 00 46 00,

remove the locking cap.

9. Remove the pump from the fuel tank.

Notice:  Check the condition of the seal and
replace if necessary. Drain the fuel before
removing the pump.

10. Perform an operational check of the fuel pump.

11. Installation should follow the removal procedure

in the reverse order.

FUEL FILTER

Removal and Installation Procedure

1. Disconnect the negative battery cable.

Caution: The fuel system is under pressure. To avoid
fuel spillage and the risk of personal injury or fire,
it is necessary to relieve the fuel system pressure
before disconnecting the fuel lines.

2. Relieve the fuel system pressure. Refer to

“Discharging the Pressure in Fuel System” in this
section.

3. Disconnect the fuel lines from the fuel filter.

Installation Notice

Tightening Torque

28 N•m (21 lb-ft)

4. Remove the fuel filter mounting bracket bolt.

Installation Notice

Tightening Torque

28 N•m (21 lb-ft)

Notice: Place the fuel pump pad. There may be a
corrosion due to the contact between the fuel filter
and the bracket.

5. Remove the fuel filter.

6. Install the fuel filter.

7. Perform a leak test of the fuel filter.

8. Installation should follow the removal procedure

in the reverse order.

M162 ENGINE CONTROLS  1F1-85

SSANGYONG  Y200

KAA1F370

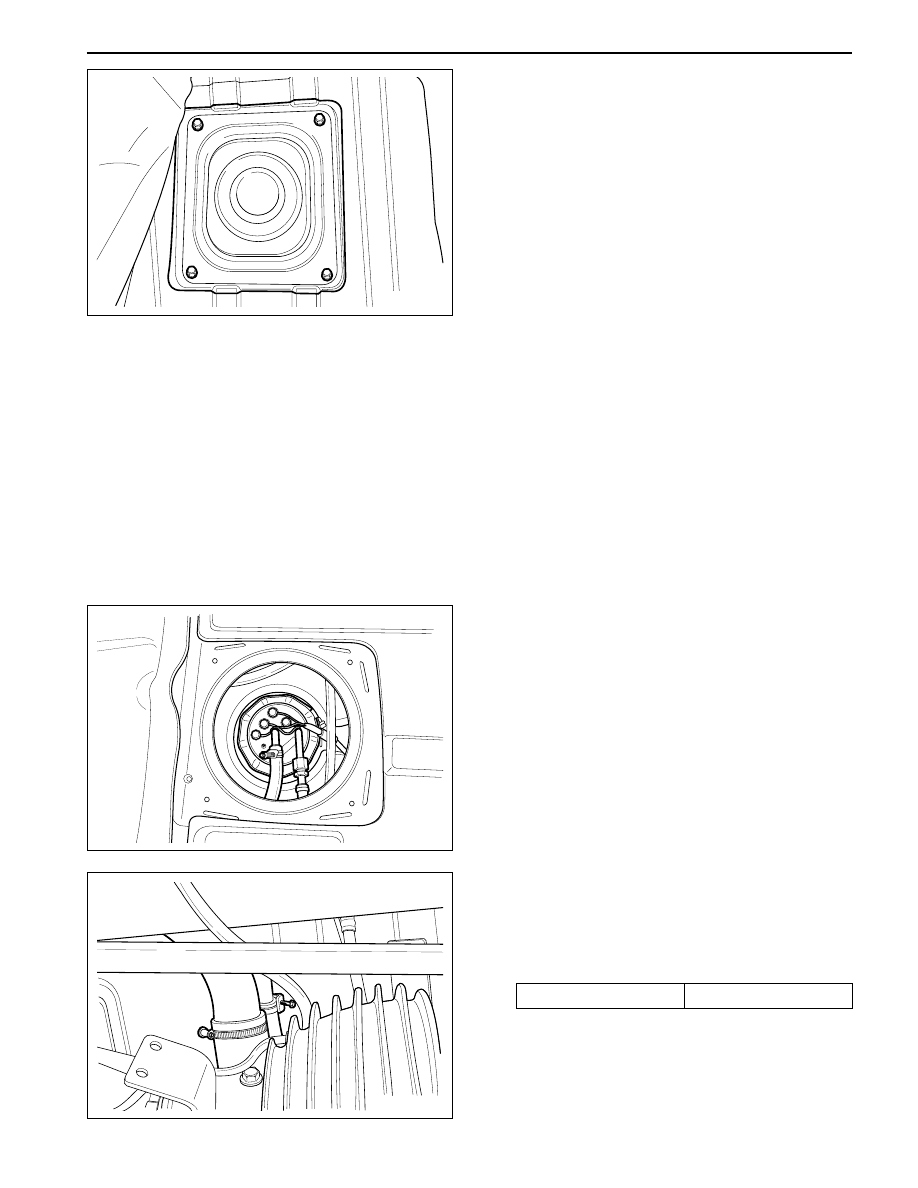

FUEL TANK

Removal and Installation Procedure

Caution: The fuel system is under pressure. To avoid
fuel spillage and the risk of personal injury or fire,
it is necessary to relieve the fuel system pressure
before disconnecting the fuel lines.

1. Relieve the fuel pressure. Refer to “Discharging

the Pressure in Fuel System” in this section.

2. Disconnect the negative battery cable.

3. Drain the fuel tank.

4. Put aside the floor carpet to remove the fuel pump

access cover.

5. Remove the fuel pump access cover.

YAA1F170

YAA1F160

10. Disconnect the fuel filler hose and air vent hose

from the fuel tank.

11. Support the fuel tank.

12. Remove the fuel tank retaining nuts.

Installation Notice

6. Disconnect the return line.

7. Disconnect the supply line.

8. Disconnect the fuel tank-to-canister hose from the

fuel tank.

9. Disconnect the fuel pump wiring connector.

13. Carefully lower the fuel tank.

Tightening Torque

38 N•m (28 lb-ft)
