M162 ENGINE CONTROLS  1F1-21

SSANGYONG  Y200

YAD1F150

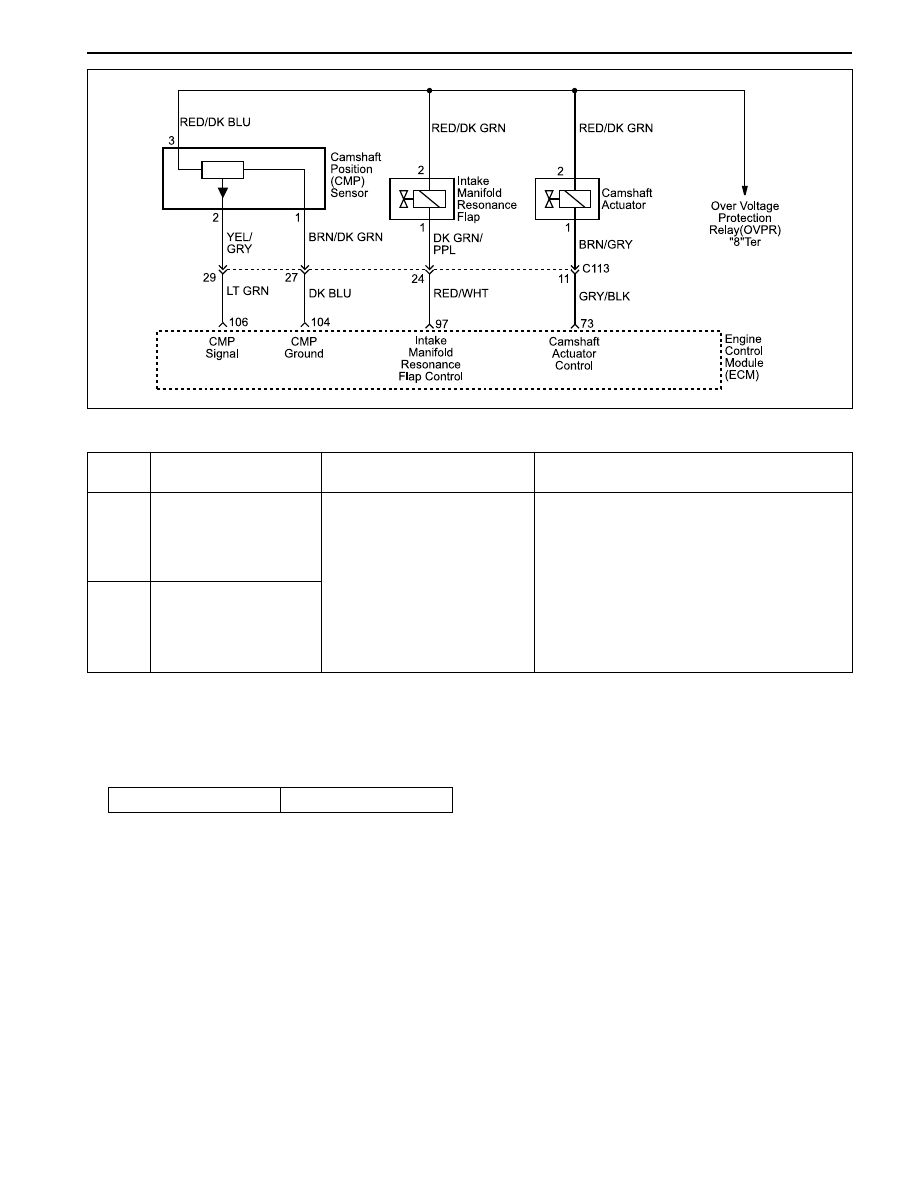

Camshaft Actuator Current Consumption Inspection

1. Run the engine to reach the coolant temperature above 70 ° C.

2. Increase the engine rpm up to 2000 rpm

3. Measure the current between the No. 1 and No. 2 pin of the camshaft actuator connector.

Failure

Code

Description

Trouble  Area

Maintenance Hint

Camshaft actuator short

circuit to battery

Camshaft actuator short

circuit to ground or

open

When malfunction of cam

phasing control

•

Monitoring the actual operational status
through scan tool

•

Inspection the ECM pin 73 about short
circuit or open

•

Inspection the power source short circuit
or open to cam actuator

•

Inspection the magnet and hardware

•

Inspection the ECM

226

227

Specified Value

1 ~1.5 A

Notice: If the measured value is not within the specified value, check the cable.

SSANGYONG  Y200

1F1-22  M162 ENGINE CONTROLS

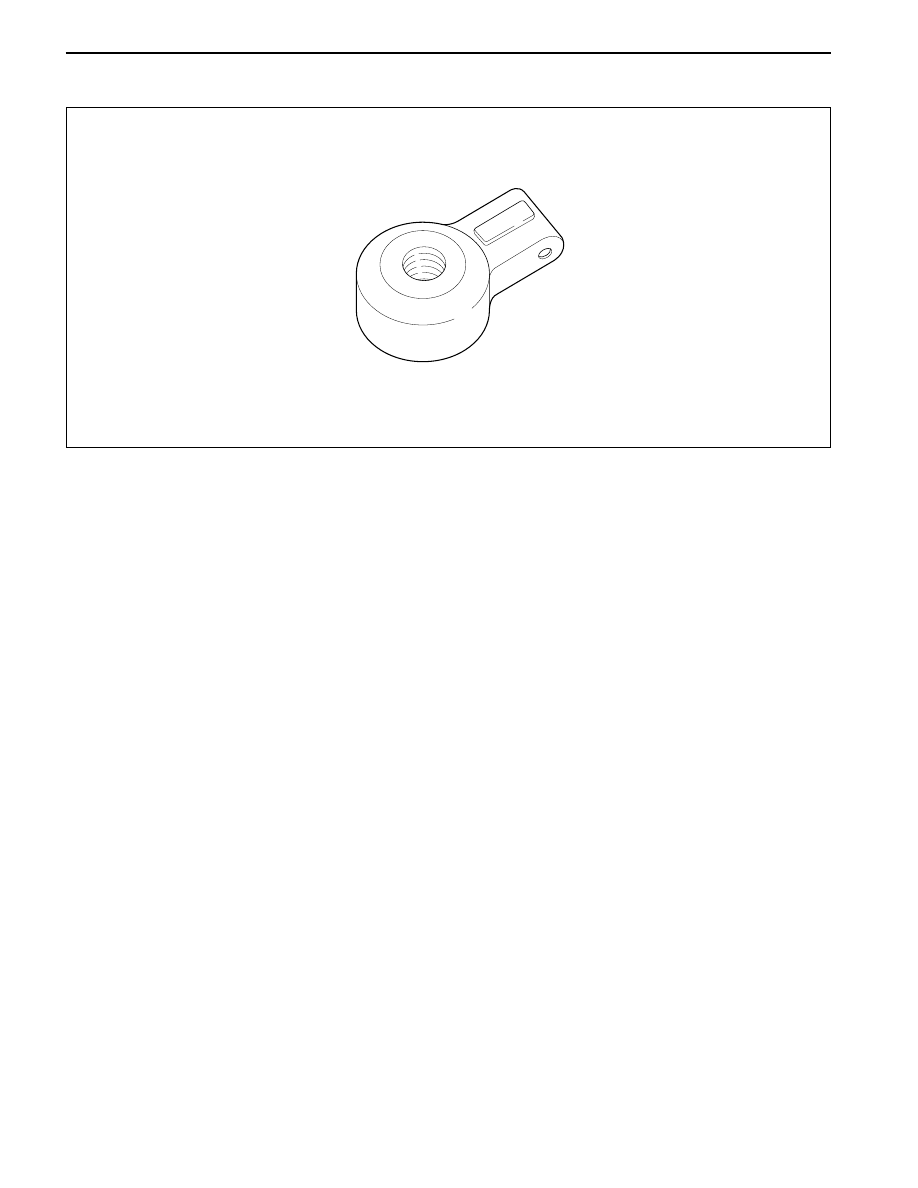

KNOCK SENSOR (KS)

YAD1F180

The Knock Sensor (KS) detects abnormal knocking in the engine. The two KS are mounted in the engine block
near the cylinders. The sensors produce an output voltage which increases with the severity of the knock. This
signal is sent to the Engine Control Module (ECM) via a shielded cable. The ECM then adjusts the ignition timing
to reduce the spark knock.

M162 ENGINE CONTROLS  1F1-23

SSANGYONG  Y200

YAD1F190

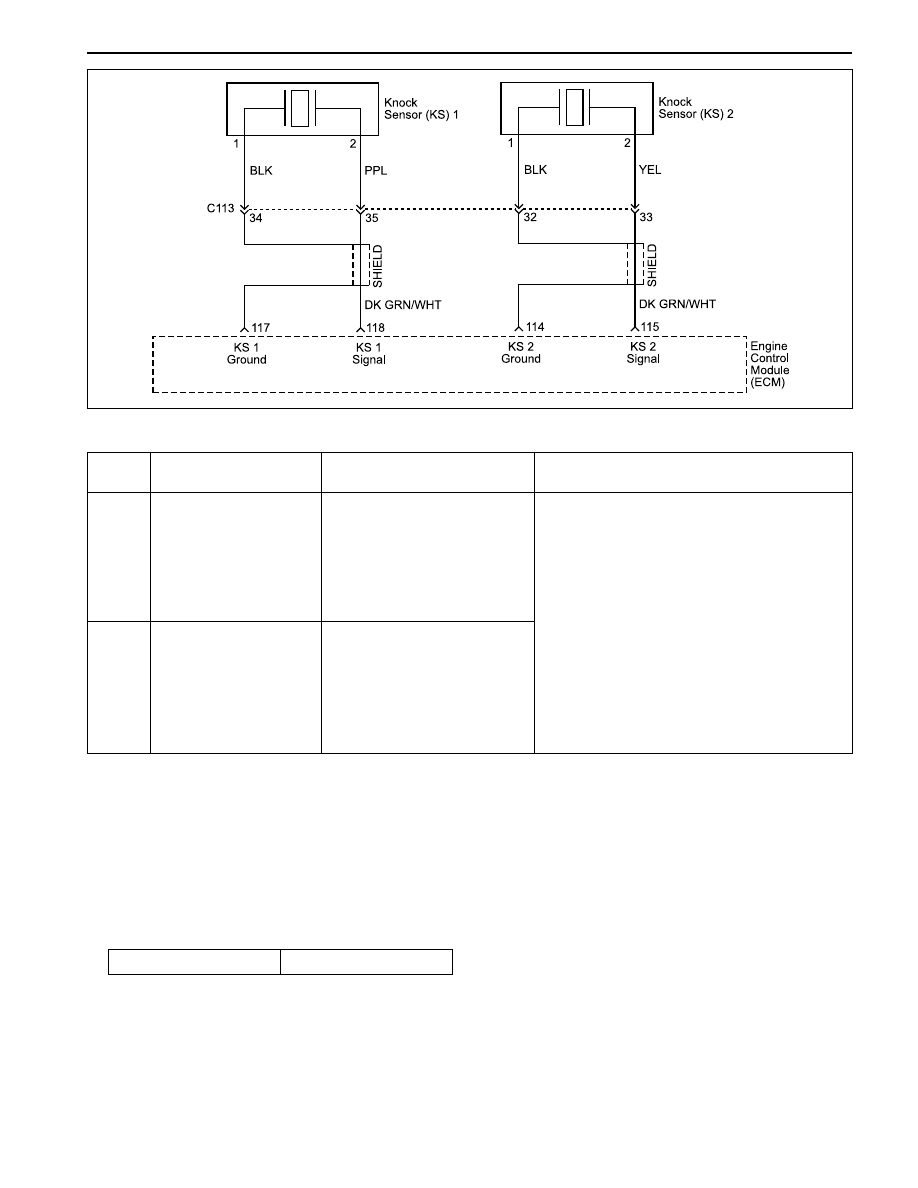

Circuit Description

The KS system is used to detect engine detonation, allowing the ECM to retard the ignition control spark timing
based on the KS signal being received. The KS signal’s amplitude and frequency depend upon the amount of
knock being experienced. The ECM monitors the KS signal and can diagnose the KS sensor and circuitry.

Knock Sensor Resistance Inspection

1. Disconnect the coupling from ECM while the ignition switch is in “OFF” position.

2. Measure the resistance between the coupling terminal pin No. 118 and No. 117 and terminal pin No. 115 and

No. 114 using a multimeter.

Failure

Code

Description

Trouble  Area

Maintenance Hint

No. 1 knock sensor

signal failure

No. 2 knock sensor

signal failure

When recognition in more than

control gain threshold at

normal operational condition of

other system during over 75

and 3,000 rpm running area

(cylinder 1, 2, 3)

When recognition in more than

control gain threshold at

normal operational condition of

other system during over 75

and 3,000 rpm running area

(cylinder 4, 5, 6)

•

Inspection the ECM pin 118, 117about
short circuit or open with bad contact

•

Inspection the KS 1 malfunction

•

Inspection the ECM

•

Inspection the ECM pin 115, 114 about
short circuit or open with bad contact

•

Inspection the KS 2 malfunction

•

Inspection the ECM

56

57

Specified Value

>10 M

Ω

Notice: Replace the KS if the measured values is out of the specified values. Check the connector and wire
connection between ECM and the KS if the measured values are normal.

SSANGYONG  Y200

1F1-24  M162 ENGINE CONTROLS

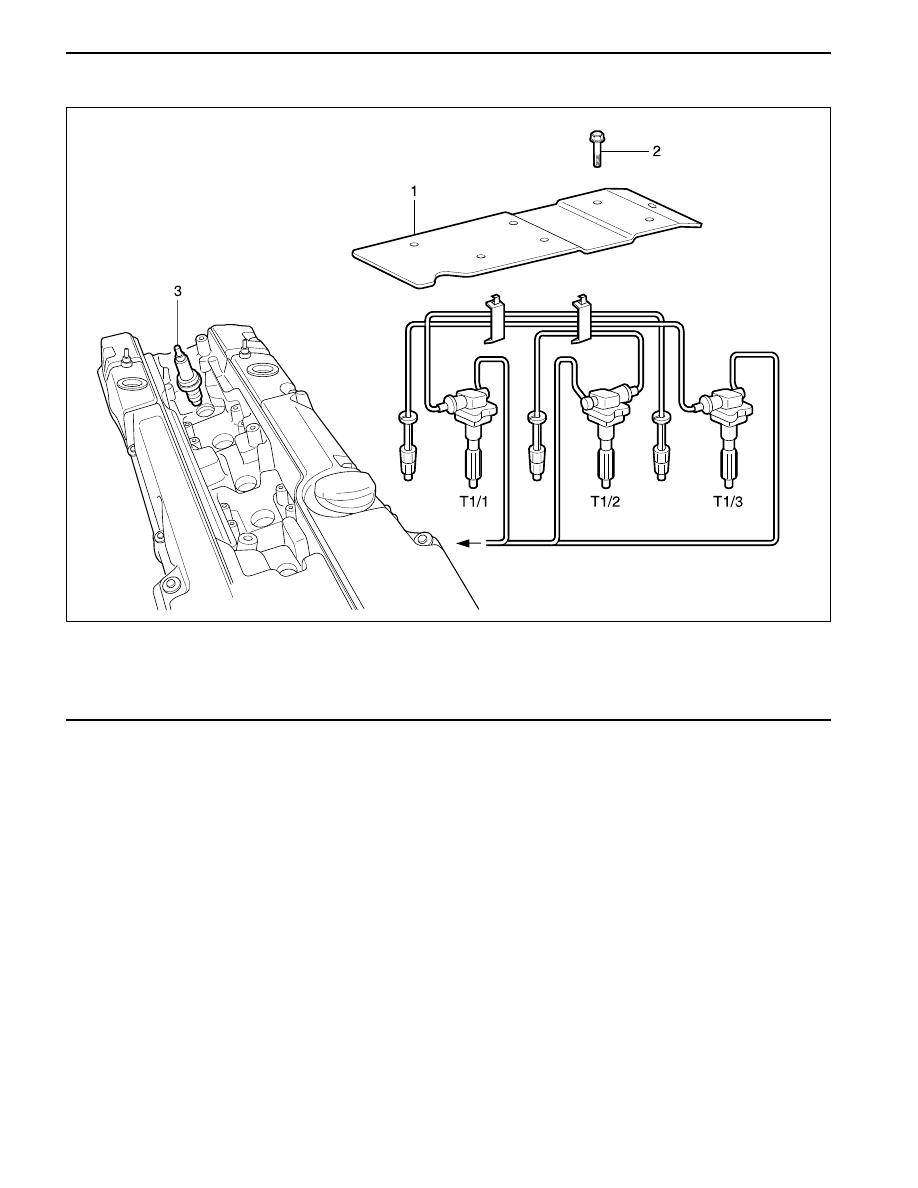

SPARK PLUG

YAD1F200

1 Ignition Coil Cable Cover
2 Bolt
3 Spark Plug

T 1/1 Ignition Coil

Cylinder 2 and 5

T 1/2 Ignition Coil

Cylinder 3 and 4

T 1/3 Ignition Coil

Cylinder 1 and 6
