M161 ENGINE MECHANICAL  1B2-47

SSANGYONG  Y200

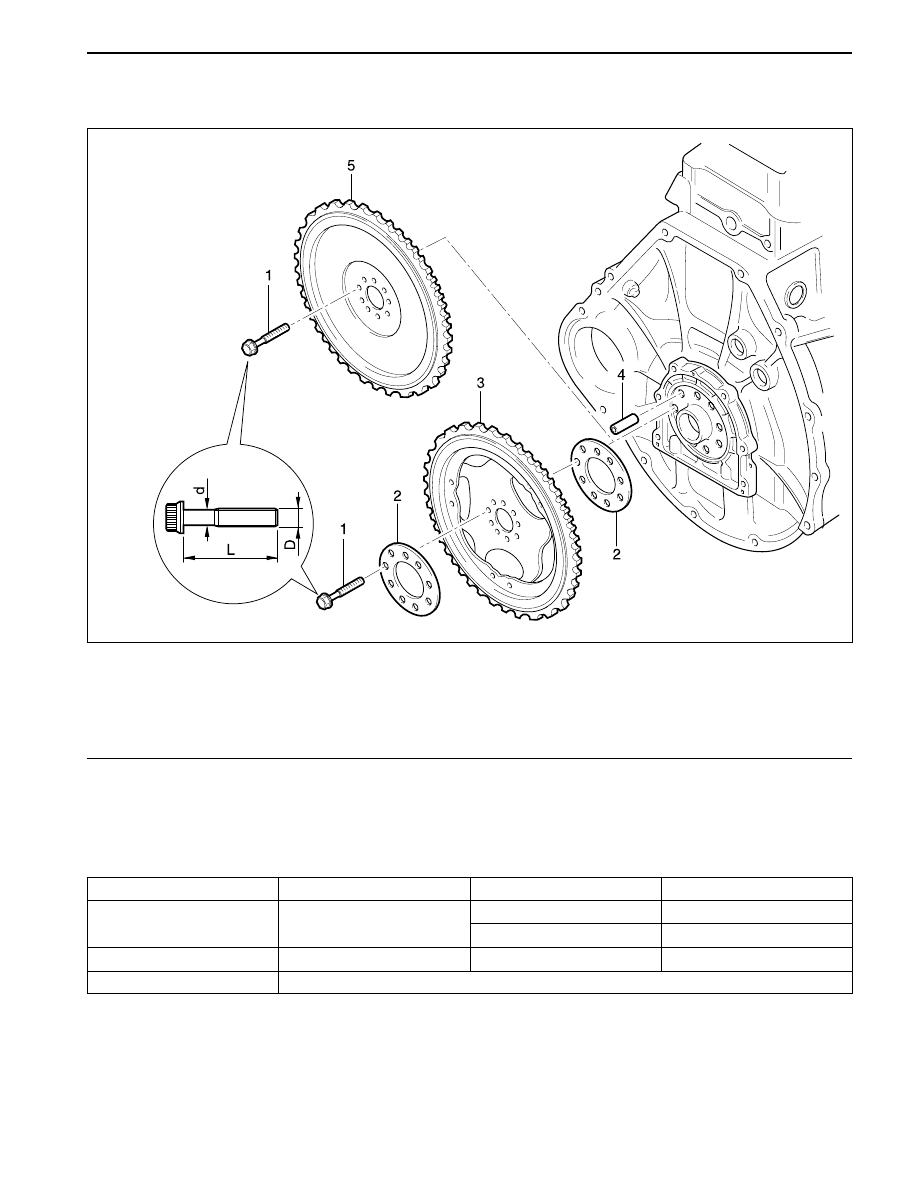

FLYWHEEL / DRIVEN PLATE

Preceding Work:

Removal of manual or automatic transmission

1 Flywheel Mounting Bolt (M10 x 22, 8 pieces)

.................. 1st step 45 + 5 N•m (33 + 3.7 lb-ft)

                    2nd step 90 °  + 10 °

2 Plate

YAD1B810

3 Driven Plate (A/T)
4 Dowel Pin
5 Flywheel (M/T)

Service Data Standard (Stretch Bolt)

Normal Size

Stretch Side Diameter

Bolt Length

Tightening Torque

-

When New

Min. Diameter

When New

M x 15

8.5 - 0.2 mm

8.0 mm

21.8 - 22.2 mm

D

d

L

1st step 45 + 5 N•m (33 + 37 lb-ft), 2nd step 90° + 10°

SSANGYONG  Y200

1B2-48  M161 ENGINE MECHANICAL

Removal & Installation Procedure

1. Unscrew the flywheel mounting bolt.

Installation Notice

•

Replace the bolt when the stretch side diameter
(d) of the flywheel mounting bolt is less than
8.0mm.

•

For the flywheel mounting bolt tightening, keep
the socket wrench and Tommy-bar to be 90 ° and
tighten as specified.

2. Remove the flywheel for manual transmission ve-

hicles, or the driven plate (3), and plate (2) for
Auto transmission vehicle.

3. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

1st  step: 45 + 5 N•m

(33 + 3.7 lb-ft)

2nd step: 90° ± 10°

M161 ENGINE MECHANICAL  1B2-49

SSANGYONG  Y200

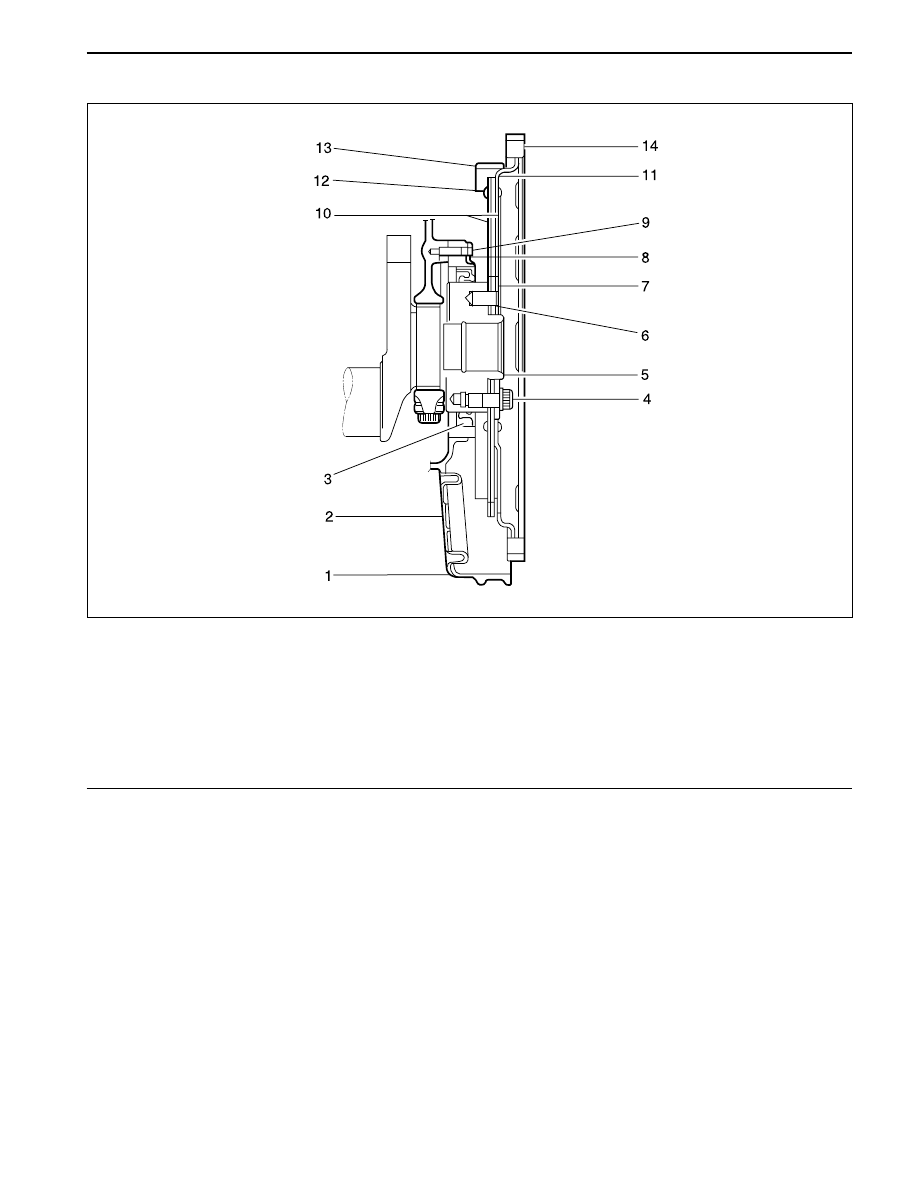

Sectional View

1 OilPan
2 Cover
3 Radial Seal
4 Bolt
5 Crankshaft
6 Dowel Pin
7 Washer (Thickness : 3.5 mm)

YAD1B830

8 Washer
9 Bolt

10 Front Drive Plate
11 Rear Drive Plate
12 Rivet
13 Segment
14 Ring Gear

SSANGYONG  Y200

1B2-50  M161 ENGINE MECHANICAL

YAD1B7A0

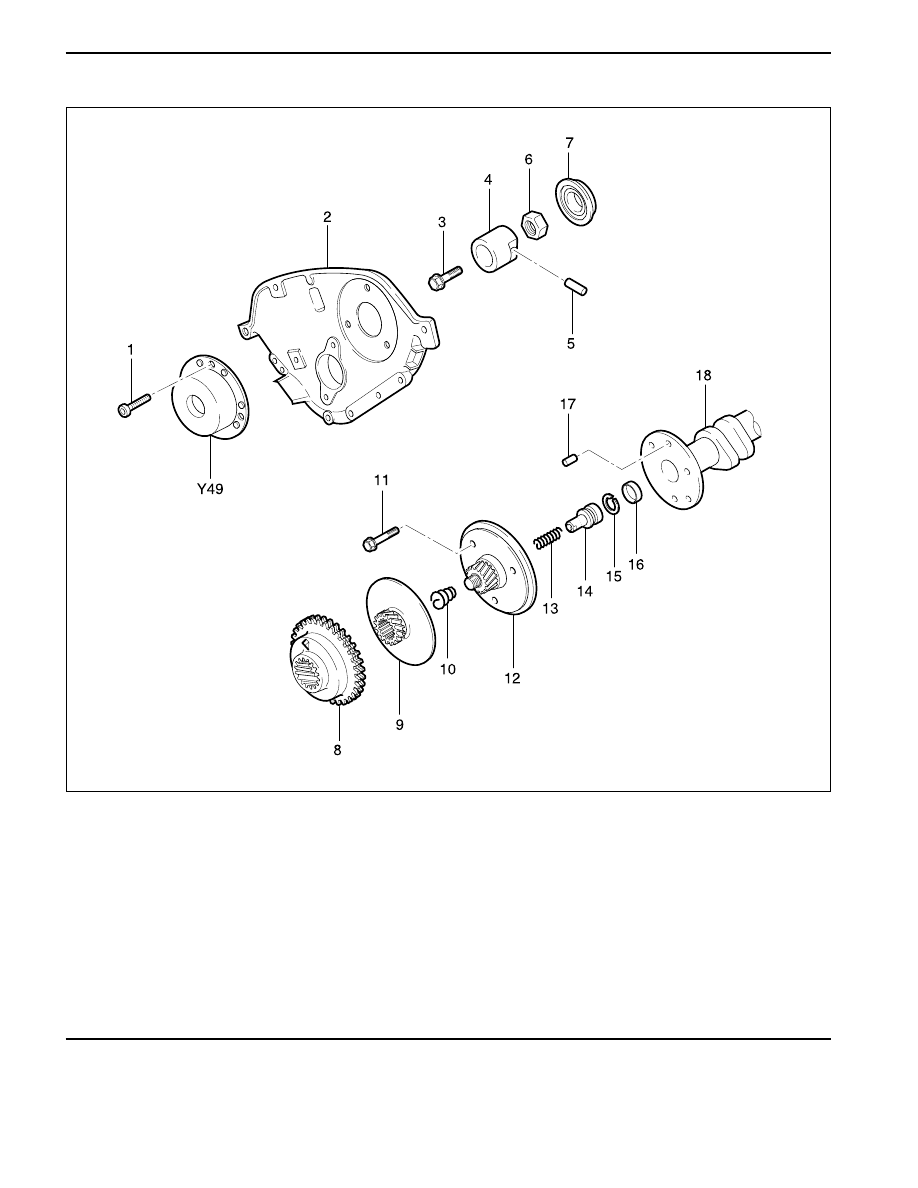

CAMSHAFT ADJUSTER

1 Bolt (M6 X 16, 3 pieces)

.................................... 9 - 11 N•m (80 - 97 lb-in)

2 Cylinder Head Front Cover
3 Bolt ........................................... 35 N•m (26 lb-ft)
4 Armature
5 RollPin
6 Nut (M20 X 1.5) .......  60 - 70 N•m (44 - 52 lb-ft)
7 Seal Cover
8 Camshaft Sprocket
9 Adjust Piston

10 Conical Spring

11 Flange Bolt (M7 X 13, 3 pieces)

.................... 1stStep 18 - 22 N•m (13 - 16 lb-ft)

2nd Step 60 ° ± 5 ° Rotation Added

12 Flange Shaft
13 Compression Spring
14 Control Piston
15 Circlip
16 Oil Gallery
17 Straight Pin
18 Intake Camshaft

Y49 Magnetic Actuator (2 - Pin Connector)
