SsangYong Rexton. Manual - part 304

M162 ENGINE MECHANICAL 1B1-19

SSANGYONG Y200

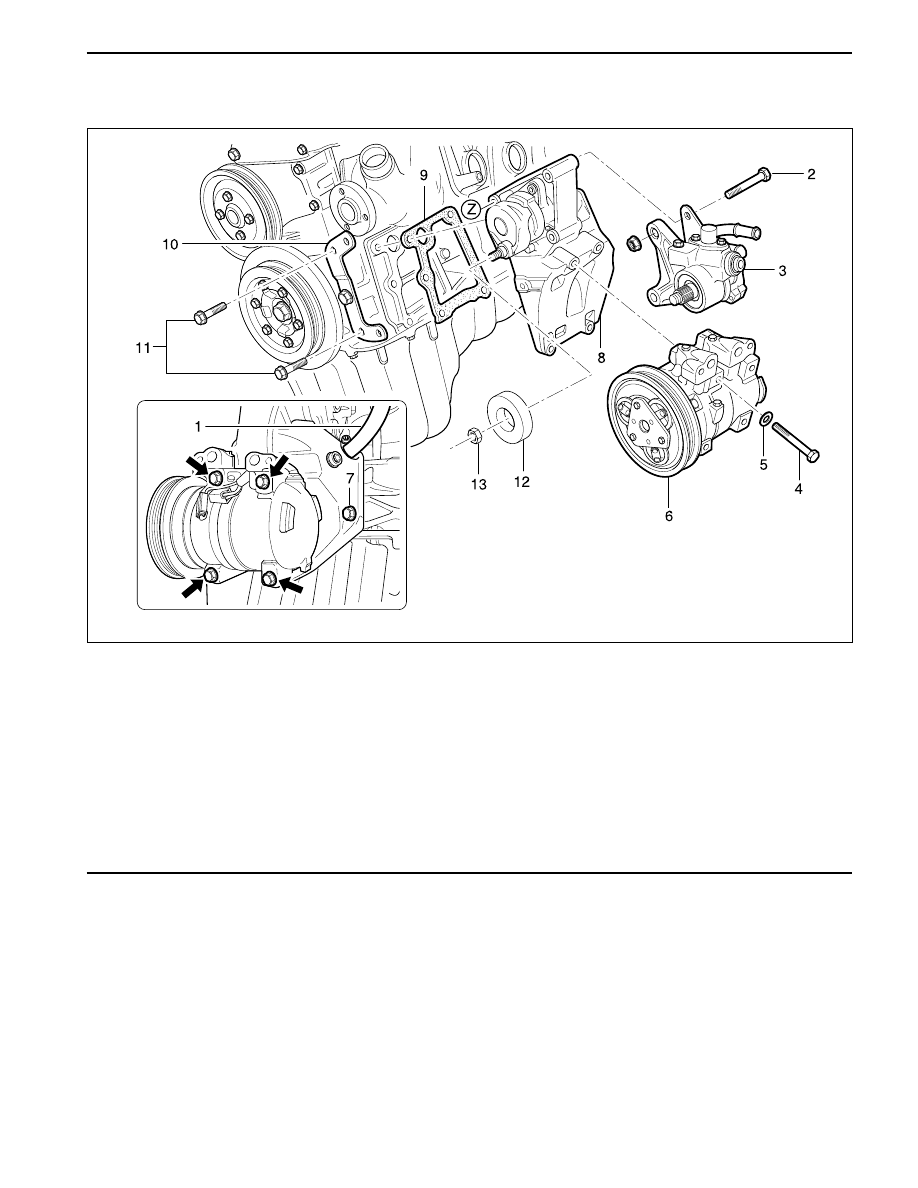

POWER STEERING PUMP AND A/C BRACKET

Preceding Work : Removal of cooling fan and shroud

1 Vent Hose
2 Bolt (M8 x 91, 2 pieces)

........................... 22.5-27.5 N•m (16.5-20.5 lb-ft)

3 Power Steering Pump
4 Bolt (M8 x 105, 4 pieces)

........................... 22.5-27.5 N•m (16.5-20.5 lb-ft)

5 Washer
6 A/C Compressor
7 Bolt (M8 x 40, 3 pieces, M8 x 95, 2 pieces)

........................... 22.5-27.5 N•m (16.5-20.5 lb-ft)

8 A/C Bracket
9 Gasket.................................................... Replace

10 Bracket
11 Bolt (M8 x 22, 2 pieces)

........................... 22.5-27.5 N•m (16.5-20.5 lb-ft)

12 Tensioning Pulley
13 Nut ..................... 40.5-49.5 N•m (29.9-36.5 lb-ft)

YAD1B5A0

SSANGYONG Y200

1B1-20 M162 ENGINE MECHANICAL

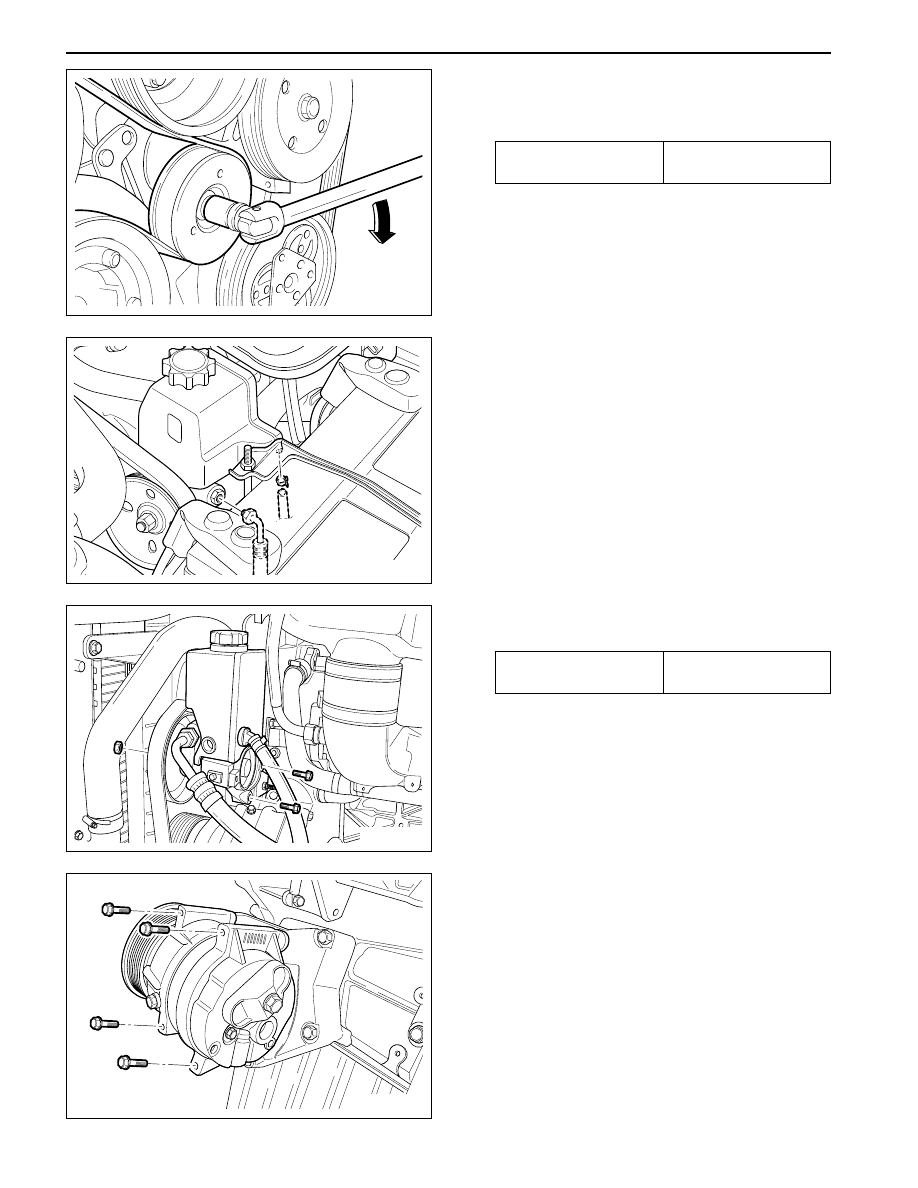

Removal & Installation Procedure

1. Remove the belt tensioning pulley.

Installation Notice

3. Unscrew the bolts and remove the steering pump.

Installation Notice

2. Disconnect the hydraulic pipe of the power

steering pump and drain the oil.

4. Remove the compressor after disconnecting the

wiring connector and refrigerant pipe of A/C
compressor.

Notice: Discharge all the refrigerant before
removing the pipes.

Tightening Torque

40.5 - 49.5 N•m

(29.9 - 36.5 lb-ft)

Pull the tensioning pulley clockwise as shown in
the figure.

Tightening Torque

22.5 - 27.5 N•m

(16.6 - 20.3 lb-ft)

YAD1B250

YAD1B090

YAD1B260

YAD1B270

M162 ENGINE MECHANICAL 1B1-21

SSANGYONG Y200

;;;;;;;;;

yyyyyyyyy

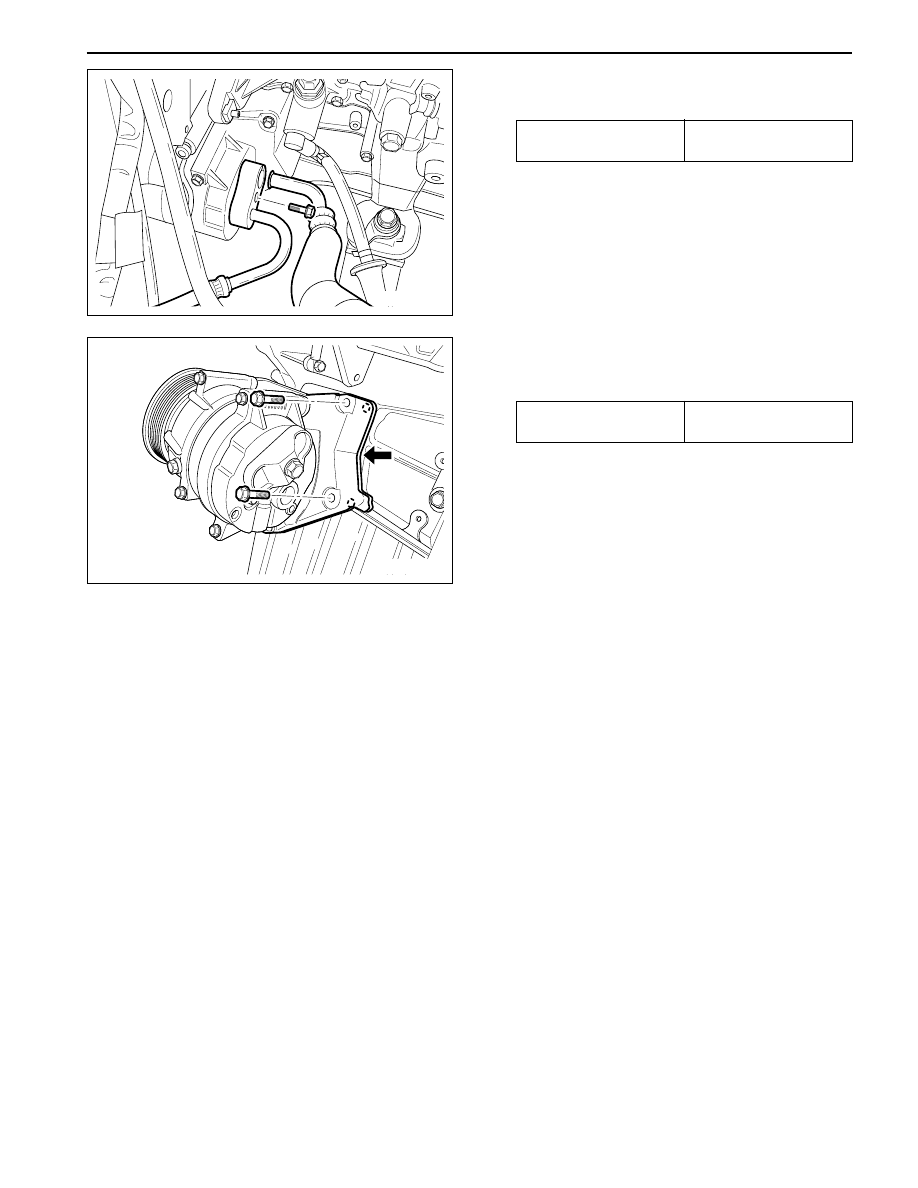

6. Unscrew all the mounting bolts and remove the

A/C bracket and the gasket.

Installation Notice

5. Disconnect the vent hose from the A/C bracket.

Installation Notice

7. Clean the sealing surface.

8. Replace the gasket with new one.

9. Installation should follow the removal procedure

in the reverse order.

10. Check the oil leakage by operating the engine after

installation.

Tightening Torque

22.5 - 27.5 N•m

(16.6 - 20.3 lb-ft)

YAD1B280

YAD1B290

Tightening Torque

20 - 30 N•m

(15 - 22 lb-ft)

SSANGYONG Y200

1B1-22 M162 ENGINE MECHANICAL

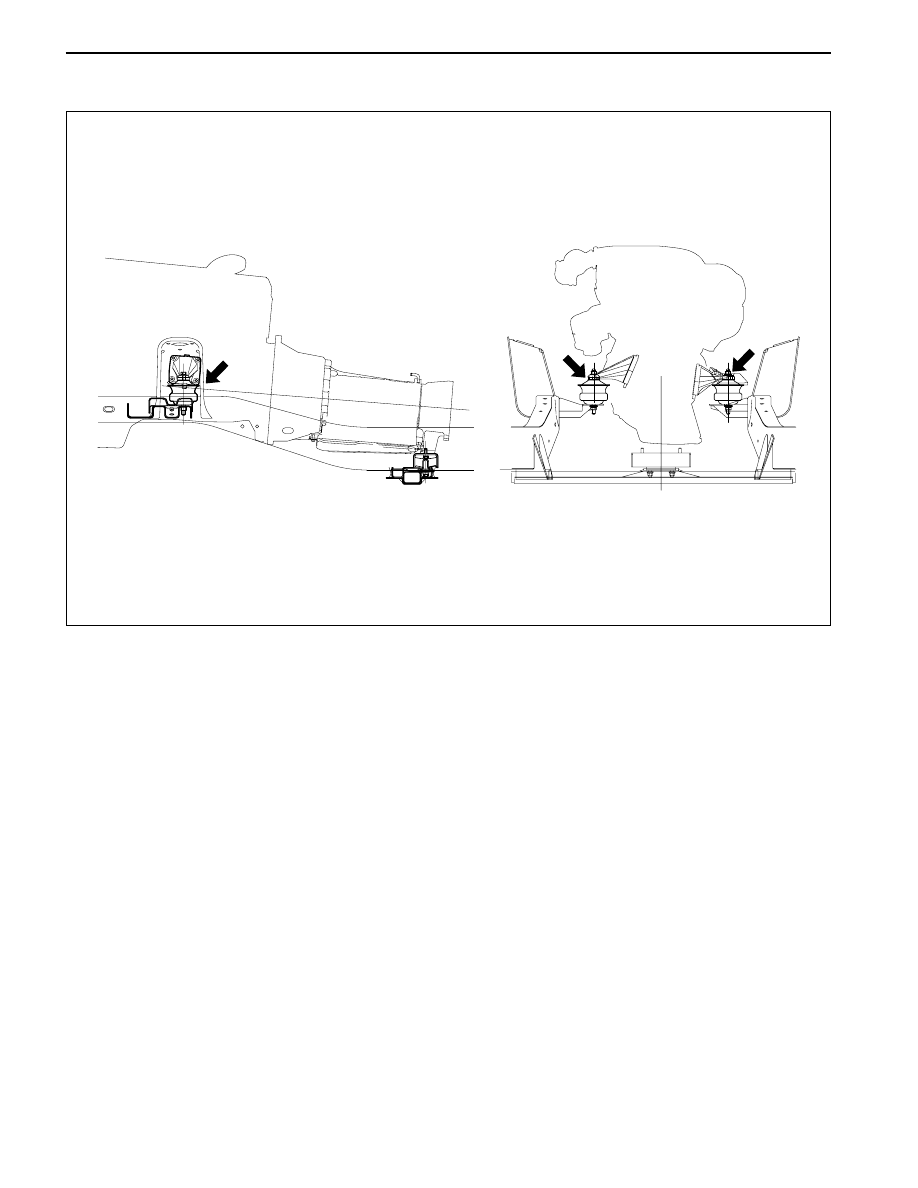

ENGINE MOUNT

YAD1B300
