SsangYong Rexton. Manual - part 284

ELECTRICAL WIRING DIAGRAMS  5-169

SSANGYONG  REXTON XDi (LHD)

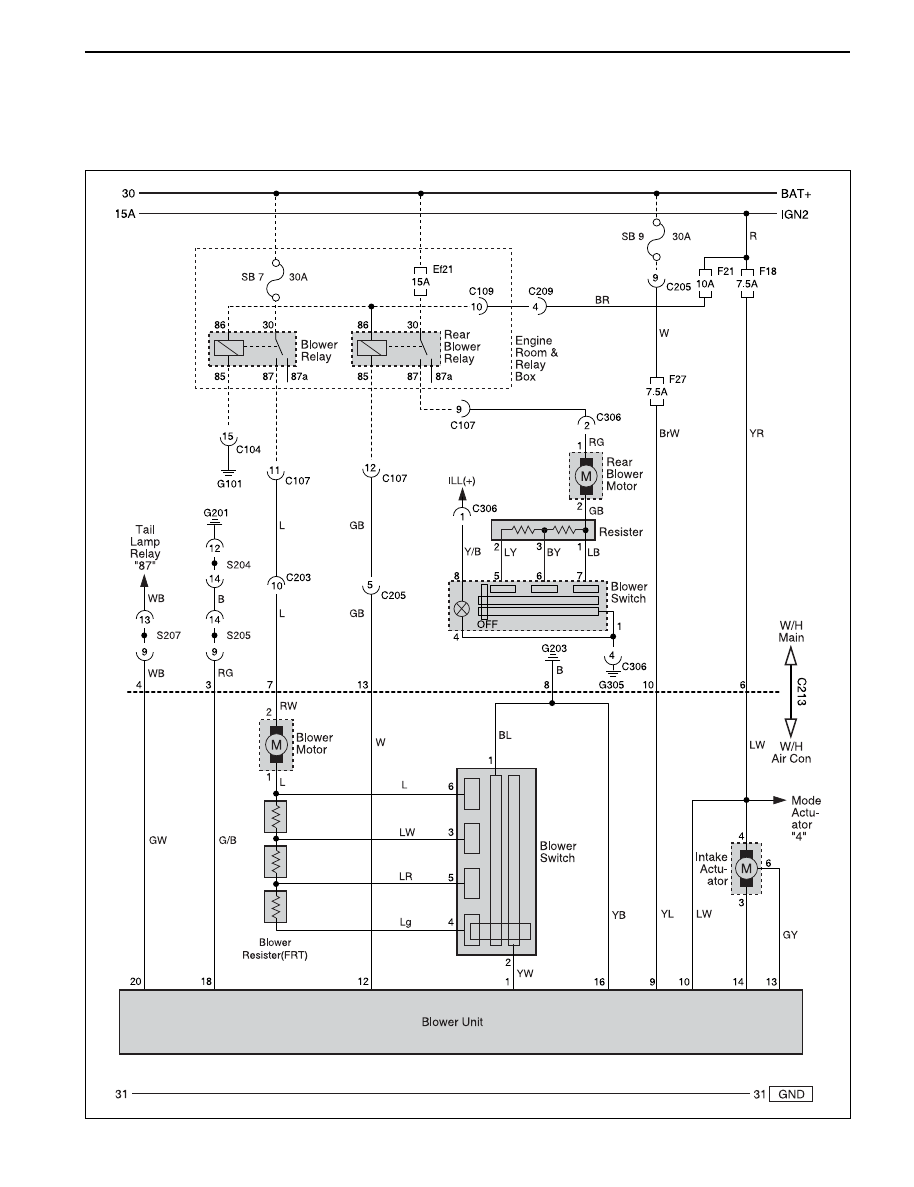

(2) INTAKE MOTOR, BLOWER MOTOR CIRCUIT

SSANGYONG  REXTON XDi (LHD)

5-170  ELECTRICAL WIRING DIAGRAMS

2) 2004 MODEL ~

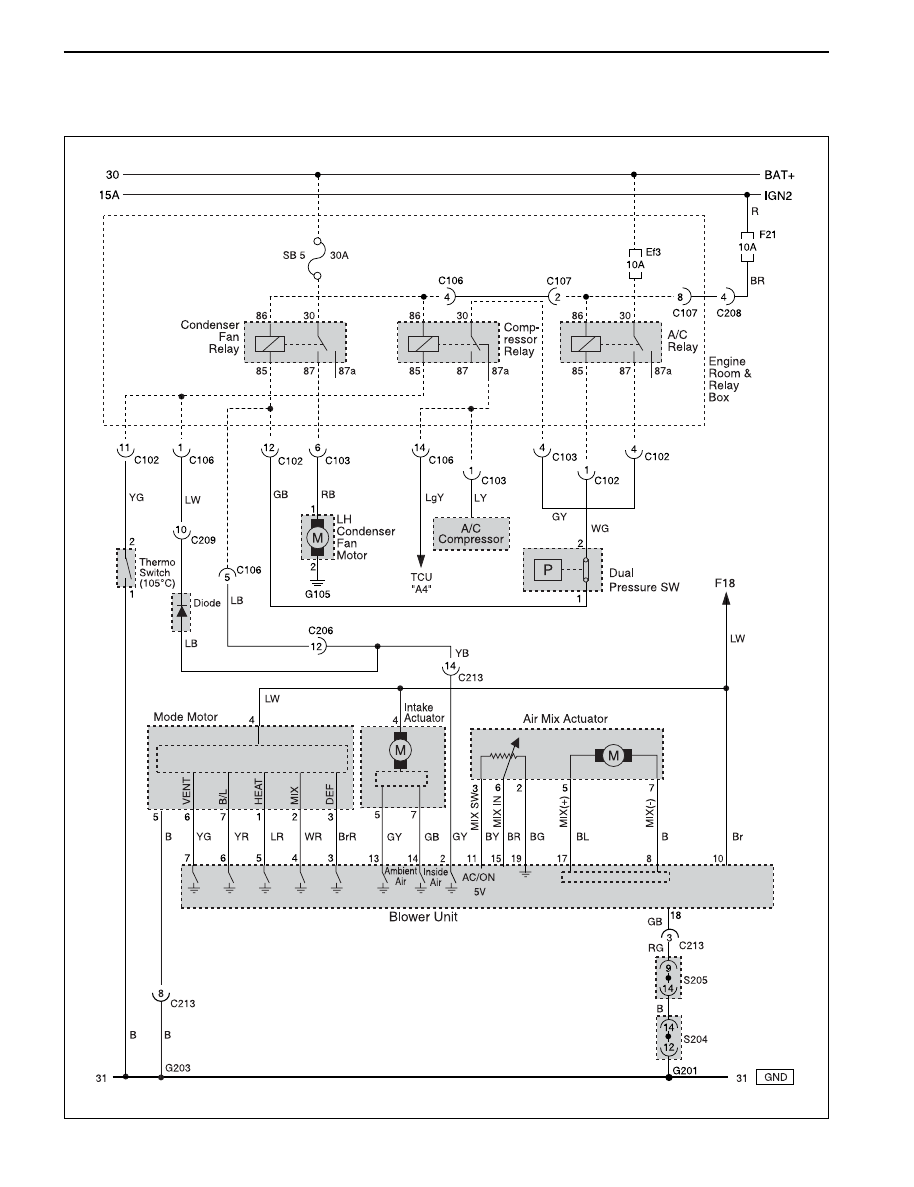

(1) ACTUATOR (MODE, AIR MIX), BLOWER UNIT CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-171

SSANGYONG  REXTON XDi (LHD)

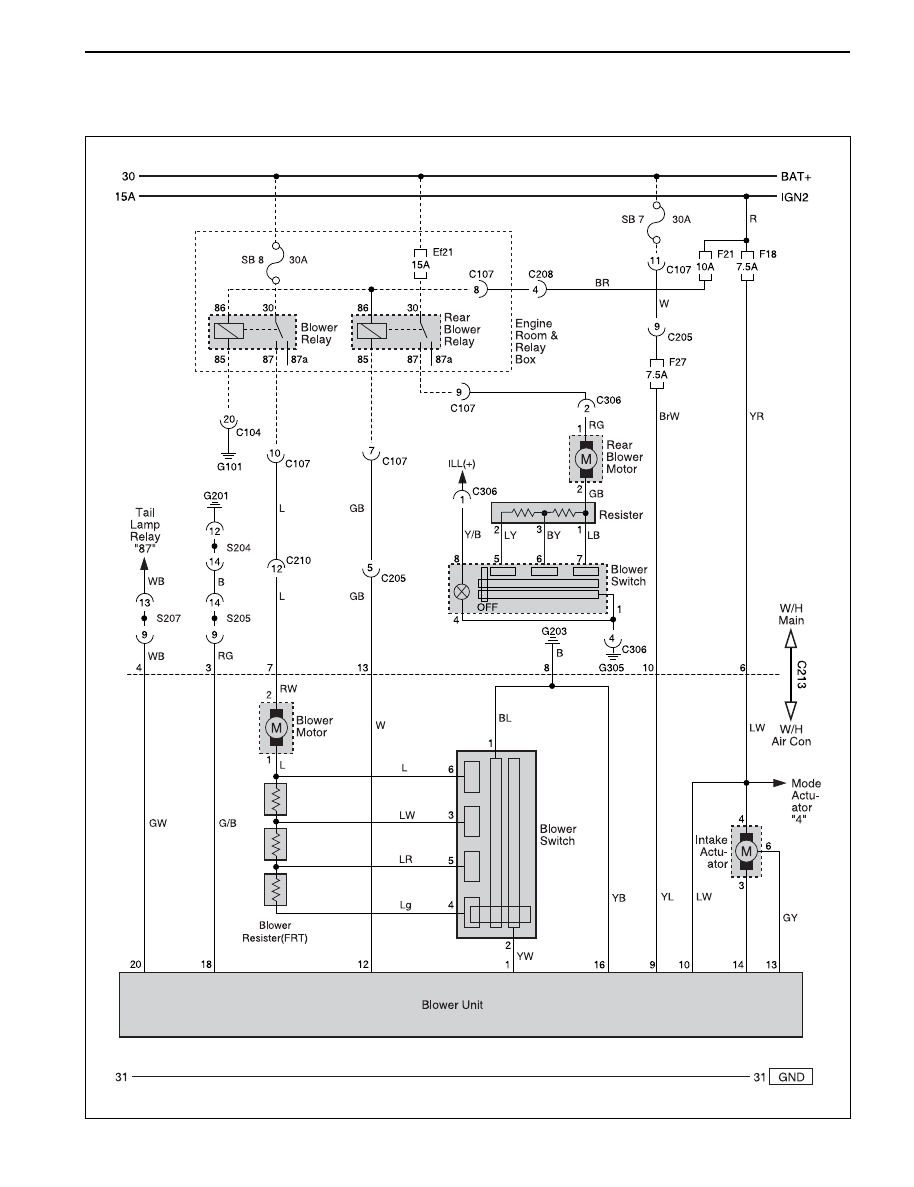

(2) INTAKE MOTOR, BLOWER MOTOR CIRCUIT

SSANGYONG  REXTON XDi (LHD)

5-172  ELECTRICAL WIRING DIAGRAMS

3) XDi

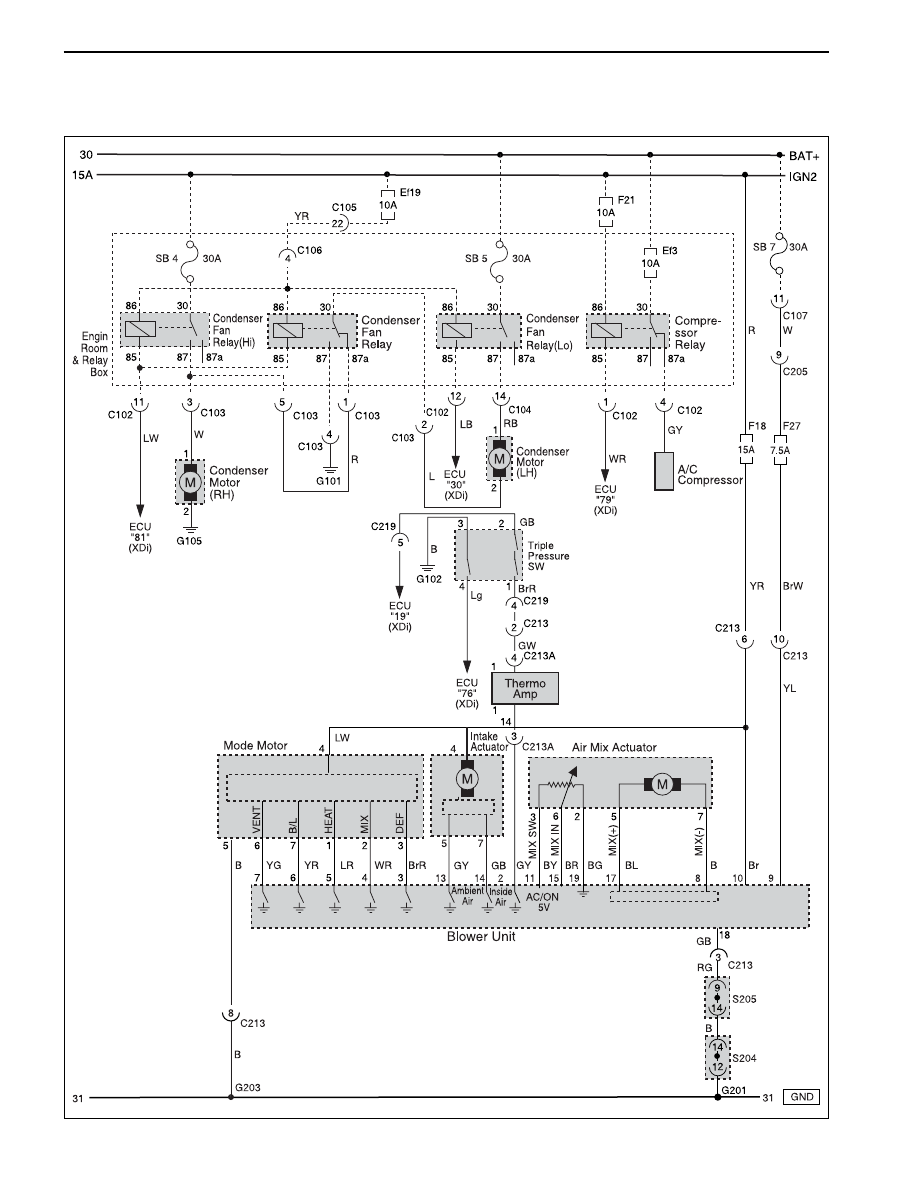

(1) ACTUATOR (MODE, AIR MIX), BLOWER UNIT CIRCUIT
