2) 2003 MODEL ............................................................................................................. 5-149
3) XDi .............................................................................................................................. 5-150

38. FOG  LAMP CIRCUIT ............................................................................................... 5-152

1)  ~ 2002 MODEL ........................................................................................................ 5-152
2) XDi .............................................................................................................................. 5-154

39. STOP & BACK UP LAMP CIRCUIT ...................................................................... 5-156

40. INTERIOR LAMP CIRCUIT ..................................................................................... 5-158

41. AUTO DIMMING ROOM MIRROR CIRCUIT ........................................................ 5-160

42. AUDIO, DIGITAL CIOCK CIRCUIT ........................................................................ 5-162

43. AUDIO(MULTI  VISION) ............................................................................................ 5-164

1) HEAD UNIT, 2CH EXT AMP, REMOCON, NAVI UNIT, GPS .................................. 5-164
2) HEAD UNIT, TUNER UNIT, VCD CHANGER ........................................................... 5-166

44. AIR-CON  (MANUAL, DSL) ....................................................................................... 5-168

1)  ~ 2002 MODEL ........................................................................................................ 5-168

(1) ACTUATOR (MODE, AIR MIX), BLOWER UNIT CIRCUIT ............................... 5-168
(2) INTAKE MOTOR, BLOWER MOTOR CIRCUIT ................................................ 5-169

2) 2004 MODEL ~ .......................................................................................................... 5-170

(1) ACTUATOR (MODE, AIR MIX), BLOWER UNIT CIRCUIT ............................... 5-170
(2) INTAKE MOTOR, BLOWER MOTOR CIRCUIT ................................................ 5-171

3) XDi .............................................................................................................................. 5-172

(1) ACTUATOR (MODE, AIR MIX), BLOWER UNIT CIRCUIT ............................... 5-172
(2) INTAKE MOTOR, BLOWER MOTOR CIRCUIT ................................................ 5-173

45. FATC (FULL AUTO TEMPERATURE CONTROL) CIRCUIT .............................. 5-176

1) DIESEL ....................................................................................................................... 5-176

(1) AIR MIX ACTUCTOR, SENSOR (SUN, AMBIENT, INCAR, WATER TEMP)

CIRCUIT ............................................................................................................... 5-176

(2) ACTURATOR (MODE, INTAKE) CIRCUIT ......................................................... 5-177

2) GASOLINE & XDi ...................................................................................................... 5-178

(1) AIR MIX ACTUCTOR, SENSOR (SUN, AMBIENT, INCAR, WATER TEMP)

CIRCUIT ............................................................................................................... 5-178

(2) ACTURATOR (MODE, INTAKE) CIRCUIT ......................................................... 5-179

46. IMMOBILIZER (DSL) ............................................................................................... 5-182

47. PARKING  AID CIRCUIT .......................................................................................... 5-184

48. TRAILER CONNECTOR CIRCUIT ......................................................................... 5-186

49. P.T.C HEATER(POSITIVE TEMPERATURE COEFFICIENT) ............................. 5-188

50. F.F.H (FUEL FIRED HEATER) ............................................................................... 5-190

51. S.S.P.S ....................................................................................................................... 5-192

SSANGYONG  REXTON XDi (LHD)

5-6  ELECTRICAL WIRING DIAGRAMS

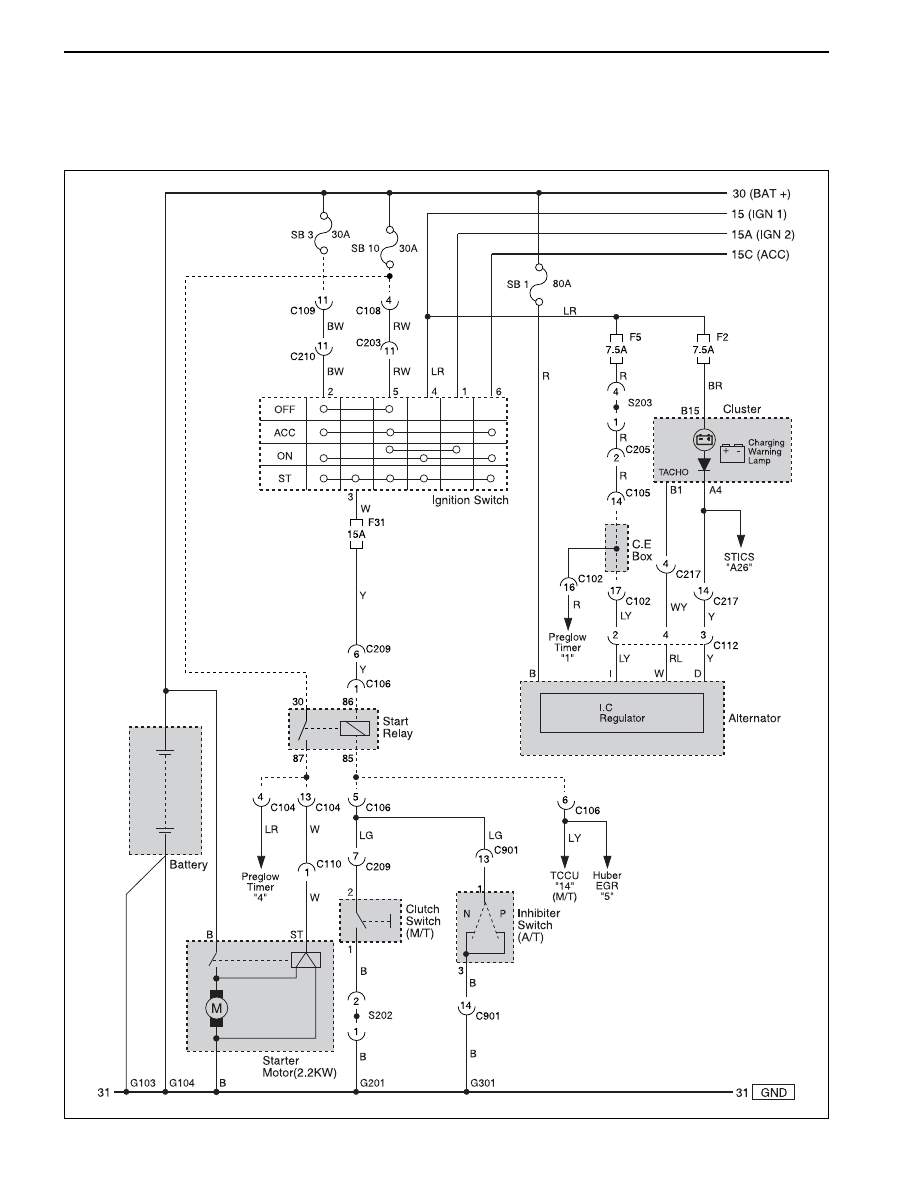

1. STARTING & CHARGING

1) ~ 2002 MODEL

(1) DIESEL (M/T, A/T)

ELECTRICAL WIRING DIAGRAMS  5-7

SSANGYONG  REXTON XDi (LHD)

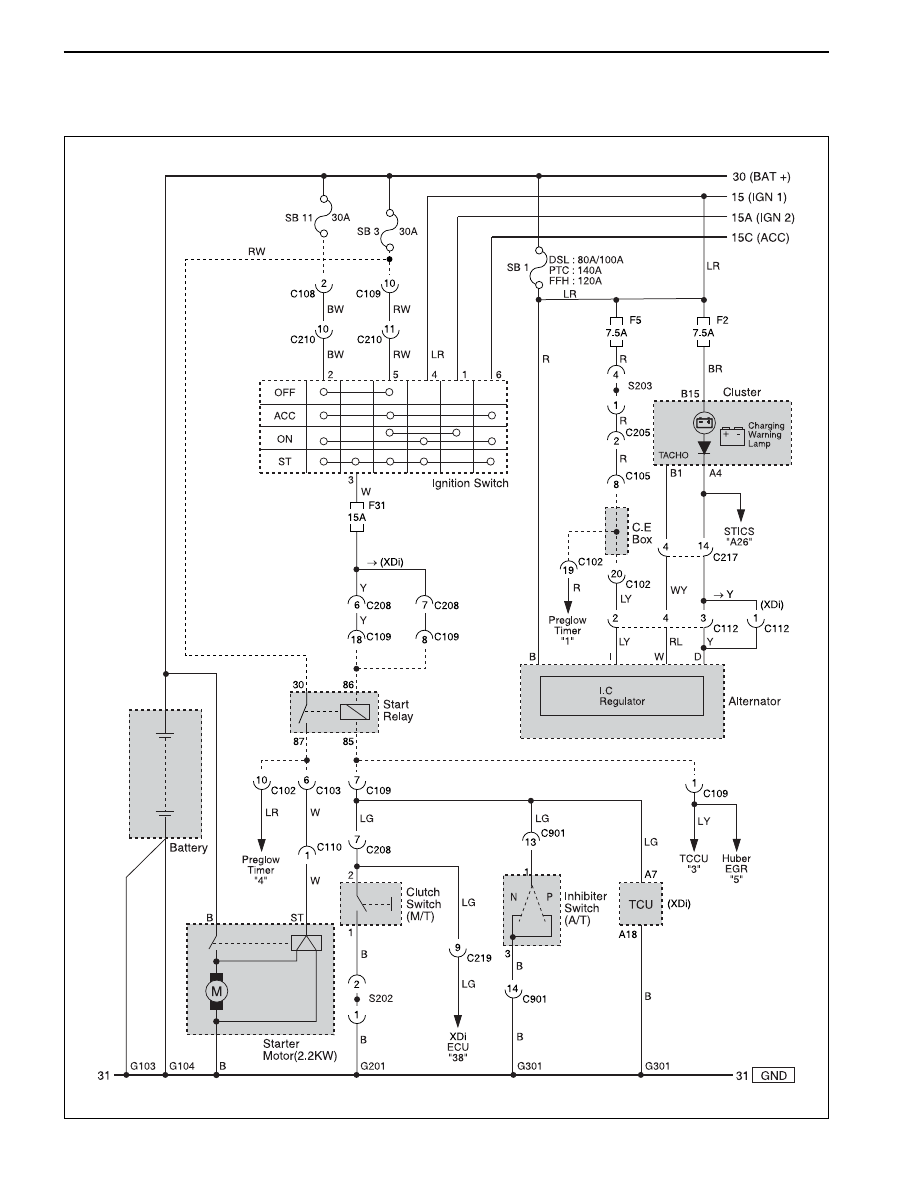

(2) GASOLINE (M/T, A/T)

SSANGYONG  REXTON XDi (LHD)

5-8  ELECTRICAL WIRING DIAGRAMS

2) 2003 MODEL (W/ XDi) ~

(1) DIESEL (M/T, A/T)
