SsangYong Rexton. Manual - part 237

SSANGYONG  REXTON XDi (LHD)

3-26  WIRING DIAGRAM FOR POWER SUPPLIES

2) FUSE BOX

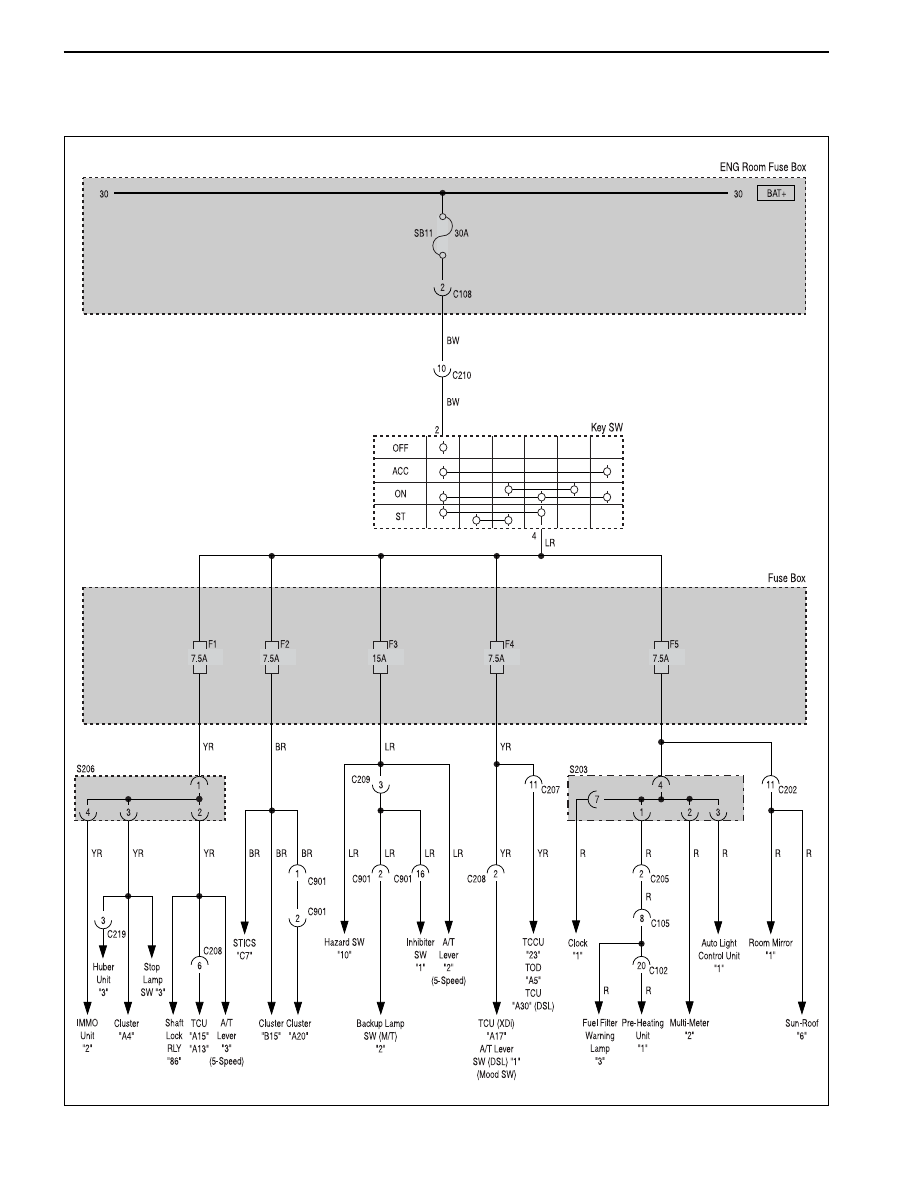

(1) F1 ~ F5

WIRING DIAGRAM FOR POWER SUPPLIES  3-27

SSANGYONG  REXTON XDi (LHD)

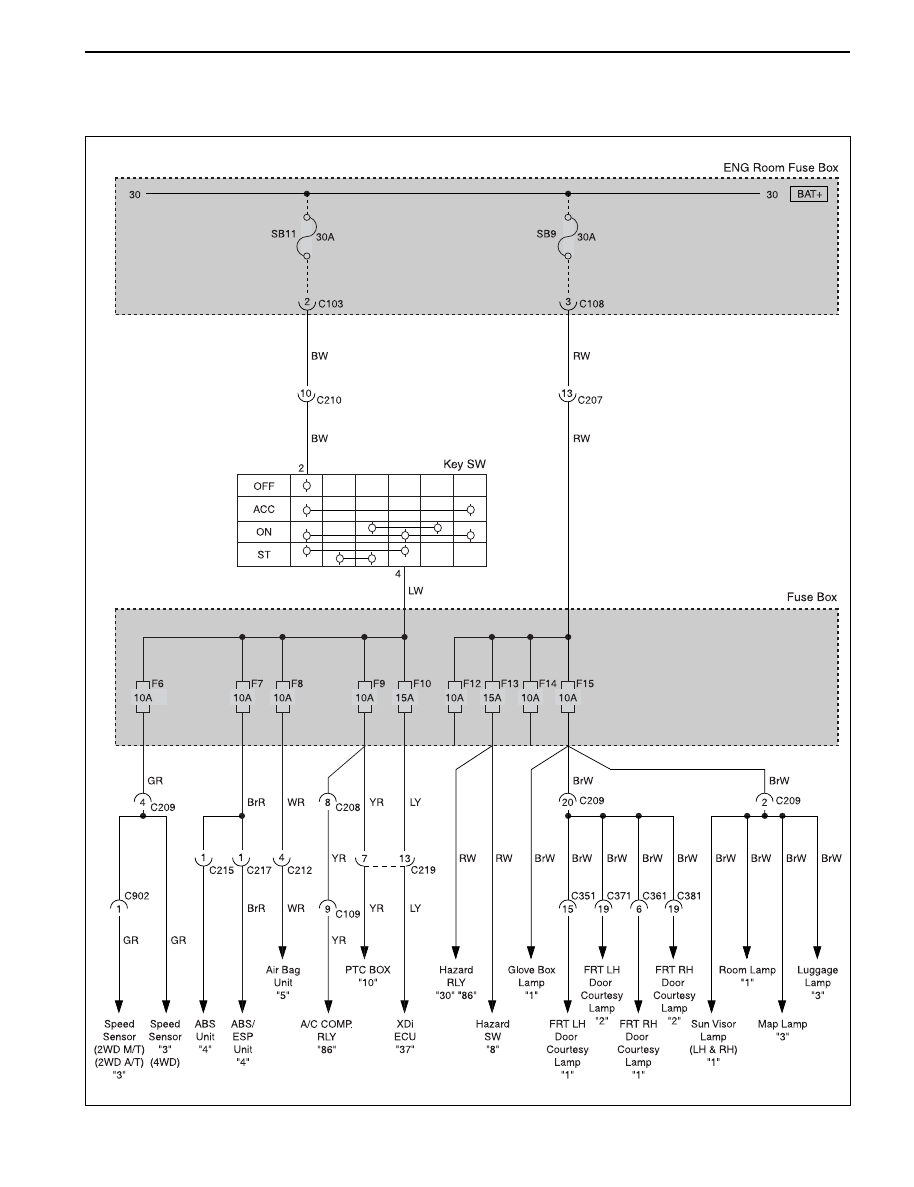

(2) F6 ~ F15

SSANGYONG  REXTON XDi (LHD)

3-28  WIRING DIAGRAM FOR POWER SUPPLIES

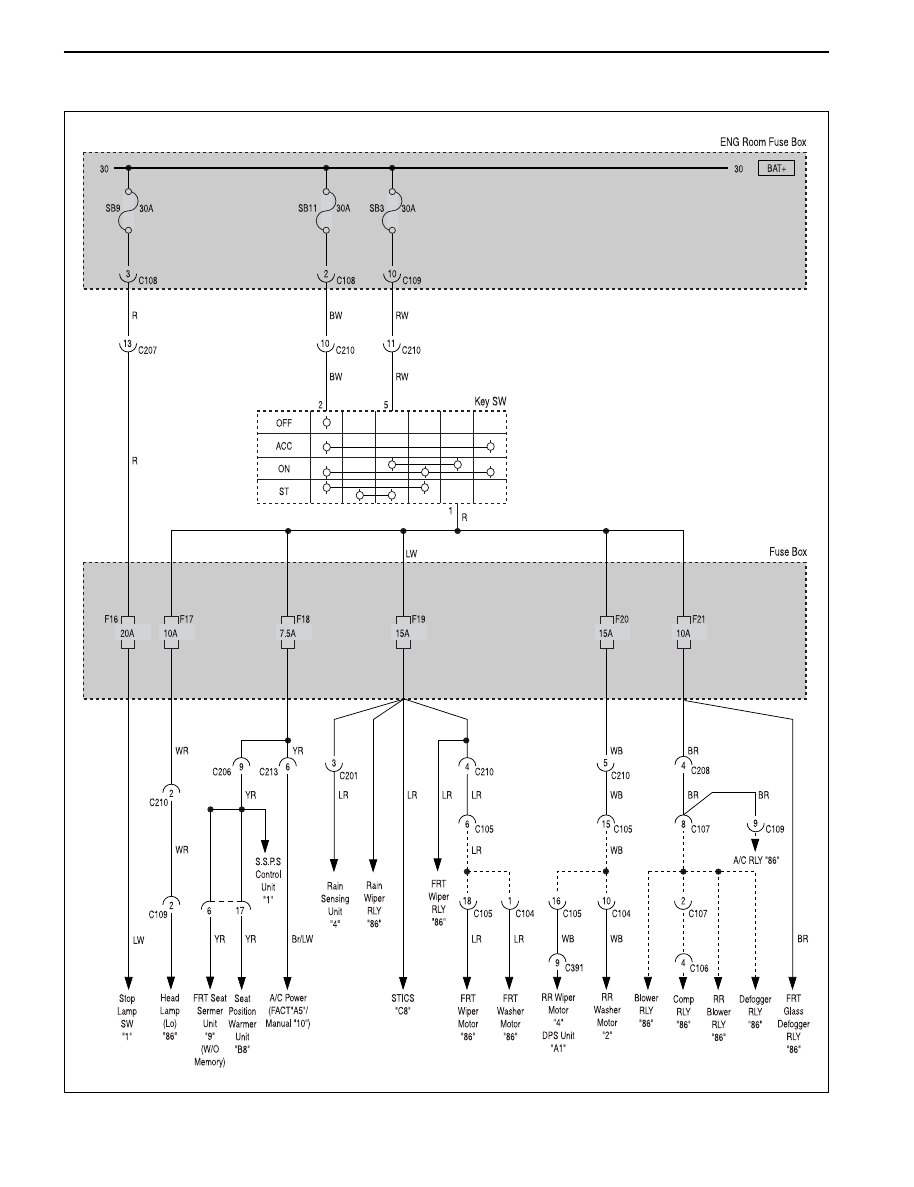

(3) F16 ~ F21

WIRING DIAGRAM FOR POWER SUPPLIES  3-29

SSANGYONG  REXTON XDi (LHD)

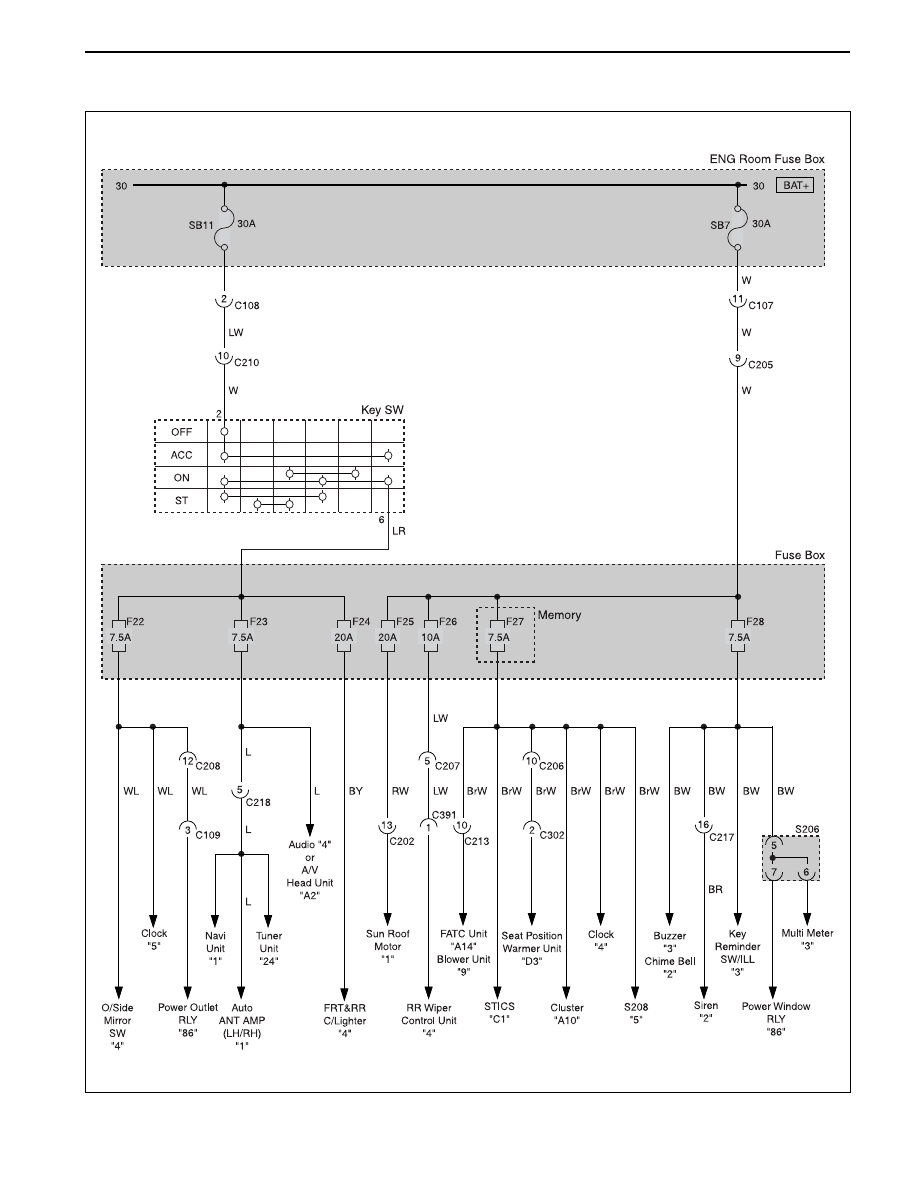

(4) F22 ~ F28
