SsangYong Rexton. Manual - part 229

POSITION OF CONNECTORS AND GROUNDS  2-27

SSANGYONG  REXTON XDi (LHD)

5. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

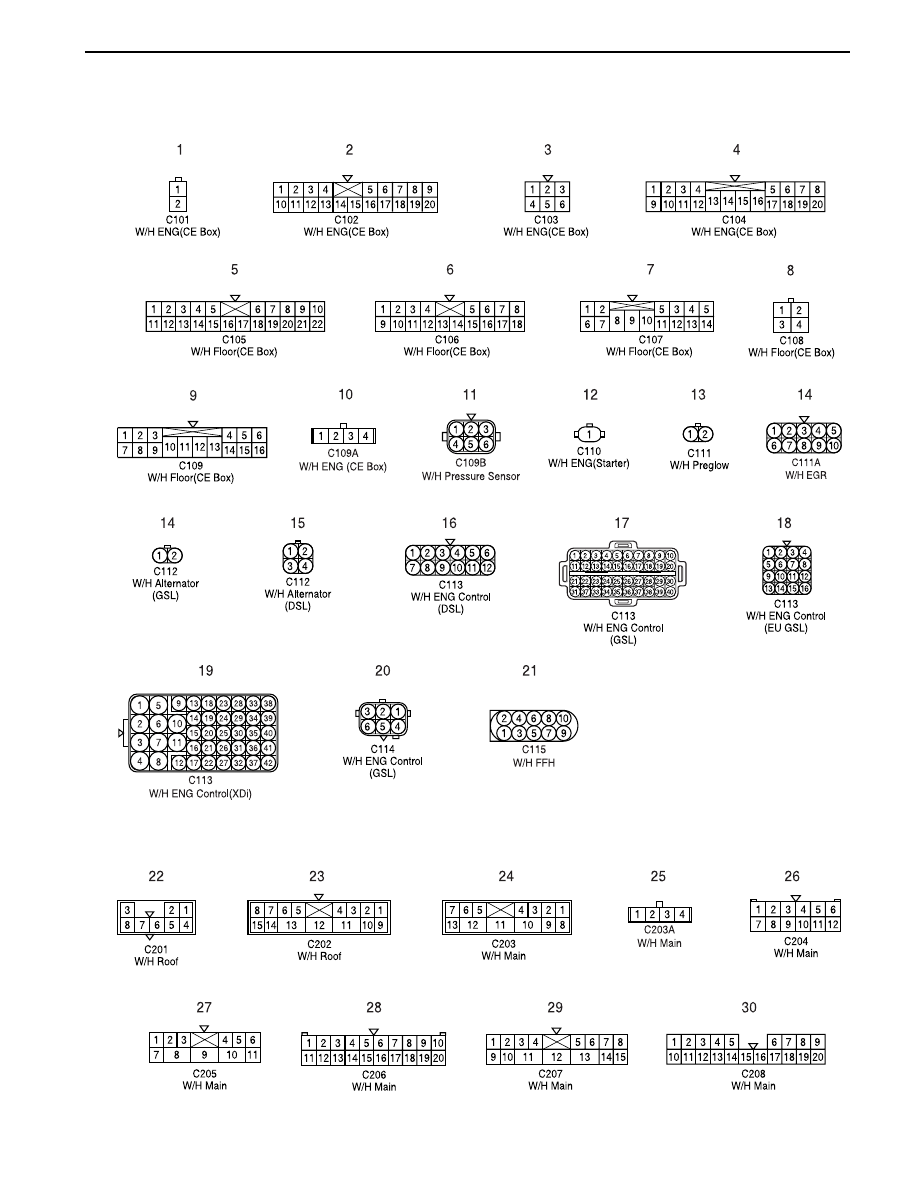

1) C101 ~ C115

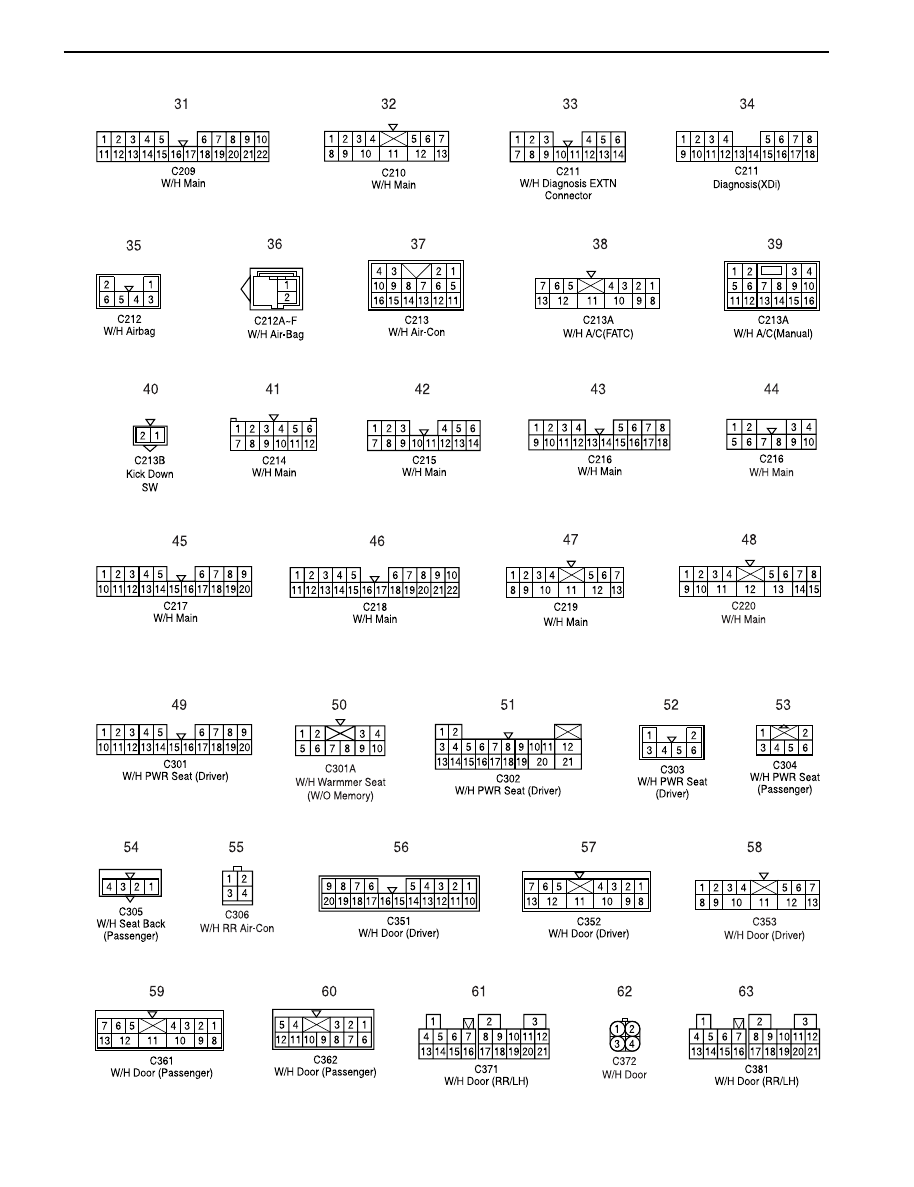

2) C201 ~ C220

SSANGYONG  REXTON XDi (LHD)

2-28  POSITION OF CONNECTORS AND GROUNDS

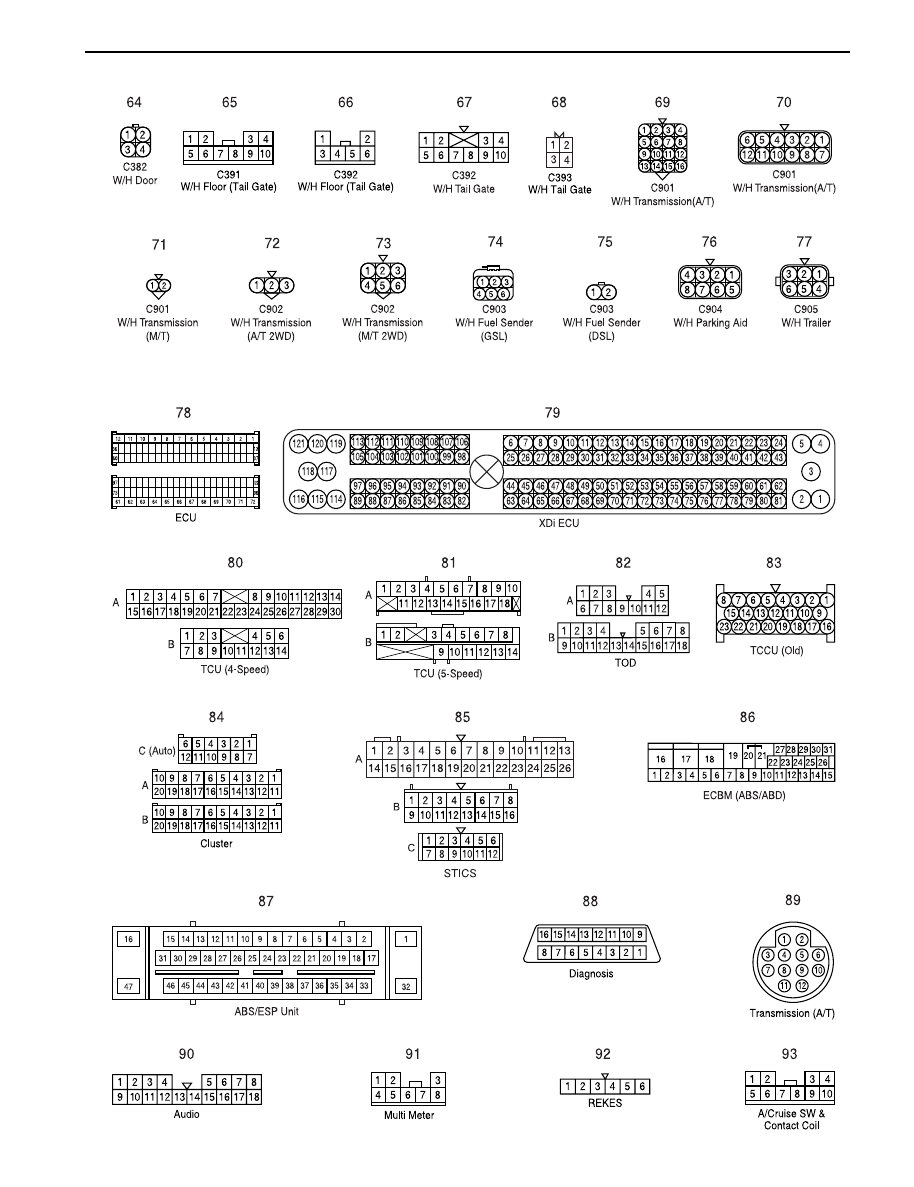

3) C301 ~ C905

POSITION OF CONNECTORS AND GROUNDS  2-29

SSANGYONG  REXTON XDi (LHD)

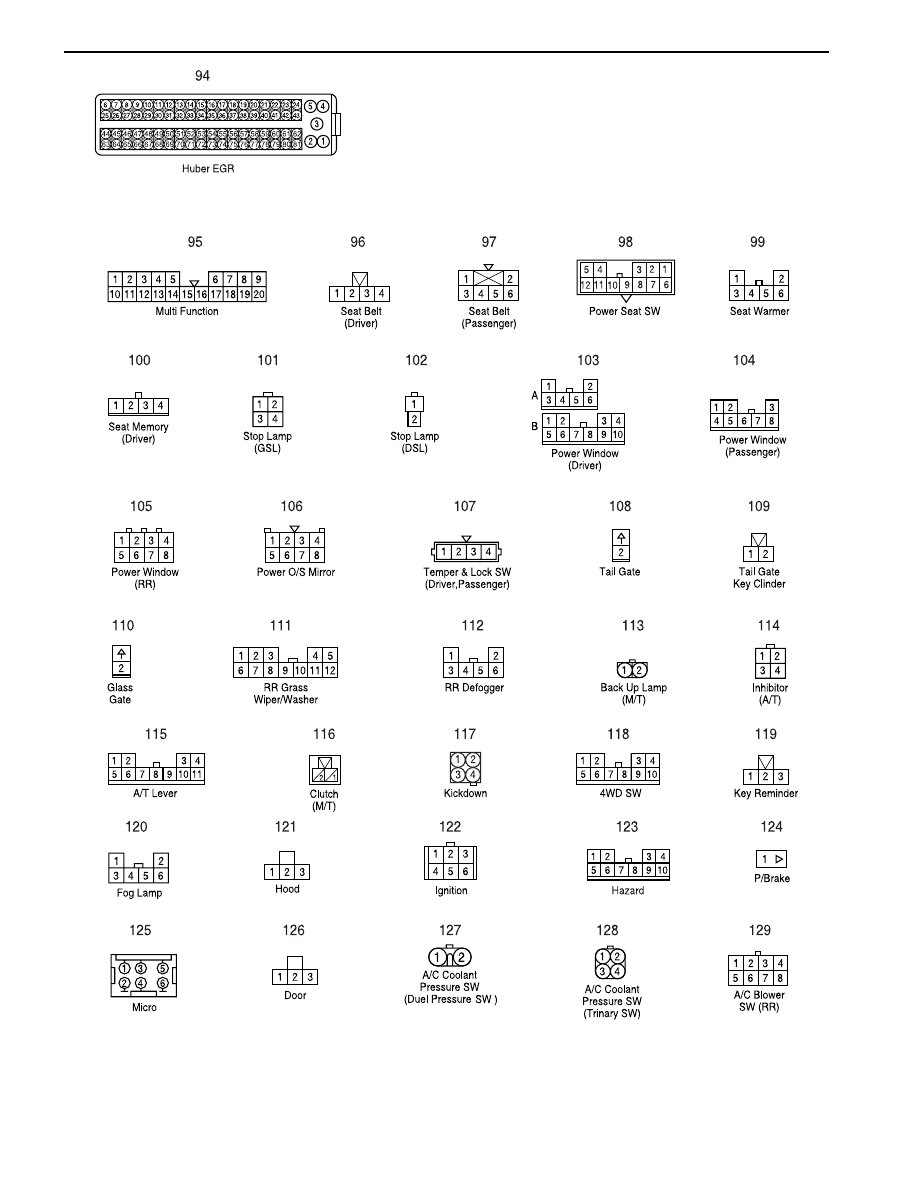

4) CONTROL UNIT

SSANGYONG  REXTON XDi (LHD)

2-30  POSITION OF CONNECTORS AND GROUNDS

5) SW (SWITCH)
