SsangYong Rexton. Manual - part 220

SSANGYONG   REXTON XDi (LHD)

1-2  HOW TO USE ELECTRICAL WIRING DIAGRAM

1. HOW TO READ ELECTRICAL WIRING DIAGRAM

HOW TO USE ELECTRICAL WIRING DIAGRAM  1-3

SSANGYONG  REXTON XDi (LHD)

-

Upper horizontal lines : Power supply lines

-

Power supply lines : 30, 15, 15A, 15C, 58

-

Ef20 or F2 : Fuse Number

•

Ef20 : Fuse No #20 in engine room compartment

•

F2 : Fuse No #2 in passenger room compartment

-

Connector (C101 ~ C402)

•

Connector No C203 terminal No1

*

Refer to Major Connector Position (Section 2)

-

S201 : Splice pack (S101 ~ S302)

*

Refer to Major Splice Pack Position (Section2)

-

Wiring Harness Color

*

Refer to Wiring Harness Color Abbreviation

-

Internal circuit of component (Relay)

(Component Name and Terminal Number)

-

Internal circuit of component (Switch)

(Component Name, Terminal Number and Connecting Wiring Circuit)

-

Lower horizontal line : Ground line

•

Ground position (G101 ~ G401)

•

B : Body Ground

*

Refer to Major Ground Position (Section2)

A

B

C

D

E

F

G

H

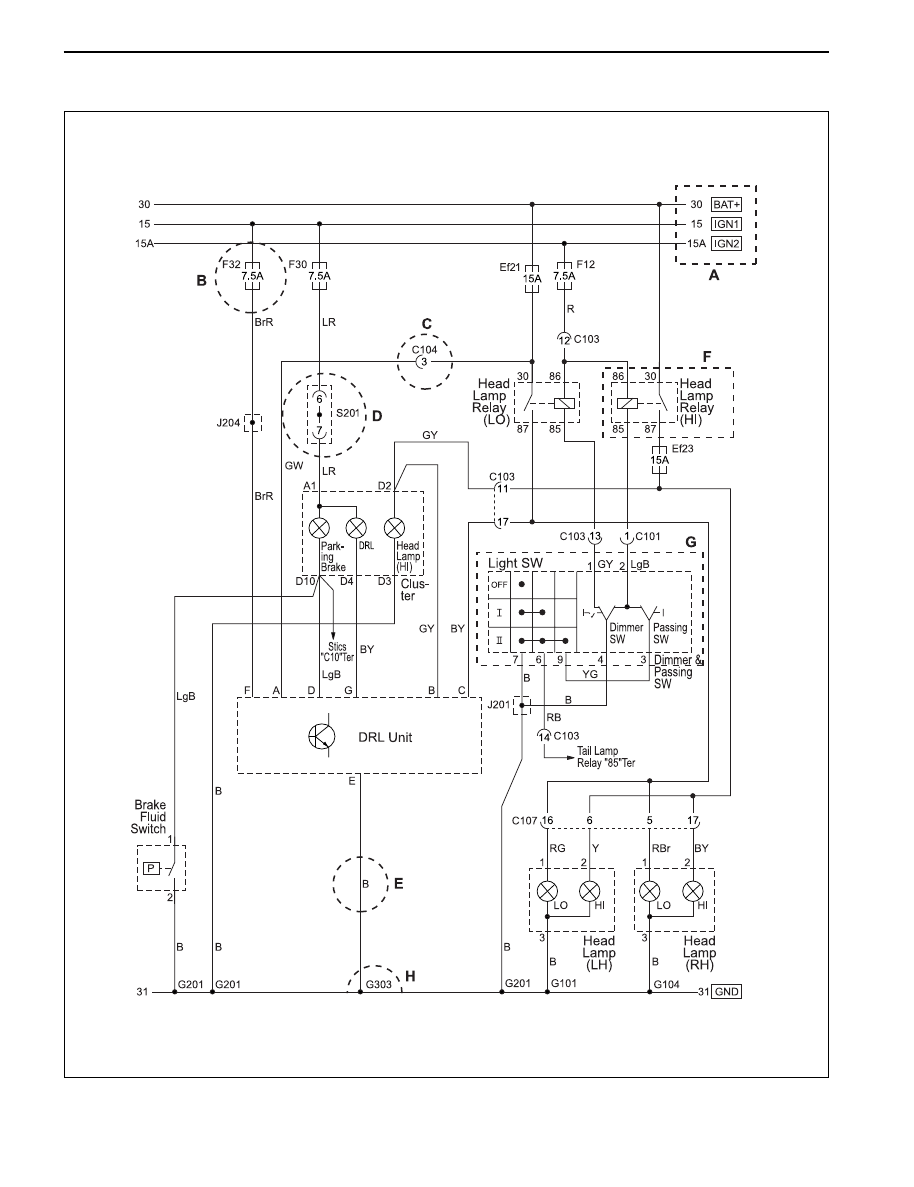

1) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT)

Position

Explanation

SSANGYONG   REXTON XDi (LHD)

1-4  HOW TO USE ELECTRICAL WIRING DIAGRAM

Battery Voltage (B+) supply in Ignition Switch “ON” and “ST” (IGN 1)

Battery Voltage (B+) supply in Ignition Switch “ON” (IGN 2)

Battery Voltage (B+) supply in Ignition Switch “ON” and “ACC”

Battery Voltage (B+) supply directly regardless of Ignition Switch

Ground connected to battery (-)

Battery Voltage (B+) supply in Head Lamp Switch 1st and 2nd step

(Illumination circuit)

Connector

Diode

Fuse in engine room fuse & relay box

Fuse in passenger room fuse box

Ground

Splice pack (Junction connector)

C

D

Ef

F

G

S

2. CIRCUIT IDENTIFICATION SYMBOL

3. FUNCTION OF POWER SUPPLY LINE (NUMBER)

Identification

  Symbol

Meaning

Power supply No.

Power supply condition

15

15A

15C

30

31

58

Abbreviation

Color

Brown

Green

Violet

Pink

White

Orange

Light Green

Br

G

V

P

W

Or

Lg

Abbreviation

Color

Sky Blue

Red

Blue

Yellow

Gray

Black

Sb

R

L

Y

Gr

B

4. WIRING HARNESS COLOR IDENTIFICATION

HOW TO USE ELECTRICAL WIRING DIAGRAM  1-5

SSANGYONG  REXTON XDi (LHD)

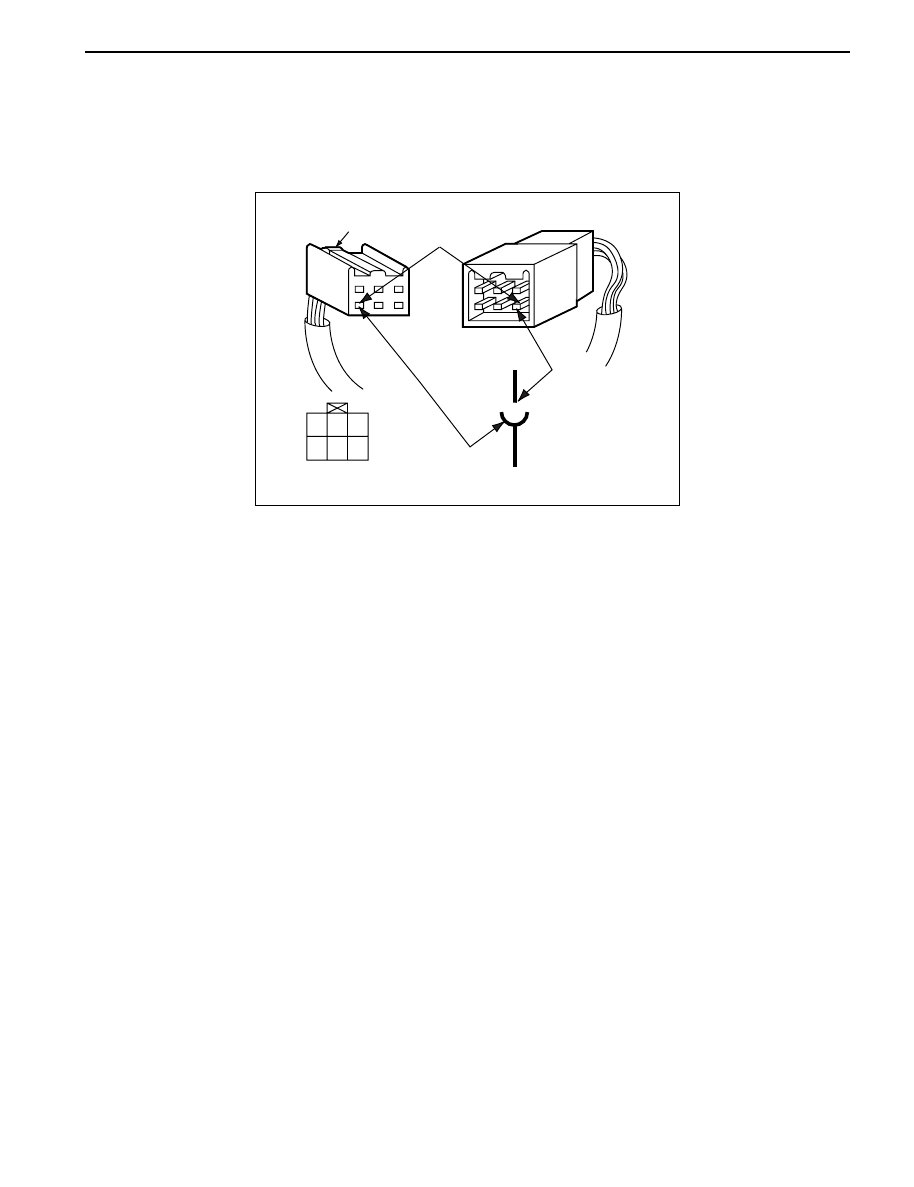

5. HOW TO CHECK TERMINAL NUMBER OF CONNECTOR

- Terminal number is given based on Female Terminal Connector

ex) Terminal Number 4 of C901 connection

Locking

Terminal Number 4

of total 6 pins

Male Connector

(W/H Fuel Tank)

4

C901

Female Connector

(W/H Floor)

C901

W/H Floor

1

3

2

4

6

5
