SSANGYONG  REXTON XDi(RHD)

5-92  ELECTRICAL WIRING DIAGRAMS

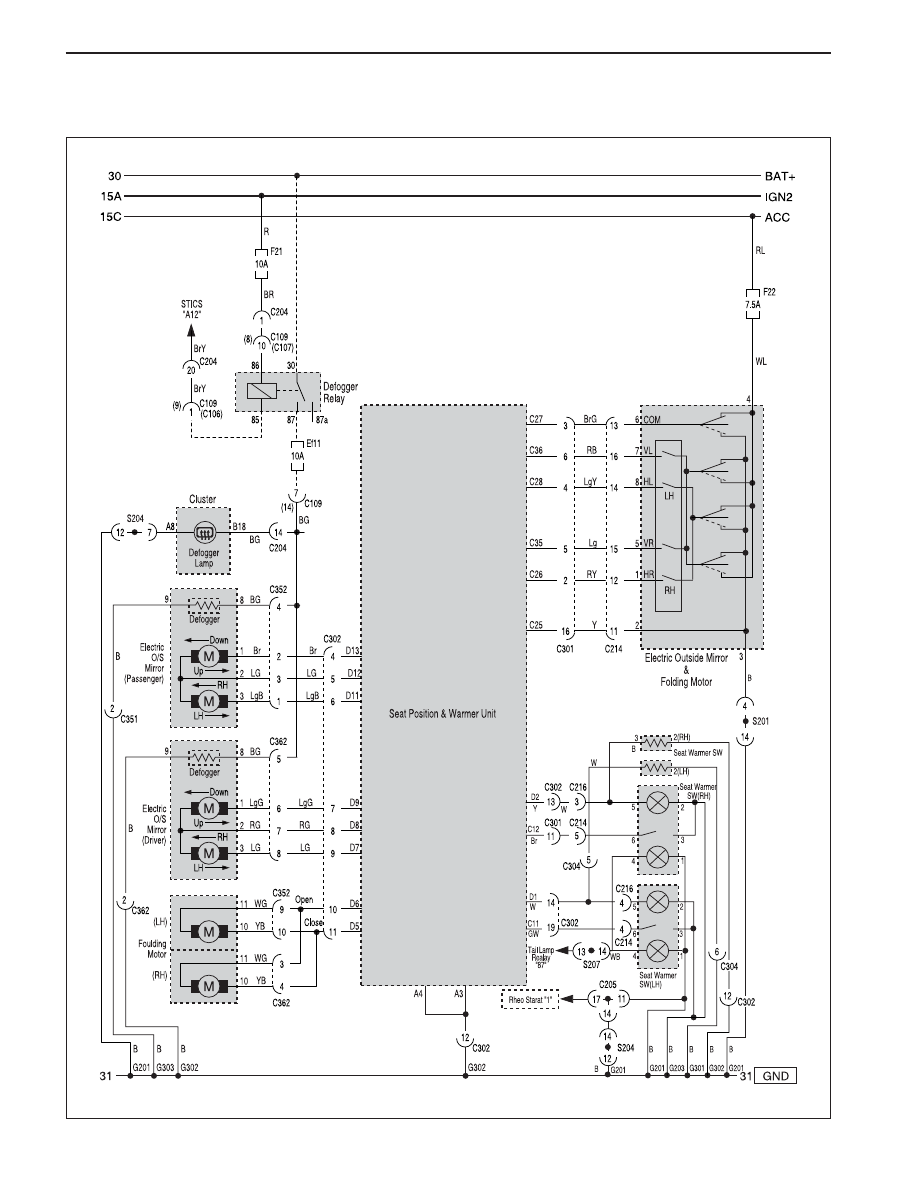

20. POWER O/SIDE MIRROR, DEFOGGER SEAT WARMER CIRCUIT

(W/ MEMORY)

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-93

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(RH)

Floor - Driver Seat

Floor - Driver Seat

Floor - Co-Driver Door

Floor - Co-Driver Door

Floor - Driver Door

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Floor

C105(22Pin, White)

C106(18Pin, White)

C109(16Pin, White)

C204(20Pin, Black)

C214(20Pin, Black)

C301(20Pin, White)

C302(21Pin, White)

C351(13Pin, White)

C352(12Pin, White)

C362(20Pin, White)

S201(14Pin, Black)

S204(14Pin, Black)

G201

G302

G303

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Under the Driver Seat

Under the Driver Seat

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left FATC

Inside Driver Side Cowl PNL

Under Driver Seat

Under the Left “B” Filler

Power Seat

Power Seat

Behinel Conn Holder

Behinel Conn Holder

Behinel Conn Holder

GND

GND

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-94  ELECTRICAL WIRING DIAGRAMS

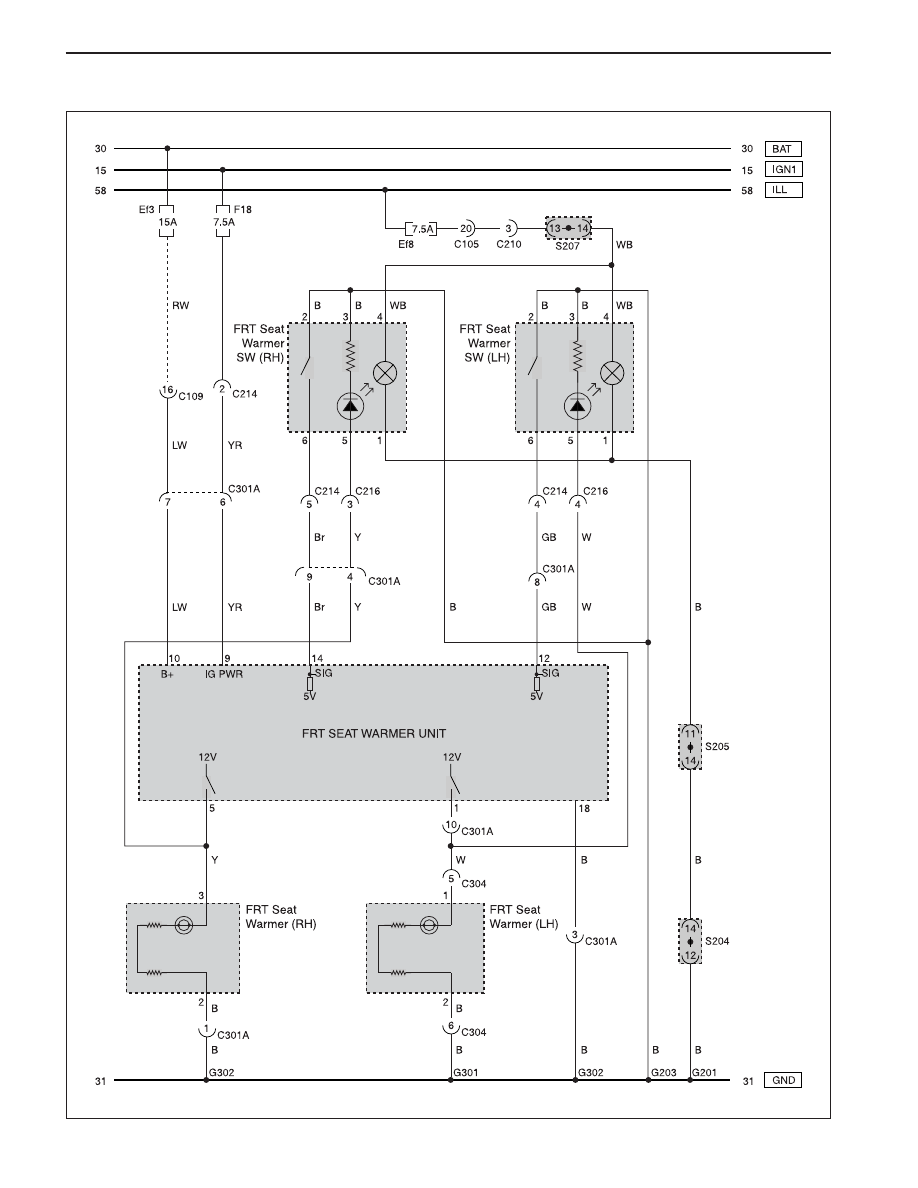

21. FRT SEAT WARMER(W/O MEMORY)

ELECTRICAL WIRING DIAGRAMS  5-95

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(E) - Engine

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Floor(RH)

Main - Floor(RH)

Floor - Driver Seat

Floor - Co-Driver Seat

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Floor

W/H Floor

C105(22Pin, White)

C109(16Pin, White)

C210(13Pin, Green)

C214(20Pin, Black)

C216(18Pin, White)

C301A(10Pin, White)

C304(6Pin, White)

S204(14Pin, Black)

S205(14Pin, Black)

S207(14Pin, Black)

G201

G203

G301

G302

G303

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Under the Co-Driver Seat

Under the Driver Seat

Behind the Left FATC

Behind the Left FATC

Behind the Right FATC

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Under Co-Driver Seat

Under Driver Seat

Under the Left “B” Filler

Seat Warmer

Power Seat

GND

GND

Tail Lamp

W/H Air Bag

ECU GND

Remark

Connector Position
