SSANGYONG  REXTON XDi(RHD)

5-72  ELECTRICAL WIRING DIAGRAMS

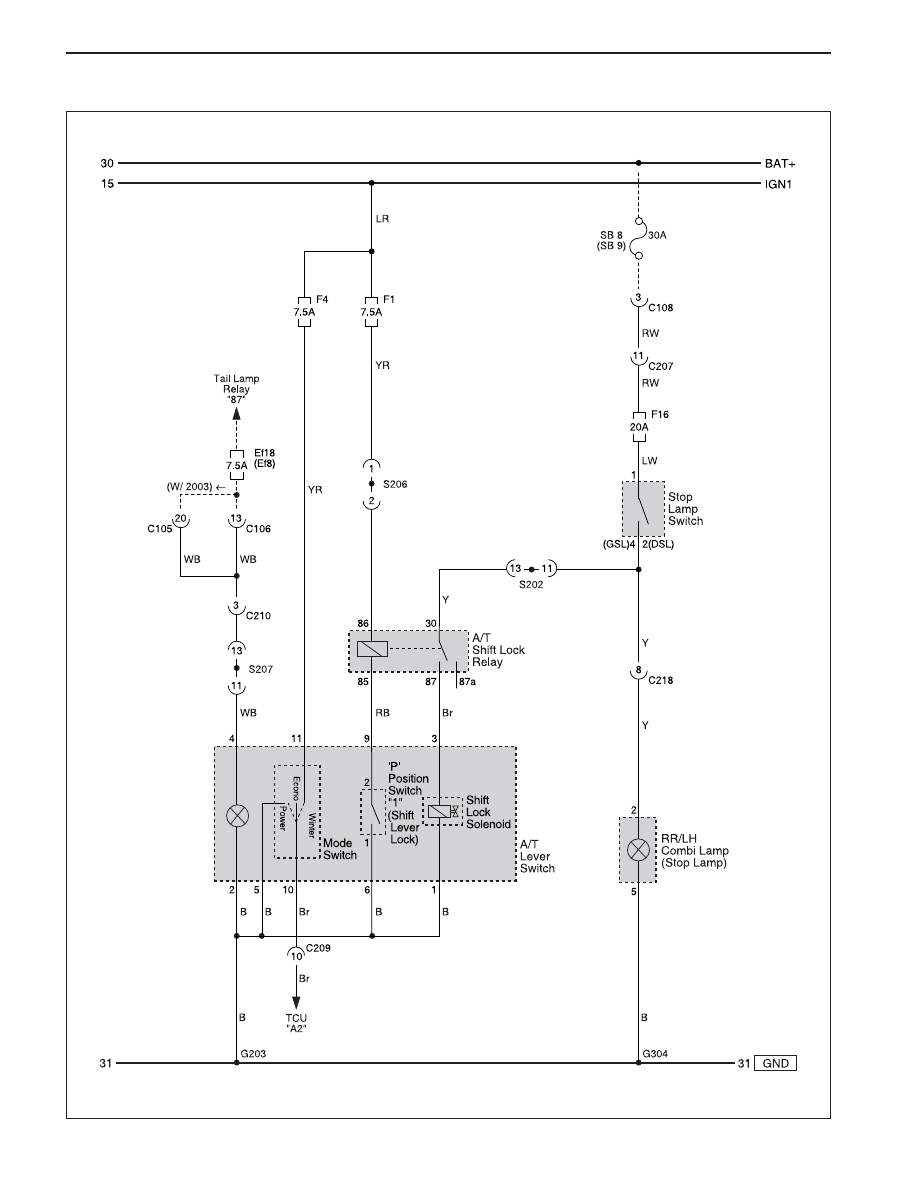

14. A/T SHIFT LOCK CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-73

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(F) - Engine

Engine Room Fuse Box(K) - Engine

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(RH)

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

C106(18Pin, White)

C108(4Pin, Colorless)

C207(15Pin, Bule)

C209(22Pin, Yellow)

C210(13Pin, Green)

C218(22Pin, Yellow)

S202(14Pin, Black)

S206(14Pin, Black)

S207(14Pin, Black)

G203

G304

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Right the FATC

Upper the Seat Heating SW

Behind the Quarter Grass #1

Tail Lamp

W/H Air Bag

Remark

Connector Position

SSANGYONG  REXTON XDi(RHD)

5-74  ELECTRICAL WIRING DIAGRAMS

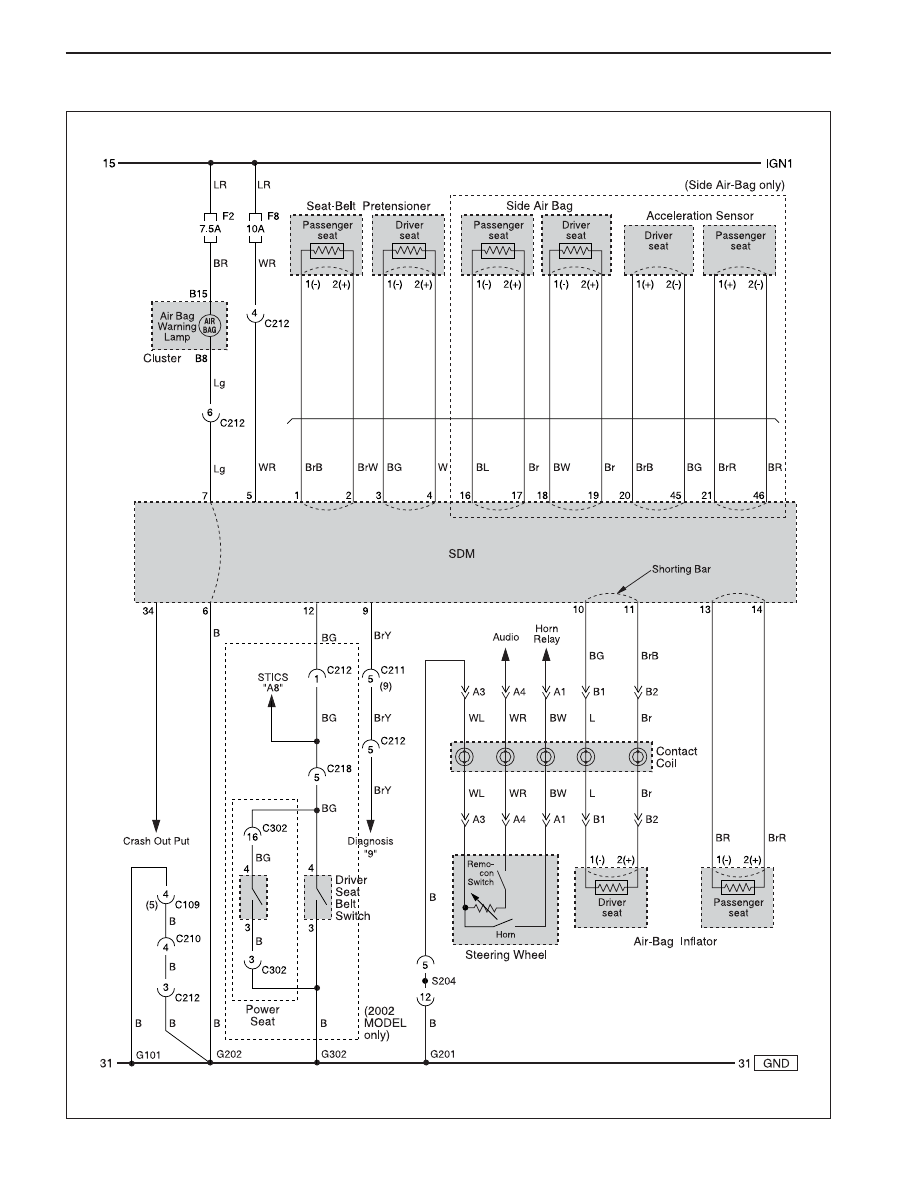

15. AIR BAG & SIDE AIR-BAG CIRCUIT

(   ): 2003 Model ~

ELECTRICAL WIRING DIAGRAMS  5-75

SSANGYONG  REXTON XDi(RHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(M) - Engine

Main - Floor(LH)

Main - Diagnosis Connector

Main - Diagnosis Connector

Main - Air-Bag

Main - Floor(RH)

Floor - Driver Seat

W/H Main

W/H Engine

W/H Main

W/H Main

W/H Floor

C109(16Pin, White)

C210(13Pin, Green)

C211(14Pin, White)

C211(18Pin, White)

C212(6Pin, White)

C218(22Pin, Yellow)

C302(21Pin, White)

S204(14Pin, Black)

G101

G201

G202

G302

Connecting Wiring

Harness

Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Behind the Cluster(Inside Dash PNL)

Inside Driver Side Cowl PNL

Under the Co-Driver Seat

Behind the Left the FATC

Center the Engine Room Fuse Box

Inside Co-Driver Side Cowl PNL

Beside the SDM

Under Co-Driver Seat

XDi

Power Seat

GND

Remark

Connector Position
