SSANGYONG  REXTON XDi(RHD)

5-8  ELECTRICAL WIRING DIAGRAMS

2) 2003 MODEL ~

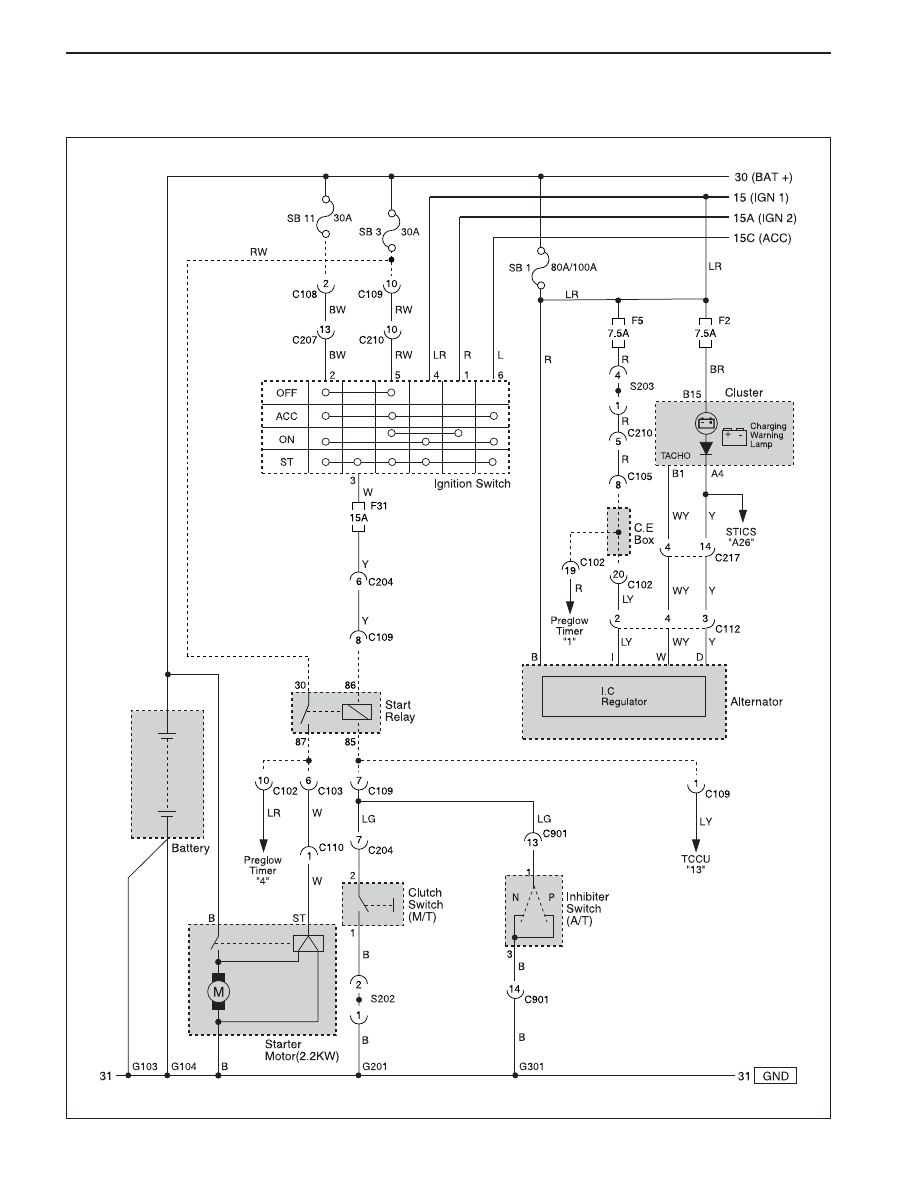

(1) DIESEL(M/T, A/T)

ELECTRICAL WIRING DIAGRAMS  5-9

SSANGYONG  REXTON XDi(RHD)

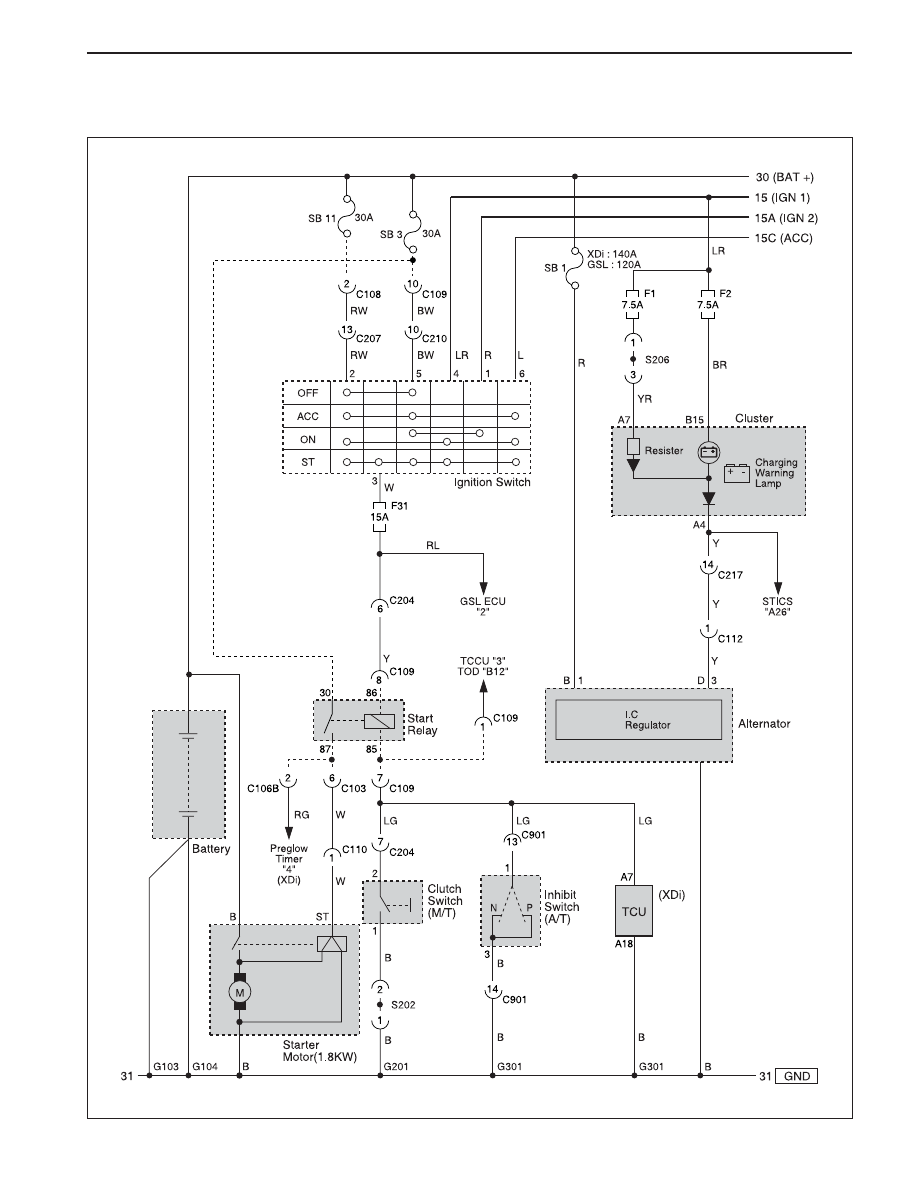

(2) GASOLINE(M/T, A/T), XDi

SSANGYONG  REXTON XDi(RHD)

5-10  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box(B) - Engine

Engine Room Fuse Box(C) - Engine

Engine Room Fuse Box(D) - Engine

Engine Room Fuse Box(F) - Engine

Engine Control - Engine

Engine Room Fuse Box(K) - Engine

Engine Room Fuse Box(M) - Engine

Engine - Starter “ST”

Engine - Alternator

Engine - Alternator

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(LH)

Main - Floor(RH)

Main - T/M

Main - T/M

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Main

W/H Floor

C102(20Pin, White)

C103(6Pin, Colorless)

C104(20Pin, White)

C106(18Pin, White)

C106B(11Pin, White)

C108(4Pin, Colorless)

C109(16Pin, White)

C110(1Pin, Gray)

C112(4Pin, Black)

C112(2Pin, Black)

C204(20Pin, Black)

C207(15Pin, Blue)

C210(13Pin, Green)

C217(20Pin, Black)

C901(16Pin, Black)

C901(2Pin, Black)

S202(14Pin, Black)

S203(14Pin, Black)

S206(14Pin, Black)

G103

G104

G201

G203

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

FRT Pre-Heating Unit

Under the Coolant Reserve Tank

Under the Coolant Reserve Tank

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Left the T/C(Under the Floor)

Left the T/C(Under the Floor)

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left Head Lamp

Beside the Engine Mounting Bracket

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Under Co-Driver Seat

XDi

DSL

GSL

A/T

A/T

M/T

W/H Air Bag

ECU GND

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-11

SSANGYONG  REXTON XDi(RHD)

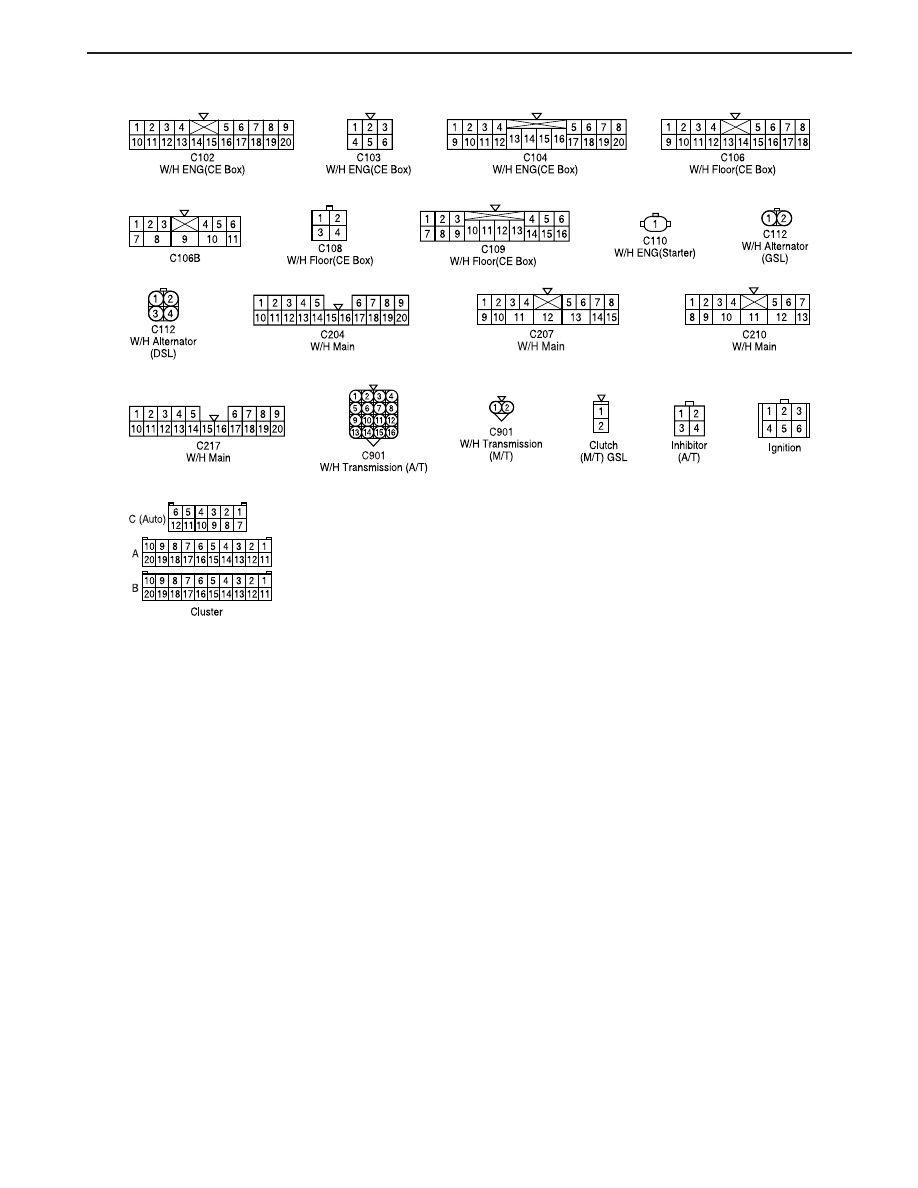

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
