SSANGYONG  REXTON XDi(RHD)

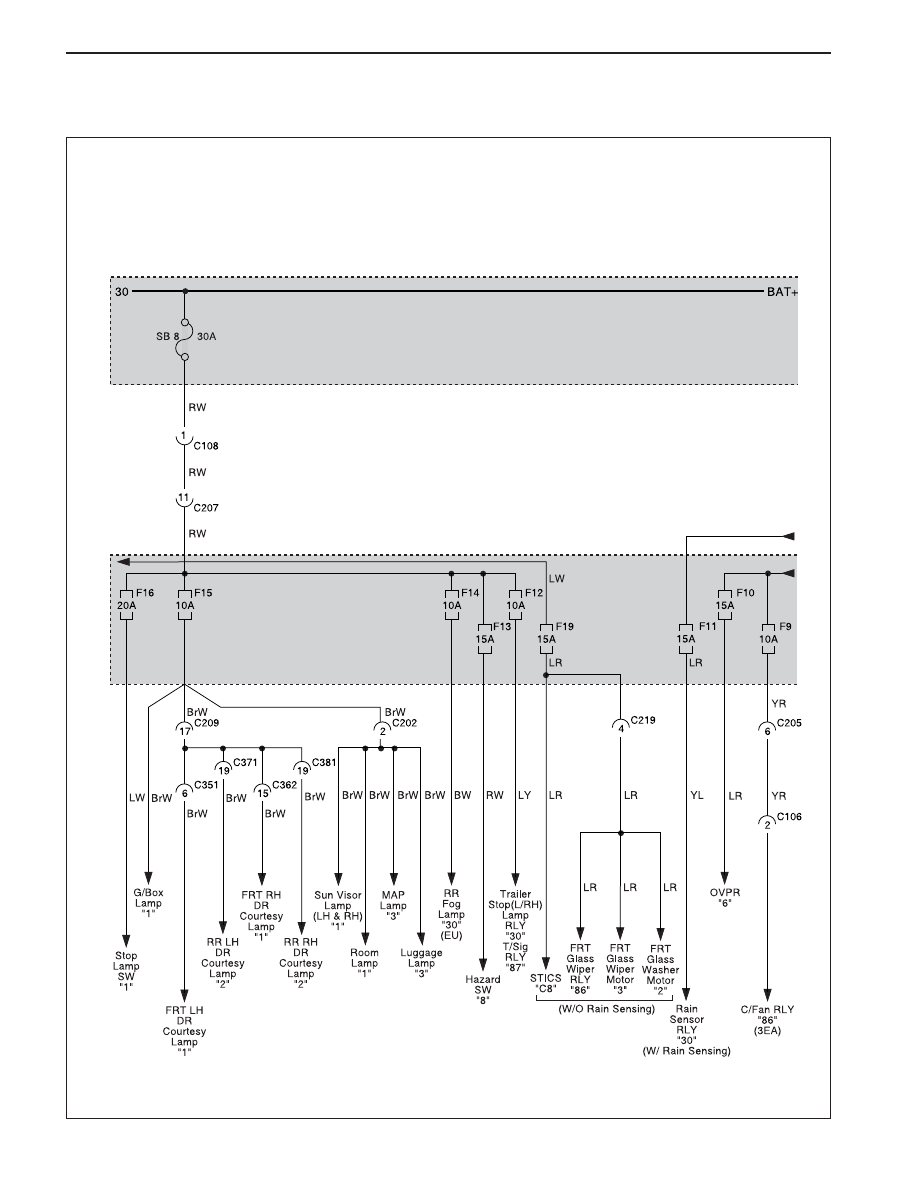

3-16  WIRING DIAGRAM FOR POWER SUPPLIES

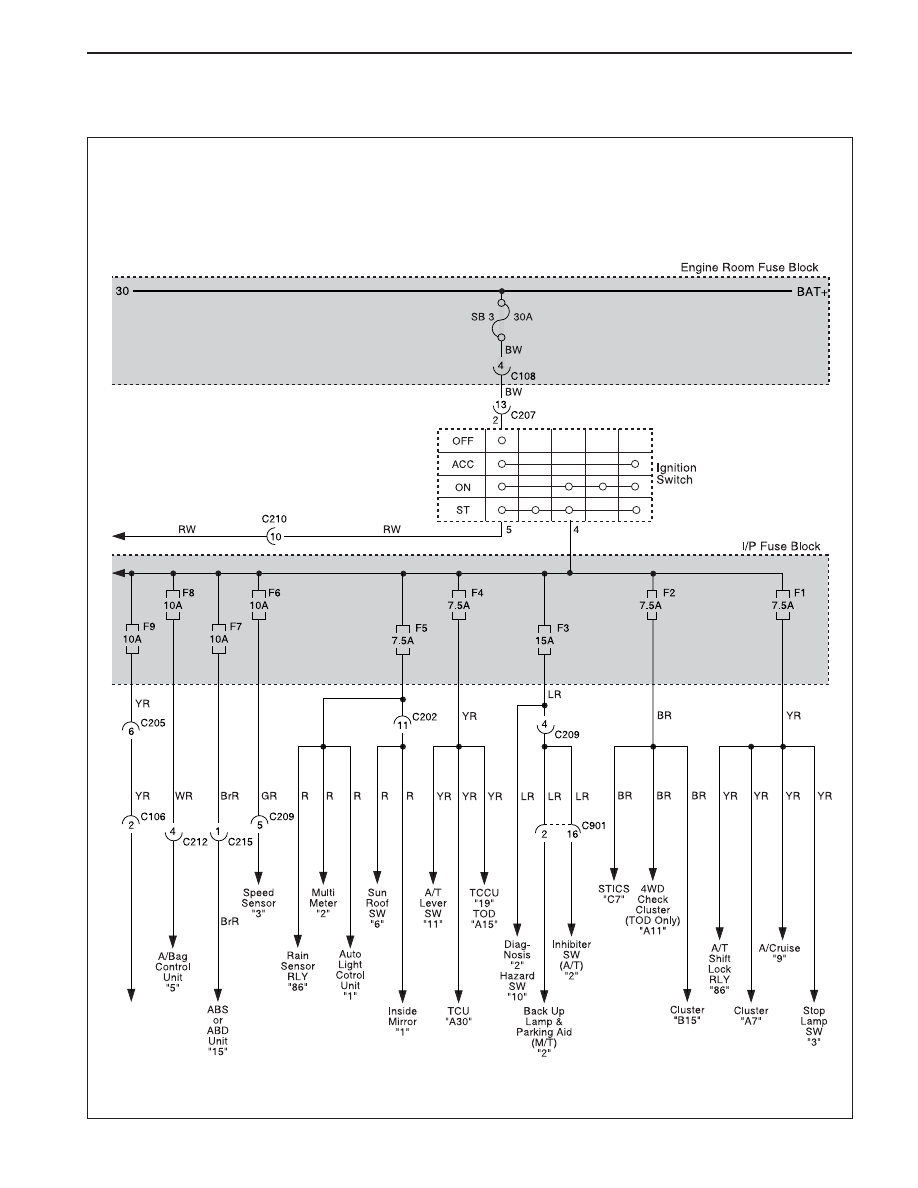

WIRING DIAGRAM FOR POWER SUPPLIES  3-17

SSANGYONG  REXTON XDi(RHD)

SSANGYONG  REXTON XDi(RHD)

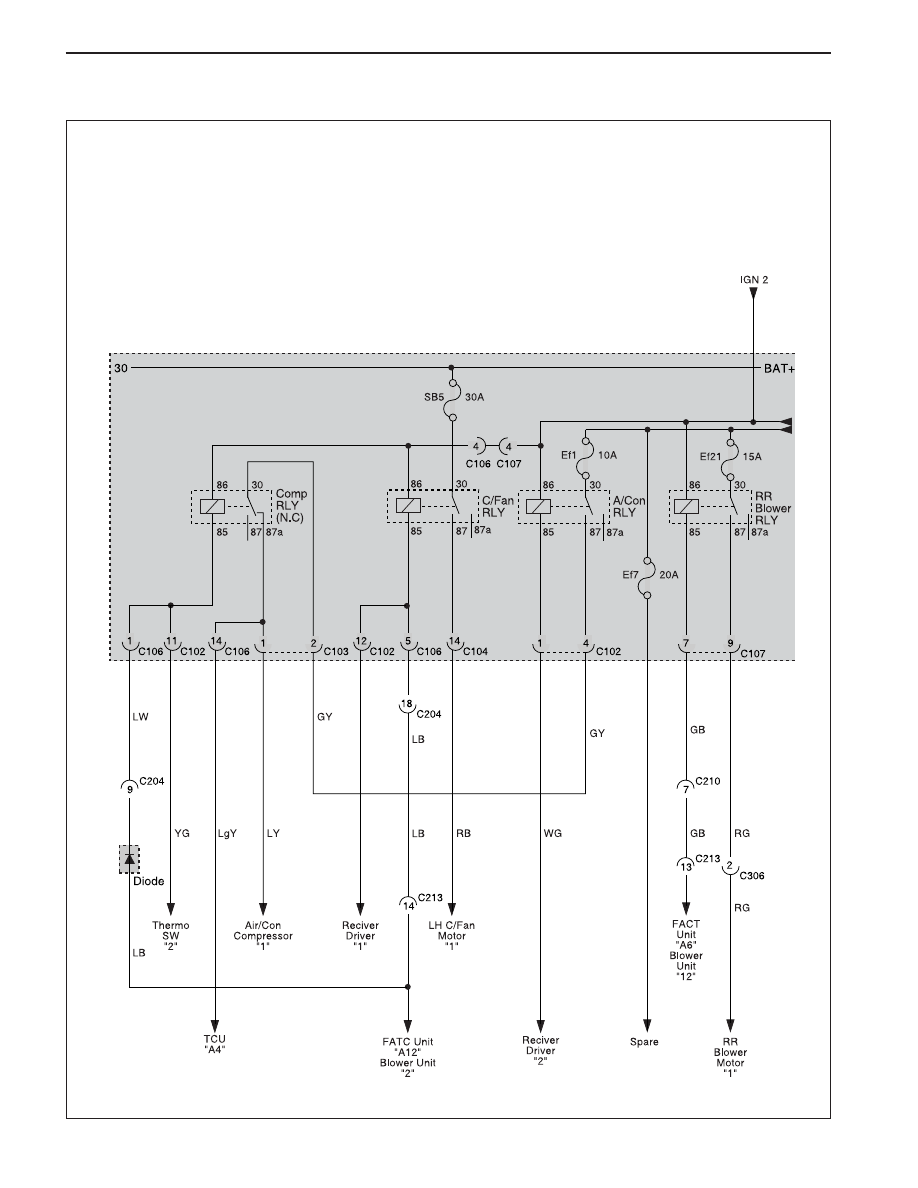

3-18  WIRING DIAGRAM FOR POWER SUPPLIES

2. POWER WIRING DIAGRAM(GSL)

1) ~ 2002 MODEL

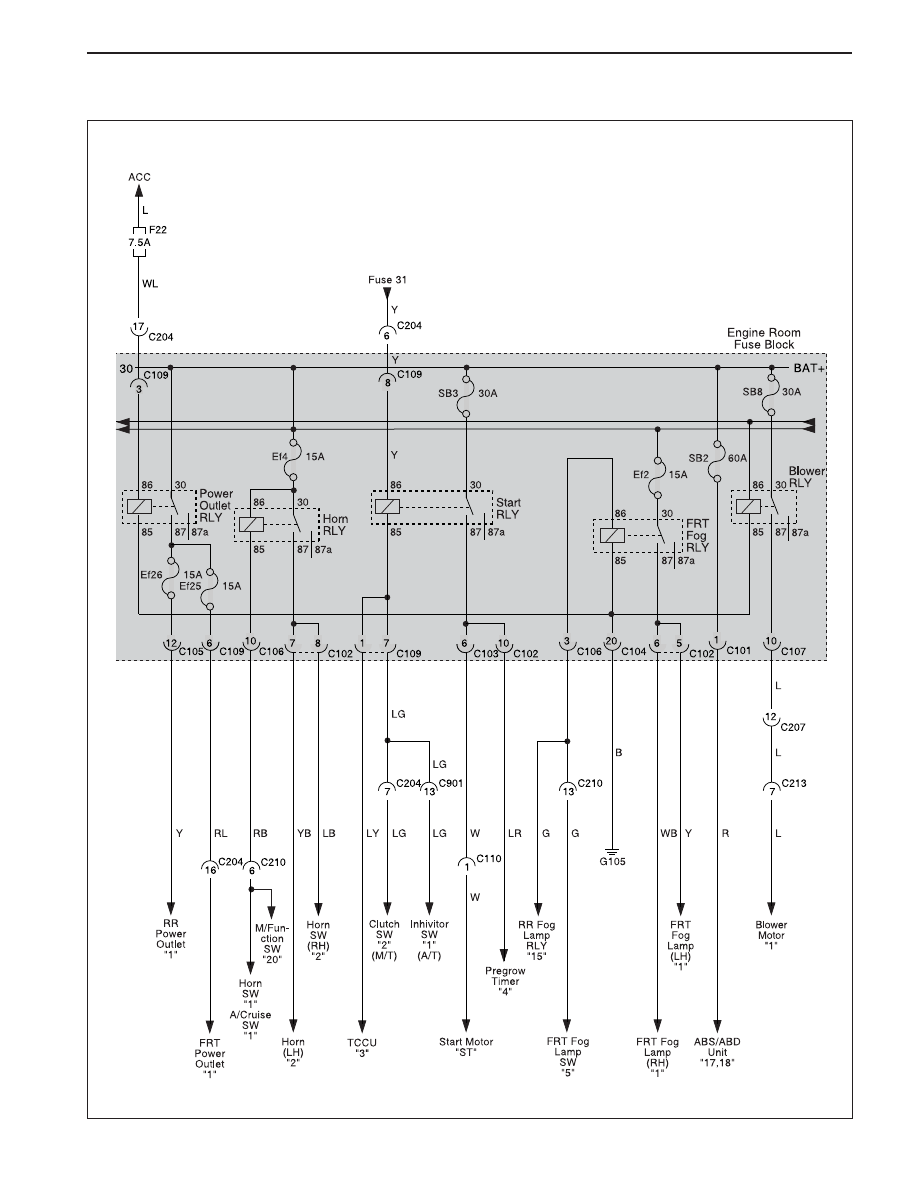

WIRING DIAGRAM FOR POWER SUPPLIES  3-19

SSANGYONG  REXTON XDi(RHD)
