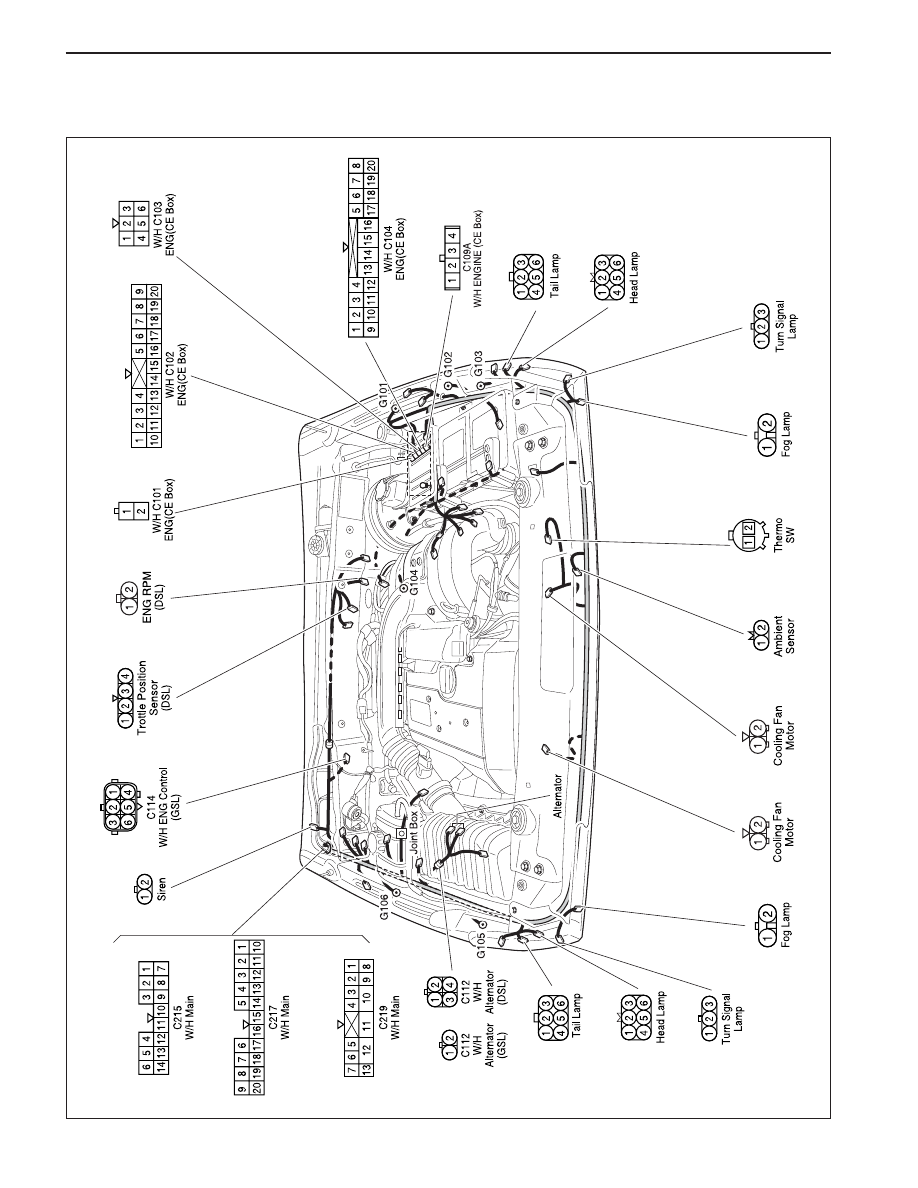

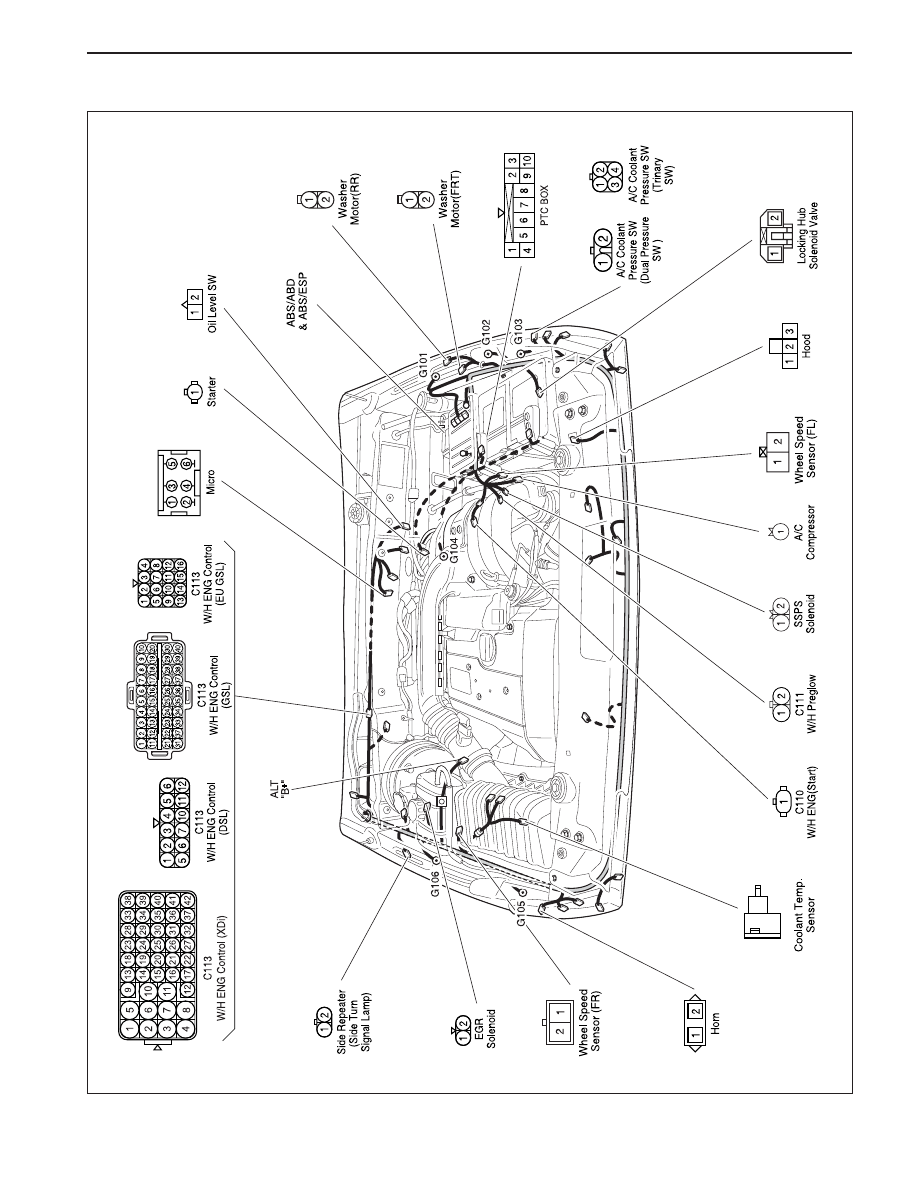

2-6 POSITION OF CONNECTORS AND GROUNDS
2) SPLICE PACK
Connector Number
(Pin Number, Color)
OVPR “6” - Injector
OVPR “8” - IGN Coil
OVPR “2” - HFM/CPS
W/H Main
W/H Main
W/H Main
W/H Main
W/H Main
W/H Main
W/H Main
W/H Main
W/H Main
W/H Floor
W/H Floor
W/H Floor
S101(7Pin, -)
S102(4Pin, -)
S103(4Pin, -)
S201(14Pin, Black)
S202(14Pin, Black)
S203(14Pin, Black)
S204(14Pin, Black)
S205(14Pin, Black)
S206(14Pin, Black)
S207(14Pin, Black)
S208(14Pin, Black)
S209(14Pin, Black)
S301(8Pin, Black)
S301A(8Pin, Black)
S302(14Pin, Black)
Connecting Wiring
Harness
Inside the C113, C114
Inside the Injector “6”
Inside the C113, C114
Upper the I/P Relay Box
Upper the I/P Relay Box
Upper the I/P Relay Box
Behind the Left FATC
Behind the Left FATC
Behind the Left FATC
Behind the Right FATC
Behind the Right FATC
Behind the Left FATC
Under Driver Seat
Under Driver Seat
Under Driver Seat
GSL
GSL
GSL
GND
GND
GND
Tail Lamp
XDi
CAN(GSL)
XDi
Remark
Connector Position
