DI10-193

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

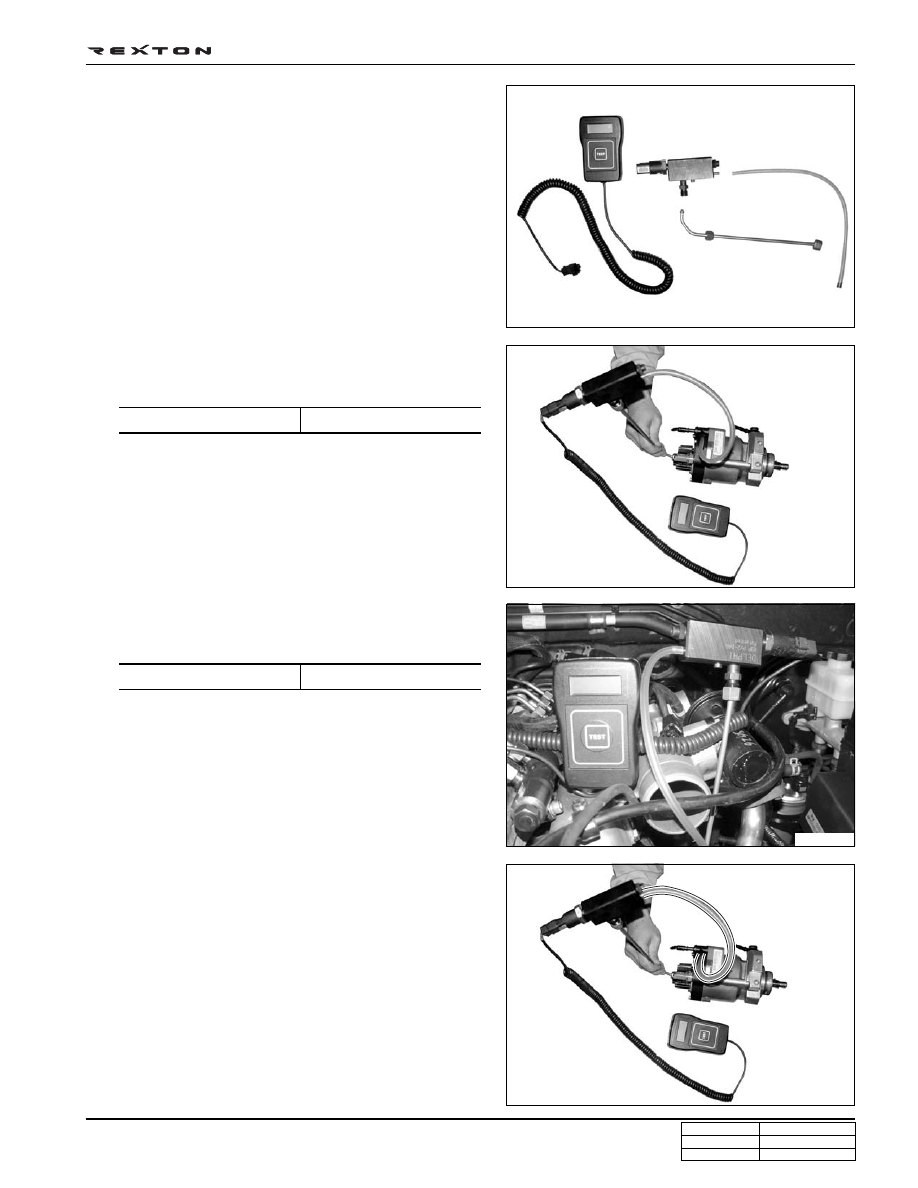

4-5 High Pressure Pump Test

1. Prepare the special tools for high pressure pump test

and thoroughly clean the system.

Y220_10083

Y220_10084

Y220_10085

Y220_10086

2. Remove the high pressure fuel supply pipe and install

the closed rail delivered with tool kit.

3. Install the opposite end of the closed rail into the fuel rail

for test.

4. Remove the high pressure fuel return hose and install

the transparent tube between the high pressure pump
and the return port of fuel rail for test.

Specified value

40 Nm

Specified value

40 Nm

* The figure is to show the test method. However, the

actual test operation should be done while the high

pressure pump is installed in vehicle.

DI10-194

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10087

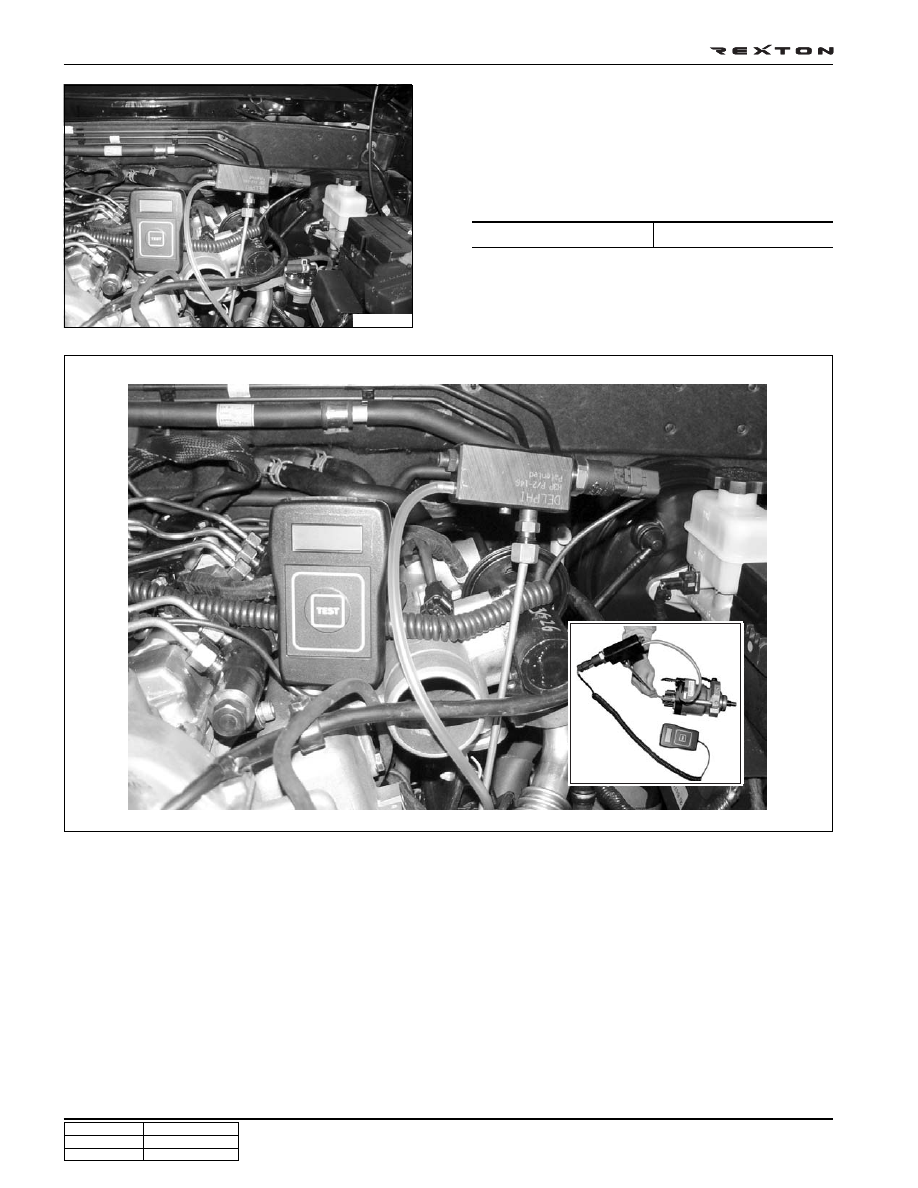

5. Connect the digital tester connector into the sensor

connector of fuel rail for test.

6. Disconnect the IMV connector and the fuel rail pressure

sensor connector.

7. Check if the measured value on the digital tester meets

the specified value.

Specified value

Over 1,050 bar

Y220_10088
