SsangYong Rexton. Manual - part 100

DI10-5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10004

Y220_10005

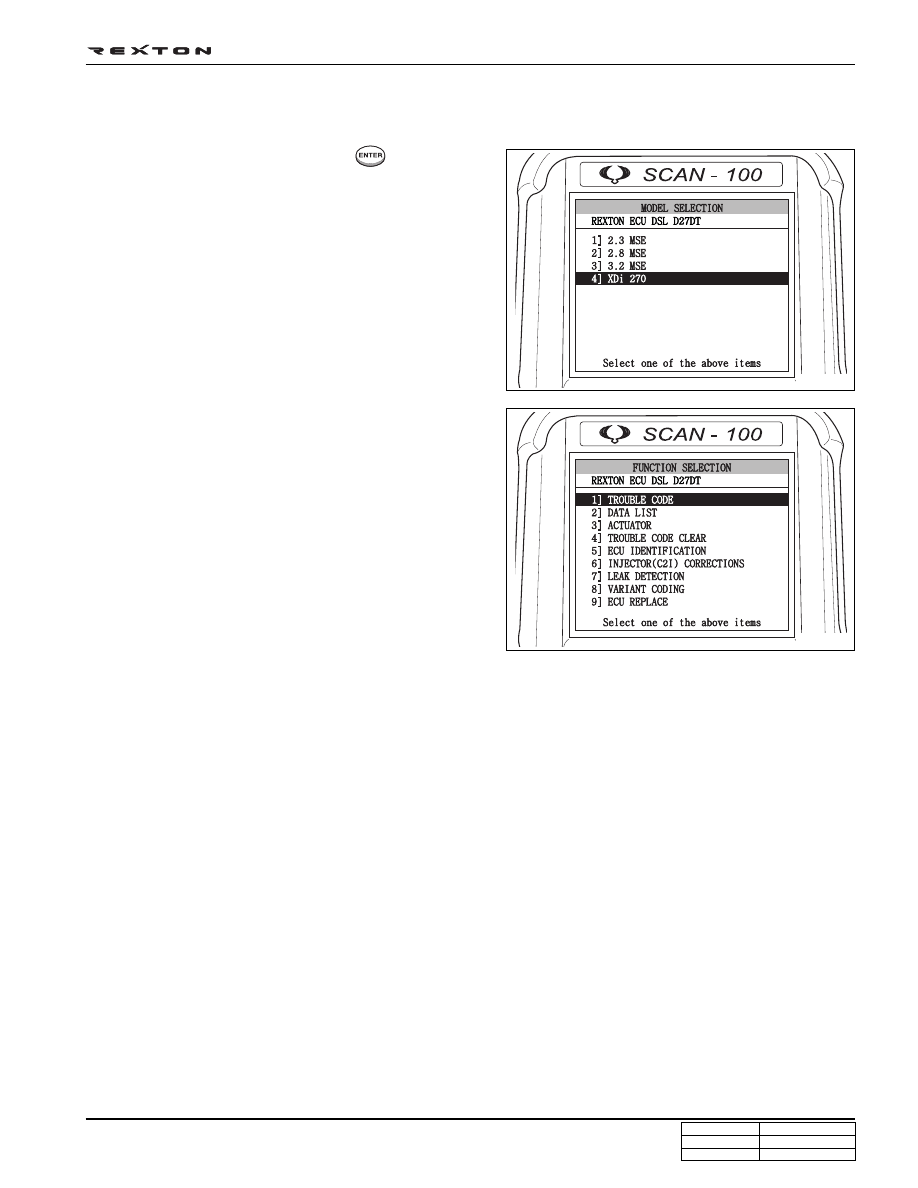

4. Select “4] XDi 270” and press “

” in “MODEL

SELECTION” screen.

5. The “FUNCTION SELECTION” screen is displayed.

DI10-6

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10006

Y220_10007

Y220_10008

Y220_10013

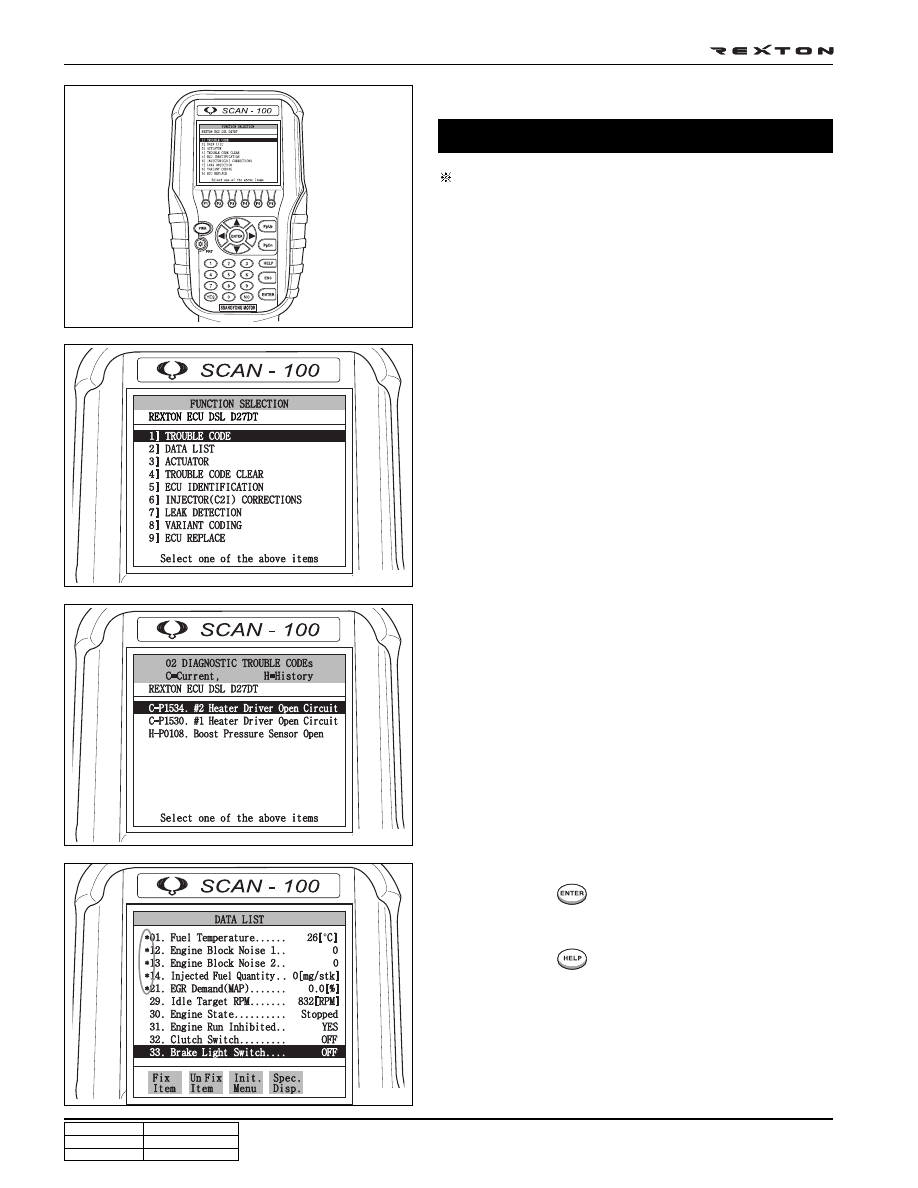

FUNCTION SELECTION

Check the Trouble Code

Preceding work: Perform the “Entering Diagnosis Proce-
dures”

1. Select “1] TROUBLE CODE” and press “ENTER” in

“FUNCTION SELECTION” screen.

2. The “DIAGNOSTIC TROUBLE CODEs” screen is

displayed and it shows the trouble.

Note

If there is not any fault, “NO TROUBLE DETECTED”
message appears.

3. When selecting a trouble code, then

if you press “

”: Displays the sensor data for the

detected trouble (Freeze Frame
Mode).

if you press “

”: Displays the help tips for the

detected trouble.

DI10-7

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10010

Y220_10011

Y220_10012

Y220_10013

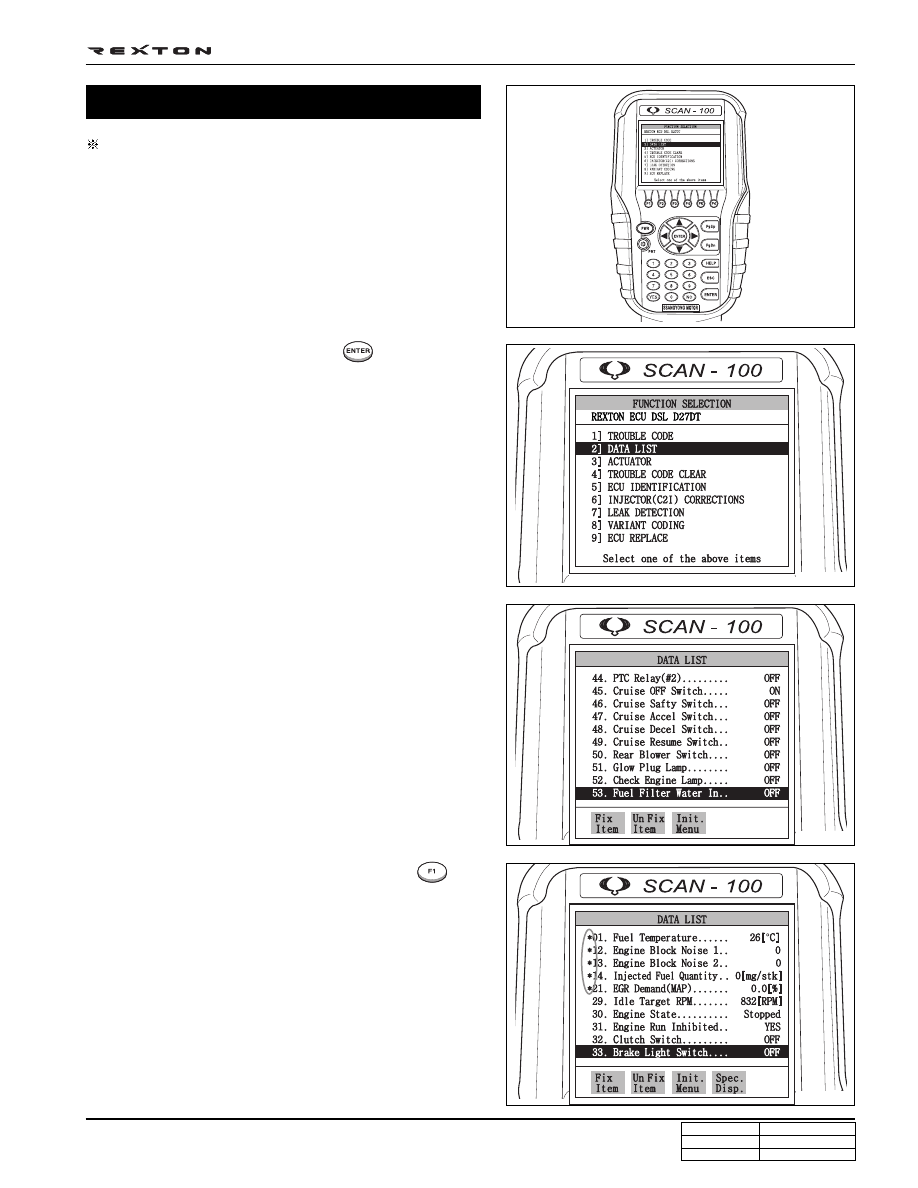

Sensor Data Check

Preceding Work: Perform the “Entering Diagnosis Proce-
dures”

1. Select “2] DATA LIST” and press “

” in “FUNCTION

SELECTION” screen.

2. The screen shows approx. 54 sensor data.

3. Select the items you want to see and press “

” key

to freeze them.

Note

You can freeze up to 5 items (*: selected items).

DI10-8

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

DIAGNOSIS

DI ENG SM - 2004.4

Y220_10014

Y220_10015

Y220_10016

Y220_10017

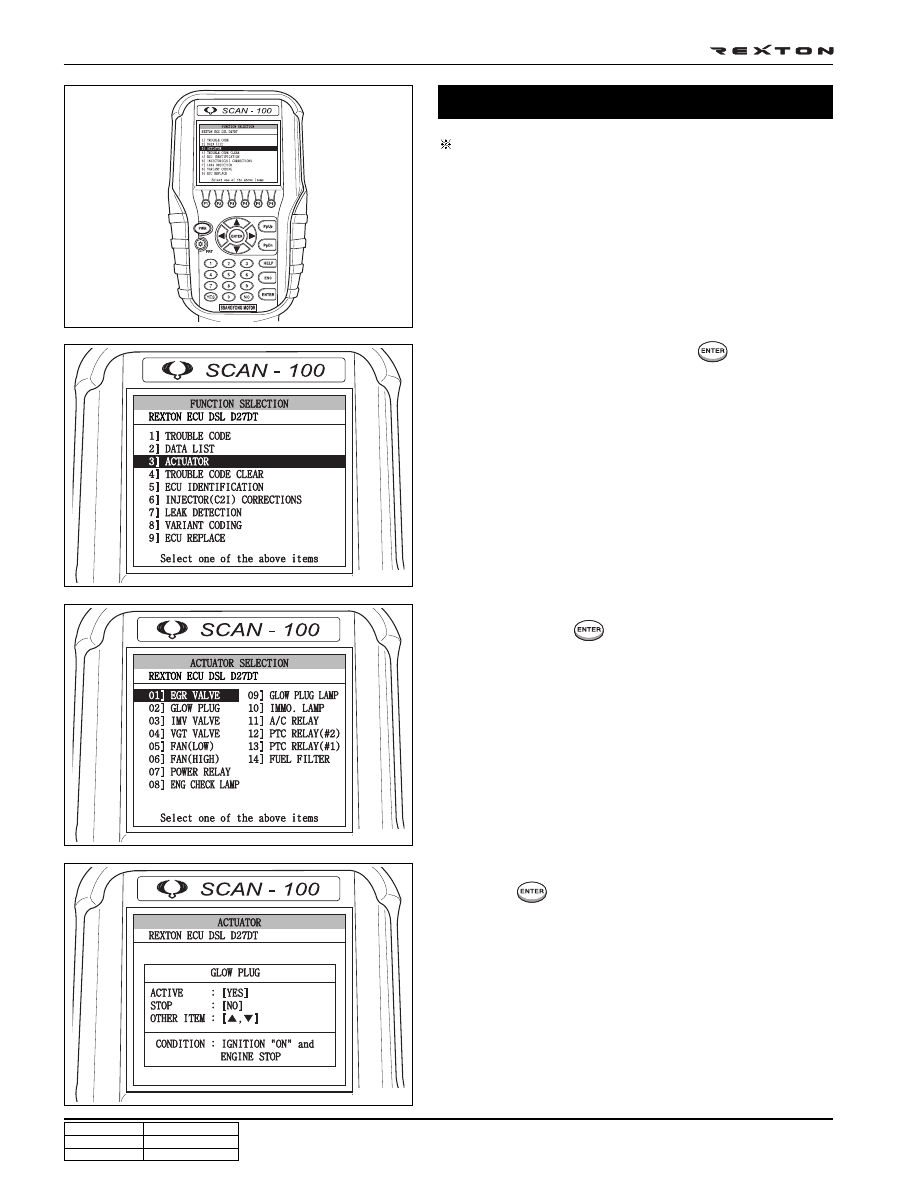

Actuator Check

Preceding Work: Perform the “Entering Diagnosis Proce-
dures”

1. Select “3] ACTUATOR” and press “

” in “FUNCTION

SELECTION” screen.

2. The screen shows 14 items. Select the item you want to

see and press “

”.

3. For example, if you select “02] GLOW PLUG” item and

press “

”, the screen as shown in figure is displayed.
