 ELECTRIC DEVICES AND SENSORS

DI ENG SM - 2004.4

3. Alternator

4. Plug connection

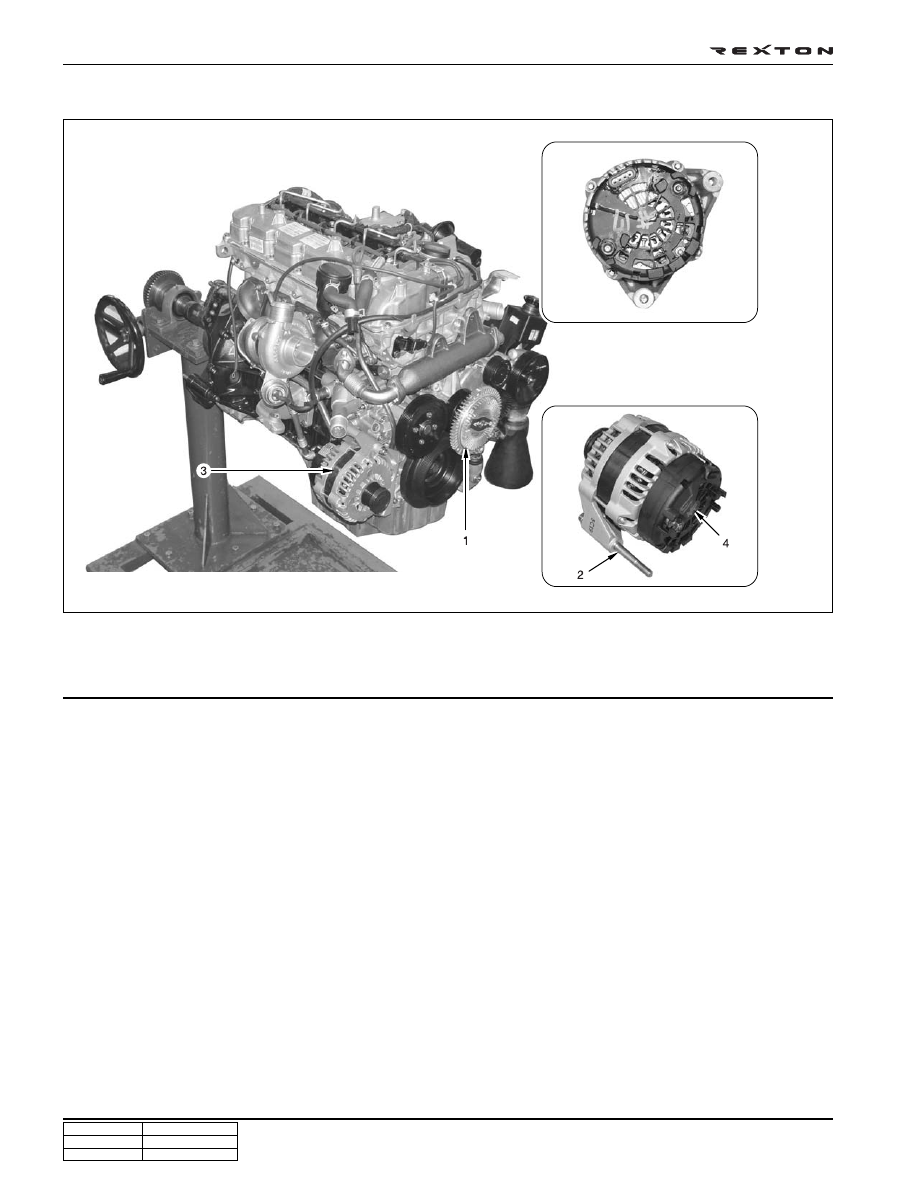

ALTERNATOR

1. Cooling fan

2. Bolt ............................................................. 45 Nm

Y220_09005

DI09-11

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRIC DEVICES AND SENSORS

DI ENG SM - 2004.4

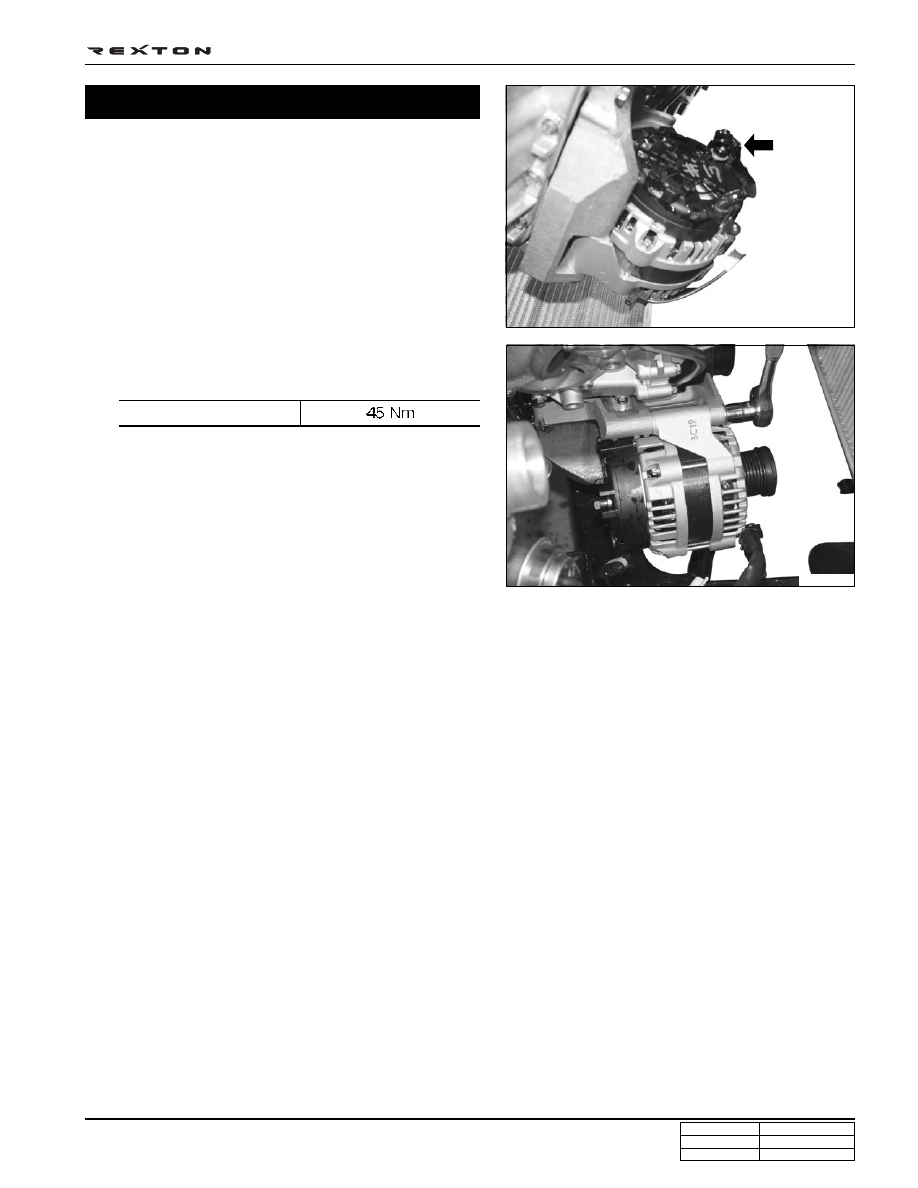

Removal and Installation

1. Disconnect the negative battery cable.

2. Remove the plug connection.

3. Unscrew the bolts and remove the alternator.

Installation Notice

4. Install in the reverse order of removal.

Y220_09006

Y220_09007

Tightening torque

DI09-12

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

 ELECTRIC DEVICES AND SENSORS

DI ENG SM - 2004.4

3. Nut .................................................................... 15 Nm

4. Bolt ................................................................... 48 Nm

Y220_09A008

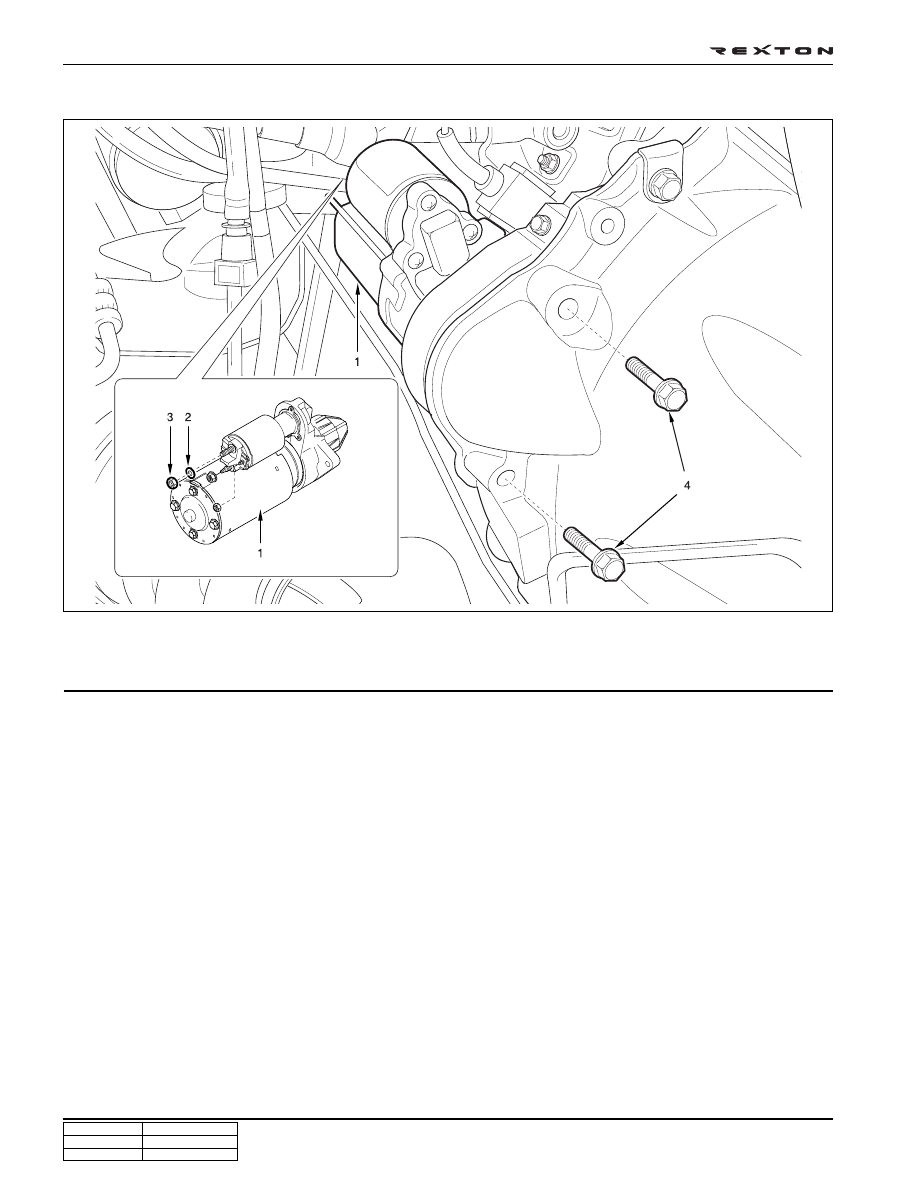

STARTER

1. Starter

2. Washer

DI09-13

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

ELECTRIC DEVICES AND SENSORS

DI ENG SM - 2004.4

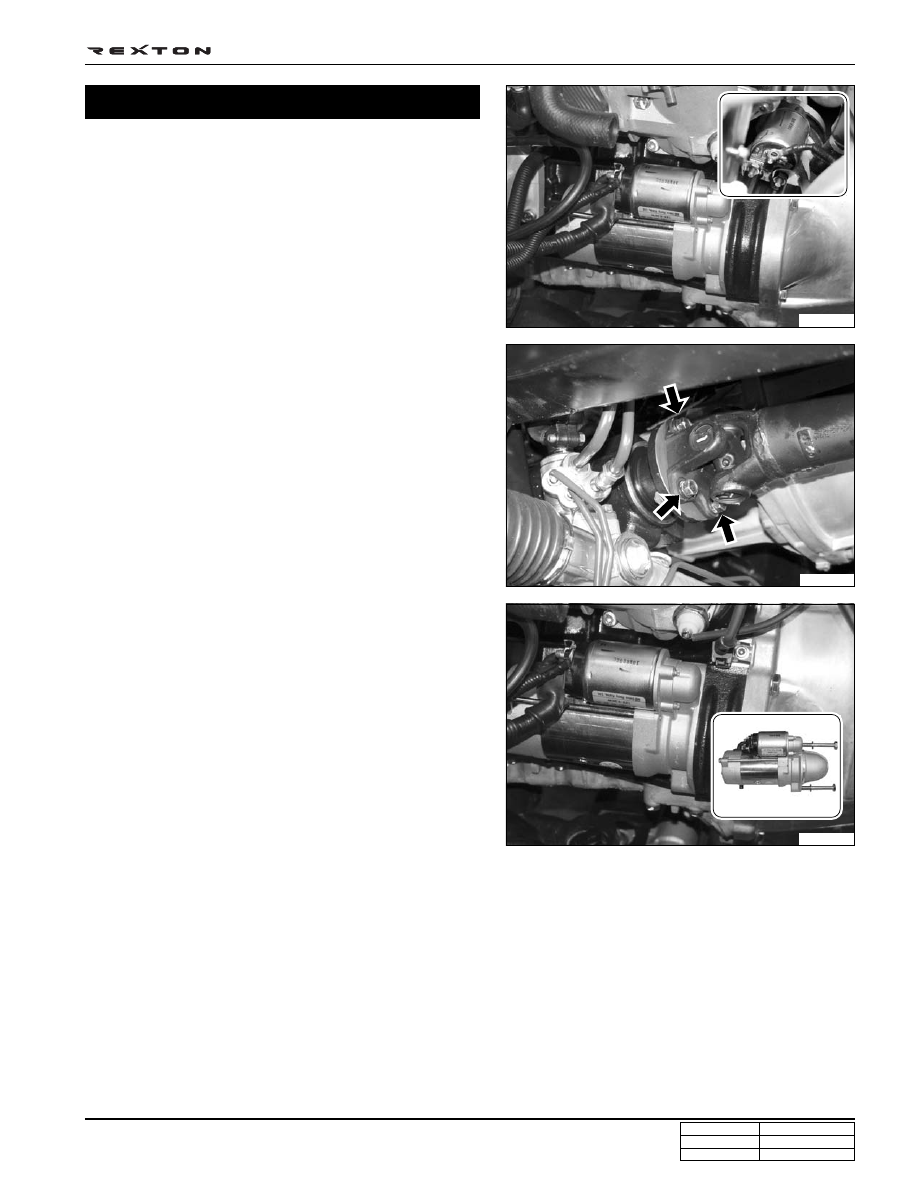

1. Disconnect the negative battery cable.

2. Disconnect the starter terminal.

3. Lift up the vehicle and remove the front propeller shaft

mounting bolts.

4. Remove the upper and lower mounting bolts.

Y220_09009

Y220_09010

Y220_09011

Removal and Installation

5. Install in the reverse order of removal.
