INTAKE SYSTEM

DI ENG SM - 2004.4

Y220_03001

AIR FLOWS

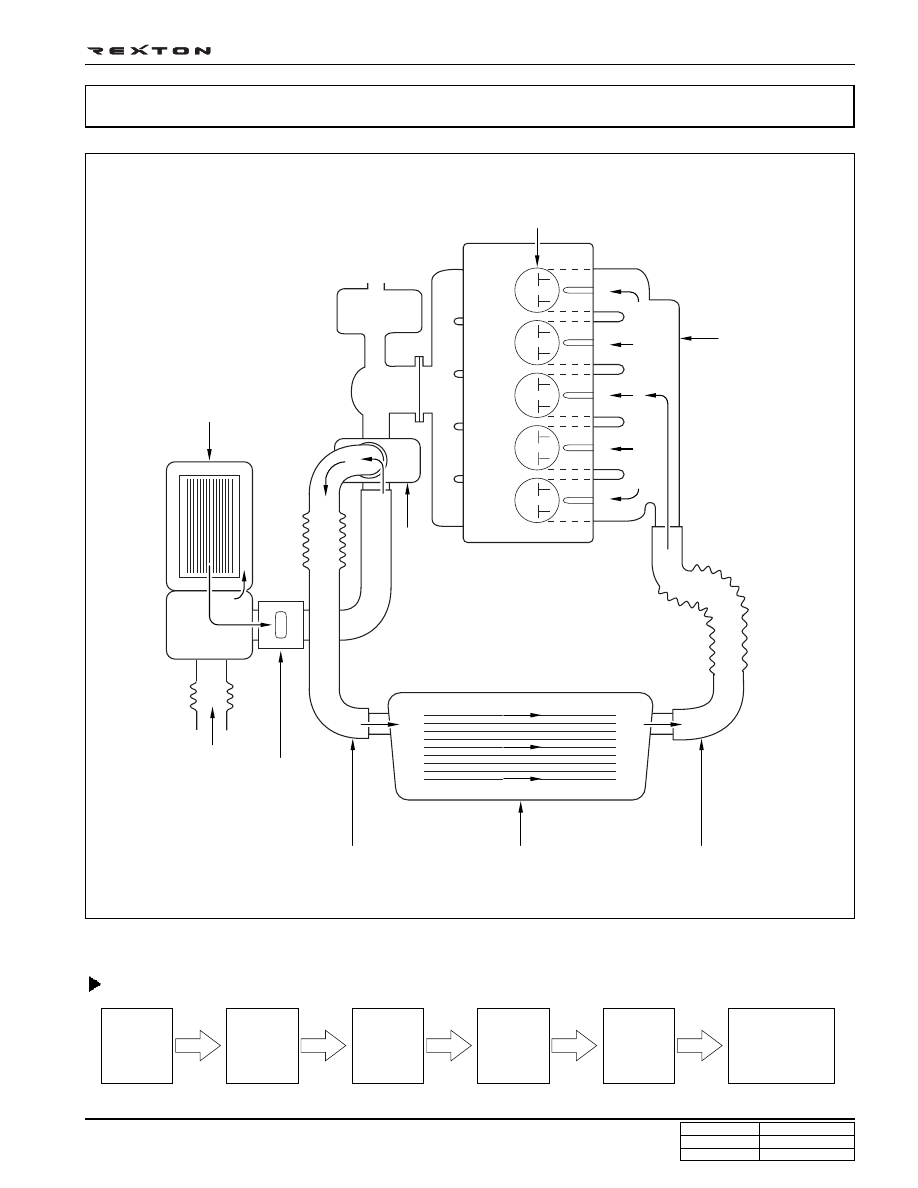

Work Flow of Intake System

Air

Cleaner

HFM

Sensor

Turbo

Charger

Intercooler

Intake

Manifold

Combustion

Chamber in

Engine

Air Cleaner

HFM Sensor

Intake Air Outlet Hose

Intercooler

Intake Air Inlet Hose

Intake Manifold

Intake Valve

(in combustion chamber)

Engine

Turbo
Charger

DI03-4

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.4

Y220_03002

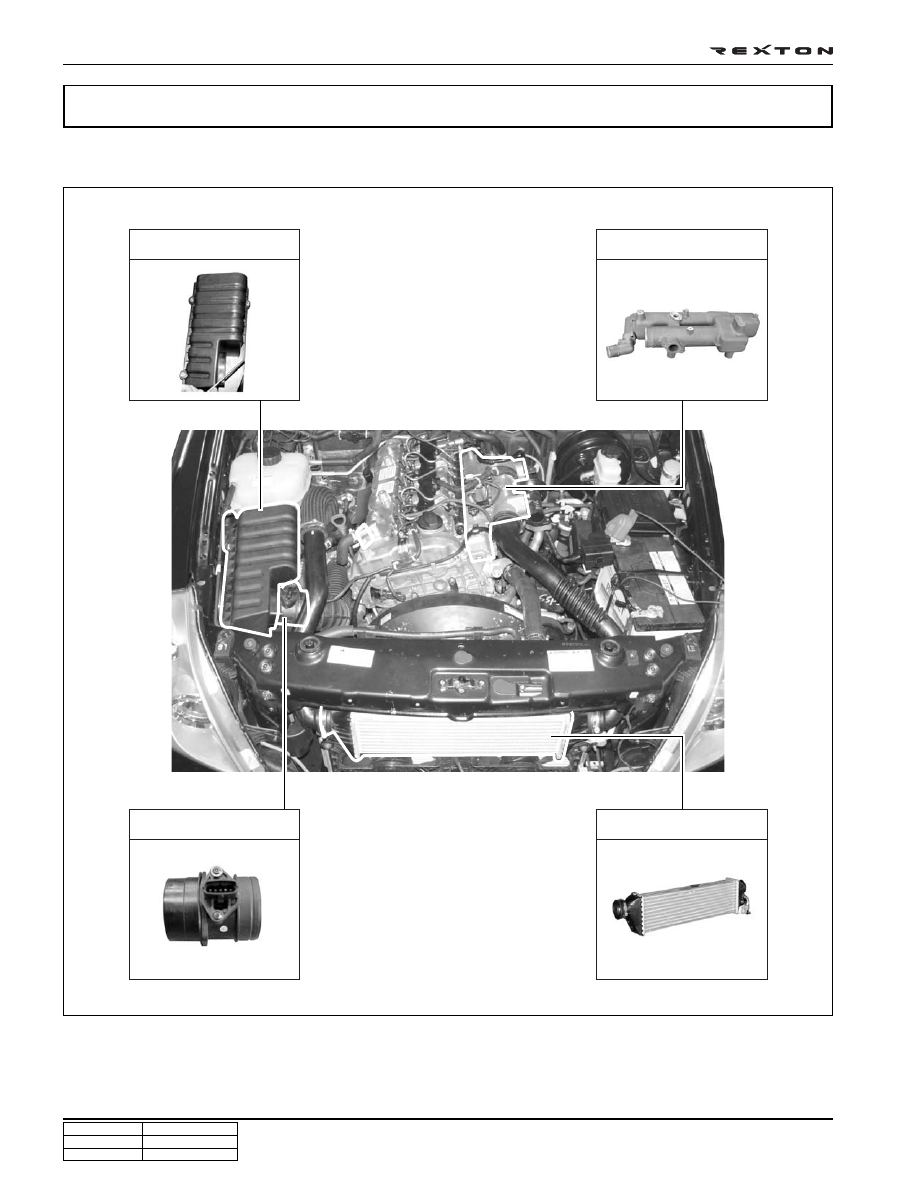

INTAKE SYSTEM LAYOUT

Air cleaner

Intake manifold

HFM sensor

Intercooler

COMPONENTS LOCATOR

DI03-5

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

INTAKE SYSTEM

DI ENG SM - 2004.4

Y220_03003

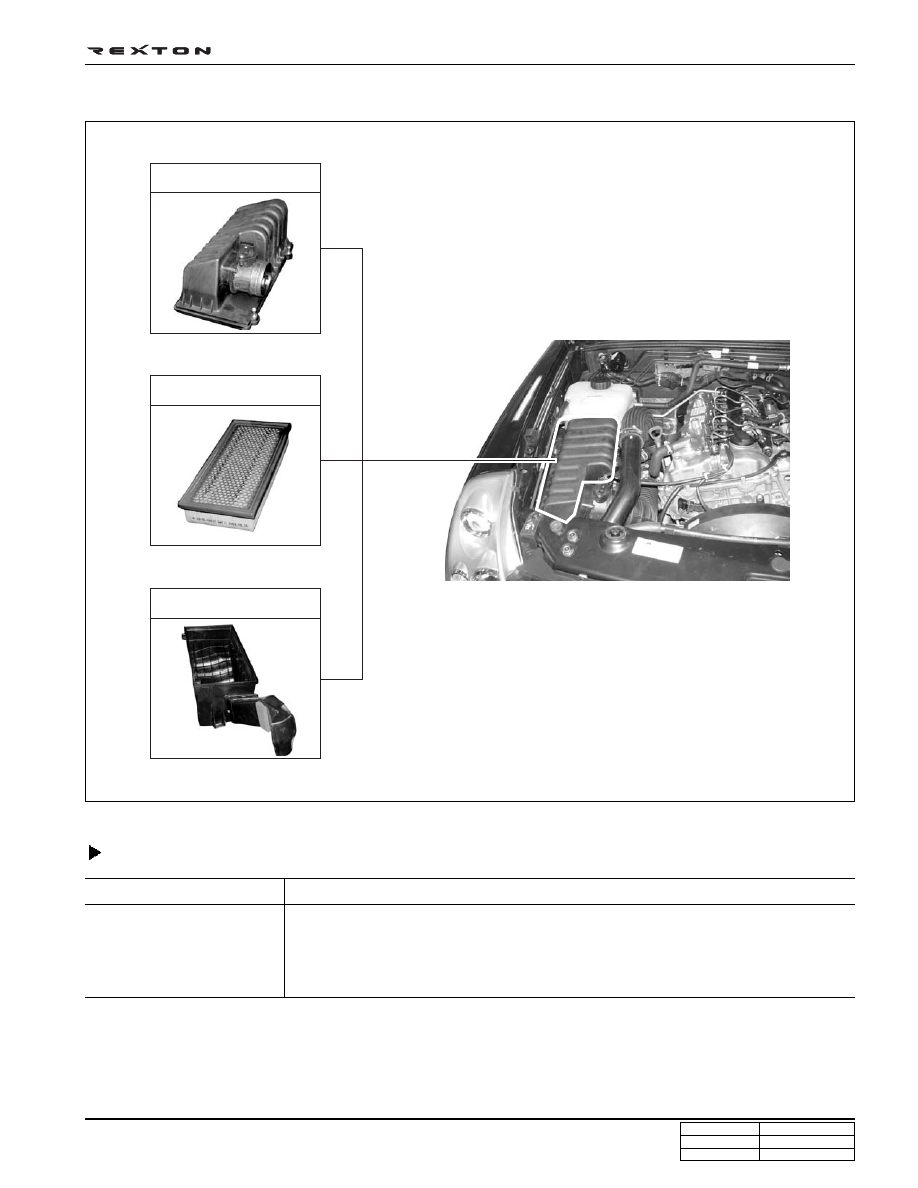

AIR CLEANER

Specifications

Cover

Element

Housing

Element Type

Dry-Element Type

* Initial cleaning: 5,000 km, Clean or change every 10,000 km as required.

However, change every 30,000 km.

* If the vehicle is operated under severe condition (short distance driving, extensive

idling or driving in dusty condition): More frequent maintenance is required.

Service Interval
